Once your project starts to grow it’s common to have multiple different sensors, from different vendors, measuring the same environmental parameter. Ideally, those sensors would produce the same readings in the same environment – but in practice there are significant offsets. Datasheets for the MS5837-02BA and MS5803-14BA that we will compare in this post claim an accuracy of (±0.5mbar) and (±2ºC) for the 2-bar while the 14-bar sensors are only rated to (±20mbar) and (±2ºC). Sensors from Measurement Specialties are directly code compatible so the units here were read with the same Over Sampling settings.
Barometric pressure from a set of nine MS58xx pressure sensors running on a bookshelf as part of normal burn-in testing. The main cluster has a spread of about 10millibar, with one dramatic outlier >20 mbar from the group. These offsets are much wider than the datasheet spec for those 2-bars sensors.
But this is only a starting point: manufacturers have very specific rules about things like the temperature ramps during reflow and it’s unlikely that cheap sensor modules get handled that carefully. Housing installation adds both physical stress and thermal mass which will induce shifts; as can the quality of your supply voltage. Signal conditioning and oversampling options usually improve accuracy, but there are notable exceptions like the BMP280 which suffers from self-heating if you run it at the startup defaults.
As described in our post on waterproofing electronics, we mount pressure sensors under mineral oil with a nitrile finger cot membrane.
Sensors like NTC thermistors are relatively easy to calibrate using physical constants. But finding that kind of high quality benchmark for barometric sensors is challenging if you don’t live near a government-run climate station. So we typicallyuse a normalization processto bring a set of different sensors into close agreement with each other. This is a standard procedure for field scientists, but it’s hard to find because the word ‘normalization’ means different things in various industry settings. In Arduino maker forums it usually describes scaling the axes from a single accelerometer with (sensor – sensor.min )/( sensor.max – sensor.min ) rather than standardizing a group of sensors.
When calibrating to a good reference you generally assume that all the error is in your cheap DIY sensor and then do a linear regression by calculatinga best fit linewith the trusted data on they Y axis of a scatter plot. However, even in the absence of a established benchmark you can use the same procedure with a ‘synthetic’ reference created by drawing an average from a group of sensors:
Note: Sensor #41 was the dramatic outlier more than 20millibar from the group (indicating a potential hardware fault) so this data is not include in our initial group average.
With that average you calculate y = Mx + B correction constants using the slope & intercept functions. This lets you copy/paste equations from one data set to the next which dramatically speeds up the process when you are working through several sensors at a time. It also recalculates those constants dynamically when you add or delete information:
The next step is to calculate the difference between the raw sensor data and the average: before and after these Y=Mx+B corrections have been applied to the original pressure readings. These differences between the group average and an individual sensor should be dramatically reduced by the adjustment:
After you copy/paste these calculations to each sensor, create x/y scatter plots of the residuals so you can examine them:
While the errors are now centered around zero, these graphs indicate that we are not quite finished. In the ideal case, residuals are soft fuzzy distributions with no observable patterns. But here we have a zigzag that is showing up in all the sensors. This is an indication that one (or more) of our sensors have an issue. Scrolling further along the columns identifies the offending sensors with nasty looking residual plots even after the corrections have been applied:
Sensor #41 (far right) was already rejected from the general average because of its enormous offset, but the high amplitude residual plots indicate that the data from #45 and #42 are also suspect. If we eliminate those two from the average the zigzag pattern virtually disappears from the rest of the sensors in the set:
There’s more we could learn from the residual distributions, but here we’ve simply used them to prune our reference data, preventing bad sensor input from harming the the average we use for our normalization.
And what do the sensor plots look like after the magic sauce is applied?
The same set of barometric pressure sensors, before and after normalization corrections. (minus #41 which could not be corrected)
It’s important to note that there is no guarantee that fitting your sensors to an average will do anything to improve accuracy. However, sensors purchased from different vendors, at different times, tend to have randomly distributed offsets. In those cases normalization improves both precision and accuracy, but the only way to know if that has happened is to validate against some external reference like the weather station at your local airport. There are several good long term aggregators that harvest METAR data from these stations like this one at Iowa State, or you can get the most recent week of data by searching for your local airport code at weather.gov
METAR is a format for weather reporting that is predominately used for pilots and meteorologists and they report pressure adjusted to ‘Mean Sea Level’. So you will have to adjust the MSL data before you can compare it to the pressure reported by your sensors. You will also need to know the exact altitude of your sensors when the data was gathered to remove the height offset between your location and the airport station.
Technically speaking, you could calibrate your pressure sensors directly to those official sources. However there are a lot of Beginner, Intermediate and Advanced details to take care of. Even then you still have to be close enough to know both locations are in the same weather system. Here I’m just going to use the relatively crude adjustment equation: Station Pressure = SLP – (elevation/9.2) and millibar = inchHg x 33.8639 to see if we are in the ballpark.
Barometric data from the local airport (16 miles away) overlayed on our normalized pressure sensors. It’s worth noting that the airport data is at a strange odd-minute intervals, with frequent dropouts which could complicate a real calibration.
Like most pressure sensors an MS58xx also records temperature because it needs that for internal calculations. So we can repeat the entire process with the temperature readings from this set:
Temperatures °C from a set of MS58xx Pressure sensors: before & after group normalization. Unlike pressure, this entire band was within the ±2ºC specified in the datasheet.
These sensors were sitting pretty far back on a bookshelf that was partly enclosed, so some of them were quite sheltered while others were exposed to direct airflow. So I’m not bothered by the spikes or the corresponding blips in those residual plots. I’m confident that if I had run this test inside a thermally controlled environment (ie: a styrofoam cooler with a small hole in the top) the temperature residuals would have been well behaved and smooth.
One of the loggers in this set had a calibrated NTC thermistor onboard. While this sensor had significant lag because it was located inside the housing, we can still use it to check if the normalized temperatures benefit from the same random distribution of errors that were corrected so nicely by the pressure normalization:
Once again, we have good alignment between a trusted reference and our normalized sensors.
Comments:
Normalization is a relatively low effort way to improve sets of sensors – and it’s vital if you are monitoring systems that are driven primarily by deltas rather than absolute values. This method generalizes to many other types of sensors although a simple y=Mx +B approach usually does not handle exponential sensors very well. As with calibration, the raw data used for normalization should span the range of values you expect to gather with the sensors later.
The method described here only corrects differences in Offset [with the B value] & Gain/Sensitivity [the M value] – more complex methods are needed to correct non-linearity problems. To have enough statistical weight for accuracy improvement you want a batch of ten or more sensors and it’s a good idea to exclude data from the first 24 hours of operation so new sensors have time to settle. Offsets are influenced by several factors and some sensors need to ‘warm up’ before they can be read. The code driving your sensors during normalization should be identical to the code used to collect data in the field.
All sensor parameters drift so, just like calibration, normalization constants have a shelf life. This is usually about one year, but can be less than that if your sensors are deployed in harsh environments. Fortunately this kind of normalization is easy to redo in the field, and it’s a good way to spot sensors that need replacing.
This post describes a thermistor calibration achievable by people who don’t have access to lab equipment with an accuracy better than ±0.15°C. This method is particularly suitable for the 10k NTC on our 2-module data logger handling them in a way that is easy to standardize for batch processing (ie: at the classroom scale). We use brackets to keep the loggers completely submerged because the thermal conductivity of the water around the housing is required or the two sensors would diverge. The target range of 0-40°C used here covers moderate environments including the underwater and underground locations we typically deploy into. This method is unique in that it uses the freeze process rather than melting ice for the 0°C data point.
Use stainless steel washers in your hold-downs to avoid contamination of the distilled water and provide nucleation points to limit super-cooling. Before creating this bracket we simply used zip-ties to hold the washer weights.
Reading the thermistor with digital pins uses far less power, and gives you the resistance of the NTC directly from the ratio of two times. Resolution is not set by the bit depth of your ADC, but by the size of the reservoir capacitor: a small ceramic 0.1µF [104] delivers about 0.01°C with jitter in the main system clock imposing a second limit on resolution near 0.01°C when using a small res-cap. However, this calibration procedure will work no matter what method you use to read your NTC thermistor.
The I2C reference sensor is connected temporarily during the calibration via Dupont headers.
Off-the-shelf sensors can be used as ‘good enough’ reference thermometers provided you keep in mind that most accuracy specifications follow a U-shaped curve around some sweet spot that’s been chosen for a particular application. The Si7051 used here has been optimized for the medical market, so it has ±0.1°C accuracy from 35.8 to 41°Celsius, but that falls to ±0.13 at room temperatures and only ±0.25 at the ice point. If you use some other sensor (like the MAX30205 or the TSYS01) make sure it’s datasheet specifies how the accuracy changes over the range of temperatures you are targeting.
While these technical sources of error limit the accuracy you can achieve with this method, issues like thermal lag in the physical system and your overall technique are equally important. In general, you want each step of this process to occur as slowly as possible. If the data from a run doesn’t look the way you were expecting – then do the procedure over again until those curves are well behaved and smooth.
Data Point #1: The freezing point of water
The most common method of obtaining a 0°C reference is to place the sensor into an insulated cup of stirred ice slurry that plateaus as the ice melts. This is fine for waterproof sensors on the end of a cable but it is not easily done with sensors mounted directly on a PCB. So we immerse the loggers in a 1200ml silicone food containerfilled withdistilled water. This is placed inside of a well insulated lunch box and the combined assembly is left in the freezer overnight, reading every 30 seconds.
Weighted holders keep each logger completely immersed. Soft-walled silicone containers expand to accommodate any volume change as the water freezes. This prevents the centrifuge tube housings from being subjected to too much pressure.
The outer lunch box provides insulation to slow the freezing process. After testing several brands it was found that the Land’s End EZ wipe and Pottery Barn Kids Mackenzie Classic boxes provided the best thermal insulation because they have no seams on the molded foam interior which doesn’t absorb water spilled while moving the container.
For the purpose of this calibration (at ambient pressure) we can treat the freezing point of pure water as a physical constant. So no reference sensor is needed on the logger while you collect the 0°C data. Leave the lunch box in the freezer long enough for a rind of ice to form around the outer edges while the main volume of water surrounding the loggers remains liquid. I left the set in this photo a bit too long as that outer ice rind is much thicker than it needed to be for the data collection.
The larger bubbles in this photo were not present during the freeze, but were created by moving the container around afterward.
The trick is recognizing which data represents the true freezing point of water. Distilled water super-cools by several degrees, and then rises to 0°C for a brief period after ice nucleation because the phase change releases 80 calories per gram while the specific heat capacity of water is only one calorie per degree per gram. So freezing at the outer edges warms the rest of the liquid – but this process is inherently self-limiting which gives you a plateau at exactly 0°C after the rise:
NTC (ohms) gathered during the freeze/thaw process with the y axis is inverted because of the negative coefficient. Several hours of warm temperature data has been removed from the graphs above to display only the relevant cold temperature data. Cooling the water from it’s initial room temperature starting point to the supercooling spike shown above took eight hours, and the complete thaw took another eight hours.
Depending on the strength of your freezer, and the quality of the outer insulating container, the ice-point may only last a few minutes before temperatures start to fall again. An average of the NTC readings from that initial peak is your 0°C calibration data point. This is usually near 33000 ohms for a 10k 3950 thermistor. Only the data immediately after super cooling ends is relevant and the insulated box can be removed from the freezer any time after that.
If the supercooling spike is not obvious in your data then change your physical configuration to slow the cooling process until it appears. You want the inner surface of your silicone container to have smooth rounded edges, as sharp corners can nucleate the ice at 0°C, preventing the supercooling. Use as much water as the container will safely hold. You do not want the water to freeze solid as this will subject the loggers to stress that could crack the housings.
Unexpected thermal excursions may happen if the freezer goes into a defrost cycle or an automatic ice-maker kicks in during the run. If you put the box in the freezer between 6-7pm, it usually reaches the supercooling point around 2am, reducing the chance that someone will open the freezer door at that plateau.
Data Point #2: Near 40°C
We have used the boiling point of water for calibration in the past, but the centrifuge tube housings would soften considerably at those temperatures. Ideally you want to bracket your data with equally spaced calibration points and 100°C is far from the conditions we monitor. Heated water baths can be found on eBay for about $50, but my initial tests with a Fisher Scientific IsoTemp revealed thermal cycling that was far too aggressive to use for calibration – even with a circulation pump and many layers of added insulation. So we created an inexpensive DIY version made with an Arctic Zone Zipperless Coldloc hard-shell lunch box and a 4×6 inch reptile heating mat (8 watt). Unlike the ice point which must be done with distilled water, ordinary tap water can be used to collect the warm data pairs.
These hard-sided lunch boxes can often be obtained for a few dollars at local charity shops.
Place the 8-watt heating pad under the hard shell of the lunch box. At 100% power this tiny heater takes ~24 hours to bring the bath up to ~38°C. The bath temp is relatively stable since the heater does not cycle, but it does experience a slow drift based on losses to the environment. The heating pads sell for less than $15 on Amazon.
To record the temperature inside each logger, an Si7051 breakout module (from Closed Cube) is attached to the logger. A hold down of some kind must keep the logger completely submerged for the duration of the calibration. If a logger floats to the surface then air within the housing can thermally stratify and the two sensors will diverge. That data is not usable for calibration so the run must be done again with that logger.
Data Point #3: Room Temperature
The loggers stay in the heated bath overnight, and then in the morning they are transferred to an unheated water-filled container (in this case a second Arctic Zone lunch box) where they run at ambient temperatures for another eight to twelve hours. This provides the final reference data pair:

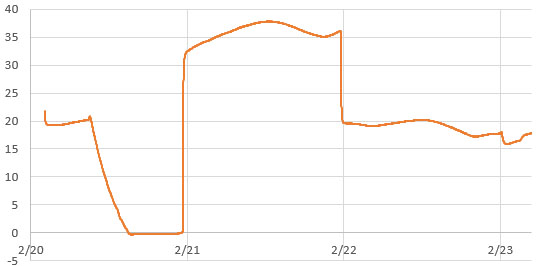

Si7051 temperature readings inside a logger at a 30 second sampling interval. The logger was transferred between the two baths at 8am. Both baths are affected by the temperature changes in the external environment.
Detail: Warm temp. NTC ohms (y-axis inverted)
Detail: Room temp. NTC ohms (y-axis inverted)
As the environment around the box changes, losses through the insulation create gentle crests or troughs where the lag difference between the sensors will change sign. So averaging several readings across those inflection pointscancels out any lag error between the reference sensor and the NTC. Take care that you average exactly the same set of readings from both the Si7051 and from the NTC data. At this point you should have three Temperature / Resistance data pairs that can be entered into the SRS online calculator to calculate the equation constants ->
I generally use six figures from the reference pairs, which is more than I’d trust in the temperature output later. I also record the Beta constants for live screen output because that low accuracy calculation takes less time on limited processors.
The final step is to use those constants to calculate the temperature from the NTC data with: Temperature °C = 1/(A+(B*LN(ohms))+(C*(LN(ohms))^3))-273.15
Then graph the calculated temperatures from the NTC over top of the original reference data from your commercial sensor. Provided the loggers were completely immersed in the water bath, flatter areas of the two curves should overlapone another precisely. However, the two plots will diverge when the temperature is changing rapidly because the NTC exhibits more thermal lag than the Si7051. This is because the NTC is located near the thermal mass of the ProMini circuit board.
Si reference & NTC calculated temperatures: If your calibration has gone well, the curves should be nearly identical as shown above. With exceptions only in areas where the temperature was changing rapidly or when the logger was exposed in air.
Also note that the hot and warm bath data points can be collected with separate runs. In fact, you could recapture any data pair and recalculate the equation constants with two older ones any time you suspect a run did not go smoothly. Add the constants to all of the data column headers, and record them in a google doc with the three reference pairs and the date of the calibration. Re-run the calibration in a year. You can then apply compensation techniques to correct for sensor drift in your dataset.
Validation
You should always do a final test to validate your calibrations, because even when the data is good it’s easy to make a typo somewhere in the process. Here, a set of nine calibrated NTC loggers are run together for a few days in a gently circulated water bath at ambient temperature –>
(Click to enlarge)
Two from this set are a bit high and could be redone, but all of the NTC temperature readings now fall within a 0.1°C band. This is a decent result from a method you can do without laboratory grade equipment, and they could be brought even closer together by normalizing the set.
Comments
Calibrating the onboard thermistor a good idea even if you plan to add a dedicated temperature sensor because you always have to do some kind of burn-in testing on a newly built logger – so you might as well do something productive with that time. I generally record as much data as possible during the calibration to fill more memory and flag potentially bad areas in the EEprom. (Note: Our code on GitHub allows only 1,2,4,8, or 16 bytes per record to align with EEprom page boundaries) . And always look at the battery record during the calibration as it’s often your first clue that a logger might not be performing as expected. It’s also worth mentioning that if you also save the RTC temperatures as you gather the NTC calibration data, this procedure gives you enough information to calibrate that register. The resolution is only 0.25°C, but it does give you a way to check if your ‘good’ temperature sensors are drifting because the DS3231 tends to be quite stable.
For any sensor calibration the reference points should span the range you hope to collect later in the field. To extend this procedure for cold climates you could replace the ice point with the freezing point of Galinstan (-20°C) although a domestic freezer will struggle to reach that. If you need a high point above 40°C, you can use a stronger heat source. Using two of those 8 watt pads in one hard sided lunch box requires some non-optimal bending at the sides, but it does boost the bath temp to 50°C. 3D printed hold-downs will start to soften at higher temps so you may need to alter the design to prevent the loggers from popping out.
If your NTC data is so noisy you can’t see where to draw an average, check the stability of your regulator because any noise on the rail will affect the Schmitt trigger thresholds used by the ICU/timer. This isn’t an issue running from a battery, but even bench supplies can give you noise related grief if you’ve ended up with some kind of ground loop. You could also try oversampling, or a leaky integrator to smooth the data – but be careful to apply those techniques to both the reference and the NTC readings in exactly the same way because they introduce significant lag. Also note that the digital pin ICU based method for reading resistors does not work well with temperature compensated system oscillators because that circuitry could kick in between the reference resistor and NTC sensor readings.
And finally, the procedure described here is not ‘normalization’, which people sometimes confuse with calibration. In fact, it’s a good idea to huddle-test your sensors in a circulating water bath after calibration to bring a set closer together even though that may not improve accuracy. Creating post-calibration y=Mx+B correction constants is especially useful when monitoring systems that are driven by relative deltas rather than by absolute temperatures. Other types of sensors like pressure or humidity have so much variation from the factory that they almost always need to be normalized before deployment – even on ‘commercial’ loggers. Normalize your set of reference sensors to each other before you start using them to calibrate your NTC sensors.
Cr2032Internal Resistance vs mAh [Fig6 from SWRA349] Our peak load of ~8 mA while writing data to the EEprom creates a voltage drop across the battery IR. The load induced transient on the 3v Cr2032 can’t fall below 2.775v or the BOD halts the 328p processor. This limits our useable capacity to the region where battery IR is less than 30 ohms. This also makes it critical to control when different parts of the system are active to keep the peak current as low as possible.
Reviewers frequently ask us for estimates based on datasheet specifications but this project is constantly walking the line between technical precision and practical utility. The dodgy parts we’re using are likely out of spec from the start but that’s also what makes our 2-module data loggers cheap enough to deploy where you wouldn’t risk pro-level kit. And even when you do need to cross those t’s and dot those i’s you’ll discover that OEM test conditions are often proscribed to the point of being functionally irrelevant in real world applications. The simple question: “How much operating lifespan can you expect from a coin cell?” is difficult to answer because the capacity of lithium manganese dioxide button cells is nominalat best and wholly dependent on the characteristics of the load. CR2032’s only deliver 220mAh when the load is small: Maxell’s datasheet shows that a 300 ohm load, for a fraction of a second every 5 seconds, will drop the capacity by 25%. But if the load falls below 3μA then the battery develops high internal resistance, reducing the capacity by more than 70%.

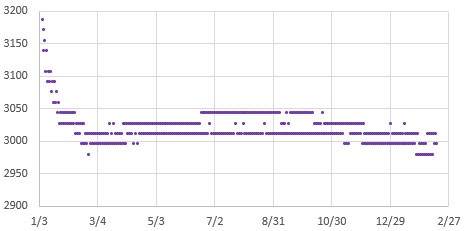

Voltage Under EEprom load VS date [runtime hours in legend] with red LED on D13 driven HIGH for 1.4mA sleep current, 30second interval, 8-byte buffer. These are serial tests performed on the same logger. 1.4mA continuous is probably is not relevant to our duty cycle.
Surprisingly little is known about how a CR2032 discharges in applications where low μA level sleep currents are combined with frequent pulse-loads in the mA range; yet that’s exactly what a datalogger does. Normal run tests take so long to complete that you’ve advanced the code in the interim enough that the data is stale. Another practical consideration is that down at 1-2μA: flux, finger prints, and even ambient humidity skew the results in ways that aren’t reproducible from one run to the next. So a second question is “How much can you accelerate your test and still have valid results?” Datasheets from Energiser, Duracell, Panasonic and Maxell reveal a common testing protocol using a 10-15kΩ load. So continuous discharges below 190μA shouldn’t drive you too far from the rated capacity. Unfortunately, that’s well below what you get with affordable battery testers, or videos on YouTube, so we are forced yet again to do empiricaltesting.
The easiest way to change our base load is to leave the indicators on: all three LEDs will add ~80μA to the sleep current when lit using internal the pullup resistors. 80μA is ~16x our normal 5μA sleep current (including RTC temp conversions). A typical sampling interval for our work is 15min so changing that to 1 minute gives us a similarly increased number of EEprom saves. With both changes, we tested several brands to our 2775mv shut-down:

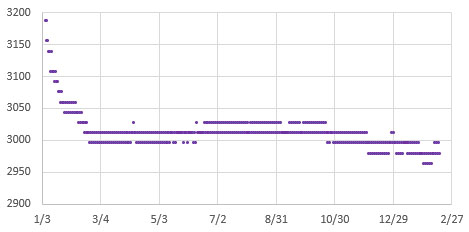

Cr2032 Voltage Under EEprom Load VS Date: Accelerated Cr2032 run tests with 3xLED lit with INPUT_PULLUP for ~80μA sleep current although each unit was slightly different as noted, 1min sampling interval. Blue Line = Average excluding Hua Dao. CLKPR reduced system clock to 1MHz during eeprom save on this test to reduce peak currents to about 6mA.
Note: With the slight variation between each loggers measured sleep current, the times listed here have been adjusted to a nominal 80μA. Also note that the price/cell is highly dependant on vendor & quantity.
Despite part variations these batteries were far more consistent on that 20 ohm plateau than I was expecting. This 16x test gives us a projected runtime of more than two years! That’s twice the estimate generated by the Oregon Embedded calculator when we started building these loggers. We did get a 30% delta between the name brands, but these tests were not thermally controlled and we don’t know how old the batteries were before the test. The rise in voltage after that initial dip is probably the pulse loads slowly removing the passivation layer that accumulates during storage. The curves are a bit chunky because the 328P’s internal vref trick has a resolution of only 11mv, and we index-compress that to one byte which results in only 16mv/bit in the logs.

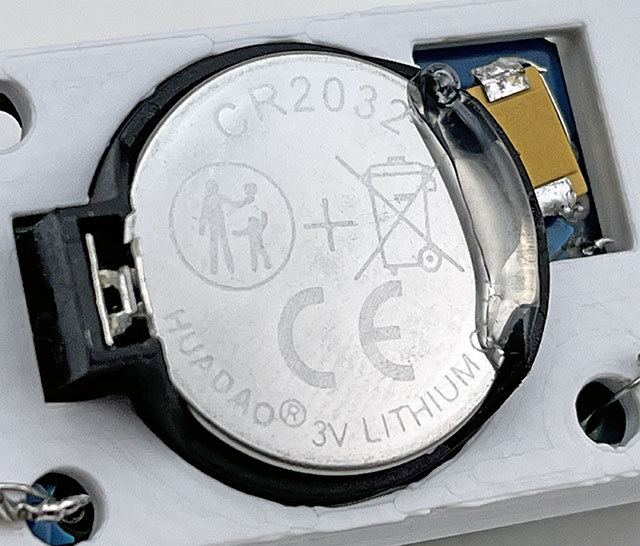

One notable exception is the no-name Hua Dao cells, which I tested because, at only 14¢ each, they are by far the cheapest batteries on Amazon. We have many different runs going at any one time, and to make those inter-comparable you need to start each test with a fresh cell. Even if the current run test doesn’t need a batteries full capacity sometimes you just need to eliminate that variable while debugging. You also use a lot of one-shots for rapid burn-in tests so it makes sense for them to be as cheap as possible. Now that I know Hua Dao delivers less than half the lifespan of name brand cells, I can leverage that fact to run some of the tests more quickly. I had planned on doing this with smaller batteries but the Rayovac Cr2025 I tested ran for 1035 hours – much longer than the Hua Dao Cr2032!
Cr2032’s used since January for bench testing.
Testing revealed another complicating factor when doing battery tests: With metal prices sky-rocketing, fake lithium batteries are becoming more of a problem. We’ve been using Sony Cr2032’s from the beginning of the project but the latest batch performed more like the Hua Dao batteries. This result was so unexpected that I dug through the bins for some old stock to find that the packaging looked different:
Fake (left) vs Real (right)
On closer inspection it didn’t take long to spot the fraud:
Fake Sony Battery : laser engraved logo
Real Sony Battery: Embossed logo
More tests are under way so I’ll add those results to this post when they are complete. A couple of the 80μA units have been re-run after removing the 227E 25V220μF rail buffering caps, confirming that the tantalum does not extend overall run time on good quality batteries very much because their internal resistance rises very slowly, but they can more than double the lifespan with low quality batteries like the Hua Dao. 1000μF rail caps have higher 1μA leakage so they start reaching the point of diminishing returns for long deployments: only adding about 35% to total runtime unless you have a high drain sensor. It’s also worth mentioning that the spring contacts on those RTC modules are quite weak and may need a bit of heat shrink tubing behind them to strengthen the connection to the flat surface of the coin-cell.
Northern caves hold near 5°C all year round, so the current set is running in my refrigerator. I will follow that with hotter runs because both coin cell capacity AND self-discharge are temperature dependant. We also plan to start embedding these loggers inside rain gauges which will get baked under a tropical sun .
Addendum 2023-08-01
This summers fieldwork required all of the units in my testing fleet so I only have a handful of results from the refrigerator burn down tests [at an average temp of 5°C]. The preliminary outcome is that, compared to the room temperature burns, the lithium cell plateau voltage lowers between 80-100mv (typically from 2995mv to 2890mv). Provided the loggers were reading a low drain sensor the ‘cold’ lifespan was only about 20% shorter because the normal 50-70mv (sensor reading / eeprom save) battery droop only becomes important after the battery falls off its 20 ohm plateau. This is approximately the same lifespan reduction you see running at room temp without a rail buffering capacitor – as the buffer also only comes into play when the battery voltage is descending. This is also the reason why the larger 1000μF rail capacitors usually only provide about 15-20% longer life than the 220μF rail caps as the reduced battery droop with the larger cap only matters when the cell is already nearing end of life. Net result is that increasing to 1000μF rail buffer almost exactly offsets the lifespan losses at colder ambient temps around 5°C . But at normal room temps the 2μA leakage of a 6v 1000μF [108j] tantalum removes most of it’s advantage over the 25v 220μF [227e] which has ~5nA leakage at 3 volts. And whenever you see anomalously high sleep currents on a logger, your first suspect should be a defective or over-heated tantalum rail buffering capacitor. Also note that some caps seem to need a few hours to ‘burn in’ before they are saturated enough to measure their leakage properly. A final gotcha to be aware of is that some DS3231 RTCs will assert an alarm on SQW even if the alarm enable bits in the register have been properly cleared. This will draw a constant 680-700μA through the 4k7 pullup resistor on the module until an I2C bus transaction sets a new alarm or halts the RTC oscillator.
The freezer results are an entirely different situation where are only seeing a few days of accelerated 100μA sleep current operation because at -15°C the coin cell plateau is below our 2775mv shutdown cutoff. So the logger only operates for the brief span of time where the new CR2032 is still above its rated nominal voltage. Even the 1000μF cap will not fix that problem – you need a different battery chemistry. With the loggers drawing the normal 2-5μA sleep current they run ok in the freezer, in fact we use waters 0C phase transition as a physical reference when calibrating onboard NTC thermistors.
Arielle Ginsberg examines the sponges covering a flow sensor deployed in a coastal outflow canyon.
How to waterproof electronics? Basically it’s a combination of cleaning, coating, encapsulation & housings. We’ve been deploying our loggers under water since 2013 and although I posted many detailed build tutorials along the way, it’s time to gather some of that distributed material into a summary of the techniques we use to make our loggers more reliable. This post will focus on options available to someone working with a modest budget and also include a few interesting methods we haven’t tried yet for reference. To put all this in context; we deploy our DIY loggers to typical sport diving depths and usually get solid multi-year operation from our underwater units.
No matter what coating you use, everything must be scrupulously clean before it’s applied. Corrosion inducing flux is hydroscopic and there’s always some left hiding underneath those SMD parts – especially on cheap eBay modules. That means scrubbing those boards with alcohol and an old toothbrush, drying them with hot air & cotton swabs, and then handling by the edges afterward. Boards with only solid-state parts (like the ProMini) can be cleaned using an ultrasonic cleaner and 90% isopropyl but NEVER subject MEMS sensors or RTC chips to those vibrations. Polymer based RH sensors like the BME280, or MS5803 pressure sensors with those delicate gel-caps, also get careful treatment. After cleaning, let components to dry overnight in a warm place before you coat them with conformal. I clean new modules as soon as they arrive, and store them in sealed containers with desiccant.
This $25 jewelry cleaner gets warm during the 5 -10min it takes to get the worst parts clean so I run this outside to avoid the vapours.
MG Chemicals 422-B Silicone Modified Conformal Coating is the one we’ve used most over the years. Even with a clean board, adhesion to raised ICs can be tricky as surface tension pulls it away from sharp edges. Like most conformals, 422-B fluoresces under UV-A so a hand-held blacklight lets you check if it’s thin at some corner, or if you simply missed a spot. The RC/Drone crowd regularly report on many of the other options on the market like Corrosion-X, Neverwet, KotKing, etc. I’ve never seen a head-to-head test of how well the different conformals stand up over time, but the loggers we’ve retired after 5-6 years in service look pretty clean even though silicone coatings are not water vapour proof. I like the flow characteristics of 422 for our small scale application, though the vapours are nasty enough to make you wonder how much brain damage your project is really worth. You can also just burn the stuff off with a soldering iron if you need to go back for quick modification after its been applied. Conformals can be made from other compounds like acrylic or urethane, and at the top of the market you have vacuum-deposited coatings like Parylene.
Nail polish gets mentioned frequently in the forums and it’s usually a type of nitrocellulose lacquer. While it’s non-conductive and non-corrosive, acetate chemistry is not far off acetone which solvates a lot of stuff. So nail polish may soften some plastics and/or the varnish protecting your PCBs. It might also wipe the lettering off some boards. So the trick is to start with the thinnest layer possible and let that harden completely before applying further coats. Nail polish softens somewhat when heated above 200°C with a hot air gun enabling you to scrape it away if you need to rework something after covering. Overall it’s a good low-budget option that’s less complicated to apply than a UV cured solder mask solution.
One of our many early failures before we decided to use only transparent epoxies. The outer surface of this epoxy was intact; giving no hint of what was happening below.
Some epoxies permit slow water vapour migration leading to corrosion at points with leftover flux. Like the white example above, this potting was still OK at the surface. Both of these two failures pre-date our use of conformal oneverything.
You never get 100% coverage so the areas underneath components usually remain unprotected. But coatings really shine as a second line of defence that keeps your logger going when the primary housing suffers minor condensation or makes the unit recoverable after a battery leak. Even when we intend to pot a circuit completely, I still give it a thin coat of conformal to protect it during the week long burn-in test before encapsulation. (If you are using cheap sensors from eBay, expect ~20% infant mortality) Be careful not to let coatings wick onto metal contacts like those inside an SD card module or USB connector and remember to seal the cut edges of that PCB so water can’t creep between the layers.
The delicacy of application required when working with IC sensors means that spray-on coatings are usually a bad idea, but there are exceptions. Paul over at Hackaday reports success using clear acrylic spray paint as a kind of poor man’s Parylene after “comparing the MSDS sheets for ‘real’ acrylic conformal spray coatings, and acrylic paint. All that’s missing is the UV indicator, and the price tag.” He uses this technique in outdoor electrical boxes but the first thing that comes to my mind is coating the screw terminals inside most rain gauges (see photo at end of post), and the exposed bus-bars you see in some climate stations.
Potting / Encapsulation
Hot glue is a quick way to seal one side of pass-through so you can pour liquid epoxy on the other.
Hot-melt Glue: Glue sticks come in a variety of different compounds. But it’s hard to know what’s in the stuff at your local hardware store so my rule of thumb is to just buy the one with a higher melting point. If you are gluing to something with a high thermal mass or a surface that can transfer heat (like copper PC board) the glue will freeze before it bonds. So preheating the item you are working on with a hot air gun before gluing is usually a good idea. I’ve used glue sticks for rough prototypes more times than I can remember, sometimes getting several months out of them before failure in outdoor locations. Cheaper no-name sticks tend to absorb a lot of water(?) and have more trouble sticking to PCB surface coatings. So it’s a temporary solution at best unless you combine it with something more resistant like heat shrink tubing. Add glue to what you’re sleeving, and it will melt and flow when you shrink – effectively a DIY adhesive lined heatshrink:
Here I used leather gloves to squeeze the hot-melt glue inside adhesive lined heat-shrink until it covered the circuit without bubbles. This one lasted ~8 months and then we switched to epoxy fills.
Hot glue is also quite handy for internal stand-offs or just holding parts together if they are too irregularly shaped for double-sided mounting tape to do the job. Isopropyl alcohol helps remove the glue if you need to start over.
Superglue & Baking Soda: These dollar-store items are perfect for sealing & repairing the polymer materials that most waterproof kit is made from. Adam Savage has a great demo of this on YouTube. That gusseting build-up technique is so fast it now accomplishes many of the things I used to do with hot glue. CA glue & spray-on accelerant can also be used to improve the strength of 3D prints, as demonstrated by the ever-mirthful Robert Murray-Smith. The sealed surface of your print can then be written on with a sharpie marker without the black ink bleeding into the PLA layers, although I also use clear mat-finish nail polish for this labeling.
At this scale the viscosity of your encapsulating material is as important as any vapours it might give off. To avoid wicking problems, a ring of ‘dry’ plumbers putty can secure a filter cap over the sensor after the liquid potting compound sets.
Silicone Rubber comes in two basic types: ‘Acid cure’ which smells like vinegar and ‘Neutral cure’ which gives off alcohol while it hardens (often used in fish-tank sealants). Never use acid curing silicone on your projects. Hackaday highlighted a method using Tegderm patches to give silicone encapsulations a professional appearance although you can usually smooth things well enough with a finger dipped in dish detergent. In another Hackaday post on the subject, a commenter recommends avoiding tin-cured RTV silicones in favor of platinum cured which has longer lifespan and less shrinkage. Really thick silicone can take several days to cure but accelerants like corn-starch or reptile calcium powder can cut that to a few hours. It’s also worth knowing that silicones expand/contract significantly with temperature because this can mess with builds using pressure or strain sensors.
The $5 3440 Plano Box housings we use on the classroom loggers stand up to the elements well enough in summer months, but rarely have an adequate seal for the temperature swings in fall or winter. Judging by this post over at AVRfreaks, this is a common issue with most of the premade IP68 rated housings on Ebay/Amazon.
While silicone is waterproof enough for the duration of a dive it is NOT water-vapor proof. I often use GE Silicone II (or kafuter K-705) to seal around the M12 cable glands we use on student projects. However, water vapor eventually gets in when the housings “cool down & suck in moist air” causing condensation on the upper surface. Any container sealed with SR will eventually have an internal relative humidity comparable to the outside air unless your desiccants prevent that from happening. Always use desiccants with color indicator beads so you can see when they need to be replaced. Old desiccant pouches can be ‘recharged’ overnight in a food dehydrator and used ones can usually be found for ~$10 at your local thrift shop. Dehydrators are also great for reviving old filament if you have a 3d printer.
Liquid Epoxy: If money is no object, then there are industrial options like Scotchcast but many come in packaging that dispenses volumes far too large for a small batch of loggers. The best solution we could find at the start of this project was Loctite’s line of 50mL 2-part epoxies designed for a hand-operated applicator gun. Used guns can be found on eBay and there are plenty of bulk suppliers for the 21-baffle mixing nozzles at 50￠each or less. Loctite E-30CL has performed well over years of salt-water exposure on our PVC housings though it does fog & yellow significantly after about six months. Check the expiry datebefore buying any epoxy because they harden inside the tube when they get old. I’ve often received epoxies from Amazon that are only a month or two from expiring, so don’t buy too much at one time. And they don’t last long once you crack the seal, so I usually line up several builds to use the entire tube in one session.
A background layer of black EA E-60NC potting compound was used to improve the visual contrast. Once that set aclear acrylic disk was locked into place over the OLED with E-30CL epoxy – taking care to avoid bubbles. The acrylic does not yellow like the epoxy and can be thick enough to protect relatively delicate screens from pressures at depth.
A short piece of adhesive lined heat shrink seals one end of the clear tube to the cable. Epoxy is added to fill about 1/3 the volume. Then gentle heating shrinks the clear tube from the bottom up until the epoxy just reaches the top. Another adhesive lined ring seals the epoxy at the top of the tube. Then gentle heating of the clear heatshrink contracts it into a smooth cylinder. Extra rings are added to strengthen the ends.
We’ve deployed up to 24 DS18b20 sensors on a single logger running underwater for years – failing eventually when the wires broke inside intactcable jackets because of the bending they received over several deployments. This mounting takes a bit of practice, so have a roll of paper towels nearby before you start pouring and I usually do this over a large garbage can to catch any accidental overflow.
This image shows the typical appearance of E30CL after several months in seawater. The brown dot is a marine organism that bored into the epoxy, but they have never tried to drill through the housing itself… which says something about the toxicity of polyvinyl chloride.
The 2-Part fiberglass resins used for boat repair are another good potting option though they are often opaque with unusual coloration. Low viscosity mixes can be applied with precision using disposable syringes. It’s important that you transfer the stirred resin into a second container before pulling it into the syringe because there’s often a poorly mixed layer stuck to the sides of the first mixing cup. 3D printed shells are often used as casting molds but if all you just need is a rectangular shape then I’d use a LEGOframe lined with plastic food wrap. You can make single-use molds that conform to unusual shaped objects with sheets of modeling clay. When encapsulating large volumes you can make that expensive epoxy go farther with ‘micro-balloon’ fillers made from tiny phenolic or glass spheres. I’ve used old desiccant beads for this many times. Other inert fillers like talc power are sometimes used the lower peak temps during the curing process because fast setting epoxies get quite hot – sometimes too hot to touch. And speaking of heat, all encapsulation methods open the possibility that high power components could cook themselves. So avoid covering any heat sinks when you pot your boards.
Filler / Paste Epoxies: J-B weld is good low-budget option for exposed sensor boards. This two part urethane adhesive bonds well to most plastic surfaces and the filler it carries gives a working consistency somewhere between peanut-butter and thick honey. This is helpful in situations where you want to mount something onto a relatively flat surface like the falcon tubes we use with our 2-part Mini Loggers:
This BMP280 module already has a coating of conformal.
Shift the epoxy to the edges of the sensor with a toothpick
Although the original grey formulation gets it’s color from metal filings it is an electrical insulator. The older style JB weld that comes in two separate tubes is slightly thicker than that sold with an applicator syringe. It’s also worth noting that the stuff really needs at least 24 hours to set – not the 6 hours they claim on the package. There is also a clear version that can be used to protect light sensors, but I’ve yet to field test that in harsh enough conditions to see how it ages:
JB can also be used to secure delicate solder connections.
PTFE tape is a good diffuser if light levels get to high.
A JB-weld coated DS18b20 after 6 months in the ocean. Specks of iron-particle rust can be seen, but when I broke away the coating the can underneath was still clean & shiny.
Wax: I haven’t tried this yet but it sounds like it could be fun: Refined paraffin can be purchased in food grade blocks for sealing jars, etc. at most grocery stores and it flows well into small component gaps. It’s also removeable, however the 45°C melting point which makes this possible is too low for outside deployments where I’ve seen loggers reach 65°C under tropical sun. A tougher machinable-wax can be made at home by mixing LDPE (plastic grocery bags) or HDPE (food containers) into an old deep fryer full of paraffin wax. The general recipe is a 4:1 ratio of paraffin to LDPE/HDPE and this raises the melting point enough to withstand summertime heat. Or you could try Carnauba wax which has a melting point above 80°C. You probably want to do partial pours with any wax based approach as shrinkage can be significant. If I had to make something even more heat resistant I’d consider an asphalt-based roofing cement. That’s a one-way trip, but it should last quite a while outside.
If you’re spending company money, it’s worth noting that many professionalpotting compounds like those from 3M are sold in hot-melt glue stick formats [usually 5/8″(16mm) diameter rather than the more common hobby market 1/2″]. This dramatically reduces waste & mess compared to working with liquid epoxies. Of course, it’s unlikely a DIYer will be able to use them as the applicators alone can set you back $300 to $600 USD. Another factor to consider is the different expansion rates of the circuit you are trying to protect vs the compound you are using for the encapsulation: hard epoxies may cause electrical failures by subjecting components to more stress when the environment is cycled between extreme temperatures. In those cases it is probably better to use softer compounds.
Housings & Connectors
Although 3D printers are now affordable, we still use plumbing for our underwater housings so that others can replicate them with parts from their local hardware store. The design has changed significantly over time but this tutorial video from 2017 still stands as the best overall description of the ‘potting wells’ method we use to mount sensors on those PVC housings. It also shows how to make robust underwater connectors using PEX swivel adapters:
Smooth surfaces on the inside of those wells are scored with a wire brush or rough grit sandpaper before pouring the epoxy. After solvent welding, leave the shells to set overnight before adding epoxy because bad things happen when you mix chemistries. In fact, that’s a good rule for all of things listed in this post. Otherwise that expensive potting compound could turn into a useless rubbery mess. Another important thing to note is that we break the incoming wires with a solder joint that gets encapsulated before the housing penetration. This is more reliable than cable glands because water can’t wick along the wires if the jacket gets compromised. The shell shown in that video uses a Fernco Qwik-Cap as the bottom half of the housing and quite a few Qwik-cap housings have survived years under water although the flexing of that soft polymer limits them to shallower deployments. So these wide-body units get used primarily for drip loggers & surface climate stations. It’s worth noting that water vapour slowlymigrates through the plasticknockout cap on the upper surface of our drip counters. So they require fresh desiccants once a year even though the logger could run much longer than that. A reminder that over the time scales needed for environmental monitoring, many materials one thinks of as ‘waterproof’ are not necessarily vapour proof.
For underwater deployments we developed a more compact screw-terminal build that would fit vertically into a 2″ cylindrical body. After many struggles with salt water corrosion we gave up on ‘marine grade’ stainless steel and started using nylon bolts to compress the O-ring. But these need to be tightened aggressively as nylon expands in salt water (we usually pre-soak the bolts overnight in a glass of water before sealing). Nylon expansion has also caused problems with the thick 250lb ties we use to anchor the loggers. In a high humidity environments, cheap nylon zip ties become brittle and break, while expensive industrial ties stretch and become loose. We’re still looking for better options but when you are working under water, you need something that can be deployed quickly.
We’ve tried many different epoxy / mounting combinations on the upper cap of those housings, but with the exception of display screens we stopped using the larger wells for underwater units because the wide flat disk of epoxy flexes too much under pressure. This torsion killed several sensor ICs on deployments below 10m even though the structure remained water-tight.
As our codebase (and my soldering skills) improved we were able to run with fewer batteries – so the loggers became progressively smaller over time. Current housings are made from only two Formufit table leg caps and ~5cm of tubing. The same swivel adapter used in our underwater connector now joins sensor dongles to the housing via threaded plugs. Sensor combinations can be changed easily via the Deans micro connectors we’ve used since the beginning of the project. Though the photo shows two stacked o’rings, we now use shorter bolts and only one. See this post for more details on the construction of this housing.
EPDM O-rings lose much of their elasticity after a couple of years compressed at 20-25m, so for deeper deployments I’d suggest using a more resilient compound. And there are now pre-made metal housing options in the ROV space that didn’t exist at the start of this project. With the dramatic size reduction in recent models, you occasionally find a good deal on older Delrin dive-light housings on eBay. Another interesting option is household water filter housings made from clear acrylic. They were too bulky for our diving installations, but this Sensor Network project at UC Berkeley illustrates their use as surface drifters.
Other Protection Methods
Mineral oil: PC nerds have been overclocking in tanks of mineral oil for ages, so it’s safe at micro-controller voltages. It’s also used inside ROV’s with a flexible diaphragm to compensate for changes in volume under pressure. Usually a short length of Tygon tubing gets filled with oil and stuck out into the water, or the tube can be filled with water and penetrates into the oil-filled housing. We use a similar idea to protect our pressure sensors from salt water:
The MS5803 pressure sensor is epoxied into a 1/2″-3/4″ male PEX adapter and a nitrile finger cot is inserted into the stem of a matching swivel adapter.
The sensor side gets filled to the brim with mineral oil
The two pieces are brought together
Then tighten the compression nut and use a lubricated cotton swab to gently check that the membrane can move freely.
Moving those membrane-protected sensors onto a remote dongle makes it much easier to recover the sensor after a unit gets encrusted with critters. Oil mounts have worked so well protecting those delicate MS58 gel-caps that I’ve now started using this method with regular barometric sensors like the BMP280. This adds thermal lag but there’s no induced offset in the pressure readings provided there’s enough slack in the membrane. Silicone oil is another option, and I’ve been wondering about adding dye so that it’s easier to spot when those membranes eventually fail. I avoid immersing any components with paper elements, like some old electrolytic capacitors, or parts that have holes for venting.
Bio-fouling on one of our loggers deployed in an estuary river. We only got three months of data before the sensor was occluded.
We remove calcareous accretions by letting the housings sit for a few hours in a bucket of dilute muriatic acid. Many of our loggers get this treatment every season.
Cable Protection: For the most part this comes down to either strain relief, or repairing cuts in the cable jacket. Air curing rubbers like Sugru are fantastic for shoring up worn cables where they emerge from a housing though I usually use plumbers epoxy putty for that because I always have it on hand for the housing construction. Sugru is far less effective at repairing cables than something that’s cheaper but less well known: self-fusing rubber electrical sealing tape (often called ‘mastic’ or ‘splicing’ tape). This stuff costs about $5 a roll and has no adhesive: when you wind it around something it sticksto itself so aggressively that it can not be unstuck afterward, yet remains flexible in all directions. This makes it perfect for repairs in the middle of a cable and we’ve seen it last months under water though it quickly becomes brittle under direct sun. And it does the job in places you can’t reach with adhesive lined heat shrink. I usually slap a coat of plasti-dip or liquid electrical tape over top of those repairs. This improves the edge seal and makes the patch look better. Self-fusing tape is also great for bulking out cables that are too thin for an existing cable gland, or combining several wires into a water-tight round-profile bundle for a single gland.
However the best advice I can give is to simply avoid the temptation of soft silicone jacket cables in the first place. Yes, they handle like a dream under water, but you will pay for it in the long run with accidental cuts and hidden wire breaks due to all that flexing. Another hidden gotcha is that silicone compresses at depth which brings the wires closer together – potentially increasing the capacitance of a long bus enough to interfere with sensor handshakes. Our go-to after many years at the game is harder polyurethane jacketed cables (like the ones Omega uses for their thermistors) It’s a pain in the arse to strip & solder, but you can pretty much drive a truck over it. And somehow that kind of thing always happens at least once during a field season.
Lost count of how many times ants/wasps have bunged up our rain gauges. And I should have coated those screws…
Double housings: Instead of sealing the housing to block out humidity, control the point where it condenses by surrounding an inner plastic housing with a second outer shell made of aluminum. Then let everything breathe naturally with the idea that condensation will happen first on the faster cooling aluminum, thereby protecting the inner components. I’ve heard of this being used for larger commercial monitoring stations but I’ve never been brave enough to try it myself. You want some kind of breathable fabric membrane over any vent holes to keep out dust (to IP6) and especially insects because if there’s a way into your housing they will find it and move in. Another simple but related trick is to fill any void spaces inside your housing with blocks of styrofoam: this minimizes the total volume of air exchanged when the temperature swings.
Addendum 2023-05-24: Testing Underwater Housings
People reading this post might also be interested in the DIY pressure chamber which we’ve been using to test our little falcon tube loggers. It’s made from a household water filter canister, with a total cost of about $70usd. The domestic water pressure range of 40-80psi overlaps nicely with sport diving depths. The 30mL tubes are stronger for single sensor builds, but the 50mL tube provide more space for our 2-Module classroom data logger. This model uses two mini breadboards for convenient sensor swaps.
This ‘two-part’ logger fits nicely inside a 50mL Falcon tube. With a bit of practice, soldering the Pro Mini & RTC together takes ~30 minutes. The 4K EEprom on the RTC board will hold 4096 1-byte RTC temperature readings (~ 40 days worth @ 15 min. intervals) and that’s easily extended with $1 memory chips or modules.
The EDU build we released in 2020 provides remarkable flexibility for courses in environmental monitoring. However an instructor still needs to invest about five days ordering parts, testing components, and preparing kits for a 15-20 seat course being run remotely. (only 1/2 that is needed for in-person courses where the students pin & test the parts themselves). While that’s not unusual for university-level lab based subjects it is something of a stretch for high school teachers. And thanks to COVID chip shortages, modules that were only 99¢ at the beginning of this project could now set you back $5 each. So with all that in mind, we’ve continued development of a ‘lite’ version of our logger with the lowest possible prep time. That new baby is now ready for release with data download & control managed through the IDE’s serial monitor window.
With just three core components as our starting point, the only hardware option was to remove the SD card. Groundwork for this change was already in place with our use of an EEprom to buffer data so that high-drain SD saves only occurred once per day. Getting rid of power hungry cards also opened up the possibility of running the entire unit from the coin cell on the RTC module. But a power budget that small will necessarily add complexity to the base code, which must minimize run-time even though EEproms are notoriously slow devices. And most garden-variety memory chips have a lower limit of 2.7v – so a nominal 3v CR2032 can only be allowed to fall about 250mv under load before we run into trouble. That voltage drop increases over time because the internal resistance of a coin cell is only 10 ohms when new, but approaches 100 ohms by end of life.
We pressure tested the centrifuge tubes: 50mL tubes can be deployed to 10m depth, 30mL tubes can go to 20m. And the loggers run fine under mineral oil for deeper deployments.
In addition, it’s not unusual to see a 50mv delta at the battery terminals for every 5°C change in ambient so a standard lithium coin cell will not power the logger below 0°C. But if theres one thing I’ve learned on this project it’s that datasheets only tell you so much about system behavior in the real world – especially with stuff constructed from cheap modules carrying half a dozen unspecified bits. So let’s just build one and see how it goes…
Modifying the RTC module:
Clipping the VCC leg (the 2nd leg in from that corner) forces the DS3231 to run from the coin cell full time.
Disconnect the modules indicator LED by removing its limit resistor.
Remove the 200ohm charging resistor & bridge VCC to the backup power line at the black end of diode.
Cutting the VCC leg depowers most of the logic inside the DS3231. However the chip will still consume an average of 3µA through VBat to keep the oscillator, temperature compensation & comparator logic working. RTC current can spike as high as 650µA every 64 seconds when new temperature readings occur. Bridging VCC to Vbat also means a 3.3v UART will push some sub-milliamp reverse currents through an older cell. But I’ve yet to have a single problem (or even any detectable warming) after many days with loggers connected during development. Despite dire manufacturer warnings that reverse currents beyond 1µA will heat manganese-dioxide/lithium cells until they explode, the ones I’ve used so far survive the abuse without issue.
Three mods to the RTC module: Running from the Vbat also disables 32KHz output so I usually clip that header pin. Watch out for the ‘-M’ variant of the DS3231. We’ve had several batches of those over the years where the temperature register was off by 5°C or more. Try to use ‘-N’ or ‘-SN’ chips if you can get them.
I’ve no doubt the UART connected time is shortening the batteries lifespan slightly, in fact Panasonic specifies: “the total charging amount of the battery during it’s usage period must be kept within 3% of the nominal capacity of the battery”, so it’s a good idea to remove the battery if you are spending an extended time with the units connected to the serial line to keep the total reverse current time to a minimum. But given our tight operational margin I don’t think we can afford to lose two hundred millivolts over a Schottky protection diode. A typical solution would address this by ORing the two supplies with an ideal diode circuit but that’s not a option here as ideals usually waste some 10-20 µA. On a practical level it’s easier to just to pop in a fresh battery before every long deployment. Drift on these DS3231 RTCs is usually a loss of ~4-5 seconds per month, but could be up to twice that for -M variants of the chip.
Modify the Pro Mini board:
90° header tails on the left side are clipped to avoid accidental contact with the I2C jumpers later. Vcc & Gnd points left long. Load ‘Blink’ to test if the ProMini is working as soon as the header pins are on the board.
Carefully clip away the regulator from the 2-leg side. Also remove the power LED limit resistor.
Optional: Add the regulators orphaned 4.7µF input cap to the rail by bridging it to VCC.
An 8Mhz Pro Mini continues as the heart of our loggers because the 328p is still the easiest low-power option for projects that aren’t computationally demanding. These eBay Pro Mini’s usually sleep below 1µA with the BOD turned off but 17µA with BOD on. It’s worth noting there are clones out there with fake Atmel chips that won’t go below 150µA sleep no matter what you do. Cheaper boards usually ship with ceramic regulator caps (instead of tantalums) but that just makes them more resilient if you accidentally connect power the wrong way. At 8Mhz the ‘official’ lowest safe voltage for the 328p is 2.7v, so that’s where the default BOD is usually set. But I sleep with BOD off because I’ve noticed that if the BOD gets triggered by low battery voltage then the processor goes into a high 1mA drain condition and this makes AA’s leak all over the inside of our normal 3-part loggers.
Three removals & one addition prep this Pro Mini clone for assembly. The reset switch is removed to make room for a NTC thermistor circuit. The logger can then only be restarted with a serial connection, but that’s on purpose.
Join the two components:
But you always have the default 2.7v BOD on while the processor is operating so you probably want to stop logging when the rail starts falling below ~2785mv. Also keep in mind that there is range on that brownout threshold, from min. 2.5v to max. 2.9v. So one 328p may be more tolerant to running at low voltages than another.
Resistor legs wrapped in heat shrink extend the A4/A5 I2C bus. These two wires must cross over each other to align with connections on the RTC.
Add a layer of double-sided foam tape to prevent contact between the two boards. Extend the VCC & GND headers with resistor legs. Then remove the tape backing.
Carefully thread the four I2C bus jumpers through the RTC modules pass-through port. Press the two boards together onto the double sided tape.
Solder the connections to the RTC module. Now you can see why I trimmed the three header pins on that one side.
NOTE: Don’t trimthe VCC & GND wires if you are going to add a rail buffering cap – the leftover ‘tails’ make perfect connection points for that capacitor later. (see below for details)
Clip the (non-functional) 32kHz pin and add solder to the SQW header pin on the RTC module. Solder a resistor leg to interrupt input D2 on the Pro Mini.
Add heat shrink & join D2 to the RTC SQW alarm header.Then heat shrink the entire stack with ~4.5cm of 25mm (1inch) diameter tubing & cut that away from the battery holder.
The 2-module stack usually draws ~1µA in powerDown, but with part variability some go up to 2µA. Cheap modules often have leftover flux residue which can cause current leaks. It’s worth the time scrub these boards with isopropyl alcohol before assembly to reach the lowest possible power consumption. I found no significant difference in sleep current between setting unused pins to INPUT_PULLUP or to OUTPUT_LOW.
This two module combination usually sleeps around 1µA and most of that is the RTC’s (IBATT) timekeeping current as the 328p should only draw ~150nA in powerdown mode [with BOD off]. If we assume four readings per hour at 5mA for 10msec, the battery life calculator at Oregon Embedded estimates a 220mAh battery will last more than 10 years…which isridiculous. We know from the datasheet that 575µA temperature conversions bring the RTC average up to 3µA – which isn’t showing up on this direct measurement. And there’s the battery self discharge of 1-3% per year. Perhaps most important there’s the complex relationship between pulsed loads and CR2032 internal resistance, which means we’ll be lucky to get half the rated capacity before hitting brown-out at 2.7v A more realistic estimate would start with the assumption that the battery only delivers about 110mAh with our logger consuming whatever we measure + 3µA (RTC datasheet) + 0.3µA (coincell self-discharge). We can round that up to 5µA continuous, with four 5mA*10millisecond sensor readings per hour, and we still get an estimated lifespan of about two years. So our most significant limitation is the amount of EEprom memory rather than battery power.
The most important difference between a coin cell powered logger and our AA powered units is that the battery has a high probability of being depleted to the point of a BOD restart loop. (which causes rapid flashing of the D13 LED) So we use a multi-step serial exchange in Setup() to prevent data already present in the EEprom from being accidentally overwritten.
Addendum 2023-10-25: Code revisions are *currently underway* to support the use of these loggers in enviro-sci course curriculum & some elements of the old logger code may disappear from Github for a while until our students have progressed further through the lab sequence. Those elements will then be restored to the base code on Github. This may cause discrepancies between the text in this post and the options in that code.
In Setup()
A UART connection is required at start-up so those menu-driven responses can occur through the serial monitor in the IDE. These have timeouts to avoid running the CPU during unintentional restarts. The menu sequence can be re-entered at any time simply by closing & re-opening the serial monitor window:
If you see random characters in the download window you have the baud rate set incorrectly. (We have recently increased this to 500,000 baud in the github code) Reset the baud and the menu should display properly HOWEVER you then need to close & re-open the window (this restarts the promini with serial window at the correct baud). If you try to Ctrl-A copy out the data when the the window still has garbled characters at the top then only the bad start characters that will copy out.
The first menu option asks if you want to download the contents of the logger memory to the serial monitor window. This can take 1-2 minutes with large EEproms at 500000 baud, which is the fastest rate an 8MHz ProMini can reliably sustain. Then copy/paste (Ctrl-A & Ctrl-V) everything from the IDE window into an Excel sheet and then, below the data tab, select Text to Columns to separate the data at commas. Or you can paste into a text editor and save as a .txt file for import to other programs. While that process is clunky because the IDE’s interface doesn’t export, everyone already has the required cable and data retrieval is driven by the logger itself. ( And yes, the exchange could be done with any other serial terminal app.)
After the start menu sequence the first sample time is written to the internal EEprom so the timestamp for sensor readings can be reconstructed during data retrieval later by adding offsets added to the first reading time. This technique saves a significant amount of our limited EEprom memory and all it takes is =(Unixtime/86400) + DATE(1970,1,1) to convert those Unix timestamps human readable in Excel. It is important that you download the old data before changing the sampling interval via the menu options because that interval (stored in eeprom) is used to reconstruct the timestamps during download. Valid intervals must divide evenly into 60 and be less than 60. Second-intervals can be used for rapid testing if you first enter (0) for the minutes during setup.
No sensor data is lost from the EEprom when you replace a dead coin cell and you can do the entire data retrieval process on UART alone with no battery in the logger. But RTC time reset should only be done after installing a new battery or the time will not be retained. If the time in the serial menu after a complete power loss reads 2165/165/165 165:165:85 instead of 2000/01/01 then there’s a good chance the RTC’s registers have been corrupted & the clock may need to be replaced. I’ve managed to do this to a few units by accidentally shorting the voltage to zero when the logger was running from a capacitor instead of a battery.
After setting the RTC time, the sampling interval, and other operating parameters, the logger requires the user to enter the ‘start’ command again. Only when that last ‘start’ confirmation is received are the EEprom(s) erased by pre-loading every location with ‘0’ values which also serve as End-Of-File markers during the next download. The red D13 led then blinks at 1second while the logger waits for the first sampling alarm to align with the current time before beginning the run.
Main LOOP()
To save power, slow functions like digitalWrite() and pinMode() can be replaced with much faster port commands. Careful attention is paid to pin states, peripheral shutdowns (power_all_disable(); saves ~0.3mA) and 15msec sleeps are used throughout for battery recovery. Waking the 328p from powerdown sleep takes 16,000 clock cycles (~2milliseconds @8MHz +60µS if BOD_OFF) and the ProMini draws ~250µA while waiting for the oscillator to stabilize. Care must be taken when using CLKPR to reduce system speed because the startup-time also gets multiplied by the divider.
( Note: For the following images a Current Ranger was used to convert µA to mV during a reading of the RTC’s temperature register at 1MHz. So 1mV on the oscilloscope means 1µA is being drawn from the Cr2032 )
Here CLKPR restores the CPU to 8MHz just before entering powerdown sleep, and then slows the processor to 1MHz after waking. The extra height of that first spike is due to the pullup resistor on SQW. Cutting the trace to that resistor and using an internal pull-up reduces wake current by 750µA.
Here the logger was left at 1MHz when it entered powerdown sleep(s). Waking now takes 16 milliseconds – wasting a significant amount of power through the 4k7 pullup on SQW when the RTC alarm is still asserted at the start of the event.
[ 2023-05-31 UPDATE: I came across several cheap eBay EEproms that would freeze the system when I lowered the system clock to 1MHz to save power during EEprom saves. So I have removed that technique from the code on GITHUB to make that codebase more generic. This problem did not affect the chips I bought from DigiKey]
CR2032 voltage is checked during the EEprom data save because an unloaded coin cell voltage does not change – even when the battery is nearly dead. This assures that the voltage droop is captured though the exact timing of that minimum varies from one memory chip to the next. Logger shutdown gets triggered when the EEprom write brings the rail voltage below the 2795mv systemShutdownVoltage, which happens when the internal resistance of the coincell rises at end of life.
Adding Sensors:
An RTC temperature only configuration for this logger records a 0.25°C temperature record from the DS3231, index-encoded to use only one byte per reading. This allows ~4000 readings to be stored in the 4k EEprom on the RTC module. This works out to a little more than 40 days at a 15 minute sampling interval, but you can set SampleIntervalMinutes to any even divisor of 60.
We made extensive use these RTC temp records in our cave drip loggers at the beginning of the project. The accuracy spec is pretty bad at ±3°C, but they were usually within ±1 @ 25°C. Note that the RTC only updates its temp. output registers once every 64 seconds, making it a fairly slow sensor.
That little AT24c32 doesn’t last very long with sensors that generate 2 or 4 byte integers. The solution is to combine them with larger 32k (AT24c256), or 64k (AT24c512) chips so the sensors arrive with the extra storage space they require. These EEprom modules can usually be found on eBay for ~$1 each and (after you change the bus address & bytesofstorage defs) they work with the same page-write & addressing code as the 4k EEprom.
The headers on this common BMP280 module align with the 32k headers in a ‘back-to-back’ configuration. The tails on the YL-90 breakout extend far enough to connect the two boards. Note this sensor module has no regulator which is better for low power operation.
Pin alignment between the YL-90 and this BH1750 module is slightly more complicated as you must keep the light sensor facing out. BMP280 sensors usually run about two years, but the BME280 variant (includes RH) has a shorter lifespan and should be replaced yearly.
After removing the EEprom’s redundant pullups, clip away the plastic spacers around the header pins. Then wiggle the BH1750 over the headers on the 32k module. Solder the points where the pins pass through the 1750 board. I2C pullups on the sensor boards can left in place.
I2C pin arrangement on the RTC doesn’t match the BH1750 module. Make the required cross-overs with a 4 wire F-F Dupont. (which comes with those red 32k boards) or soldering those connections is more robust.
NOTE: Support for both of the sensors shown above is included in the code on Github to serve as examples to guide other I2C sensor additions. Sensors are enabled by uncommenting the relevant defines at the start of the program and the base code also supports the ICU based NTC/LDR combination shown below.
I2C generally expects the pullups to be about 1ma which on a 3v system would require 3300 ohms. This means you can leave the 10k pullups on the sensor boards to bring total pullup (4k7 on the RTC & 50k on the ProMini = ~4k3) closer to the 3.3k ideal. The open-drain implementation of I2C means that capacitance on the bus will slow down the rising edges of your clock and data lines, which might require you to run the bus more slowly. The more sensors you add, and the longer the wires, the worse the parasitic capacitance gets. So if you need long I2C wires drop the total bus pullup to 2k2.
The 662k LDO regulator on most eBay sensors wastes 3-4µA: For long deployments this can be removed & then bridging the in->out pads should bring your sleep back to ~1µA. Technically, the regulator is below spec if your supply falls below ~3.4v
You must use low power sensors with a supply range from 3.6v down to our 2.7v EEprom/BOD cutoff. A good sensor to pair with this logger should sleep around 1µA and take readings below 1mA. Sometimes you can pin-power sensors that lack low current sleep modes although if you do that be sure to check for unexpected current leaks in other places such as bus pullup resistors and the I2C bus may go into an illegal state (the idle condition is with both lines high) requiring a full reset of all sensors after power is restored. Choose libraries which allow non-blocking reads so you can sleep the ProMini while the sensor is gathering data and check that those libraries do not contain any delay() statements. In that regard my favorite sensor combination for this logger is an NTC thermistor & CDS cell which adds nothing to the sleep current. We explained how to read resistive sensors with Arduino’s Input Capture Unit in some detail back in 2019; so here I will simply show the hardware connections. Add these passives to the Pro Mini BEFORE joining it to the RTC module, taking care not to hold the iron so long that you cook the components:
D6=10kΩ 1% reference resistor , D7=10k NTC, D8=300Ω, D9=LDR (5528). Note that the LDR could be replaced with any other type of resistive sensor. A typical 10kNTC reaches ~65kΩ near -10°C and a 10kLDR usually peaks near 55kΩ at night.
You MUST put the lines you are not reading into input mode to isolate them from the circuit when you read a specific sensor. It’s easy to kill the LDR with too much heat – in that case it becomes infinite resistance.
A 104 ceramic to GND completes the ICU timing circuit. With 0.1uF as the charge reservoir, each resistor reading takes ~1-2msec in sleep mode IDLE. With these sensors I jumper D2->SQW with a longer piece of flexible wire to avoid covering the D13 LED.
Don’t expect the NTC you have in your hands to match exactly the values provided by its manufacturer. Fortunately there are several online calculators to choose from when determining your NTC thermistorconstants. For calibration data, I use a food dehydrator to heat the loggers to around 45-50°C, then then it cool to room temp. for the midpoint, and then put them in the refrigerator overnight for a cold point at ~5°C. I add this NTC/LDR combination to all loggers (even if they will eventually drive I2C sensors) because a good test-run for newly built units is to read these sensors at an ultra short five second interval until the EEprom is full. After passing that test you can be sure the core of the logger is ok before adding new sensors.
Other useful modifications to the basic 2-module logger include:
A 220µF 10-25v Tantalumbuffer cap can be added where the rail wires pass through the RTC module. Anything from 200 to 470µF will do the job of reducing older battery droop. After matching polarity, flip it over to bring the SMD solder pads to the top surface for easier soldering. Rail buffering caps assist the coincell, extending runtime by ~30%
The code on GitHub has a #define which enables A0=GND, A1=Green, A2=Blue. Lighting the LED(s) by setting A1/A2 pins to INPUT_PULLUP keeps the current below 50µA with the internal pullup resistors. The red led on D13is left in place to show when you are trapped in a BOD-restart loop. LED’s also make good frequency specificlight sensors..
With a few strategic bends, single I2C sensors can be soldered directly to the pins.
EEprom & sensor additions push measured sleep currents to 2µA (so ~6µA actual w RTC’s 3.0µA) but that still gives a >1 year estimates on 110mAh. With all due respect to Ganssle et al, the debate about whether buffering caps should be used to extend operating time is something of a McGuffin because leakage currents are less important when you only have enough storage space for one year of operation. Even a whopper 6.3v 1000µF tantalum only increases sleep current by about 1µA. That’s 1µA*24h*365days or about ~ 8.76 mAh/year in trade for keeping the system above our 2.7v cutoff with barely a ripple. That means we don’t need to lower the BOD with fuses & custom bootloaders that break code portability. Pushing the limits of fuse optimization can get a little flaky on these cheap boards, so it’s good to have those ‘Get out of jail free‘ defaults available at reboot. When you only service your loggers once a year, any tweaks that require you to remember ‘special procedures’ in the field are things you’ll probably regret. (And many of those cheap eeproms on eBay also have a 2.7v lower limit) Using the 328p internal oscillator to save power is also a non-starter because it’s 10% error borks your UART to the point you can’t upload code.
With a practiced hand you can do a memory expansion right on the RTC module without changing the sleep current: Here I’ve replaced the default 4k AT24c32 with a 64k AT24c512. 64k is the sweet spot for single sensors generating a 2-byte integer value as you can store ~340 days of data with a 15minute interval. The RTC modules default configuration pulls address pins high (=0x57) with a 4k7 resistor block, while the red YL-90 modules pull the address pins low (=0x50). So you retain the option of adding another eeprom on the I2C header pins after this upgrade. It is also possible to solder new chips onto those little red EEprom breakouts. Note: 128k AT24c1024 chips are slightly larger than the 32&64k so you have to bend the legs straight down which makes that soldering tricky. So I usually find it easier to just ‘stack’ two smaller 64k chips.
Here’s an example of stacking the EEproms. The rtc module pulls all address pins high (setting the lower default 4k eeprom in this picture to 0x57) but if you leave any address pins on the 64k chips ‘unconnected’ they get internally pulled to ground. (setting the bus address to 0x51 for the upper chip in this picture) AT24C512’s cost about 50¢ on eBay. The Write Protect pin can also be left unconnected. Each chip you add increases overall sleep current by ~1µA.
Then use both eeproms by changing defines at the start of the code: define opdEEpromI2Caddr 0x57 define opdEEbytesOfStorage 4096 define sensorEEpromI2Caddr 0x51 define sensorEEbytesOfStorage 65536
Leakage scales linearly with capacitance so usethe Falstad simulator to see what size you actually need. Capacitors rated 10x higher than the applied voltage reduce leakage current by a factor of 50. So your rail buffering caps should be rated between 10 to 30v if you can find them. While they are a bit bulky, electrolytics also work fine. The 220µF/25v 227E caps I testedonly add ~5nAto the loggers sleep current and these can be obtained on eBay for <50¢ each. High voltage ratings get you closer to the low leakage values you’d see with Polypropylene, Polystyrene or Teflon film and moves you farther away from de-rating problems.

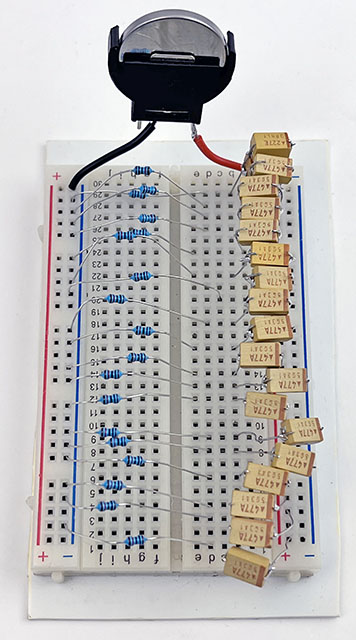

Note that as the buffering cap gets larger, you need to add more ‘recovery time’ before the rail voltage is restored after each load. A large rail capacitor also protects the unit from impacts which might briefly disconnect the spring contact under the coin cell. This is a such common problem in our other loggers that we use a drop of hot glue to lock the RTC coin-cell in place before deployment.
Discussion:
CLKPR brings the ProMini down to 1MHz and a current of ~1.3 mA however the energy cost per logging event actually increases when the system clock gets divided. But with our slim operating margin the growing internal resistance of the coin cell means we have to stay above 2.775v even if it means using less efficient code. Running from the internal oscillator might help but is avoided because our ICU timing method needs the thermal stability of an external oscillator and, the internal oscillator makes UART coms flakey. FRAM has much lower saving currents than standard EEproms but those expensive chips sleep around 30µA so they aren’t a viable option for low-power systems. (…unless you pin-power them so you can cut their power during sleep.)
In the next three images, a Current Ranger converts every 1µA drawn by the logger to 1mV for display on the scope. The last two spikes are transfers of buffer-array data into the 4K EEprom on the RTC module while the CPU takes ADC readings of the rail voltage. Note that our code staggers EEprom save events so they don’t occur in the same pass like this, but I forced them together for this testing to illustrate the effect of repeated pulse-loads:
A triple event with a temperature sensor reading followed the transfer of two array buffers to EEprom. Battery current with no rail buffering cap. [Vertical scale: 500µA /division, Horizontal: 25ms/div]
Here a 220µF tantalum capacitor was used to reduce the peak battery currents from 2.5mA to 1.5mA for that same event.
Here a 1000µF tantalum [108J] capacitor reduces the peak battery current to 1mA. The 30msec sleep recovery times used here are not quite long enough for the larger capacitor.
Voltage across a coin cell that’s been running for two months with NO buffering capacitor. The trace shows the 2.5mA loads causing a 60mv drop; implying the cell has ~24 ohms internal resistance. [Vertical Scale: 20mv/div, Horizontal: 25ms/div]
The basic RTC-only sensor configuration reached a very brief battery current peak of ~2.7mA with no buffering cap, 1.5mA with 220µF and less than 1mA with 1000µF. The amount of voltage drop these currents create depend on the coin cells internal resistance but a typical unbuffered unit usually sees 15-30mV drops when the battery is new and this grows to ~200mV on old coin cells pulled from loggers that have been in service since 2018. The actual dropalso depends on time, with subsequent current spikes having more effect than the first as the internal reserve gets depleted. The following images display the voltage droop on a very old coin cell pulled from a logger that’s been in service since 2016 (@3µA average RTC backup)
This very old coin cell experiences a larger 250mv droop with no capacitor buffer. Note how the initial short spike at wakeup does not last long enough to cause the expected drop. [Vertical: 50mv/div, Horizontal: 25ms/div]
Adding a 220µF/25v tantalum capacitor cuts that in half but triples the recovery time. CR2032‘s usually plateau at 3.0v for most of their operating life, so the drop starts from there. [Vertical: 50mv/div, Horizontal: now 50ms/div]
A 1000µF/6.3v tantalum added to that same machine limits droop to only 60mv. Recharging the capacitor after the save now approaches 200 milliseconds. [Vertical : 50mv/div, Horizontal: 50ms/div]
After many tests like those above, our optimal solution is to run the processor at 8MHz most of the time while breaking up the execution time with multiple 15 millisecond POWER_DOWN sleeps before the CR2032 voltage has time to fall very far. (This is especially necessary if you start doing a lot of long integer calculations) This has the added benefit that successive sensor readings start from similar initial voltages. The processor is brought down to 1MHz only during the EEprom save event where the block can not be divided (and that only happens when the data buffering arrays are full….)
Current drawn in short bursts of 8MHz operation during sensor readings. The final EEprom save peaks at ~2.75mA draw with CLKPR 1MHz CPU & Sleep_ADC readings. [CH2: H.scale: 25msec/div, V.scale 500µA/div via Current Ranger]
Voltage droop on that same ‘old’ CR2032 used above reached a maximum of 175mv with NO buffering capacitor across the rail. This battery has about 64 ohms of internal resistance. [CH2: V.scale 25mv/div, H.scale 25ms]
Adding a 220µF tantalum capacitor to the rail holds that old battery to only 50mv droop. The 25v tantalum cap adds only 0.1µA leakage to the overall sleep current. [CH2: V.scale 25mv/div, H.scale 25ms]
This ‘solder-free’ AT24c256 DIP-8 carrier moduleis bulky compared to the red YL-90 boards, but it lets you easily upgrade to 64k AT24C512 & configure multiple I2C address. Here I’ve removed the redundant power led & pullup resistors.
Even with fierce memory limitations we only use the 328’s internal 1k for a couple of index variables that get written while still tethered to the UART for power. EEprom.put starts blocking the CPU from the second 3.3msec / byte, and internal EEprom writing adds an additional 8mA to the ProMini’s normal 5mA operating current. This exceeds the recommended pulse current for a garden variety CR2032. And multi-byte page writes aren’t possible so data saved into the 328p costs far more power than storage in an external EEprom. However it is worth noting that reading from the internal EEprom takes the same four ticks as an external with no current penalty, while PROGMEM takes three and RAM takes two clock cycles. So it doesn’t really matter to your runtime power budget where you put constants or even large lookup tables.
Most DIP8 EEproms are pin compatible with that carrier. 128k EEproms are usually divided into 64k blocks with sequential I2C addresses so the location variables don’t exceed uint16_t max of 65535. Heliosoph posted a way to combine multiple 64k EEproms into a single linear address range but with ‘combination’ sensors like the BME280 sometimes it’s easier to just send each sensor’s output to a different bank using the two bus addresses. Our code demonstrates how to do this with the OPD & sensor arrays.
A simple optimization we haven’t done with the code posted on GitHub is to increase the I2C buffer. All AT-series EEproms are capable of 32-byte page-writes but the default wire library limits you to only 30 bytes per exchange because you lose two for the register location. So we used 16-byte buffer arrays in the starter code but you could increase those array/transfers to 32 bytes by increasing the wire library buffers to 34 bytes:
In wire.h (@ \Arduino\hardware\arduino\avr\libraries\Wire\src) #define BUFFER_LENGTH 34 AND in twi.h (@ \Arduino\hardware\arduino\avr\libraries\Wire\src\utility) #define TWI_BUFFER_LENGTH 34
With larger EEproms you could raise those buffers to 66 bytes for 64 data-byte transfers. That buffer gets replicated in five places so the wire library would then require an extra 138 bytes of ram over the 32-byte default. 128k EEproms often refresh entire 128-byte blocks no matter how many bytes are sent, so increasing the buffer reduces wear considerably for those chips, while 64k & below may perform partial page-writes more gracefully. It’s also worth mentioning that there are alternate I2C libraries out there (like the one from DSS) that don’t suffer from the default library’s limitations.
An average sleep current of ~5µA*86400 sec/d burns ~432 milliAmpseconds/day. With a page-write that draws 4mA*6msec, the usual 12x buffer-array transfers of data to EEprom per day will consume about 288mAs. Cutting that in half by doubling the size of the array is going to save you ~144mAs per day, so it will take four days to save enough power for one more day of operation. That return is better with older 10 millisecond/write EEproms, and reducing the number of pulse-load events may extend battery life in ways other than the power being saved. I always do the 34-byte I2C buffer & 32-byte data array increases for long deployment loggers because the cheap EEproms on eBay are always older revs, so they take twice as long for both read & write operations compared to newer AT series chips from DigiKey.
No matter what optimizations you make, battery life in the real world can also be shortened by temperature cycling, corrosion from moisture ingress, being chewed on by an angry dog, etc. And you still want the occasional high drain event to knock the passivation layer off the battery.
Here wires extend connections for the thermistor & LED to locations on the surface of the housing. Alternate power is brought in from a small solar panel – but I will post more on that little experiment later 🙂
An important topic for a later post is data compression. Squashing low-rez sensor readings into only one byte (like we do with the RTC temperature & battery voltage) is easy; especially if you can subtract a fixed offset from the data first. But doing that trick with high resolution thermistor or lux readings is more of a challenge. Do you use ‘Frame of Reference’ deltas, or XOR’d mini-floats? We can’t afford much of an energy tradeoff for heavy calculations on our little 328p so I’m still looking for an elegant solution.
Hopefully this new member of the Cave Pearl family goes some way toward answering people asking why we haven’t moved to a custom PCB: Using off-the-shelf parts is critical to helping other instructors base their courses on our work, and when you can build a logger in about 15 minutes, from the cheapest parts on eBay – that still runs for a year on the coin cell… why bother? We do water sampling dives all the time with those 50mL centrifuge tubes and I’ve yet to see the Nunc’s from Thermo leak at depths far beyond IP68. And again, you are only talking about $1 each for those tubes.
We’ve also been having fun embedding these ‘ProMini-llennium Falcons’ into rain gauges and other equipment that predates the digital era. There’s a ton of old field kit like that collecting dust in the corner these days that’s still functional, but lacks any logging capability.
Addendum
30ml self-standing Caplugs from Evergreen Labware are another good housing option because they have a brace in the cap that just fits four 22gauge silicone jacket wires. Holes drilled through the lower stand enable zip-ties to secure the logger. The outer groove in the lid provides more surface area for JB-weld epoxy, giving you an inexpensive way to encapsulate external sensors. 1oz / 25ml is enough to cover about five of these sensor caps. Then clear JB weld can be used as a top-coat to protect optical sensors.
Drill the central channel to pass the I2C wires through the cap. Roughen the upper surfaces with sandpaper to give it some tooth for the epoxy.
Conformal coat the board before the epoxy. Work the epoxy over the sensor board carefully with a toothpick and wipe away the excess with a cotton swab.
If you deploying in an area exposed to direct sun you can prevent the logger from getting too hot by adding a layer of PTFE thread tape around the tube:
PTFE tape is also an excellent light diffuser to keep the logger cool or when reading the LDR
Heat shrink holds tape in place
Adding a small amount of silicone grease to the rim of the tube before closing improves the seal with the lid considerably. We’ve done pressure tests to 45psi so these tubes can be deployed to at least 20m depth. Avoid old stock as the caps get brittle & crack long before the clear tubes age. Use small 0.5-1 gram desiccant packs with this housing.
Addendum: 2022-07-01
Since we covered adding sensors, here’s a couple of burn-down curves for the two configurations described above. Both were saving 4 bytes of data per record every 30 minutes giving a runtime storage capacity of about 150 days. Battery was logged each time the 16-byte buffer-arrays were written to eeprom. Both loggers have a measured sleep current of ~1.5µA and they will be downloaded periodically. Although the curve spikes up after each download, these are runs on the same coin cell battery:
Cr2032 voltage after 11 months @30min sampling interval: BMP280 sensor reading Temp. & Pr. stored in 32k eeprom with NO 220µF rail buffering capacitor. This test run is complete. At oversampling x16 the BMP uses considerably more power than the BH1750.
Coin cell after more than 12 months @30min sampling interval: BH1750 sensor & 32k ‘red board’ EEprom (Sony brand battery: again, with no rail buffer cap). Both of these records show only the lowest battery reading in a given day. This logger is still operating…
I’m running these tests without help from a rail buffering cap, to see the ‘worst case’ lifespan. A pulse loaded Cr2032 has an internal resistance of ~20Ω for about 100 mAh of its operational life, so our 5mA eeprom writing event should only drop the rail 100mv with no rail buffer cap. But once the cell IR approaches 40Ω we will see drops reaching 200mv for those events. The CR2032’s shown above have plateaued near their nominal 3.0v, so we should see the rail droop to ~2800mv when the batteries age. Again, with the 220 µF rail capacitor those drops are reduced to less than 1/2 that size and with 1000µF they are virtually eliminated.
Note that the download process briefly restores the voltage because the 3.3v UART adapter drives a small reverse current through the cell. I think this removes some of the passivation layer, but the effect is short lived. I have reloaded these two loggers with a new code build that tracks both high (immediately after wake) & low (during EEwrite) battery levels to see if the delta in the logs matches the 50mv drops I usually see with a scope.
According to Maxell’s 1Meg-ohm (3.3µA continuous) discharge test, coin cells should stay at their 3v plateau until they deliver about 140mAh [~500,000 mAs] So buffering caps aren’t really needed until batteries pass that point. In testing, 200uF rail caps extended runtime by about 35%. Of course, if you reach a year without the rail buffer, then you’ve probably filled the EEprom. So that capacitor may only be necessary with high-drain sensors or in low temperature deployments where the battery will struggle with larger IR drops. According to Nordic Semi: “A short pulse of peak current, say 7mA (typical of a Bluetooth Low Energy radio) for 2 milliseconds followed by an idle period of 25ms is well within the limit of a CR2032 battery to get the best possible use of its capacity.” Our EEprom save events are typically around 6-8 mA for 5ms which causes <50mv drop with a 200µF. Even with very old batteries the typical EEsave event doesn’t usually drop the rail more than 150mv, however the recovery time growsfrom less than 25msec to more than 150msec, so logging events look more like ‘blocks’ on the oscilloscope trace rather than a series of short spikes.
And here we compare our typical logging events to the current draw during the RTC’s internal temperature conversion (with a 220µF/25v cap buffering the rail). On all three the horizontal division is 50 milliseconds, and vertical is 200µA via translation with a current ranger:
Typical sampling event peaks at 450µA with a 220µF rail buffer cap. The logger sleeps for 15msec battery recovery after every sensor reading or I2C exchange.
Every 64 seconds a DS3231 temperature conversion draws about 250-300µA for 170ms. There is no way to influence the timing of the RTC conversions.
Occasionally the RTC temp conversion happens in the middle of a logging event adding to the peak current.
The datasheet spec for the DS3231temp conversion is 125-200ms at up to 600µA, but the units I tested drew half that at 3.3v. The rail cap can’t protect the coin cell from these long duration events so RTC temp conversions overlapping the EEprom save will likely be the trigger for most low voltage shutdowns. The best we can do to avoid these collisions is to check the DS3231 Status Register (0Fh) BSY bit2 and delay the save till the register clears. But even with that check, sooner or later, a temp conversion will start in the middle of an EEprom save.
Another thing to watch out for is that with sleep currents in the 1-2µA range, it takes a minute to run down the little 4.7µF cap on the ProMini board. If you have a 220µF buffering the rail the logger can sleep for more than 10 minutes with no battery. So if you are trying to reset the RTC you may need to briefly short Vcc to GND (at the UART headers) after removing the coin cell. Note that on several of the RTC modules the alarms continue to be asserted even after you disable them in the control register and this draws 6-700uA continuously through the pullup on the module. The only way to be absolutely sure the RTC alarm(s) will not fire after a shut-down is to turn off the RTC’s main oscillator. It’s also worth noting that the datasheet says: “If low power consumption during reset is important, it is recommended to use an external pull-up or pull-down.” If your code hangs, the processor will draw 5mA continuously until the battery drains and the logger goes into a BOD restart loop with the D13 red led flashing quickly. The logger will stay in that BOD loop from 4-12 hours until the battery falls below 2.7v without recovering. This has happened many times in development with no damage to the logger or to any data in the EEprom.
In allcases, your first suspect when you see weird behavior out of the logger is that the coin cell needs to be replaced. It’s worth noting that name brand CR2032s (Panasonic, MuRata, Duracell, Energizer, etc.) can last significantly longer than no-name ‘bulk’ coin cells from eBay/Amazon. They also plateau at 3.05v, while cheaper cells tend to level out at 2.95v. Most of the units I’ve testedtrigger their BOD just below 2.775 volts. And 10 to 20 millivolts before the BOD triggers the internal voltage ref goes a bit squirrely, reporting higher voltages than actual if you are using the 1.1vref trick to read the rail. The spring contact in the RTC module can be pretty bad and that can give you random quits from large voltage drops so I usually slide a piece of heat-shrink behind it to strengthen contact with the flat surface of the coin cell. Normal operation will see 40-50mv drops during EEprom saves up to 3msec with 200µF rail buffers ( with a 1000µF rail cap those events are under 20mv) If those events look unusually large or recovery starts stretching to 100’s of milliseconds on the scope you probably have bad battery contact. In all cases, a long duration load can deplete the rail buffering cap – a 200µF reaches the same v-drop as a ‘naked’ battery after ~3msec, and 1000µF after ~10msec.
Addendum: 2023-04-23
We finally released the full build tutorial on YouTube – including how to upgrade the default 4k EEprom with two stacked 64k chips:
Make at least two machines at a time. I usually build in batches of six, and of those, one usually ends up with either a faulty RTC module or a ProMini with one of those fake 328p chips that wont sleep below 150µA. Test each ProMini with ‘blink’ before assembly because you occasionally get one that shipped without a bootloader. Having more than one logger makes it easy to identify when you’ve got a hardware problem rather than an error in your code. Even then, no unit is worth more than an hour of troubleshooting when you can build another one from scratch in about 30 minutes – your time is worth far more than these components. That said, taking time to clean all the parts before & after assembly is always worth your time, because with sleep currents below 5µA any leakage paths between PCB traces from flux residue, fingerprint smudges, etc. become important.
Also Note: 99¢ eBay sensor modules are cheap for a reason and it’s not unusual for us to see 25% of them rejected for strange behavior or infant mortality during week long burn-in tests. Relative accuracy spec for the BMP280 is supposed to be ±0.12 millibar, but when I run a batch of them side-by-side I usually see ±4 millibar between the records. So huddle test each batch to normalize them and be sure to look at each graph individually so you don’t include any bad data in your normalization which could throw off ALL of the corrections. Cheap BME280s sometimes refuse to operate with it’s individual RT/T/Pr sensors set at different oversampling levels, and at the highest x16 setting that sensor may use more power than your budget can sustain over a long deployment. Another thing to be aware of is that real-world installation means exposure to condensing conditions. For sensors with a metal cover (like the BMP280) internal condensation will happen at the dew point – often killing the sensor.
This $10 si7051 temp sensor module has ±0.1°C accuracy and sleeps in the nano amp range. You are more likely to find sensor modules with low power requirements on Tindie, than you are on eBay/Amazon. Be careful about boards with regulators, as their quiescent draw can be much larger than the sensors sleep current.
And all the other quid-pro-quos about dodgy eBay vendors still apply: Split your part orders over multiple suppliers with different quantities, ordered on different days, so you can isolate the source of a bad shipment. Don’t be surprised if that batch of boards somehow turns into a random delivery of baby shoes to your doorstep. Amazon is often cheaper than eBay and AliExpress is 1/4 the price of both.
Addendum: 2023-06-05
16x accelerated tests averaged about 1250 hours run time.
Ran a series of Cr2032 battery tests with these little loggers and was pleasantly surprised to find that even with the default BOD limiting us to the upper plateau of those lithium cells; we can still expect about two years of run time from most name brand batteries (with a 200uF rail cap). And with a series of different resistors on the digital pins, this logger might be the cheapest way to simulate complex duty cycles for other devices. Also keep in mind that all the units in the battery test had BOD’s below 2.8v – about 1 in 50 of these Promini’s will have a high BOD at the maximum 2.9v value in the datasheet. It’s worth doing a quick burn test with the Hdao cells to spot these high cutoff units to exclude them from deployment.
Addendum: 2023-10-25
Macintosh users have been running into a very specific problem with this logger: their USB-c to USB-a adapter cables are smart devices with chips inside that will auto shut-down if you unplug them from the computer while they are connected to a battery powered logger. The VCC & GND header pins on the logger feed enough power/voltage back through the wires to make the chip in the dongle go into some kind of error state – after which it does not re-establish connection to the Mac properly until it is completely de-powered. So you must unplug your loggers at the UART module to logger connection and NOT by simply pulling the whole string of still-attached devices out of the USBc port.
Addendum: 2023-12-01
Released the classroom version of this 2-module logger, with substantial code improvements to make it easier to add new sensors. This new build has two breadboards supported on 3D printed rails so that sensor connections can easily be changed from one lab activity to the next. The default code reads temperature via the RTC, and NTC thermistor, Light via an LDR and the Bh1750, and Pressure via a Bmp280.
Addendum: 2024-04-20
We have a separate post describing how to calibrate the NTC thermistors on these two module loggers using a DIY warm water bath made from insulated lunch boxes:
Two I2C 0.96″ OLED screens used simultaneously. Left is split Yellow: 128×16 pixels & Blue: 128×48 pixels while the right screen is mono-white. TheCODE ON GITHUBdrives each screen in different memory modes to simplify the functions and uses internal eeprom memory to store fonts/bitmaps.
Oceanographic instruments rarely have displays, because they don’t contribute much to profilers being lowered off the side of a boat on long cables. And most of our instruments spend months-to-years in underground darkness, far from any observer. But a few years ago we built a hand-held flow sensor that needed to provide operator feedback while the diver hunted for the peak discharge point of an underwater spring. That prototype was our first compelling use-case for a display screen, and we used cheap Nokia 5110 LCDs because they were large enough to see in murky water. While driver libraries were plentiful, I realized that Julian Ilett’s shift-out method could pull font maps from the Arduino’s internal eeprom rather than progmem. This let us add those SPI screens to a codebase that was already near the memory limits of a 328p.
Modifications done to the second display:The only thing you must do for dual screens is change the bus address. Here I’ve also removed the redundant I2C pullups (R6&R7, 4k7) and bridged out the 662k regulator which isn’t needed on a 3.3v system. These changes usually bring sleep-mode current on 0.96″ OLEDs to about 2μA per screen. (or ~5μA ea. with the 662k regulator left in place)
Now it’s time to work on the next gen, and the 0.96″ OLEDs that we initially ignored have dropped to ~$2.50 each. Popular graphic libraries for these displays (Adafruit, U8G2, etc) provide more options than a swiss army knife but require similarly prodigious system resources. Hackaday highlighted the work of David Johnson-Davies who’s been using these screens with ATtiny processors where such extravagant memory allocations aren’t possible. HisTiny Function Plotterleverages the ssd1306‘s vertical access mode to plot a graph with a remarkably simple function. These OLED screens support two bus addresses, and that set me to work combining that elegant grapher with my eeprom/fonts method for a two screen combo. Updating Iletts shiftout cascade to I2C would loose some of the memory benefit, but I was already embedding wire.h in the codebuild for other sensors. It’s worth noting that David also posted a full featured plotter for the 1106, but these tiny displays are already at the limits of legibility and I didn’t want to lose any of those precious pixels. Moving the axis labels to the other screen forced me to add some leading lines so the eye could ‘jump the gap’:
My eyes had trouble with single-pixel plots so I made the line 2-pixels thick.
Histogram seems the best underwater visibility mode. Dashed lead-lines toggle off
A little repetition produces a bar graph variant.
The battery indicator at upper left uses the same function as the buffer memory progress bar in the center. Axis label dashes along the right hand side correspond to the lead lines on the next screen. My goal with this layout was ‘at-a-glance” readability. Horizontal addressing makes it easy to update these elements without refreshing the rest of the screen; so there is no frame buffer.
To drive these screens without a library it helps to understand the controllers different memory addressing modes. There are plenty of good tutorialsout there, but the gist is that you first specify a target area on screen by sending (8-pixel high) row and (single pixel wide) column ranges. These define upper left & lower right corners of a modifiable region and the ssd1306 plugs any subsequent data that gets sent into the pixels between those corner points using a horizontal or vertical flow pattern. If you send more data than the square can hold, it jumps back to the upper left starting point and continues to fill over top the previous data. In ALL memory modes: each received byte represents a vertical 8-pixel stripe of pixels , which is perfect for displaying small fonts defined in 6×8-bit blocks. For the taller characters I use a two-pass process that prints the top of the large numbers first, changes eeprom memory offset, and then does a second pass in the next row to create the bottoms of the characters. This is different from typical scaling approaches, but gives the option of creating a three-row (24 pixel high) font with basically the same method, and since the fonts are stored in eeprom there’s no real penalty for those extra bits.
In addition to text & graphs, I need a battery status indicator and some way to tell the operator when they have waited long enough to fill sampling buffers. In the first gen units I used LED pips, but similar to the way vertical addressing made the Tiny Function Plotter so clean, horizontal mode makes it very easy to generate single-row progress bars:
// Set boundary area for the progress bar Wire.beginTransmission(ssd1306_address); Wire.write(ssd1306_commandStream); Wire.write(ssd1306_SET_ADDRESSING); Wire.write(ssd1306_ADDRESSING_HORIZONTAL); Wire.write(ssd1306_SET_PAGE_RANGE); Wire.write(row); Wire.write(row); // page start / end are the same in this case Wire.write(ssd1306_SET_COLUMN_RANGE); Wire.write(barColumnMin); Wire.write(barColumnMax); // column start / end Wire.endTransmission();
//determine column for the progress bar transition int changePoint = ((percentComplete*(barColumnMax-barColumnMin))/100) +barColumnMin;
//loop through the column range, sending a ‘full’ or ’empty’ byte pattern for (int col = barColumnMin ; col < barColumnMax+1; col++) { Wire.beginTransmission(ssd1306_address); Wire.write(ssd1306_oneData); // send 1 data byte at a time to avoid wire.h limits
// full indicator = all but top pixel on, also using the ‘filled’ byte as end caps if (col<changePoint || col<=barColumnMin || col>=barColumnMax) { Wire.write(0b11111110); } else{ Wire.write(0b10000010); }// empty indicator = edge pixels only
Wire.endTransmission(); } }
I mount screensunder epoxy & acrylicfor field units but hot glue holds alignment just fine at the prototyping stage, and it can be undone later.
And just for the fun of it, I added a splash screen bitmap that’s only displayed at startup. Since the processors internal eeprom is already being used to store the font definitions, this 1024 byte graphic gets shuttled from progmem into the 4k EEprom on the RTC modules we use on our loggers. It’s important to note that I’ve wrapped the font & bitmap arrays, and the eeprom transfer steps, within a define at the start of the program:
#define runONCE_addData2EEproms —progmem functions that only need to execute once — #endif
Since data stored in eeprom is persistent, you can eliminate those functions (and the memory they require) from the compile by commenting-out that define after it’s been run. One thing to note is that the older AT24c32 eeprom on our RTC module is only rated to 100kHz, while bus coms to the OLED work well at 400kHz.
You can update the memory in these screens even if the display is sleeping.So a typical logger could send single line updates to the graph display over the course of a day. There’s a scrolling feature buried in the 1306 that would make this perpetual without any buffer variables on the main system. Color might make it possible to do this with three separate sensor streams, and the 1106 lets you read back from the screens memory, providing an interesting possibility for ancillary storage. However with Arduino migrating to newer mcu’s I think creative code tricks like that are more likely to emerge from ATtiny users in future. As a logger jockey, the first questions that comes to mind are: can I use these screens as the light source in some interesting sensor arrangement that leverages the way I could vary the output? What’s the spectra of the output? Could they be calibrated? What’s the maximum switch rate?
Screens are quite readable through the clear 3440 Plano Stowaway boxes used for ourclassroom logger. (here I’ve hot glued them into place on the lid) Avoid taking new sensor readings while information is being displayed on the OLED screens because they ‘pulse’ power to the pixels (100ms default) when information is being displayed.Each screen shown here peaks at about 20 mA (this varies with the number of pixels lit) so you could be hitting the rail with a high frequency load of about 40mA with dual screens – which could cause noise in your readings unless you buffer with some beefy caps. Also note that the screens tiny solder connections are somewhat fragile, so avoid putting hot glue on the ribbon cable.
As a final comment, the code on github is just an exploration of concepts so it’s written with readability in mind rather than efficiency. It’s just a repository of functions that will be patched into other projects when needed, and as such it will change/grow over time as I exploreotherdualscreenideas. Kris Kasprzak has a slick looking oscilloscope example(+more here) , and Larry Banks BitBang library lets you drive as many I2C screens as you have the pins for – or you could try a multiplexer on the I2C bus. The TCA9548 I2C multiplexer lets you drive up to 8 OLED displays or connect several of those cheap Bme280 sensors to your build.
These OLEDs will only get larger and cheaper over time. (& it will be a while before we see that with e-paper) An important question for our project is: which screens hold up best when subjected to pressure at depth? This was a real problem with the Nokia LCDs.
Addendum 2021-04-05:
I finally took a closer look at the noise from those cheap SSD1306 OLED screens, and was surprised to find the usual [104] & [106] decoupling combo simply weren’t up to the task. So I had to go to a 1000uF Tantalum [108] to really make a dent in it. Contrast settings reduced the current spikes somewhat, but did not change the overall picture very much.
The following are before & after graph of a start sequence from one loggers that end with 8 seconds of the logger sleeping while the latest readings get displayed on screen:
Logger current with a SSD1306 0.96″ OLED display: before & after the addition of a 1000uF Tantalum [108]
This unit was running without a regulator on 2x Lithium AA’s , and I had noticed intermittently flakey coms when the screen pixels were on. A forum search reveal people complaining about ‘audible’ noise problems in music applications, and others finding that their screens charge pump was driving the pixels near the default I2C bus frequency of 100kHz. I’ve dozens of these things lying around, and will add more to this post if testing reveals anything else interesting. The cap. pulls about 1A at startup so I’m not even sure I could put one that large on a regulated ProMini without pushing the MIC5205 into over-current shutdown.
Addendum 2023-12-01: Mini OLED display only draws about half a milliamp!
Our 2-Module classroom data logger uses a 50mL falcon tube housing and is powered from a Cr2032. So we had to go hunting for much smaller displays. Mini 0.49″ OLEDs are an excellent low power option that sleeps below 10 µA and will run about two weeks on a coin cell at 15 minute intervals, depending on contrast, pixel coverage, and display time. A 220µF tantalum right next to them on the breadboard protects the rail from the OLEDs charge pump noise.
These micro OLEDs are driven by a 1306 so you can use standard libraries like SSD1306Ascii. HOWEVER they only display a weirdly located sub-sample of that controllers 1k memory – so you have to offset the origin on your print statements accordingly.
2020 update to the Cave Pearl Classroom logger. This is a combination of inexpensive pre-made modules from the open-source Arduino ecosystem, and can usually be assembled by beginners in 1-2 hours.
(Latest Update: Mar 9, 2022)
Covid has thrown a spanner into the works for hands-on learning because even if you have the space to run a ‘socially distanced’ course, your students could still be sent home at any time. With that in mind, we’ve divided the build tutorial from 2019 into separate stages that make it easier to restructure the labs:
1) Component prep: requires the equipment you normally have access to in the lab like soldering irons, heat guns, drills, etc.
2) Logger assembly: can be done remotely with scissors, wire strippers & a screwdriver. All connections are made by Dupont connectors or by clamping wires under screw terminals.
The complete tutorial can be run in person or if students are ‘distance learning’, the instructor can do the soldering (~15-20 minutes per set) and send out kits for the overall assembly. Even that will be challenging through a zoom window, so you might want to add USB isolators to protect tethered student laptops from accidental shorts. One big challenge of running a course remotely is the extra time to test all the parts before sending them out. A ‘breadboard logger’ like the one shown later in this post lets you do that testing quickly. Another challenge is that other USB devices can push the bus too fast for the slow serial UARTS, causing them to drop off the system due to timing conflicts. (this is more common on Apple computers).
During ‘normal’ runs if a student gets a bad component, or accidentally zaps something in one of the labs, then it simply triggers a brief process-of-elimination lesson while they swap in replacements from the storage cabinet until things are working. But remote students won’t have that option unless you send two of every part – which might be viable approach considering how cheap these components are:
This is a variation of the logger describedin our 2018 paperbut we’ve removed the regulator/ voltage divider and added screw terminals + breadboards for faster sensor connections during labs. Bridging the I2C bus over the A2 & A3 pins leaves only two analog inputs on the screw-terminals. However for ~$1 you canadd a 15-bit ADS1115 which provides differential analog readings using a fixed internal reference. So it’s unaffected by changes in battery voltage.
The main components:
(NOTE: complete parts list withsupplier links can be foundat the end of this post) You don’t need the cable glands if you are using sensors that will work inside the housing (light, temp, acceleration, magnetometers, GPS, etc.) Don’t put holes in your housing unless you are sure you need them.
Two FT232 adapters (in red) & a CP2102 UART module (blk) with a pin order that matches the ProMini headers:[DTR-RX-TX-3v3-CTS-GND]
You will need a UART adapter module to program your logger –This must support 3.3v output & is easier to use if the pin order matches the ProMini connections. UART modules available with the FT232, CP2102, & CH340 chips will all work if the chip maker supplies drivers for your operating system. The Arduino IDE will NOT be able to communicate with your logger unless the driver for your UART module is installed on your Windows or MAC operating system. We use FTDI basic UART modules & you can download the driverat the FTDI website. There’s a basic installation guide at Adafruit , a more detailed one at Sparkfun, and PDF guides from FTDI.UART chips can only supply ~50mA so if your sensors need more current you might run out of power causing a restart of the ProMini.(A somewhat common problem when testing high-drain GPS modules or wireless transmitters)
(NOTE: I have connected ProMini’s to UART modules the wrong way round many, many, times, and none have been harmed by the temporary reversal. Also note that FAKE FTDI chips are a common problem with cheap eBay vendors, so it might be safer to buy a SiLabs CP2102, or CH340 UART from those sources. If you are using the ‘cheap ones’ it’s a good idea to include UART modules from two different manufacturers in the student kits to deal with the inevitable driver compatibility issues.)
Component Prep. Part 1: Pro Mini ( 3.3v 8Mhz ) (click any image to enlarge)
Install the UART driver & IDE. Solder the UART pins & test ProMini board with the blink sketch: Set the IDE to (1)TOOLS> Board: Arduino Pro or Pro Mini (2)TOOLS> ATmega328(3.3v, 8mhz) in addition to the (3)TOOLS>COM portto matchthe # that appears when you plug in the serial adapter.
With a known good Promini: Remove the power LED [in red square]. SPI bus clock pulses will flash the pin 13 LED – so leaving the pin13 LED connected will show you when data is being saved to the SD card.
Carefully remove the voltage regulator from the two leg side with snips. System voltage will vary over time, but the logging code we’ve provided on gitHub records the rail without a voltage divider by comparing it to the 328p’s internal bandgap. Lithium AA’s also provide a very flat discharge curve.
Add header pins to the sides but DO NOT SOLDER THE RESET pin HEADERS – we will be using those screw terminals as power rails.
Bridge the two I2C bus connections with the wire leg of a resistor. Connect A4->A2 & A5->A3.
Adding: DIDR0 = 0x0F; in Setup disables digital I/O on pins A0-A3 so they can’t interfere with I2C bus.
Lithium AA batteries are preferred when running a 2-cell unregulated system because the slope of an alkaline discharge curve will reach the ProMini’s 2.7v brown-out with >50% of the battery capacity unused. (note that SD cards are safe down to ~1.8v) While the voltage of a newLithium AA is usually 1.8v/cell, that upper plateau usually settles at ~1.79 v/cell within an hour or two of starting the logger. That briefly dips to 1.6v/cell during >100mA SD card save events at room temp. At temps near 5°C (in my refrigerator) the SD write battery-droop reached about 1.5 v/cell while on the upper plateau. Lithium cells only deliver ~50% of their rated capacity at temps below freezing, but that’s still an improvement. And alkalinebatteries leak quite often – even when they are not fully discharged. To date, leaking batteries have been the most common reason for data loss on our project.
The MIC5205 regulator is not efficient at low currents, so removing it reduces your sleep current by ~50%. However that modification also forces you to deal with a rail voltage that changes over time. Thermal rise from 15 to 45°C will raise your rail voltage by about 100 millivolts on lithium cells that have been in service for a few months. (~ 5mv /°C) If your sensor circuit is a voltage divider that is being powered by the same voltage the ADC is using as a reference then the ADC readings are unaffected by this. However you will need to compensate for this in your calculations if your analog sensor circuits are not ratio-metric. Battery thermal mass will cause hysteresis unless you read your reference resistors under the same conditions. Regulated ProMini’s usually see the rail vary by ~10-20 millivolts over a similar range of temperatures however it’s worth noting the reg/cap combinations on cheap eBay modules can be subject to other problems such as noise; which can be even more problematic wrt the quality of your data. Most chip-based I2C sensor modules carry their own regulators (usually a 662k LDO) and use internal bandgap reference voltages so they are unaffected by the changing rail.
So making students deal with deal with power supply variation right from the start will save them from making more serious mistakes later because every componentin your logger is a temperature sensor.
Component Prep. Part 2: Screw-Terminal Board & SD adapter
At the UART end of the board: Use a tinned resistor leg to repurpose the RESET terminals: Join RST & GND pins on the digital side and link the pins labeled RST, 5v and Vin for the positive rail. (include Vin only if the reg. has been removed! )
Label the screw terminal blocks that were connected under the shield with red & black markers to indicate the power rail connections. We have no reverse voltage protection – so insert AA’s w the correct polarity or the polarized Tantalum caps will burst.
Gently rock the Pro Mini back to front (holding the two short sides) until the pins are fully inserted. Some ST shields have slightly misaligned headers so this insertion can be tricky.
Remove the last three ‘unused’ female headers to make room for the SD adapter which fits perfectly into that pocket
NOTE: The SDfat library uses SPI mode 0 which sets the SCLK line low when sleeping causing a 0.33mA drain through the 10k SCLK pullup on the module.
Remove the bottom 3 resistors from the SD adapter – leave the top resistor near the C1 label in place!
NOTE: The Screw Terminal board we use in this build was designed for the 5v Arduino NANO, so the shield labels don’t match the Pro Mini pinson the ‘analog’ side.(the digital side does match) To avoid confusion may want to tape over those incorrect labels and hand write new labels to match the pattern above. Wire connections in this tutorial will be specified by ProMini pins: D10-13 are used for the SD card, A4/A2 is the I2C Data line, and A5/A3 is the I2C clock line.
Technically speaking, bridging the I2C bus (A4=data & A5=clock) over top of A2 & A3 subjects those lines to more capacitance and pin leakage. (regardless of whether that channel is selected as input for the ADC p257). However in practice, the 4K7 pull-up resistors on the RTC module handle that OK at the 100 kHz default bus speed.
Adding DIDR0 = 0x0F;
in setup disables digital I/O on pins A0-A3 to prevent interference with A0/1 ADC readings and the I2C bus on A2/3. If you want to disable only the digital IO on only A2 & A3 add
bitSet (DIDR0, ADC2D); bitSet (DIDR0, ADC3D);
to setup{}.
Component Prep. Part 3: RTC Module, Indicator LED & Plano 3440 Housing
Remove two SMD resistors from the RTC board with the tip of your soldering iron. Note that this module includes 4k7 pullup resistors on SQW, SCL & SDA – leave those in place!
Optional! Cutting the Vcc leg lowers sleep current by 0.1mA but no I2C bus coms until coincell is installed.
Add 90 degree header pins to the I2C cascade port. Note: Cutting the VCC leg also requires you to ‘enable alarms from the backup battery’ with a registry setting.
Clean flux residue from both the main & cascade header pins with 90% isopropyl alcohol
Use a coin cell to determine the GND leg of a diffused common cathode RGB LED
Solder a 1-2k ohm limit resistor on the common GND. The precise value is not critical.
Add heat shrink, bend & trim the pins for connection to the screw terminal board. Pre-made 5050 modules also work but are not as good in light sensing mode.
Stepped drill bits make clean holes in plastic housings for different thread diameters. We use glands with waterproof DS18b20 sensors on 1m cables.
Centered holes are ‘slightly’ closer the bottom of the box to allow the gland to rotate without hitting the rim. Inner nuts must also be able to rotate for tightening.
Rubber washers are added to both the inside AND the outside surfaces. PG7 sized washers also fit the M12 cable glands we use.
A 3440 Plano Box configured for two external sensors with nylon M12 cable glands for 3-6mm cables. After threading sensor cables I often seal the outside of the glands with a layer of silicone goop or nail polish.
As with the ProMini, it’s worth testing the RTC modules & SD adapters before logger assembly. I keep a breadboard version of the logger handy so I can test several at a time. If the RTC temp register reads too high I throw them out because the clock time is corrected based on those internal readings. You could also set the clock at this point if the coin-cell is already in place. Note the 5050 LED module on the breadboard shown above could replace the 5mm LED in this tutorial.
Forcing the RTC to run from the backup coin cell reduces sleep current by ~0.1mA, bringing a typical “no-reg & noRTCvcc” build to ~0.15 mA between readings. (with most of that for the sleeping SD card) As a rough estimate, Lithium AA’s provide ~7 million milliamp-seconds of power, and your logger will burn ~12,960 mAs/day at 0.15mA. So ‘in theory’ you could approach a year before you fall off the ‘upper plateau’. The clock will reset to Jan 1st, 2000 if you disconnect the RTC’s coin cell with a hard bump, but a couple of drops of hot glue should prevent this. If a reset does occur the time stamps will be wrong, but the logger will continue running the next day once the clock rolls around to the previous hour/minute alarm that was set. A CR2032 can power the RTC for about four years but if you cut the vcc legyou mustset bit six of the DS3231_CONTROL_REG to 1 to enable alarmsor the logger will not be able to wake up.(NOTE: our logger code does this by at startup with the enableRTCAlarmsonBackupBatteryfunction, which only has to run once – the RTC remembers the setting after that)
The soldered components ready for assembly.
Cutting the Vcc leg on the RTC is optional: if you leave the RTC power leg attached you’ll see typical logger sleep sleep currents in the 0.25 mA range, which should still give at least 4 months of operation before you trigger a low voltage shutdown. I’m being conservative here because runtime also depends on sensors and other additions you make to the base configuration.
See our RTC page for more detailed information on this DS3231 module.
Assembly Part 1: The Screw-Terminal Stack
Part 1: This stack is the ‘core’ of your data logger.
It is very easy to get a couple of wires switched around at this stage so work through these instructions slowly & carefully. Connect the Dupont jumpers to the SD module so that the metal retainer clips are facing upwardsafterthe logger is assembled. That way you can diagnose connection issues with the tip of a meter probe on the exposed metal and, if necessary, pull out & replace a single bad wire without taking everything apart. The extra wires you trim from the SD module are re-used.
Add 2-3 layers of double sided foam tape to the sides & center of the screw terminal shield. The tape needs to extend farther the height of the solder points.
Add single wires from the 20cm M-F Dupont cable to the SD adapter.
The ‘metal tabs’ of the Dupont ends are facing the large metal shield over the SD card.
A layer of double sided foam tape secures the connectors & extends over the solder points.
Red=3v3
Grey=CableSelect [d10]
Orange=MOSI [d11]
Brown=CLocK [d13]
Purple=MISO [d12]
Black =GND
Tape the SD adapter into place on the area that’s been cleared at the back of the screw terminal board.
Bend the jumper wires into place, mark the length & trim the original 20cm wires so that the final insulation length is 9cm or less.
Score the wire insulation about 1.5cm back from the wire end but do not remove the insulation.
Gently ‘pull & twist’ the scored insulation away from the wire to wind the thin strandstogether.
‘Fold-back’ about half of the stripped wire to provide more copper surface for the screw terminals to bite on to.
SD Connection pattern:Grey(CS) to ProMiniD10, Orange (MOSI) -> pm D11, Purple (MISO) ->pm D12, Brown (CLK) -> pm D13(NOTE the shield labels say A0-A3 which do not match the D10-13 pattern of the Pro Mini pins)
Bring the red SD wire over to the re-purposed RST power connection
and the black wire to GND on the digital side. At this point you could test the connections by inserting an SD card & running the CardInfo utility.
Connect the legs of the indicator LED at: D3=red, D4=GND, D5=green, D6=blue
Use the male ends of the wires you trimmed from the SD module to break out pin connections: Grey to A0, Brown to A1, Orange to D7, Purple to D8.
Add a layer of heavy duty (30Lb) double sided mounting tape to the back of the 2xAA battery holder. The battery holder wires need to be approx. 6inches/15cm long.
Attach the battery holder wires to RED>Vin & black>GND. The breakout wires from A0/1 & D7/8 should be about 12cm long to comfortably reach the breadboard area.
Checking continuity to the top of the ProMini confirms the header pins & solder connections under the terminal board are good.
Take a moment to check the continuity of the SD module wires. With one probe on the Dupont metal & the other on top of the corresponding ProMini pin – you should read ~1 ohm or less for each connection path. Occasionally you get a bad crimp-end on those multi-wire Dupont ribbons, and it’s easier to replace a bad wire at this stage than it is after the parts are in the housing.
Note: We’ve used the hardware interrupt port at D3 for the red LED channel, but if you have sensors that need that simply shift the LED over by one. Any digital I/O pins can be used for the LED, but 3,5 & 6 have PWM outputs which lets you do multi-color fades with analogWrite()
Assembly Part 2: Add RTC Module Jumper Wires
Attach Dupont jumper wires to the RTC module using White=I2C Data, Yellow = I2C Clock. Blue is the SQW alarm output line. Nothing is attached to the 32k output pin (cutting the Vcc leg disables 32k output)
Use 20cm M-F jumpers on the 6-pin side of the RTC module and shorter 10cm M-F wires on the smaller 4-pin cascade port.
Add a layer of double sided tape to secure the jumper shrouds, and provide housing attachment points for the module.
Add as small piece of 1/16″ heat shrink tubing to reinforce the contact spring. This reduces the chance that the connection will be bumped loose if the logger is dropped.
Write the installation date on the coin cell with a marker. A new coin cell should power the RTC for about 4 years. To avoid accidentally disconnecting the coin cell battery after the logger is assembled ->
Always check the backup voltage by placing the positive probe tipbetween the spring plates rather than on the surface of the cell.
Assembly Part 3: Connect modules inside the housing:
Part 3: This is what you are aiming for. (click any images in the table below to enlarge them)
The final assembly stage can be a bit tricky – sometimes the metal contact flaps under the green screw terminals are ‘sticky’ so take some time to loosen the screws and poke with the sharp end of your tweezers to make sure you can insert the bus wires from the RTC. It’s helpful to mark the wire lengths with a pen before cutting or stripping the RTC connections. When in doubt leave them a bit long. With screw terminals you always have the option of shortening those wire later on.
Attach the screw terminal stack onto the upper left corner of the housing, and the 2xAA battery holder in the lower right corner. These parts sb as far from each other as possible.
Add the first mini breadboard against the back so that it’s rear right edge aligns with the second rear support strut on the housing. Connect the long stack jumpers to that bboard to keep them out of the way.
Tape the RTC module into the lower left side of the housing, The blue board should be up against the front edge of the housing so that you can easily access the nearby screw terminals.
Measure, mark and trim: Red=3.3v, Yellow=>A3/A5 I2C clock, & White=>A2/A4 I2C data with enough wire to twist & fold the stripped ends under the terminals (~10cm of insulation length)
RTC module power & I2C bus connections: All ports on the analog side of the Pro Mini / Shield combination are occupied with a wire connection.
Connect the black wire to the re-purposed RST=GND, and the blue alarm wire to D2, leaving some extra wire length in a loop for strain relief. (5-6cm of insulation length)
Use the other side of the trimmed blue jumper wire to extend the D9 connection over to the breadboard. You want enough wire length that the pins reach back-most row on the breadboard.
Attach a cable mount to the back of the housing, as close to the bottom of the box as possible so that it does not interfere with closing the housing lid. You can trim those plastic mounts with scissors to make them thinner.
‘Loosely’ tie the long wires to the rear mount. Add another cable mount near the center and attach the 2nd b-board leaving equal side of the 2nd board.
Every year at least one student gets confused about the orientation of the connections inside the breadboard and connects all the jumper wires together in the same row – including the red and black power wires. The resulting short circuit usually kills either the Pro Mini, the UART module, and/or possibly even the USB port on the computer it’s connected to:
Each 5-hole row on the top of the breadboard is connected by a metal rail of spring contacts.
Also note that the internal connectors do not cross the ‘gutter’ depression in the middle, so each side of the breadboard board has its own separate set of connections.
Your Logger is now ready for testing!
A typical I2C sensor configuration with: BMP280 pressure, BH1750 lux & 0.96″ I2C OLED display – connected by short jumper wires made with a crimping tool. The combination shown above averages ~10mA with screen & cpu running, and a sleep current of 0.147 mA with a 1Gb Sandisk SD card. Without the SD, the sleep current on this unit was 37µA; with the sensor modules needing 2-3µA each & the sleeping 0.96″ OLED drawing ~7µA. A 25µA sleep current from the ProMini clone hints that the MCU might be fake but with a AA power supply it doesn’t really matter. Anything up to 250uA sleep current for a student build with an SD card connected should be considered good. Watch out for SD cards that don’t go to sleep properly as they can draw up to 30-50mA all the time.
(Note:Most of the time the tests listed below go well, however if you run into trouble at any point read through the steps suggested for Diagnosing Connection Problems at the end of this page.)
1. If you have not already done so, Install the UART driver. The IDE will NOT be able to communicate with your logger unless the driver for your UART module is installed on your operating system.
2. Installthe Arduino IDE into whatever default directory it wants – we’ve had several issues where students tried to install the IDE into some other custom sub-directory, and then code wouldn’t verify without errors because the IDE could not find the libraries. The programming environment is written in Java, and the IDE installer comes with its own bundled Java runtime so there should be no need for an extra Java installation. However we have seen machines in the past which would not compile known-good code until Java was updated on those machines; but this problem is rare.
If you have not already done so, there are three things you need to set under the IDE>TOOLS menu to enable communication with the logger:
Note: that the “COM’ setting will be different for each computer, so you will have to look for the one that appears on your system AFTER youplug in the UART module.
Using 22AWG solid core jumpers to bridge a set of ‘power rails’ along each side keeps the wiring tidy. If you are using several I2C sensors you could also do this with those bus lines. After testing your prototypes, you can make them permanent by transferring your circuit to solder-able mini breadboards.
The one that’s easy to forget is choosing the 328P 3.3v 8Mhz clock speed. If you leave the 328p 5v 16mhz (default), the programs will upload OK, but any text displayed on the serial monitor will be random garbled characters because of the clock speed mismatch. Also be sure to disconnect battery power(by removing one of the AA batteries)whenever you connect your logger to a computer. There is no power switch on the loggers, which are turned on or off via the battery insertion. Use a screwdriver when removing the batteries so that you don’t accidentally cause a series of disconnect-reconnect voltage spikes which might hurt the SD card.
3. Test the LED – the default blink sketch uses the pin13 LED, but because that pin is shared with the SD card’s clock line it’s recommended that you test the RGB indicator instead by adding commands in setup which set the digital pin 4 act as the ground line for the LED: pinMode(4, OUTPUT); digitalWrite(4, LOW); Then change LED_BUILTIN in the blink code example to the number of a pin connected to your led module. (ie: for Red set it to 3, for Green use 5, or Blue use 6)
4. Scan the I2C bus with the scanner from the Arduino playgound. The RTC module has a 4K eeprom at address 0x56 (or 57) and the DS3231 RTC chip should show up at address 0x68.
The address of the eeprom can be changed via solder pads on the board, so it may have a different address. If you don’t see at least these two devices listed in the serial monitor when you run the scan, there is something wrong with your RTC module or the way it’s connected: It’s very common for a beginner to get some of the wire connections switched around during assembly but with the screw terminals this takes only a few moments to fix.
5. Set the RTC time, and check that the time was set – The easiest method would be to use the SetTime / Gettime scripts from our Github repository, but you first you need to download & install this RTC control library The SetTime script automatically updates the RTC to the moment the code was compiled (just before uploading) so only run SetTime once, and then upload the GetTime sketch to remove SetTime from memory. Otherwise SetTime will keep setting the RTC to the old ‘code compile time’ every time it runs – and one of the quirks of the Arduino environment is that it restarts the processor EVERY TIME you open a serial window. The SetTime script also has a function which enables the alarm(s) while running the RTC from the backup coin cell battery.
Note: the RTClib by Mr. Alvin that we use has the same name as the Adafruit library for this RTC and this can give you compiler errors if you let the IDE ‘auto-update’ all of your libraries because it will over-write the Alvin RTClib with Adafruit’s library of the same name. You then have to uninstall the Adafruit library ‘manually’ before re-installing Alvin’s RTClib again. This problem of ‘two different libraries with the same name’ was common back when this project started many years ago, but back then the IDE didn’t try to update them automatically.
Typical Cardinfo output on a windows computer when the connections are correct. If you format your SD card on an Apple computer there will also be a long list of ‘invisible’ .trash and .Spotlight files/folders at the root of the SDcard that show up with a CardInfo scan.
6. Check the SD card with Cardinfo Note that the SDfat library we use to communicate with SD cards works well with smaller cards formatted as fat16, but ‘some’ Apple users find they can not write to cards in that format, requiring the SD cards to be reformatted as fat32 (note that most Apple systems have no problem with the fat16 SDcards). With either OS you should format the micoSD cards with this SDFormatter utility. With a 15 minute sampling interval, most loggers generate ~ 5Mb of CSV format text files per year. Older, smaller SD cards in the 256-512Mb range often use less power. Note that we apply internal pullup resistors on some of the SD card lines in setup to help the SD cards go into low power sleep modes more reliably.
This logger uses an advanced code trick to read the positive rail voltage to ~11mv resolution by comparing it to an internal 1.1v bandgap reference inside the processor. That internal ref. can vary by ±10% from one chip to another, and CalVref gives you a numerical constant which usually brings the starter script’s rail=battery readings within ±20mv of actual. An accurate rail reading is more important when you are using ANALOG sensors where the positive raildirectly affects the ADC output, but you can skip this procedure if you are only using digital sensors because they use their own internal reference voltages.
Typical CalVref output (click to enlarge)
Load CalVrefwhile the logger is running from USB power and then measure the voltage between GND and the positive rail with a voltmeter. (this voltage will vary depending on your computer’s USB output, and the UART adapter you are using) Then type that voltage into the entry line at the top of the serial monitor window & press the enter key. Write down the reference voltage & constant which is then output to the serial monitor window. I write these ‘chip-specific’ numbers inside the logger with a black marker as they are related only to the 328p processor on the ProMini board used to make that particular logger. You then need to change the line #define InternalReferenceConstant 1126400L in our starter code to match the long number returned by CalVref. Alternatively you could just tweak the value of the reference constant ‘by hand’, increasing or decreasing the value till the reported rail readings match what you measure with a voltmeter. Add or subtract ~400 to/from the constant to raise/lower calculated output by ~1 millivolt. After you’ve done this once or twice you can usually reach the correct value with a few successive guesses.
8. Find a script to run your on logger. For test runs on a USB tether, the simplest bare-bones logger code is probably Tom Igoe’s 1-pager at the Arduino playground. It’s not really deploy-able because it never sleeps the processor, but it is still a useful ‘1-pager’ for teaching exercises and testing sensor libraries. In 2016 we posted an extended version of Tom’s code for UNO based loggers that included sleeping the logger with RTC wakeup alarms. Our current logging “Starter Script” has grown since then to ~750 lines, but it should still be understandable once you have a few basic Arduino programming concepts under your belt.
Using the logger for experiments:
It’s important to understand that this logger was designed a teaching tool rather than a off the shelf, plug-&-play solution. Learning how to solder and getting some experience physically ‘putting things together’ are key outcomes. Wrangling code into shape driving some new sensor combination is another vital part of that process. So perhaps the best piece of advice I can give to new builders is:
Test, Test,and when you think your logger working: Test it Again
It’s nearly impossible to write code without little bugs and the only way to root them out is with multiple test runs. And even if the script you wrote is ‘perfect’ the processors on the sensor modules are also running code that you don’t have access to. For example, the mcu inside your SD card memory is more powerful, and may have more code on it than the ProMini at the heart of this logger. The only way to catch timing errors that might not get triggered until the 10th or 200th(?) pass is to run your code with a short 1 minute sampling interval until it’s crossed those roll-over thresholds many times. Use “Starting sensor X read” & “Finished sensor X read” print statements liberally during early USB tethered tests so you can observe the timing of events.
If you see water condensing like this on the lid of your logger then it’s time to examine the o-ring and add some extra sealant (nail polish or silicone) around the exterior of the cable glands. This logger quit after one week and it only lasted that long because of the desiccant pack.
Same thing applies to the sensor hardware in terms of durability, only now you have moisture to deal with. Everything that can be sealed in adhesive lined heat shrink, or potted in epoxy should be, once that hardware has passed your ‘dry’ tests. As a general rule no $10 sensor is going to be rated past IP68 which at best gives you 2-3 weeks of operation in the real world before water works it’s way in because of pressure imbalances caused by daily thermal cycling. You’d be surprised how easily moisture can wick along the air space ‘between the copper strands’ inside wires.
A doubling schedule works well for testing: Check the logfile at 1 hour, 2 hours, 4 hours, overnight, 1 day, 2 days, 4 days, 8, 16, 32… etc. Move to the next longer test only when the data from the previous run is confirmed. Keep a close eye on that battery burn down rate: Until you get the hang of putting your sensors into low current ‘sleep’ states – getting your first logger builds to run for a couple of months on new batteries should be considered a spectacular success. At every startup watch and wait for the pattern of LED flashes to confirm that the launch went smoothly – it is very easy to insert a battery or SD card crooked by ‘just enough’ that the unit does not start, and it’s very frustrating to discover you have no data a week later.
You never really know how long a sensor is going to last until you’ve deployed it – no matter what the manufacturer says in the data sheet. Even then we usually deploy three of every ‘new’ combination, and if we are lucky we get one complete data set for the year. Batteries leak, critters love to chew on things, and whenever humans come across something they’ve not seen before they will pick it up – especially if you had to invest a good deal of time securing your logger in exactly the correct position in the stream, on the tree, etc. We never deploy anything for real research until it has passed a several week-long rapid sample ‘burn-in’ test.
One positive aspect of the relatively loose fit of the Plano box lid is that it lets you run sensor tests quickly if you jumper your sensor module with thin 28-30 gauge wires:
A BMP280 pressure sensing module on long wires with crimped male dupont ends in the breadboard.
~1″ square of foam mounting tape with wires spaced evenly
Leave the red backing facing up as you fold the tape & wires over the corner edge.
The front corners of the box exert less pressure than the back corner shown here.
The sharp inner edge of the lid would cut the wire insulation if the tape was not there to protect, and even then you can only use this trick a few times.
The tape over the wires has to be replaced every time.
This gives you a chance to do some test runs before you commit to modifying the housing with holes or cable glands. For some indoor experiments this might be all you actually need, though I would still coat the ‘non-sensing’ parts of that dangling breakout with either conformal coating or clear nail polish. My general advice is: Do not put holes in the housing unless you are sure you need them. The most common failure mode for student loggers used in outdoor environments is from moisture seeping into the through the cable gland. Natural heating and cooling cycles creates pressure differences between the inside and outside of the logger that drive this vapor exchange. Moisture then condenses when temperatures fall at night, collecting on leftover flux residue to corrode contacts. An outer layer of self-fusing rubber mastic tape is often used on cable glands by electricians on out-door installations – even when using the expensive ones with soft rubber ‘cages‘.
After 1-2 minutes of kneading to mix the epoxy you have ~ 1 minute to work the putty into place. (it will become rock-hard within ~10 minutes). Be sure to leave yourself enough extra wire/space inside the housing so that you can open and close the lid easily without disconnecting anything after the putty hardens. This seal is not strong enough for underwater deployments, but it should easily withstand exposure to rain-storm events. HOT GLUE also works to seal pass-through ports with smaller wires & cables. Both pass-through methods can be helped by a layer of silicon caulking, nail polish, or conformal coating applied to the outside edges.
For a classroom project you could simply drill small a hole through the lid and stick the sensor/module on top of the housing, sealing the hole with double-sided tape. Thicker pass-throughs can be also be sealed reasonably well with plumbers epoxy putty which is non-conductive, and adheres quite well to metal, glass & plastic surfaces-> This putty is also a quick way to make custom mounting brackets, or even threaded fittings if you wrap it around a bolt (which you carefully remove before the putty hardens completely)
No matter which pass-through method you are using: Silica gel desiccant packs are important for any outdoor deployments and 5-10 gram packets are a good size for this logger.
Don’t subject these loggers to a lot of bashing around by deploying them in a rough surf-wash zone, or swaying freely in the wind off the end of a tree branch. Solid core wires are pretty good if you cut them to exactly the right length , but longer beadboard jumpers are very easy to bump loose, so once you have your prototype working, it’s usually best to re-connect the sensors directly to the screw terminals before deploying a logger where it could get knocked around. In a pinch you can secure breadboard pins with a small drop of hot glue to keep them from wiggling. Also remember that there are six ‘unused’ screw terminals on the base shieldand these can be use to join wires together without soldering.
2019 Logger mounted on a south-facing window. The top surface was covered with white label-maker tape to act as a diffuser.
[Click HERE] to read about the many types of sensors can be added to this loggerThe transparent enclosure makes it easy to do light-based experiments. Grounding the indicator LED through a digital pin allows it to be used as both a status indicator, and as a light sensor. The code we use is apolarity reversal technique that relies on the tiny capacitance inside the LED. (~5 to 20pF & the processor port adds 10pF) This technique requires the LED to connected directly to ProMini inputs because breadboards can add random amounts of changing capacitance. At these sub pF ranges, any humidity that condenses between the pins will also upset the readings, so desiccants are required. And finally the reverse bias decay is affected by the starting voltage, so if you want to use the technique in a rigorous ‘analytical’ setting you should leave the regulator on your logger.
We have integrated this LED sensor technique into the starter script on GitHub. I’ve tweaked the playground version with port commands so the loop execution takes about 100 clock cycles instead of the default of about 400 clock cycles. The faster version was used to generate the following light exposure graph with a generic 5mm RGB LED, with a 4k7Ω limiter on the common ground.
Red, Green & Blue channel readings from the indicator LED (from a regulated logger) over the course of one day (logger photo above) The yellow line is from an LDR sensor the same unit, that was over-sampled to 16-bit resolution. The LED sensor has a logarithmic response and the left axis on the graph is a time- based measurement where more light hitting the LED sensor results in a lower number. Note how the RED signal changes before/after Blue & Green at sunrise & sunset. LED’s work well with natural full-spectrum light, but their limited frequency bands can give you trouble with the odd spectral distribution of indoor light sources. The peak response of LED’s is usually 30–50nm lower than their peak emission wavelength If we assume the Red was Aluminum gallium arsenide (AlGaAs) then that channel probably had an absorption band @ ~680 nm (~15 nm FWHM?) while the blue Indium gallium nitride (InGaN) channel is responding in the UV-A range, the Green channel (probably also InGaN ?) is most likely peaking around 420nm which is blue to our eyes. But without a spectrometer to test, these are just guesses. No temp. or cosine corrections were determined/applied, although blue/green channels tend to have low temperature coefficients because their bandgap is so far from the thermal spectrum. LED absorption bands have very little drift over time.
You can read more about LED based sensing techniques in the post about our leaf testing experimentswhich used two LEDs for a transmission-based variant of the NDVI ratio.
While the LED sensor idea is fun to work with, it’s a relatively slow method that can keep the logger running for many seconds when light levels are low. Figuring out how to take those light readings only during the day is a good coding exercise for students.
Note: VERY FEW light sensors can withstand exposure to direct sunlight. PTFE is an excellent light diffusing material which available in different sheet thickness. The ‘divot’ on the lid of the Plano box is just a bit larger than 55mm x 130mm x 3mm (depth). The “teflon” tape that plumbers use to seal threaded joints can also be used. PTFE introduces fewer absorbance artifacts than other DIY diffusers like ping-pong balls, thermoplastic, or hot melt glue. Most light sensors like the TSL2561 need 3-5mm of that PTFE sheeting to prevent the sensors from saturating in full sun. LED’s have logarithmic response so you lose quite a bit of detail above 40,000 lux unless you add a diffusion layer to attenuate the signal.
Full sun exposure can also cook your logger. Internal temps above 80°C may cause batteries to leak or damage the SD card. So if you are leaving the logger in full sun, add a bit of reflective film or some aluminum foil around the outside to protect the electronics. Of course if you have a light sensor you’ll need to leave some ‘window area’ for it to take a reading.
The RTC has a built-in temperature register which automatically gets saved with our starter scripthowever that record only resolves 0.25°C, so we’ve also added support for the DS18b20 temperature sensor to the base code. A genuine DS18b20 (yes, fake sensors are a thing) draws very little power between readings and you can add many DS18b’s to the same logger.
Addendum: Diagnosing Connection Problems
If you successfully loaded the blink sketch to test the ProMini during your initial assembly, then issues during the testing stage are often due to incomplete connections to the I/O pins.
If you see only “Scanning I2C….. ” but nothing else appears when running the bus scanner, then it means that the ProMini can not establish communication with the RTC module. One common cause of this problem is that the white & yellow wires have been switched around at one end or the other. It’s also easy to not quite remove enough insulation from the wires to provide a good electrical connection under the screw terminals, so undo those connection and check that the wires were stripped, cleaned & wrapped together before being put under the terminals.
Scanner lockup can also happen if one of the I2C devices on the bus is simply not working: usually about 1 in 6 logger builds ends up with some bad component that you have to identify by process of elimination. (These are 99¢ parts from eBay…right?) It only takes a moment to swap in a new RTC board via the black Dupont connector and re-run the scan. If the replacement RTC also does not show up with the I2C scanner then it’s likely that one of the four bus lines does not provide a complete connection between the ProMini & the RTC module.
On this unit I measured 1 ohm of resistance on the I2C clock line between the ProMini A5 pin (on top of the board) and the SCL header pin on the RTC module. So this electrical connection path is good. It’s not unusual for each ‘dry’ connection to add 0.5-1 ohm of resistance to a signal path.
To diagnose: Unplug any power sources to the logger. Set a multi-meter to measure resistance and put one probe lead on the topmost point of the promini header pins, and the other probe on the corresponding header pin of the RTC module. If there is a continuous electrical connection between the two points then the meter should read one ohm or less. Higher resistances mean that you don’t have a good electrical path between those points even if they look connected:
1)the ground (black) wire should provide a continuous path from the ground pin on the digital side of the Promini board to the GND pin on the RTC module 2) the positive power (red) wire should provide a continuous path from the Promini positive rail pin (the one with the bundle of 4 red wires) to the VCC pin on the RTC 3)A4 (I2C data) near the 328P chip on the Promini must connect all the way through the screw terminal board and through the white Dupont wires to the SDA post on the RTC 4)A5 (I2C clock) nearest the UART end on the Promini must connect through through the yellow Dupont wire to the SCL header on the RTC .
You occasionally get a bad Dupont wire where the silver metal end is not in contact with the copper wire inside because the crimp ‘wings’ did not fold properly. With a pair of tweezers, you can ‘gently’ lift the little plastic tab on the black shrouds holding the female Dupont ends in place, and then replace any single bad wire. Be careful not to break the little black tab or you will have to replace the entire shroud.
Everyone uses short male-to-male Dupont jumper wires when they are creating test circuits because they are so convenient. But pre-made jumper wires are usually too long and so they get knocked around when you close the lid of the logger: so before you deploy take the time to convert your flexible-wire test circuit into one with solid core jumpers:
Flexible wires get used during the initial testing stages (when the lid of the logger is open).
Then the circuit gets re-done with solid core wires
Running wires ‘under’ the modules makes it easier to close the lid without disturbing the connections.
Also look at the little jumpers used to bridge the A4>A2 and A5>A3. If you have a ‘cold’ solder join, or an accidental bridge connection to something else, it could stop the bus from working. Re-melt each connection point one at a time, holding the iron long enough to make sure the solder melts into a nice ‘liquid flow’ shape for each solder point.
The connection diagnosis procedures described above also apply to the connections for the SD adapter board. Sometimes you end up with an adapter that has a defective spring contact inside the SD module, but the only way to figure that out is to swap it with another one.
Here a jumper wire from the ProMini pin is by-passing a bad connection on the screw terminal board. This is also how you would break out A6 & A7 if you need them.
Sometimes those screw terminal boards have a poor connection inside the black female headers below the ProMini. It’s also possible to accidentally over-tighten a terminal and ‘crack’ the solder connection below the board – or there may simply be a cold solder joint on one of the terminal posts. If you have only one bad connection, you can jumper from the ProMini header pins on top, down to the other wires under the corresponding screw terminal. If you accidentally strip the threads on a screw terminal, you can use this same approach but move that set of wires over to one of the three ‘unused’ screw terminals at the far end of the board. (beside the SD card adapter) If you’ve gotten through all of the above steps and still have not fixed the problem, then it might be time to simply rebuild the logger with a different screw terminal adapter board.
If you do accidentally kill the ProMini by shorting a pin, etc, you can carefully lever it up away from the screw terminal shield and replace it without having to rebuild the whole logger.
Build two loggers at a time, because that lets you determine whether problems are code related (which will affect both machines the same way) or hardware related. (which will only affect one of your two units) At any given time I usually have 2-3 units running overnight tests so that I can compare the effect of two different code/hardware changes the next morning. As a general rule you want to run a new build for at least a week before deploying to get beyond any ‘infant mortality’, and reach the good part of the bathtub curve.
An I2C OLED is quite readable through the lid of the housing.I often use Griemans text-onlySSD1306Ascii library because it has a low memory footprint and sleeps well. While few loggers need live output when they are deployed, it’s often helpful to view diagnostic messages on battery power during testing. Adding two OLED displays let’s you view text & graphic output at the same time. Adding a capacitive touch switch lets you check your logger’s status at any time.
Addendum: A note about I2C sensors The I²C bus is slow, so topology (star, daisy-chain, etc.) doesn’t matter much, but capacitance does. Both length & number of sensors increase capacitance. If you find that the devices work when you switch to a slower speed(e.g. 50 kHz), then this is probably your issue, and you need to minimize bus length and/or maybe decrease the combined resistance of the pull-ups to 2 kΩ or less. The DS3231 RTC module has 4k7 ohm pull-up resistors on the SDA & SCL lines & the Pro Mini adds internal 50k pull ups when the wire library is enabled. Typical I2C sensor modules usually add another set of 10k pullups so your ‘net pullup resistance’ on the I2C bus wires is usually: 50k // 4k7 // 10k = ~3k. With a 3.3v rail that means the devices draw 3.3v / 3k = 1 mA during communication which is fairly normal( 3mA is max allowed) for total wire lengths below 1m. It’s common for pre-packaged sensors to arrive with housings at the end of about 1m of wire. If each sensor also adds another set of 10k pullups, the resistance generally compensates for the extra wire length, so the combination still works OK. But that depends on the cable too. A very bad cable might not even get to 0.5 meters and a very good cable (little capacitance to ground, no crosstalk between the wires) can go up to 6 meters.
For most sensor types there will be some options that draw much less power than others, and it’s always worth a look at the data sheet to make sure you are using one that will run longer. The best chip based sensors automatically go into low current modes whenever the bus has been inactive, but more often you need to ‘manually’ put the sensors to sleep via specific commands. So it’s also important to check if your sensor library supports those ‘go to sleep’ & ‘wake up’ commands – many common Arduino libraries do not.
Addendum: The importance of moisture protection
I was noodling around in the garden recently and installed a few loggers without desiccants because it was only a short experiment. It rained immediately afterward and I noticed a small amount of moisture condensed inside the plano-box housing. While this didn’t prevent the logger from functioning, it completely disrupted the LED light sensors because the increased humidity provided an alternate discharge path for the reverse bias charge on the LED’s:
Green channel data from a 5mm diffused RGB LED used as light level sensor. This logger was under some leaf cover, so there was considerable variability from the dappled light crossing over the sensor. An arbitrary cutoff of 200,000 was set in the code at low light levels.
After examining the O-ring I decided to add a little silicone to the channel holding the o-ring to improve the seal:
Gently pry the O-ring loose and apply sealant in the groove before replacing.
Bead only needs to be 3-4mm in diameter.
Close the housing & let the sealant set for a few days. The improved seal is especially visible at the corners
If you already have your logger assembled, try to find a silicone sealant that does not off-gas acetic acid (smells like vinegar) which could harm your circuits. If you are simply preparing empty boxes before assembly, then any regular bathroom sealant will do provided you give it about a week to finish curing.
Attach a mounting base to the lid so that a dessicant pack can be secured above the battery holder without interfering with any breadboard jumpers. Use a desiccant pack with color indicator beads, so you can check whether they are still working simply by looking through the transparent lid.
Addendum: If you want to leave the original regulator in place
It’s worth mentioning that an unregulated build will run for many months – even on 2x regular alkaline batteries which reach the system cutoff (at 2750mv) more quickly. The key deciding factor is whether your sensors require tight voltage regulation. The DS18b20 has a nominal low voltage limit of 3v. So if your project is making heavy use of those then there are only a few of modifications to the tutorial shown above to leave the ProMini’s default MIC5205 regulator in place:
Use straight header pins on the RTC modules cascade port to leave more space for the battery holder.
Only bridge the unused RST terminals to the rail connections – Leave the Vin terminal separate for the raw battery input.
Add a 10/3.3 Meg voltage divider to read the raw battery voltage on A0
You will need more space for the extra batteries. You could go with a 3xAA holder but that leaves about 50% or your alkaline battery capacity unused. Or you could keep the standard layout and use 4xAAA batteries.
An alternative would be to add a better regulator to some kind of intermediate battery connector. The the photo on the right shows two ceramic 105’s stabilizing an MCP1702-3302E/TO, while the 10/3.3M ohm divider provides a third output line so the ADC channel can monitor the raw battery voltage. This is the simplest way to retro-fit a unit that was built without a reg, with the added benefit that the new regulator is far more efficient than the original MIC5205 on the ProMini. It’s worth noting that even on a regulated logger you can monitor the rail voltage to determine when the main batteries are depleted because the regulators output will fall if the batteries reach a point below the minimum dropout voltage. If the rail falls under load by more than ~40mv, then it’s probably time to shut down the logger. With the regulator in place you probably don’t need the USB isolator, as the reg. itself cant pass more current than a USB port.
Addendum: Things to keep in mind when ordering parts
When a finished module arrives at your doorstep for less than you’d pay for any of its sub-components – it’s because you are doing the quality control.
My advice is to order at least 5-6 of each of the core components (Promini, RTC, SD module, screw terminal board, etc) with the expectation that about 10% of any cheap eBay modules will be DOA or have some other problem. I build in batches of six, and one logger typically ends up with a bad part somewhere. Having replacement bits on hand is your #1 way to diagnose and fix these issues. Bad parts tend to come “in bunches”, so if you scale up to ordering in quantities of 10’s & 20’s then spread those orders to a few different suppliers so you don’t end up with all your parts from the same flakey grey market production run. Order from different vendors in different odd-number quantities (11, 21, 9, etc.) because that will be the only way you can distinguish which supplier, sent which parts, because nothing on the package will be written in English.
The other thing I can’t stress enough is CLEAN ALL THE PARTS as soon as they arrive. Leftover flux is very hygroscopic, and solder points will start to corrode the moment your logger gets exposed to atmospheric moisture. I usually give everything about 10 minutes in a cheap sonic bath with 90% isopropyl alcohol, rinse with water, and then dry the parts out in front of a strong fan for an hour. Clean parts that can’t take the sonic vibration (RTC modules, humidity sensors, accelerometers, etc) by hand with a cotton swab. Then store parts in a sealed container with desiccant packs till you need them. I also coat the non-sensing/non-contact surfaces with a layer of MG Chemicals 422B Silicone Conformal Coating and let that dry for a day before assembling the loggers. One hint that you may have moisture issues is that the sensors seem to run fine during indoor tests but start to act strangely when you deploy the unit outside.
Used nut containers make excellent “dry storage” once the parts have been cleaned – but any air-tight container will do.
Another insight I can offer is that the quality of a sensor component is often related to the current it draws – if your ‘cheap module’ is pulling significantly more power than the data sheet indicates, then theres a good chance it’s a junk part. Usually if the sleep current is near spec, then the sensor is probably going to work. It is much easier to check low currents with a µCurrent or a Current Ranger.(I prefer the CR for it’s auto-ranging features) Sensors which automatically go into low current sleep modes take time – so you might need to watch the current for several seconds before they enter their quiescent states. A common reason for a short operating lifespan on a logger is an SD card that refuses to go into sleep mode. If there is an SD card connected to your logger you must initialize it (with sd.begin in setup) or it may ‘stay awake’ causing a constant 30-40mA drain and/or may even cause the logger to freeze up. Also with SD cards, if the freshly formatted throughput drops below its rated write speeds when tested with H2testw, then find another card to use. I avoid cards bigger than 2Gb because they usually draw too much current, and it’s rare to need that much space for a logger.
With cheap part variation & beginner soldering skills, student builds range from 0.15mA to .5mA sleep current. But even at that high end you should still get a couple of months of operation of from the logger on fresh batteries.
Pro Mini Style clone 3.3v 8mHz Get the ones with A6 & A7 broken out at the back edge of the board. Just make sure its the 8 MHz 3.3v version because you can’t direct-connect the SD cards to a 5v board. Watch out for non Atmel 328p chips.
$2.20
‘Pre-assembled’ Nano V1.O Screw Terminal Expansion Board by Deek Robot, Keyes, & Gravitech (CHECK: some of them have the GND terminals interconnected) You will also need to have a few 2.0-2.5mm flat head screw drivers to tighten those terminals down. Since this shield is was originally designed for an Arduino Nano many of the labels on ST board will not agree with the pins on the ‘analog side’ of the ProMini.
SD card 256mb -to-1Gb Test used cardsfrom eBay before putting them in service. Older Nokia 256 & 512mb cards have lower write currents in the 50-75mA range. This is less than half the current draw on most cards 1gb or larger. I tend to avoid older cards labeled as ‘TransFlash’ because they seem to have more controller artifacts during saves. Small 128mb & 256mb cards under the name Cloudisk have appeared on eBay, and so far they seem to be working ok.
30cm Dupont 2.54mm M2F 40wire ribbon cable Dupont connector hook-up wires might be expected to add an ohm or two of resistance and carry at most 100mA reliably with their thin 28-30 gauge wires. Each 40-wire cable will let you make at least 2 loggers.
$1.55
10cm Dupont 2.54mm M2F ribbon cable Sometimes these 10cm cables are harder to find, so you can just use the longer 20cm wires in a pinch. It’s usually also helpful to have a few Male-to-Male 10cm cables for interconnections on the breadboard.
$1.00
2×1.5V AA Battery Batteries Holder w Wire Leads If you are running an unregulated system on 2 lithium batteries, then you can use a 2x AA battery holder. If you need to keep the regulator in place to stabilize the rail voltage for particularly picky sensors, use alkaline batteries and a 4xAA battery holder. Watch out for ‘cheap’ battery holders with weak plastic at the connection ends which will slowly bend away from the batteries until they pop out in warmer climates. If that happens you can add a zip tie belt around the holder to keep the cells in place when the plastic softens.
$0.50
5mm Common cathode RGB LED Although you might want to use 10mm LEDs to increase surface area when using the LED as a light sensor. They also look better.
3.3V FT232 UART Module (get at least 2-3 modules – they are easy kill with a brief short) *jumper the pads on your UART module to 3.3v output before using it!* You will also need a few USB 2.0 A Male to Mini B cables. You may need to install drivers from the FTDI website depending on your OS. These boards can only supply ~50mA which can be tricky if your sensors need more for sustained periods. If you are running the class via distance learning it’s probably a good idea to also get some CP2102 (c231932) UART boards and send your students one of each type. If they are unable to get the drivers working for the FT232, they have a second option. You may have to hunt around for non-FTDI chip boards with the same pin order as the ProMini[ DTR-RX-TX-3v3-CTS/gnd-GND ] The DTR pin is critical for uploading code, while the CTS (clear to send) is an input pin for the FTDI chip only and CTS is not used by the ProMini (so it’s usually just tied to ground). So many UART adapters only have 5 connections and you have to cross the wires over each other to get the connections sorted out. Watch out for 6-pin UART modules that put a (+)ive power connection in the same physical alignment as the GND connection on the ProMini – those boards can create a short circuit unless you re-route the wires. It’s also worth knowing that UARTs can communicate directly to serial sensors like GPS modules for testing. Premade 30cm 6-pin Dupont jumper cables are also available..
SYB-46 270 breadboards (used ONLY for soldering header pins ) Soldering the header pins on the pro-mini is MUCH easier if you use a scrapbreadboard to hold everything in place while you work. I use white plastic breadboards that only have one power rail on the side since I won’t mistake them for my regular breadboards. I also write ‘for soldering only’ on them with a black marker.
Syba SY-ACC65018 Precision Screwdriver Set A good precision screwdriver set makes it so much easier to work with the screw terminal boards. But there are many cheaper options. The screw terminal boards need 2mm (or less) flat slot tips.
$12.00
Donation to Arduino.cc If you don’t use a ‘real’ Pro Mini from Sparkfun to build your logger, you should at least consider sending a buck or two back to the mother-ship to keep the open source hardware movement going…
$1.00
.. and the required lithium AA batteries are also somewhat expensive, so a realistic estimate is about $25-30 for each logger when you add a couple of sensors. Expect parts from low-end suppliers to take 4-6 weeks to arrive and always order at least 50% more than you actually need so you have spares. If you’re pressed for time everything on this list is also available from trusted first-tier suppliers like Sparkfun, Adafruit, Pololu, etc – but you will pay 5-10x as much, with an additional $10-15 shipping charge unless you pass the minimum order level. Amazon is now in a kind of weird grey zone between the two as many vendors that sell on eBay, are also selling on Amazon for 2-3x the price.
Addendum: Using a more advanced processor
Moteino MEGA based Cave Pearl Logger
After you’ve built a few ProMini based loggers, you might want to try a processor upgrade. The 1284p CPU has twice the speed & 4x the memory, but delivers comparable sleep current & operating life.
Addendum: Low Temp. effects on 2x Lithium powered logger
2x LithiumAA millivolts (blue-left) vs RTC Temp °C(orange-right) on cells that have been in service for 5 months. We will leave this unit running over winter to see how DS18b20 on that logger handles it if/when the cells fall below the DS18’s 3V minimum, and then rise back up again. (click image to enlarge)
A crop of these loggers have been running in our back-yard garden since mid-summer with various sensor combinations. Winter is finally reaching us so we can now observe how the cold affects an unregulated 2x Lithium AA supply. This ‘student build’ sleeps at ~170uA and has been running for five months. The battery curve was virtually flat above 15°C but it is now being quite strongly affected. Peak loads from the SD card are in the range of about 150mA and the unit is running with a 5 minute sampling interval.
Note: 2022-10-01: We’ve had several unregulated 2xLithium cell loggers running over winter now, with temperatures varying from -20°C to +40°C throughout the year. On units where the sleep current is in the low 20uA range, we typically see the voltage supplied by two cells in series vary due to that that 60 degree range from a low of 3350 to about 3550 mv on hot summer days. So about 200mV thermal delta in normal environmental conditions.
According to Energizer: In ultra-low drain applications like these dataloggers, the discharge curve has a distinct two stage profile. The first ‘very flat’ plateau occurs at slightly higher voltage (nominally 1.79V (or ~3.58v for two cells) @ 21°C) is nearly independent of depth of discharge. This unchanging stage lasts for about 2/3 of the batteries lifetime. The second stage occurs at a slightly lower voltage (nominally 1.7V (or ~3.4v for two cells) @ 21° C) where the cell voltage then decreases slowly as a function of depth of discharge. In my longer run tests, when the two lithium AA cells in series have fallen below ~3.1v, it’s time to shut down the logger.
Addendum: Adding a TTP233 Capacitive Switch lets you check your logger ‘any time’
With a capacitive touch switch that works through the housing, you can check the status of your logger at any time.
Our next tutorial post in the student logger series: Enhance your Logger with an OLED & T233 Capacitive Touch Switch is an excellent ‘next step’ for people using this logger in a classroom setting. The method is easily adapted to trigger ‘opportunistic’ readings in environments that require manual control, but it’s also handy when you need to check the battery level on a complex installation that you don’t want to disturb before the end of the experiment.
Addendum: Another fine crop of student loggers this year!
A soil sensing lab where students characterize daily water use by various potted plants.
A 2-Part ‘mini’ logger released in 2023
Dr. Beddows instrumentation students have been building this Plano-boxed logger for years, and the ability to swap sensors or add an OLED screen has allowed continuous course development. But for those wanting a simpler ‘bare-bones’ version we’ve developed a 2 module classroom logger using 3D printed rails. Without the SD card this unit is memory constrained, and data download is handled via through the serial monitor window in the IDE. This model requires fairly detailed soldering so students get a complete practice lab soldering header pins onto perf-board before attempting the assembly. Running from a coin cell required the addition of several more advanced code techniques than the 2020 student logger at the beginning of this post. But for instructors, this is the least expensive option that still provides your students with an opportunity to change the sensors to develop their own projects.
Dupont jumper variant of the “fully soldered’ Classroom Data Logger from the Cave Pearl project: This version uses dupont jumpers to reduce assembly time to about 1 hour
Note:An updated version of the classroom logger was released in 2020:CLICK THIS LINK to view the newest build tutorial.
It’s only been a couple of weeks since the release of the 2019 EDU logger, and we’re already getting feedback saying all the soldering that we added to that tutorial creates a resource bottleneck which could prevent some instructors from using it:
“Our classroom has just two soldering stations, and the only reason there are two is I donated my old one from home. So we simply don’t have the equipment to build the logger you described. And even if we did, some of my students have physical / visual challenges that prevent them from working with a soldering iron safely…”
Or goal with that design was to give students their first opportunity to practice soldering skills that are needed when repairing kit in the field. However helping people do science on a budget is also important – so that feedback sent us back to the drawing board. After a little head scratching we came up with a new version that combines the Dupont jumper approach we used in 2016, with this flat-box layout. In the following video, I assemble one of these ‘minimum builds’ in about one hour. To put that in perspective, the fully soldered version takes 2 – 2.5 hours for someone with experience.
Note: After you’ve seen the video to get a sense of where you are headed, it’s usually much better to work from the photos (below) when assembling your logger. Youtube videos make it look easierthan it actually is when you are just starting out. So the first one you build could take several hours as you figure out what you are doing, the second will take half as long, and the third one you make usually takes less than two hours. With some practice you can easily make 4-5 of these things a day.
This variation of the basic 3-component logger is optimized for quick assembly, so the soldering has been reduced to adding header pins and bridging the A4/A5 I2C bus to the outer terminals. An instructor could easily do that ahead of time with about 15 minutes of prep per unit, leaving only the solder-less steps for their students. After the header pins are in place, connections to the central Pro Mini are made by simply twisting stripped wire ends together and clamping them under screw terminals.
You should useLithiumAA batteries with a 2-cell unregulated supplybecause the slope of an alkaline batteries discharge would bring the system down to ProMini’s brown-out of ~2.7v when only 40% of the battery capacity has been used. (note the SD card safe down to 1.8v) While the voltage of a ‘brand new’ Lithium AA is usually 1.8v/cell, that upper plateau provides a sleeping logger voltage of ~1.76 v/cell once the batteries settle, and that briefly dips to about 1.625v/cell under load during data saves. At low temps of about 5°C (in my refrigerator) those SD card voltage dips go down to about 1.525 v/cell. Unloaded readings of 1.5v on a Li AA = battery is dead.
This time reduction involves a few trade-offs, and bringing the I2C bus over to A2 & A3 leaves only two analog ports readily accessible ( although A6 & A7 are still available if you add some jumpers). Removing the regulator & battery voltage divider adds ~30% more operating life, but it also forces you to deal with a changing rail voltage as the Lithium AA batteries wear down. The daily variation is usually quite small, but for quantitative comparisons on monthly scales you will need to correct for the change in rail voltage over time if your sensor circuits are not ratio-metric. To do this voltage compensation multiply your raw sensor readings by the the ratio of (3300mv) / (current rail voltage). Here 3300mv is just an arbitrary comparison point, which you could replace with any rail voltage reading from the data saved by your logger. Batteries have a lot of mass, so thermal lag in battery voltage can also cause hysteresis for analog temperature sensors unless you read the reference under the same conditions.
Solder the UART pins & test ProMini board with the blink sketch: Set the IDE to (1)TOOLS> Board: Arduino Pro or Pro Mini (2)TOOLS> ATmega328(3.3v, 8mhz) in addition to the (3)TOOLS>COM portto matchthe # that appears when you plug in the serial adapter board.
Once you know you have a working Promini board: Remove the power LED [in red]. Removing the pin13 LED [yellow square above]is optional. Leaving the pin13 LED in place lets you know when data is being saved to the SD card because the SPI bus SClocK signal flashes the LED.
Remove the voltage regulator with snips. Your system voltage will vary over time, but our starter script records that rail voltage without a voltage divider.
Add pin headers to the sides & Serial input end of the Pro Mini.
Bridge the two I2C bus connections for side access with the leg of a resistor. Connect A4->A2 & A5->A3.
Adding DIDR0 = 0x0F; in Setup disables digital I/O on pins A0-A3 so they don’t interfere with I2C bus coms.
NOTE: The Screw Terminal board we use in this build was designed for the 5v Arduino NANO, so the shield labels don’t match the actual 3.3v Pro Mini pinson the ‘analog’ side.(the digital side does match) To avoid confusion may want to tape over those incorrect labels and hand write new labels to match the pattern above. Wire connections in this tutorial will be specified by ProMini pin labels: D10-13 are used for the SD card, A4=A2 is the I2C Data line, and A5=A3 is the I2C clock line, A0 & A1 are not used.
Technically speaking, bridging the I2C bus (A4=data & A5=clock) over to A2 & A3 subjects those lines to the pin capacitance and input leakage of those analog pins (regardless of whether that channel is selected as input for the ADC p257). But in practice, the 4K7 pull-up resistors on the RTC module can easily handle that at the 100 kHz default bus speed. Adding DIDR0 = 0x0F; in setup disables digital I/O on pins A0-A3 to prevent interference with the I2C bus. If you want to disable the IO on A2 & A3 ‘only’ add bitSet (DIDR0, ADC2D); bitSet (DIDR0, ADC3D); to your code.
Also note: On the UART adapter in the picture above, the USB to TTL adapter pins are in the reverse order to the Pro Mini board. This is a fairly common issue with clones and if the blink sketch never uploads flip the adapter around and try again. I have connected 3.3v ProMinis to UART modules the wrong way round many, many times, and not one of them has been harmed by the temporary reversal.
Screw-Terminal Component Stack:
Add 3 layers of double sided tape so the tape is thicker than the solder pins.
Align RX&TX corner pins before inserting. The GND points on the screw terminal board may be interconnected (via the back-plane) & must match the ProMini’s GND pins.
Gently rock the Pro Mini back to front (holding the two short sides) until the pins are fully inserted. Some ST shields have mis-aligned headers so this insertion can be tricky.
Remove the last three ‘unused’ pin headers to make room for the SD adapter
Note: Screw-terminal board labels do not match the ProMini pins on the ‘analog’ side
Remove bottom 3 resistors from the adapter – leave the top one in place!
Separate Dupont Cable wires & click them into a 6-pin shroud.
Cable Color Pattern: Black =GND, Purple=MISO, Brown=CLocK, Orange=MOSI, Grey=CSelect, and Red=3v3
Use foam tape to attach SD module to the Screw Terminal board. Metal tabs should be visible on top surface.
Measure, cut & strip the 4 SPI bus wires (NOTE the ‘Nano’ ST board labels say A0-A3 which does not matchthe D10-13 Pro Mini pins on this side of the board)
Grey (CS) to ProMiniD10, Orange (MOSI) -> pm D11, Purple (MISO) ->pm D12, Brown (CLK) -> pm D13
Add three jumper wires to the red power line from the SD module, one with a male end pin. I often add Dupont ends with a crimping tool, rather than using a pre-made jumper.
Strip & twist the 4 red power wires together & add heat-shrink for strain relief. Bundling wires like this is easier if you make the stripped area a bit longer.
A short red jumper goes to RAW(pm)=VIN(st) to recruit the orphan capacitor.
Long red jumper bridges power to ‘unused’ screws on other side of the Terminal board, and the wire with the Dupont male end will go to the breadboard.
Add 2 extra wires to the black GND wire from the SD module (1 with a male Dupont end ). Jumper one black wire across the Promini to an unused terminal beside the red power wire.
The GND bundle completes Pro Mini / ST board / SD module stack. The ‘pinned’ Red & Black ‘pinned’ jumpers shown here areabout 1 inch too short to reach the breadboard easily… make yours longer.
Note:You could connect the battery holder lead wires directly into the multi-wire Vcc & GND bundles: skipping the 2 jumpers crossing over to the other side of the ST shield. But adding those jumpers provide extra Vcc/GND connection points & the ability to easily replace the battery holder later if you have a battery leak.
I always try to make my Dupont connectors so that the metal & plastic retainer clips are accessible (in this case facing upwards) after the logger is assembled. That way you can diagnose bad wire connection with the tip of a meter probe, and if necessary, pull out & replace a single bad wire in the Dupont connector without taking everything apart.
RTC module:
Remove two SMD resistors from the RTC board with the tip of your soldering iron.
The DS3231 modules often have flux residue – clean this off with 90% isopropyl.
Cable: Blk(gnd), Red(vcc), White(sda), Yellow(scl), Blue(sqw). Shroud retainer clips face up & there is no wire on 32K output.
First tape layer
Next two tape layers
OPTIONAL: adding header pins to the cascade port provides a convenient attachment point for I2C sensors later.
Optional: After removing the two SMD resistors on the module, you can clip the Vcc leg on the RTC chip which forces the clock to run entirely from the backup coin-cell battery. This reduces the loggers overall power use by 0.09mA bringing a “no-reg & noRTCvcc” build below 0.1mA when the logger sleeps between sensor readings (this should run for more than 2 years on fresh lithium AA cells) . But the risk is that if you bump the RTC backup battery loose, that disconnection resets the clock time to Jan 1st, 2000. (note: while the time stamps will be wrong after that kind of reset, the logger will continue running after the next hour/min alignment occurs with the ‘old’ alarm time) A couple of pieces of soft 1.6mm heat shrink tubing under the spring makes the negative coin-cell connection stronger, an a touch of hot melt glue will secure the battery on the top edges. A CR2032 can power the RTC about four years but you have to set bit six of the DS3231_CONTROL_REG to 1 to enable alarms when running from the coin-cell. (our starter code does this by default) This modification also disables the 32.768 kHz output pin on the RTC. Visit our RTC page for more detailed information on this clock module.
Final Assembly: (Note: references here are to pin numbers/labels on the ProMini which do not match ST board labels on the analog side)
Attach the Pro Mini stack & RTC to housing with the double-sided tape.
Trim white & yellow I2C wires from the RTC & add 1 extra wire with dupont ends for each I2C line to bring the bus over to the breadboard
Attach yellow SCL line from the RTC beside the red 3v rail (ie to A3=A5 on the ProMini) then the white SDA line from the RTC to A2=A4.
The four extra jumper wires with male Dupont ends on Vcc, GND, & both I2C lines. These get patched over to the breadboard so you can add I2C sensors.
Each wire must be plugged into its own separate vertical column on the breadboard. Add a 2nd layer of foam tape to the bottom of the bread-board before attaching.
The RTC power line joins that short red jumper on RAW(pm)=VIN(st) at the end of the screw-terminal board.
Some of the box bottoms have slight bowing. If any component doesn’t stick well enough: add another layer of foam tape.
Attach the RTC’s black ground wire to GND & the blue SQW alarm line to ProMini pin D2
Attach 2xAA battery holder with 2 layers of foam tape. Trim wires to length. Use black 30lb Mounting Tape for extra strength.
Battery wires join the black & red jumpers from other side of the terminal board. All six of the ‘unused’ screw terminals we clipped earlier can be used to make secure ‘dry wire’ connections in this way.
Connections complete except the indicator. 5050 LED modules often come with pre-installed limit resistors which make them safer for the classroom. But you can use a raw 5mm LED if you only light the LED with the INPUT_PULLUP command.
A ‘common cathode’ RGB LED module on pins Red=D6, Green=D5, Blue=D4, & GND=D3.
Your Logger is ready for testing!
(Note:Most of the time the tests listed below go well, however if you run into trouble at any point read through the steps suggested for Diagnosing Connection Problems at the end of this page.)
Install the Arduino IDE into whatever default directory it wants to be in – we’ve had several issues where students tried to install the IDE into some other custom sub-directory, and then code will not verify without errors because it doesn’t know where to look for libraries. If you have not already done so, there are three things you need to set under the IDE>TOOLS menu to enable communication with the logger:
Note: that the “COM’ setting will be different for each computer, so you will have to look for the one that appears on your system AFTER you plug in the UART module.
The one that’s easy to forget is choosing the 328P 3.3v 8Mhz clock speed. If you leave the 328p 5v 16mhz (default), the programs will upload OK, but any text displayed on the serial monitor will just be a random bunch of garbled characters because of the clock speed mismatch. Also be sure to disconnect battery power (by removing one of the AA batteries) whenever you connect your logger to a computer.
1. Test the LED – Edit the default blink sketch, adding commands in setup which set the digital pin 3 connected to the ground line of the LED to “OUTPUT” and “LOW” pinMode(3, OUTPUT); digitalWrite(3, LOW);
Since we removed the ‘default’ indicator led on the Pro Mini board, you will also need to change LED_BUILTIN variable in the blink code example to one of the pins connected to one of the color channels on your led module. (in this example change LED_BUILTIN to either 4, 5, or 6)
2. Scan the I2C bus with the scanner from the Arduino playgound. The RTC module has a 4K eeprom at address 0x56 (or 57) and the DS3231 RTC should show up at address 0x68.
The address of the eeprom can be changed via solder pads on the board, so sometimes it moves around. If you don’t see at least these two devices listed in the serial monitor when you run the scan, there is something wrong with your RTC module or the way it’s connected: It’s very common for a beginner to get at least one set of wire connections switched around during the assembly. With the screw terminals this takes only a few moments to fix. Also have a spare RTC module on hand in case you get a defective module…which is fairly common.
NOTE: Some sensors really need the stability provided by the on-board voltage regulator. Here is an alternative arrangement of parts for the classroom logger that leaves the 3.3v regulator in place on the ProMini and powers the logger from 4xAAA alkaline batteries (NOTE:regulated builds also leave out the short red jumper that was used to recruit the orphan capacitor after the reg was clipped. The RTC & added sensors now get connected ONLY to the Pro-Mini’s regulated 3.3v rail ) We’ve designed the Cave Pearl Logger for maximum flexibility, so you can easily change components and positions like this to suit the needs of your design / experiment.
3. Set the RTC time, and check that the time was set – The easiest method would be to use the SetTime / Gettime scripts from our Github repository, but first you need to download & install this RTC control library The SetTime script, automatically updates the RTC to the time the code was compiled (just before uploading) so you only run SetTime once, and then immediately upload the GetTime sketch to get the SetTime code out of memory after it’s done it’s job. Otherwise SetTime will reset the RTC to the ‘code compile time’ every time the Arduino restarts (and the Arduino restarts EVERY TIME you open the serial window…)
There are dozens of other good Arduino libraries you could use to control the DS3231, and there is also a script over at TronixLabs.com that lets you set the clock without installing a library. [ in 24-hour time, & year with two digits eg: setDS3231time(30,42,21,4,26,11,14); ] The trick with Tronix’s “manual” method is to change the parameters in the line: setDS3231time(second, minute, hour, dayOfWeek, dayOfMonth, month, year); to about 2-3 minutes in the future, and thenupload that code until about 20 seconds before your computers clock reaches that time(this compensates for delay caused by the compilers processing & upload time). Open the serial window immediately after the upload finishes, and when you see the time being displayed (and it’s not too far off actual…) upload the examples>blink sketch to remove the clock setting program from memory.
4. Check the SD card is working with Cardinfo – Changing chipSelect = 4; in that code to chipSelect = 10;Note that this logger requires the SD card to be formatted as fat16, so most 4GB or larger High Density cards will not work because they get formatted as fat32. Most loggers only generate 5 Kb of CSV format data per year when they are running, so you don’t need a big SD card. In fact older, smaller SD cards in the 256-512mb range often use less power if it’s a good name brand like Sandisk or Nokia.
Zip-Tie Mounting Bases are an easy way to add attachment points inside your logger to secure sensor cables, or desiccant packs. These adhesive cable tie mounts come in many varieties, and cost about 10¢ each at most hardware stores.
5. Optional: If you are running with no regulator & using analog sensors: Calibrate your internal voltage reference with CalVref from OpenEnergyMonitor.
This logger uses an advanced code trick to read the positive rail voltage to ~11mv resolution by comparing it to an internal 1.1v reference inside the processor. That internal ref. can vary by ±10% from one chip to another, and CalVref gives you a constant which will make the rail=battery voltage reading more accurate. Load CalVrefwhile the logger is running from USB power and then measure the voltage between GND and the positive rail with a good quality voltmeter. (this voltage will vary depending on your computer’s USB output, and the UART adapter you are using) Then type that voltage into the serial monitor window entry line & hit enter. Write down the reference voltage & constant which is output to the serial monitor window. I usually write these ‘chip-specific’ numbers inside the logger with a black sharpie. You will need to add that info to the core data logger code later by changing the line #define InternalReferenceConstant 1126400L to match the long number returned from CalVref. Alternatively you could just tweak the value of the constant ‘by hand’, increasing or decreasing the value till the reported rail readings match what you see with a voltmeter. After you’ve done this once or twice you can usually get within 15mv of actual with about 10 trials.
This calibration brings the starter script’s battery readings within ±15mv of actual but you can skip the CalVref procedure if you are only using digital sensors, as the script will still produce reasonably good battery readings with the default 1126400L value. Increasing the rail reading accuracy is more important when you are using ANALOG sensors which use that rail voltage to drive your sensors – so the +ive raildirectly affects their output if you are not reading a ratiometric circuit.
6. Find a script to run your on logger. For test runs on a USB tether, the simplest bare-bones logger code is probably Tom Igoe’s 1-pager at the Arduino playground. It’s not really deploy-able because it never sleeps the processor, but it is still useful for teaching exercises and testing sensors after you set chipSelect = 10; In 2016 we posted an extended version of Tom’s code for UNO based loggers that included sleeping the logger with RTC wakeup alarms. Our latest logging “Starter Script” has grown in complexity to ~750 lines, but it should still be understandable once you have a few basic Arduino programming concepts under your belt.
After 1-2 minutes of kneading to mix the epoxy you have ~ 60 seconds to work the putty into place. (it will become rock-hard within ~5-10 minutes). Be sure to leave yourself enough extra wire/space inside the housing so that you can open and close the lid easily without disconnecting anything after the putty hardens. This seal is not strong enough for underwater deployments, but it should easily withstand exposure to rain-storm events. This putty is also a quick way to make custom mounting brackets, or even threaded fittings if you wrap it around a bolt (which you carefully remove before the putty hardens completely)
In the previous tutorial we attached external sensors with a cable gland passing through the housing and epoxying them into a pvc cap. Cheap cable glands are notoriously unreliable and I always add a second rubber oring on the inside – and often over-seal the outside with conformal coating. But for a simpler classroom project you could simply drill small a hole through the lid and stick the sensor/module on top of the housing, seal the hole with double-sided tape. Thicker pass-through wires can be sealed reasonably well with plumbers epoxy putty from the hardware store. This putty is non-conductive, and adheres quite well to both metal & plastic surfaces.
Remember that breadboard connections are very easy to bump loose, so once you have your prototype circuits working, its usually best to re-connect the sensors directly to the screw terminals before deploying a logger where it could get knocked about. In a pinch you can secure breadboard pins with a ‘tiny’ drop of hot glue to keep them from wiggling around.
There is no power switch on the loggers, which are turned on or off via the battery insertion. Use a screwdriver, or some other tool, when removing the batteries so that you don’t accidentally cause a series of disconnect-reconnect voltage spikes which might hurt the SD card.
Using the logger for experiments:
Logger mounted on a south-facing window and held in place with double sided tape. Here the top surface of the housing was covered with two layers of white label-maker tape to act as a light diffuser. PTFE is another excellent light diffusing material available in different sheet thicknesses. The ‘divot’ on the lid of the Plano box is just a bit larger than 55mm x 130mm x 3mm (depth). The “teflon” tape that plumbers use to seal threaded joints can also be used in a pinch. PTFE introduces fewer absorbance artifacts than other diy diffusers like ping-pong balls, or hot melt glue. Most light sensors like the TSL2561 need 3-5mm of that PTFE sheeting to prevent the sensors from saturating in full daylight. LED’s don’t saturate that badly, but you still lose all the useful detail in your data at peak brightnesses > 80,000 lux unless you add a diffusion layer to attenuate the light.
Many types of sensors can be added to this loggerand the RTC has a built-in temperature register which automatically gets saved with our starter script. The transparent enclosure makes it easy to do light-based experiments. Diodes, LED’s & solar panels are basically the same device. So grounding the indicator LED through a digital pin allows it to be used as both a status light, and as a light sensor. The human eye is maximally sensitive to green light so readings made with that LED channel approximate a persons impression of overall light levels. Photosynthesisdepends on blue and red light, so measurements using LED’s that detect those two colors can be combined for readings that compare well to the photosynthetically active radiation measurements made with “professional grade” sensors. In fact Forest Mimms(the man who discovered the light sensing capability of LEDs in the first place) has shown the readings from red LED’s can be used as a reasonable proxy for total PAR. Photoperiod measurements have important implications for plant productivity, as do measurements of transmittance through the plant canopy.Chlorophyll fluorescence is another potential application, and the response of plants to UV is fascinating.
The original code for using LEDs as sensors is from the Arduino playground.This polarity reversal technique does not require the op-amps that people typically use to amplify the light sensing response but it does rely on the very tiny parasitic capacitance inside the LED. (~50-300pF) This means that the technique works better when the LED is connected directly to the logger input pins rather that through the protoboard (because breadboards add random capacitance) . Another thing to watch out for is moisture condensation inside your logger housing: this provides an alternate discharge path for the reverse-charge on the LED, which effectively shorts out the light level reading.
We have integrated this into the starter scriptwhich you can download from GITHUB. I’ve tweaked the playground version with port commands so the loop execution takes about 100 clock cycles instead of the default of about 400 clock cycles. The faster version was used to generate this light exposure graph with a generic 5mm RGB LED, with a 4k7Ω limiter on the common ground which was connected to pin D3:
Red, Green & Blue channel readings over the course of one day from the indicator LED in the logger photo above. The yellow line is from an LDR sensor the same unit, that was over-sampled to 16-bit resolution. The LED sensor has a logarithmic response and the left axis on the graph is a time- based measurement where more light hitting the LED sensor results in a lower number. Note how the RED signal changes more quickly than Blue & Green at sunrise & sunset. LED’s work well with natural full-spectrum light, but their limited frequency sensing bands can give you trouble with the spectral distribution of indoor light sources. The peak spectral response of LED’s is usually around 30–50nm lower than their peak emission wavelength So the blue channel is actually recording in the near-UV range, the Green channel is responding at ~ 420nm (blue) and the red channel is actually responding to a wide band of yellow-green light.
Characterizing light absorption and re-emission is also a primary technique in climate science . For example, measuring light intensity just after sunset with LEDs inside a heat-shrink tube pointed straight up can provide a measure of suspended particles in the stratosphere. An “ultra bright” LED has more than enough sensitivity to make these columnated readings, in fact on bright sunny days you usually have to place the LED/sensor beneath a fair thickness of white diffusing material (like PTFE tape) to prevent it from being completely saturated. Older LEDs that emit less light can sometimes be easier to work with because they are less sensitive, so the discharge time does not go to zero in high-light situations. Other sensor experiments are possible with LED’s in the IR spectrum which can be used to detect total atmospheric water vapor. A light transmission-based variant of the NDVI ratio can be used todetermine plant health after adding an IR LED to the logger.
Of course, full sun exposure can also cook your little logger: temps above 80°C may cause batteries to leak or damage the SD card. If you have to leave the logger in full sun, add a bit of reflective film or a layer of aluminum foil around the outside to protect the electronics. Though if use a light sensor you’ll need to leave a little un-covered window for it to take a reading.
You might also find it handy to add a few holes to the Plano box as tie-down points:
and it’s always a good idea to add desiccant packs inside the box to prevent condensation. If you use a desiccant with color indicator beads, you can check whether they are still good simply by looking through the transparent housing.
If you clipped the RTC leg, your logger should pull less than 0.1mA while sleeping. Back of the envelope for Lithium AA’s is about 7 million milliamp-seconds of power, with your logger burning about 8600 mAs/day at 0.1mA. So clipping the voltage regulator and cutting the vcc leg on the RTC should easily get you out to about a year before you fall off the “upper plateau” of the lithium burn-down curve, and more likely to ~two years if your sensors don’t use much power (…and you have a well behaved SD card). With the RTC power leg still attached you’ll see sleep currents in the 0.18-0.22 mA range, so at least 6 months of operation before you come close to triggering the low voltage shutdown (which is embedded in the logger code). I’m being conservative here because it all depends on your sensors and other additions you make to the base configuration. For every type of sensor the market, there will be some brands that draw much less power than others, and it’s always worth a look at the data sheet to make sure you are buying one that will run longer on a given set of batteries. Good sensors automatically go into a low current sleep mode whenever the bus has been inactive for a period of time.
While the LED sensor idea is fun to work with, it’s a very slow method that keeps the logger running for many seconds per reading when light levels are low -> so reading all three color channels will probably cut your operating life in half again. Figuring out how to only take those light readings during the day is a good coding exercise for students that saves quite a bit of power. The RTC’s temperature record is pretty crude, so we’ve also added support for the DS18b20 temperature sensor in the base code. If you have a genuine DS18b20 (yes, crummy fake knock-off sensors are a thing) , these venerable old temperature sensors draw virtually no power between readings.
Pro Mini Style clone 3.3v 8mHz Get the ones with A6 & A7 broken out at the back edge of the board. Just make sure its the 3.3v version because you can’t direct-connect the SD cards to a 5v board.
$2.20
‘Pre-assembled’ Nano V1.O Screw Terminal Expansion Board by Deek Robot, Keyes, & Gravitech (CHECK: some of them have the GND terminals interconnected) You will also need to have a few small flat head screw drivers to tighten those terminals down. Since this shield is was originally designed for an Arduino Nano many of the labels on ST board will not agree with the pins on the ‘analog side’ of the ProMini.
Dupont 2.54mm F2F 40wire ribbon cable Without Housing Cheaper if you get the ones with the black plastic shrouds on the ends. Dupont connector hook-up wires might be expected to add an ohm or two of resistance and carry at most 100mA reliably with their thin 28-30 gauge wires. Poorer quality crimped ends can add significant contact resistance. Each 40-wire cable will let you make at least 2 loggers, and you”l need a couple of 6-pin connector shrouds.
$1.55
2×1.5V AA Battery Batteries Holder w Wire Leads
If you are running an unregulated system on 2 lithium batteries, then you can use a 2x AA battery holder. If you need to keep the regulator in place to stabilize the rail voltage for particularly picky sensors, use alkaline batteries and a 4xAA battery holder.
$0.50
5050 LED module (with built-in limit resistors) (Alternatively, you can also use cheaper 5mm diffused LEDs with a 4K7 limit resistor on the GND line – that you solder into place on the LED yourself)
$0.75
3.3V 5V FT232 Module *set the UART module to 3.3v before using it!* and you will also need a few USB 2.0 A Male to Mini B cables. You may need to install drivers from the FTDI website depending on your OS. Get at least 2-3 of these as they do wear out and you can kill them with a short circuit. These boards can only supply about 50mA which can be tricky with sensors that draw more than that.
You might need some extra tools to get started:(not included in the total above)
2in1 862D+ Soldering Iron & Hot Air station Combination
a combination unit which you can sometimes find as low as $40 on eBay. Oryou can get the Yihua 936soldering iron alone for about $25. While the Yihua is a so-so iron, replacement handles and soldering tips cost very little, and that’s very important in a classroom situation where you can count on replacing at least 1-2 tips per student, per course, because they let them run dry till they oxidize and won’t hold solder any more. Smaller hand-held heat-shrink gunsare also available for ~$15.
$50.00
SYB-46 270 breadboards (used ONLY for soldering header pins ) Soldering the header pins on the pro-mini is MUCH easier if you use a scrapbreadboard to hold everything in place while you work. I use white plastic breadboards that they only have one power rail on the side since they do not look like regular breadboards & I write ‘for soldering only’ on them with a black sharpie to make sure I don’t get the heat-damaged boards mixed up with the good ones.
Donation to Arduino.cc If you don’t use a ‘real’ Pro Mini from Sparkfun to build your logger, you should at least consider sending a buck or two back to the mother-ship to keep the open source hardware movement going…so more cool stuff like this can happen!
$1.00
When a finished module with 20 sub-components arrives at your doorstep for less than you’d pay for any one of those components individually, then the tradeoff is that you are the quality control.
.. and the required lithium AA batteries are also somewhat expensive, so a realistic estimate is about $25 for each logger before you add sensors & tools.
My advice is to order at least 5-6 of each of the core components (Promini, RTC, SD module, screw terminal board, etc) with the expectation that about 10-20% of any cheap eBay modules will be DOA due to some quality control problem. I build loggers in batches of six, and one unit typically ends up with a bad part somewhere. Having replacement parts on hand is your #1 way to diagnose and fix these issues. I’ve noted over the years that bad parts tend to come “in bunches”, so if you scale up to ordering in quantities of 10’s & 20’s then spread those orders to a few different suppliers so you don’t end up with all your parts coming from the same flakey production run.
The other thin I can’t stress enough is CLEAN ALL THE PARTS as soon as they arrive. Leftover flux is very hygroscopic, and pretty much guarantees that solder joints will start to corrode the moment your logger gets exposed to any atmospheric moisture. So I usually give everything about 10 minutes in a cheap sonic bath with 90% isopropyl alcohol, rinse with water, and then dry the parts out in front of a strong fan for an hour. Store parts in a sealed container with a dessicant pack till you need them. I clean parts that can’t take the sonic vibration (like RTC modules, humidity sensors, accelerometers, etc) by hand with cotton swabs. Then I coat everything I can with a layer of MG Chemicals 422B Silicone Conformal Coating and let that dry for a day before assembling the loggers. One hint that you have moisture issues is that the sensors seem to run fine in the house but start to act weird when you deploy the unit outside.
Used nut containers make excellent “dry storage” once the parts have been cleaned – but any air-tight container will do.
Another insight I can offer is that the quality of a sensor component is often related to the current it draws – if your ‘cheap module’ is pulling much more power than the data sheet for that sensor indicates, then it’s probably a junk part. If the sleep current is on spec, then your part is probably going to work OK. It is much easier to check low current devices with at Ucurrent or a Current Ranger. Keep in mind that sensors which automatically go into low current sleep modes usually take some time to do so after the bus has gone quiet – so you might need to watch the sleep current for 30 seconds or more before they fall down into their quiescent state. With SD cards, if the throughput drops below the typical write speed for that model with H2testw, then you should just find another card to use with your logger.
I strongly recommend that you build at least two loggers at a time, because that lets you isolate whether problems you run into during testing are code related (which will always affect both machines the same way) or hardware related. (which will usually only affect one of your two units) At any given time I usually have 2-3 units running overnight tests so that I can compare the effect of two different code/hardware changes the next morning. As a general rule you want to run a new build for at least a week before deploying it to make sure you’ve made it past any ‘infant mortality’, and moved onto the good part of the bathtub curve.
Addendum: Diagnosing Connection Problems
If you loaded the blink sketch to test the Prominin during your initial assembly, you know that part of the logger is working, so issues during the testing stage are due to incomplete connections from the outside to the Promini I/O ports. Before you start your troubleshooting it’s worth remembering that after you’ve built a few of these units you can simply rebuild the whole logger in about a hour. So it really doesn’t make sense to spend much more time than that – especially when a few five-minute part swaps are likely to fix the problem. The components are only worth a couple of bucks each, and your time is more valuable than that!
This is the connection pattern inside the white breadboard. Take care that you don’t connect the breadboard jumper wires together by accidentally plugging them in to the same row or – the I2C bus will stop working. NEVER CONNECT the GND & 3.3v wires or the short circuit will likely kill your logger, and possibly even the computer they are connected to . . .
If you see only “Scanning I2C….. ” but nothing else appears when running the bus scanner, then it means that the ProMini can not establish communication with the RTC module. The most common cause of this problem is that the white & yellow wires were switched around at one end or the other. It’s also easy to not quite remove enough insulation from the wires to provide a good electrical connection under the screw terminals, so undo those connection and check that the wires were stripped, cleaned & wrapped together ‘clean’ before being put under the terminals. Those screws need to be clamped down relatively tight on the thin Dupont wires and if you are not careful, you might have accidentally cut away some of the thin copper wires inside the Dupont cable when you stripped the insulation.
Scanner lockup can also happen if one of the I2C devices on the bus is simply not working: usually about 1 in 6 logger builds ends up with some bad component that you have to identify by process of elimination. (These are 99¢ parts from eBay…right?) It only takes a moment to swap in a new RTC board via the black Dupont connector and re-run the scan. If the replacement RTC also does not show up with the I2C scanner then it’s likely that one of the four bus lines does not have a complete connection between the ProMini & the RTC module.
On this unit I measured 1 ohm of resistance on the I2C clock line between the ProMini A5 pin (on top of the board) and the SCL header pin on the RTC module. So this electrical connection path is good. It’s not unusual for each ‘dry’ connection to add 0.5-1 ohm of resistance to a signal path.
To diagnose this: set a multi-meter to measure resistance and put one probe lead on the topmost point of the promini header pins, and the other probe on the corresponding header pin of the RTC module. If there is a continuous electrical connection between the two points then the meter should read one ohm or less. Higher resistances mean that you don’t have a good electrical path between those points even if they look connected:
1)the ground (black) wire should provide a continuous path from the ground pin on the digital side of the Promini board to the GND pin on the RTC module 2) the positive power (red) wire should provide a continuous path from the Promini positive rail pin (the one with the bundle of 4 red wires) to the VCC pin on the RTC 3)A4 (I2C data) near the 328P chip on the Promini must connect all the way through the screw terminal board and through the white Dupont wires to the SDA post on the RTC 4)A5 (I2C clock) beside A4 on the Promini must connect through through the yellow Dupont wire to the SCL header pin on the RTC .
For ‘single-wire’ connections under the screw terminal with those thin dupont wires, strip enough insulation that you can ‘fold-back’ some extra wire to give the terminal more wire to bite onto.
You occasionally get a bad Dupont wire where the silver metal end is not in contact with the copper wire inside because the crimp ‘wings’ folded over plastic insulation. With a pair of tweezers, you can ‘gently’ lift the little plastic tab on the black shroud holding the female Dupont ends in place, and then replace any single bad wire. Be careful not to break the little black tab or you will have to replace the entire shroud.
Also look at the little jumpers used to bridge the A4>A2 and A5>A3. If you have a ‘cold’ solder join, or an accidental bridge connection to something else, it could stop the bus from working. Remelt each connection point one at a time, holding the iron long enough to make sure the solder melts into a nice ‘liquid flow’ shape for each solder point.
A note about I2C sensors: The I²C bus is slow, so topology (star, daisy-chain, etc.) doesn’t matter much, but capacitance does. Length and number of devices increase capacitance. If you find that the devices work when you switch to a slower speed (e.g. 50 kHz), then this is probably your issue, and you need to minimise bus length and/or maybe decrease the combined resistance of the pull-ups to 2 kΩ or less. The DS3231 RTC module has 4k7 ohm pull-up resistors on the SDA & SCL lines & the Pro Mini adds internal 50k pull ups when the wire library is enabled. Typical I2C sensor modules usually add another 10k so your ‘net pullup resistance’ on the I2C bus wires is usually: 50k // 4k7 // 10k = ~3k. With a 3.3v rail that means the devices draw 3.3v / 3k = 1 mA during communication which is fairly normal( 3mA is max) for total wire lengths below 1m. It’s common for pre-packaged sensors to arrive with housings at the end of about 1m of wire. If each sensor also adds another set of 10k pullups, the resistance generally compensates for the extra wire length, so the combination still works OK. But that depends on the cable too. A very bad cable might not even get to 0.5 meters and a very good cable (little capacitance to ground, no crosstalk between the wires) can go up to 6 meters.
The connection diagnosis procedures described above also apply to the connections for the SD adapter board. Sometimes you end up with an adapter that has a defective spring contact inside the SD module, but the only way to figure that out is to swap it with another one.
Here a jumper wire from the Promini pins is by-passing a bad connection. This is also how you would break out A6 & A7 connections if you need them.
Sometimes those screw terminal boards have a a poor connection inside the black female headers below the Promini. It’s also possible to accidentally over-tighten a terminal and ‘crack’ the solder connection below the board – or there may simply be a cold solder joint on one of the terminal posts. If you have only one bad connection, you can jumper from the Promini header pins on top, down to the other wires under the corresponding screw terminal. If you accidentally strip the threads on a screw terminal, you can use this same approach but move that set of wires over to one of the three ‘unused’ screw terminals at the far end of the board. (beside the SD card adapter) If you’ve gotten through all of the above steps and still have not fixed the problem, then it might be time to simply rebuild the logger with a different screw terminal adapter board.
Also note: The environment is written in Java, and the IDE installer comes with its own bundled Java runtime, so there should be no need for an extra Java installation. However we have seen machines in the past which would not compile working code due until Java was updated on those machines; but this problem is rare. More likely some permission limitation meant that you’ve ended up installing the IDE in a directory other than the default, and now it can’t find its libraries.
Addendum 2020-02-02: Refining the build
The ‘solderless’ classroom build includes a breadboard for flexibility, but if you are building a logger for a single sensor application you can leave out the breadboard, and add some under board jumpers to avoid those finicky multi-wire bundles:
Using the tined leg of a resistor to add some under-board connections to give you more 3.3v & GND attachment points. Clean any residual solder flux thoroughly!
To repurpose those screw terminals, leave the corresponding pins un-soldered so they can be removed.
Here, we are repurposing the TX, RX, & RST terminals as GND connections. DO not repurpose TX & RX if you need serial comms with NEMA sensors like GPS.
Use a Black marker to label the repurposed GND points. NOTE: The GND-labeled terminals can not be repurposedbecause they are bridged via the back plane of the screw terminal board itself.
Label the connections with red. NOTE: ONLY join the Vraw & Vcc like this if you have removed the regulator. If you are keeping the reg. in your build then Vraw must remain separate, & you can only repurpose the reset pin for one extra 3.3v rail.
In a no-regulator build, you now have three (+)ive rail connections. This is handy if you accidentally strip one of the terminals by over-tightening.
Adding header pins to the RTC module’s cascade port provides a more convenient attachment point for I2C sensors, and removing the breadboard leaves room for a desiccant pack:
Example of a typical “dedicated sensor” build without the breadboard, and with the under-board jumpers to provide extra (+)ive & GND terminals. This photo also shows a mosfet controlling the SD ground line, and a thermistor is tucked under the Promini board – but it’s probably better to tackle those additions when you have a few successful logger builds under your belt.
‘Single shroud’ 40-wire 20cm FF Dupont cables are ~$1 each – 1/3 the cost of the ones without housings.
We deliberately put students through the creation of custom sized Dupont connectors because it’s a useful thing to know about, however single shroud wires also work on the RTC and SD module because you are using the double sided tape to hold everything in place. I also tend to use RAW diffused LEDs as indicators, and simply light the individual channels with INPUT_PULLUP mode which uses the internal pullup resistor to limit current. However a single mistaken OUTPUT-HIGH can kill your Arduino if your not careful with that approach. I also leave one of my battery leads long enough that I can tap in to that line & measure sleep currents later on with a Current Ranger.
MCP1702-3302E/TO dead-bug hanging off a Deans style T-plug connector.
The unit pictured above has had its regulator removed so it can run more efficiently on 2x AA lithium batteries. But if you later find out that your sensors need strict voltage regulation, you can always replace the battery holder with a 4xAA, and add a regulator in-line on a battery connector. In the photo (right) two ceramic 105’s stabilize the MCP1700, while a 10/3.3M ohm divider provides a third output line so the ADC can monitor the raw battery status. This is the simplest way to retro-fit a regulator onto a unit that was built without one.
You occasionally get a plano box where the plastic ridges of the housing don’t mate well with the red rubber o-ring. In those cases it’s relatively easy to pull the o-ring out of its groove in the lid, and add some gasket compound to the recessed trough before carefully putting the o-ring back in. The additional height then compensates for casting error in the housings, though don’t add to much or you won’t be able to close the lid. One positive aspect of the relatively loose fit on that lid is that it lets you run prototype tests quickly if you jumper to your sensor module with thin 28-30 gauge wires:
This is a BMP280 pressure sensing module. Wires must extend beyond the edge
~1″ square of foam mounting tape with wires spaced evenly
Leave the red backing facing up as you fold the tape & wires over the corner edge.
The front corners of the box exert less pressure than the back
The sharp inner edge of the lid would cut the wires insulation if the tape was not there to protect
The tape has to be replaced every time.
This gives you a chance to do overnight run tests before you commit to modifying the housing with holes, putty, or pass-throughs with cable glands. And for indoor sensor deployments this might be all you actually need to do, though I would still coat the exposed solder joints on that dangling breakout module with either conformal coating or clear nail polish to prevent oxidation.
Addendum 2020-07-29: Better moisture protection
I was noodling around in the garden recently and installed a few loggers without desiccants because it was only a short experiment. It rained immediately afterward and I noticed a small amount of moisture condensed inside the plano-box housing. While this didn’t prevent the logger from functioning, it completely disrupted the LED light sensors because it provided an alternate discharge path for the reverse bias charge:
Green channel data from a 5mm diffused RGB LED used as light level sensor. This logger was under some leaf cover, so there was considerable variability from the dappled light crossing over the sensor. An arbitrary cutoff of 200,000 was set in the code at low light levels.
After examining the O-ring I decided to add a little silicone to the channel holding the red o-ring to improve the seal:
Gently pry the O-ring loose and apply sealant in the groove before replacing.
Bead only needs to be 3-4mm in diameter.
Close the housing & let the sealant set for a few days. The improved seal is especially visible at the corners
If you already have your logger assembled, try to find a silicone sealant that does not off-gas acetic acid (smells like vinegar) which could harm your circuits. If you are simply preparing empty boxes before assembly, then any regular bathroom sealant will do provided you give it about a week to finish curing.
Addendum 2020-05-11: Using a more advanced processor
After you’ve built a few ProMini based loggers, you might want to try a processor upgrade. The 1284p CPU has twice the speed & 4x the memory, but still delivers comparable sleep current / longevity.
Note:An updated tutorial was released in 2020:CLICK THIS LINK to view that version
“Instrumentation is a central facet of student, amateur and professional participation in science. STEM education, recruitment of scientists and experimental research are thus all hampered by lack of access to appropriate scientific hardware. Access restrictions occur because of: 1) lack of capital to purchase or maintain high-cost equipment, and/or 2) the nature of proprietary ‘black box’ instrumentation, which cannot be fully inspected, understood or customised…
…In addition to reducing opportunities for people to engage with science, this lack of access to appropriate hardware restricts scientist’s creativity in experimental designs.”
Last year’s intense deployment schedule focused on getting more sensors into the field, which left little time for development of new approaches to the logger itself. Now that everything is settling into the school term routine, it’s time to update the “classroom edition” of the Cave Pearl Logger with feedback from three years in the trenches:
The 2016 build achieved it’s goal reducing construction time, but it was low on important skills like soldering. Limited lab time meant that something had to give if we want students to “pay the iron price” for their data, so we’ve added a pre-made enclosure box. Though it’s not as robust as the PVC housings, it provides more room inside the housing. Past student projects have required things like 555’s, ADS1115 modules, display screens, etc. and the proto-board will make it easier to integrate those additional components.
3×1.5V AAA Battery Batteries Holder w Wire Leads The Pro Mini regulator will handle battery packs holding from 3 to 8 AA or AAA batteries. If you are using alkaline AAA batteries, changing this to a 4xAA battery holder doubles the run time.
Donation to Arduino.cc If you don’t use a ‘real’ Pro Mini from Sparkfun to build your logger, you should at least consider sending a buck or two back to the mothership to keep the open source hardware movement going…so more cool stuff like this can happen!
$1.00
Comment: You might need some extra parts to get started: (not included in the total above)
This logger uses the same three components described in the paper from 2018, but we now connect those core modules via a screw-terminal expansion shield, rather than soldering them directly to the pins: COMPONENT PREPARATION
Watch through the videos as a complete set first so you know where you are going, and then use the images below the videos to remind you of the key steps while you do the assembly; It usually goes much faster working from a photo where you can see all the connections at once. The times listed are estimates for people with soldering experience. If you’ve never built a circuit before, then taking 3-4x that long is completely normal. Don’t worry about it – you will be surprised how much faster you get with a little practice!
Screw Terminal board: (~40min) or ( 5min with pre-assembled board)
Don’t forget to measure the values of the resistors before soldering that voltage divider. You will need those values to calculate the battery voltage based on the ADC readings from pin A6.
These screw terminal boards are designed for an Arduino Nano, but if you orient the board to the Tx/Rx pins, the labels on digital side of the shield will be correctly aligned with the Pro Mini:
The most common beginner errors at this stage are crooked headers & not heating the pad/pins long enough for solder to flow properly. This is often because students are trying to use an iron tip that has “gone dry” so the heat is not transferring properly to the pins. You must protect soldering iron tips with fresh solder every time you put it in the stand to prevent oxidation. Tip Tinner can sometimes restore those burnt tips. {Click images for larger versions}
Common soldering errors – which are easily fixed by re-heating with more solder & flux.
Divider runs between GND & RAW Vin, with output to A6 pin.
Always apply conformal coating in a well ventilated space, such as a fume hood.
It is better to err on the side of using a little too much heat, because partial connections to the screw terminals will cause you no end of debugging grief later: Cold solder joins can “sort of” work “sometimes”, but cause mysterious voltage drops over those points because they can act like randomly variable resistors in your circuit. Note: This voltage divider uses meg-Ω size resistors and takes >1 second to charge the capacitor when the unit is first powered on – so you can’t take the first battery reading until that much time has passed.
The Pro Mini Board: (~40 min)
~5-10% of the cheap Pro Mini clones from eBay are flaky, and it is quite annoying to discover one of those that after you have assembled a logger. So test your board with the blink sketch before you remove pin13 LED resistor. These limit resistors move around from one manufacturer to the next, so you might have to go hunting for them on your particular board. You also need to remove the RESET switch from the board, or that button will be compressed when you put the SD card adapter in place:
Test w blink sketch!
You can skip the reset pins at this stage, or you can pull those pins out of the plastic rails later with pliers, or simply cut them off.
SCL & SDA jumpers to the 2 extra pins on the digital side.
Connect A6-7 & GND to analog side pins with the leg of a scrap resistor.
(Note: Credit goes to Brian Davis for the idea of using “extra header pins” when patching to the unused to screw terminals.)
The SD Card Adapter: (~15 min)
This SD card adapter comes with small surface mount pull-up resistors on the MOSI, MISO & SCK (clock) lines(removed from the dashed red line area photo 2 below). The Arduino SDfat library uses SPI mode 0 communication, which sets the SCK line low when the logger is sleeping. This would cause a constant drain (~0.33mA)through the 10k SCK pullup on the module if we did not remove it. I prefer to pull MOSI & MISO high using the internal pull-ups on the Atmel328P processor, so those physical resistors on the breakout board can also be removed. Leave the top-most resistor of the four in place to pull up the unused DAT1 & DAT2 lines. This keeps those unused pins on the SD card from floating, which can draw excess current.
Attach SD adapter & Pro mini to the Screw Terminal Board: (~20 min)
Label the Vcc & GND connections with a colored marker, then insert the Pro Mini into the headers on the screw-terminal shield. Be careful not to bend the pins – especially the “extension” pins at the back of the board. It’s easy to connect the board in the wrong orientation at this step. The voltage divider on the bottom of the screw terminal shield aligns with the ANALOG side of the Promini board.
Label the Vcc & GND connections.
Then affix the SD adapter board to the top of the Pro Mini with a slight overhang, so that the jumper wires align with the screw terminals below. Trim the wires about 1cm past the edge of the board to provide enough stripped wire for the terminal connection.
The limit resistor for the common cathode RGB can range from 4k7 to > 30kΩ
LED on pins D4-D6, & GND. NOTE:Grounding the LED through D3lets you use the LED as a sensorand support for this is included in the base code. Also see: multiplexing wD9 GND
Add layers until the tape extends beyond the pins. This might require 3 layers of tape.
The RTC Module: (~15min)
The simplest modification to these DS3231 RTC boards is to remove the charging circuit resistor and power LED limit resistor from the circuit board (the red squares in the first picture). A non-rechargeable CR2032 coin cell battery will supply the RTC with power for many years of operation.Note: The 32K pin is not connected, and does not get a jumper wire. The four screw terminals go on the same side as the battery holder.
An alternative to the 4-pin 0.1” screw-terminal block is to solder the I2C pass-through wires directly to the module.
Cutting the RTCs Vcc pin reduces sleep current by ~40% – this step is completely OPTIONAL!
Add an extra layer of foam tape over the smaller 4K eeprom chip, so that the thickness matches the top surface of the DS3231 chip. The RTC board already has 4.7kΩ pull-ups on the SDA (data) and SCL (clock) lines so you will not need to add them to the bus. This module also has a 4.7k pull-up on the SQW alarm line. Adding the screw terminals to the small cascade port on the RTC module is another creative idea from Brian D, but you could just add straight pin headers: If you don’t want to make your own crimp ends, 4-pin JST XH series connectors have a pitch of 2.5 mm which is effectively identical to the 0.1″ pitch of those Dupont pins.
The Plano Stowaway housing: (~10 min)
In these photos, I’ve melted threads into the housing for a pass-through with a cable gland, but that is entirely optional. This trick works with many different housing materials, but it takes a bit of practice to figure out what the right temperature is for any given one. The plastic in the plano boxes melts quite easily, so be gentle with the heat gun. Glands much larger than PG7 (12mm) will not fit in the available space in that corner.
These two cable glands have matching thread specifications
Heat only the threads from the metal cable gland with your heat-shrink gun & a pair of pliers
Gently twist the threads into the plastic of the Plano-box & as soon as it’s through blow on the metal until it completely cools
After cooling, unscrew the metal threads
Cut away excess plastic burs with a sharp knife and thread the plastic cable gland into place.
You may need two washers due to the curvature of the box. The cable gland shown above is an M12 x 1.5 IP68 for 3-6mm dia. cables (also desc. as PG7 12mm)
Strategically placed holes in the clips provide zip-tie locations to secure your logger.
Holes for Zip-tie securing
ASSEMBLING THE LOGGER PLATFORM: (~30 min)
Using double sided tape to hold the parts inside the housing (rather than traditional stand-offs) makes this stage of the build remarkably quick. Adding male Dupont pins allows you to join internal and external wires via the breadboard. Be sure to use wires that are long enough to reach the mini breadboard.
Bowing on some boxes can reduce the contact patch on the battery holder, if so try adding another layer of tape, or upgrade to 30LB.
You can “reactivate” spent desiccant packs with a few zaps in the microwave – if they have indicator beads.
Connecting external sensors to the housing:
It’s worth mentioning the breadboard contacts are notoriously sensitive to vibration, etc. Once your testing stage is complete, and your prototype is working as it should, bring those sensor wires directly over to the screw terminal connections for a more secure connection. Also remember to put protective tape over any sensor ports that need to remain open before potting those sensor boards in epoxy. Otherwise you might clog the sensor by accidentally letting a drop fall into it.
Your Logger is ready! (~2 to 2.5 hours)
Now you can test your new logger to confirm all the connections are working:
1. Test the LED – Edit & upload the default blink sketch, changing the pin numbers each time to match your RGB LED connections.
2. Scan the I2C bus – with the scanner from the Arduino playgound. The eeprom on the RTC module is at address 0x56 or 57 and the DS3231 should show up at address 0x68. If you don’t see those two devices when you run the scan, there is something wrong with your RTC or the way it’s connected.
3. Test the EEprom on the RTC module – We’ve updated BroHogan’s original code from the playground to this tester script. You may have to change the I2C address at the start of the code based on the numbers shown during your I2C bus scan. The AT24C32 will store 4Kbytes, and has a 32-byte Page Write mode which accommodates the maximum of 30 bytes you can transport the wire libraries I2C coms buffer. Make sure you don’t do eeprom page-writes that pass over the physical page boundaries set by that eeproms 32 byte block size. If you are ready for the added code complexity, buffering data to the eeprom can dramatically cut down on the number of SD card saves, however the eeprom communications are so slow that sometimes it ends up using the same amount of power as simply writing your data directly to the SD card directly.
An alternative parts arrangement for the classroom logger that makes room for a larger 4xAAA battery holder and DUPONT style connectors. It’s easy to move things around to suit your own projects, and rotating the breadboard gives you room for larger battery holders & longer operating times. Note: For most 1.5V alkaline batteries, (voltage-1)*200 will give you the approximate percentage of total capacity remaining.
4. Set the RTC time, and check that the time was set – There are dozens of good Arduino libraries you could use to control the DS3231, and there is a script over at TronixLabs.com that lets you set the clock without a library. The trick with Tronix’s “manual” method is to change the parameters in setDS3231time(second, minute, hour, dayOfWeek, dayOfMonth, month, year); to about 1-2 minutes before the actual time, and then wait to upload that code till about 10-15 seconds before your computers clock reaches that time (to compensate for the compiler delay). Open the serial window immediately after the upload finishes, and when you see the time being displayed, upload the examples>blink sketch to remove the clock setting program from memory – otherwise it will keep resetting the RTC every time the Arduino re-starts. [ Note: hour in 24-hour time, & year with two digits eg: setDS3231time(30,42,21,4,26,11,14); ]
5. Check the SD card is working with Cardinfo – Changing chipSelect = 4; to chipSelect = 10;
Note that this logger requires the SD card to be formatted as fat16, so most 4GB or larger High Density cards will not work. Most loggers only generate 5 Kb of data per year anyway.
These breadboard connections are really vulnerable to vibration, so for quick back-yard tests of a rough prototype I sometimes add a tiny spot of hot-melt glue to stabilize the components. Breadboards add about 2-4pF of capacitance for side by side rows so the rule of thumb is you shouldn’t run protoboard circuits much faster than 1 MHz.
6. Check the sleep current – With an SD card inserted in the logger, upload this Pro Mini datalogger starter scriptwith no changes (note: that code requires you to install three libraries as well). Then connect an ammeter between the positive battery connection and the Vin screw terminal (you will need an extra wire to do this) and run the logger from the AAA or AA battery pack. After the initialization sequence has finished, the reading on the screen (in milliamps) is your loggers sleep current.
AAA cells usually provide about 1000 milliamp-hours of power to their rated 0.8v, but we are only using half of that from alkaline batteries with a regulator input cutoff up at 3.6v. So dividing 500 by your loggers sleep current gives you a rough estimate of your loggers operating life (in hours). For a more accurate estimate, you can use one of the Battery Life Calculators on the web with 250ms @5mA for your sample time. Changing the power supply to 4xAAA cells lets you bring alkalines down to 0.9v/cell, extracting almost the entire 1000 mAh. Lithium AAAs deliver almost their entire capacity above 1.2v/cell so 3xAAA lithiums yield almost 1000 mAh capacity even with the 3.6v input cut-off.
Thermal response of 3x AAA’s(mV left axis) vs Temp (°C right axis) in the standard voltage-regulated classroom build running the starter code from Github. The 90mv drops caused by SD card “controller housekeeping events” at 20°C increase to ~220mV as temps near -15°C. These periodic high drain (100-200mA) events would likely trigger the low-voltage shutdown before anything else in the loggers normal duty cycle. (Note: Battery readings taken AFTER SD save, Sample interval: 1 min, sleep current for this test unit: 0.22mA )
Its worth noting that the starter program we’ve provided captures an ambient temperature record from the RTC in 0.25°C increments (example right). New sensor readings can be added to the log file by inserting: file.print(YourSensorVariableName); followed by a separator file.print(“,”); in the main loop before you close the datafile on the SD card. Then change the text in the dataCollumnLabels[] declaration to add headers to match your new data. This starter script automatically generates required data files on the SD card at startup, and tracks the rail voltage for those adventurous enough to run without a regulator. SD memory is electrically more complex than the Pro Mini processor, with some using a 32 bit arm core.
Once you have your logger running, you might want to review our tutorial on adding sensors to your data logger. And after that you’ll find a few more advanced I2C sensor guides on this site as well (…and the list is constantlygrowing) We’ve also developed methods to add 5110 LCD & OLED screens to the Cave Pearl Loggers using the fewest system resources. These screens are easily accommodated on the proto-board in this build.
For people wanting to take their skills farther, you can explore the gritty details of how we optimize these loggers for multi-year deployments in the 2018 Sensors article(free to download). The research loggers are a more challenging build, that fits inside an underwater housing made from PVC pipe.
Addendum: Power Management (Optional)
On the standard build described above, the Pro-Mini’s MIC5205 power regulator should deliver sleep currents below 0.25 mA (Pro Mini ~0.05 mA + sleeping SDcard ~0.05-0.09 mA + RTC ~0.09 mA). That should reach several months operation on 3 AAA cells before the batteries reach the regulators 3.4v input cut-off. I usually have regulated loggers go into shutdown mode at ~3.6v to reduce the chance of leaks, because alkaline batteries often spill their guts when they reach 1v/cell.
There are a couple of relatively simple modifications to the basic logger that more than double the operational time – but they both come with important implications you should understand fully before adding them to your project. The RTC mod is relatively safe, but running a datalogger from a raw battery supply is not for the faint of heart.
1) Cutting the VCC leg on the DS3231 chip forces the RTC to run from the coin-cell. >Set Bit 6 of CONTROL_REG 0x0E to enable wake alarms from the backup battery!
2) Remove the regulator: few LDO’s have reverse current protection & most regs leach 30-90 uA if the voltage on output line is higher than on their input
2) Then connect the positive wire from a 2X LITHIUM AA battery pack directly to the Vcc rail on the Pro Mini
The DS3231 RTC was designed to handle power supply failures by switching over to the backup coin-cell battery, and it enters a special 3uA “timekeeping mode” to use less power in that situation. However the chip is still fully capable of generating alarms (provided you set the Battery-Backed Square-Wave Enable bit of CONTROL_REG 0x0E to 1) , and of responding to the I2C bus at 400 mHz. So if you cut the main power leg on the RTC you reduce the loggers sleep current by almost 0.1mA (~40%). The trade-off is that your loggers operation is now entirely dependent on the 200mAh CR2032 coincell to keep the clock delivering wake-up alarms when you are also asking it to deal withpulsed loads in the 80 uA range every time you communicate over the I2C bus. The RTC also can not generate temp-corrected frequency outputs on the 32kHz pin when operating from the coin cell.
Here drops of hot glue secure the RTC coin cell battery against accidental resets. It’s worth noting that even with this precaution, we still see 1-2 units out of 10 loose their time when they have to be transported in airline luggage.
Another quid pro quo here is that coin-cell holders occasionally lose contact very briefly under vibration, so if you cut the Vcc input leg – add a 0.1 μF capacitor(ceramic 104) across the coin-cell holder pins. That will give you about 80 ms coverage, which should be longer than the holder will lose contact. Otherwisea hard bumpcanreset the RTC back to its Jan 01 2000 default. The wake-up alarms usually continue after that kind of reset, however fixing an entire years worth of time series data based on your field notes is a pain in the backside. Real world installations often involve this kind of rough handling, so I prefer a more advanced RTC modification that keeps two power lines feeding the RTC. But for more “gentle” deployments, simply cutting the chip’s vcc leg & adding a couple of drops of hot glue OK. Write the installation date on the coin cell with a black marker. I do this to all of my batteries now…
For loads in the 0.1mA range, the MIC5205 is less than 60% efficient. So the other modification is to remove the voltage regulator and run the entire system from 2x LITHIUM AA batteries. Lithium batteries (like the Energizer L91) have two characteristics that make them well suited to this approach: 1) they have an extremely flat discharge curve, yielding >75% of their power before the voltage falls below 1.5v/cell on the lower plateau and 2) a pair of brand new lithium cells gives a combined voltage right at 3.6 volts. If you look at any of the SD card manufacturers’ specifications, they all specify a voltage range of 2.7v to 3.6v. At 8 MHz the ATmega328P processor on the ProMini supports voltage levels between 2.7 V and 5.5 V. Both of these ranges overlap beautifully with the lithium cell’s discharge curve. If you are using ratio-metric analog circuits then the voltage fluctuation over time will not affect your readings, but if you need absolute measurements then use the internal voltage reference as Aref. Digital sensor levels are based on a percentage of Vcc, so they are relatively insensitive to voltage variations.
Here I’ve done both modifications to the basic build, and brought the sleep current (with no sensors) from an unmodified starting point of 228μA, down to 80μA. Most of that remaining power is due to the sleeping SD card, since the Pro Mini only draws about 5μA in deep sleep mode. Using only 1/2 of the 3000 mAh capacity of a typical AA Lithium pack would keep a logger that sleeps at 0.1mA alive for more than a year, and my rough estimate is that the RTC mod will get you at least twice that much time from a new Cr2032 cell – with a typical 5-15 minute sampling interval.[NOTE: I’m using an EEVblog uCurrent here to display the μA sleep current on a DVM as milivolts. It’s an exceedingly useful tool that lets you read sleep currents into the nano-amp range without adding the burden voltage you’d see from putting your meter directly into the circuit ]
Even with one less cell powering the system, getting rid of the MIC5205 yields a 25-30% reduction in sleep current for a typical build. While this is very close to the reduction you get from changing to a more efficient regulator like the MCP1702, the other cool thing about this mod is that the processor on the Pro Mini can take a reading of it’s rail voltage by comparing it to the 1.1v internal band-gap reference. So all you need is a little bit of code, and you can keep track of your rail=battery level without a voltage divider, although for accuracy you should take a reading of the actual band-gap voltage using a utility like the CalVref sketch from openenergymonitor.
(NOTE: that Atmel provides no specs on the long term stability of the bandgap ref. and even OpenEnergy no longer uses the internal 1.1vref because v.regulators offer more long-term stability. ALSO NOTE that genuine Sparkfun ProMini’s have an SJ1 jumper that lets you disconnect the reg simply by de-soldering a pad on top of the board , but clones rarely have that feature.)
Unlike alkaline batteries, lithium cells have very little voltage droop with brief loads below 100mA, but it’s still a good idea to protect your SD card from potentially data corrupting brief low voltage spikes with a capacitor. The formula for figuring out how much the voltage across a capacitor will drop is ΔV = current(A)*time(sec)/C(farads) – but you need to decide how much your supply can drop to know how big to make the capacitor.
Adding a 47uF(or larger) on the microSD rails should keep the shortest transients under control, and once the system reg. has been removed running a jumper between Vcc & Raw recruits the orphan (10uF tantalum) capacitor from the input side of the (now removed) regulator. Always check the supply voltage before the data saving begins and perform a low voltage shutdown when the lithium pack reaches 2875mv. (ie: at least 150mv above the SD’s 2.7v safe writing minimum). Generate a new data file every couple of weeks so only the last one is vulnerable during the write process.
2x LITHIUM AA’s(mV left axis) vs Temp (°C right axis)supplying power to an unregulated build running the same code from Github. The key observation is that the initial 50mv supply voltage variation recorded at 22°C increases ~100mV at temps near -15°C. For Lithium chemistry batteries with flat discharge curves, the voltage-drop under load is often a better indicator of the remaining battery capacity than the cell voltage. (Readings taken AFTER SD CARD SAVE, Sampling every 1 min, overall sleep current 0.17mA Note: the 200mv baseline drop on the cells is slightly exaggerated here because low temps increase the bandgap slightly)
Of course everything has a price, and removing the regulator means you’ve not only lost your reverse voltage protection – you also need to think about how all the components in your system will respond to a decreasing supply voltage over time. Ratiometric analog circuits using the rail as Aref handle this well, but even if you want to use the 1.1v bandgap ref – you already know what the rail voltage is, so you can easily throw a compensation factor into the calculation. The real problem is that when 2.7 – 3.6v is listed on the spec sheet for a digital sensor – that’s no guarantee the readings will be consistent when the supply voltage changes. You could have very different error percentages at the high & low end and ambient temperature fluctuations could push your batteries through significant voltage changes every single day (lithium cells are more resistant to this than alkaline). According to Murata the 8Mhz system clock will remain stable: “Unlike RC or LC circuits, ceramic resonators use mechanical resonance. This means it is not basically affected by external circuits or by the fluctuation of the supply voltage.”
Testing is the only way to find out if your sensors can handle the variation, and if you don’t have time for that it might be worth keeping that voltage regulator on board despite the reduced lifespan. For field units, I usually replace the MIC5205 with a more efficient MCP1700 regulator because I want all the data consistency I can get. Another thing to keep in mind when you are hoping for a really low-power build is leakage currents through leftover flux – it’s always worth the time to get your parts squeaky-clean during construction.
Addendum 2019-02-21:
A teacher friend asked us for a version that was less dependent on soldering because they didn’t have the budget for a classroom set of soldering stations. So we’ve worked out a 1 hour “simplified build” of this logger that uses crimped Dupont jumpers to reduce assembly time:
We’ve also added support to the starter code for using the indicator LED as a light sensor, but this requires that you ground the indicator LED’s common cathode through a digital pin (usually D3) , rather than directly to GND as shown in the tutorial above. Also note that the technique relies on the very tiny internal capacitance inside the LED (typically 10 to 15 pF) so you need to connect the LED right to the screw terminals (ie not the breadboard). Then you can gather three-channel light level data like this:
Readings from an RGB LED deployed outside in our back yard on an overcast day with two light snow fall events. The yellow line is from an LDR sensor in the same logger that was over-sampled to 16-bit. In this case the clouds & snow acted as a near perfect light diffuser, but in normal weather I’d have placed a thin white teflon sheet over the LED sensor to smooth out the readings. Adding an IR led to the logger lets you create a transmission-based NDVI variant that discriminates the amount of chlorophyll in plant leaves.
These readings are arbitrary time-based units that are completely dependent on your particular hardware combination and system voltage. If you go down the DIY sensor rabbit-hole, you might want to calibrate against the NOAA observations for your area, which includes hourly data for thousands of stations. The data includes temperature, dew point (from which you can compute relative humidity), wind speed & direction, and you can calculate solar position.
Addendum 2020-08-18:
We’ve found that the seal on some of the Plano boxes needs a little help, or current leakage via surface moisture shorts out the LED light sensor readings. In the worst cases leakage lets in enough water vapour to chew through your desiccant pack in less than a week. A little bead of silicone under the o-ring corrects that problem:
Gently pry the O-ring loose so we can add some sealant.
Bead only needs to be 3-4mm in diameter.
Close the housing & let the sealant set for a few days. The improved seal is especially visible at the corners
If you already have your logger assembled, try to find a better quality silicone sealant that does not off-gas acetic acid (smells like vinegar) which could harm the circuits. If you are preparing empty boxes before the logger assembly, then any regular bathroom sealant will do provided you give it about a week to finish curing. I usually choose silicone rated for outdoor applications as they have better resistance to breakdown from UV exposure.
Underwater Arduino Data Loggers
