A 3d printed stack of radiation shields goes around the 30mL centrifuge tube housing our 2-module logger. A universal ball joint by DiZopfe was adapted for the leveling mechanism which is critical for the calibration.
Space nerds have an old saying that ‘LEO is half way to the moon…‘ and Arduino hobbyists tend to feel the same way about getting sensor readings displayed on a live IoT dashboard. But that ignores the real work it takes to generate data that’s actually useable. To paraphrase Heinlein: ‘Calibrationis half waytoanywhere…’ Now that our 2-Part logger is both easy for students to build and robust enough for field use, we can focus on developing sensor calibration methods that are achievable by teachers and researchers in low-resource settings.
Light sensors seem straight forward, with numerous how-to guides at Hackaday, Adafruit, Sparkfun, etc. In reality, light sensors are some of the trickiest ones to actually deploy – which is why so few low-end climate stations include them. This post describes a method for calibrating a Bh1750 lux sensor to estimate Photosynthetically Active Radiation (PAR). Not everyone can afford a LI-COR 190 or Apogee SQ quantum sensor to use as a benchmark, so here we will use a clear-sky model calculation for the cross-calibration despite the dynamic filtering effects of the atmosphere on natural sunlight. Using a diffuser to restore cosign behavior means we can’t calculate PPFD directly from Lux without some y=mx+b coefficients.
Peak solar irradiance received on any given day varies by latitude and season, as does the overall pattern. Light emitted from the sun has a stable distribution of frequencies, however the spectrum at the earth’s surface varies across the day, with more short wavelengths (blue) around mid day and enriched in longer wavelengths (red) at sunrise & sunset when the rays travel further through the atmosphere. We will avoid this source of error by calibrating with data from the hours around solar noon as determined by the NOAA Solar Calculator. Even with high quality sensors, morning and evening data can be compromised by other factors like condensation which changes the refractive index of lenses and diffusers.
Light Sensor Issue #2: Sensitivity Bands
Average plant response to light as Relative Photosynthetic Efficiency (%) vs Wavelength (nm) compared to Bh1750 Response Ratio vs Wavelength
Lux sensors have a maximum sensitivity near 550nm, mimicking the response of photo-receptors in the human eye. Plants are similarly limited to frequencies that can be absorbed by the various chlorophylls. These two bands have a high degree of overlap so we can avoid the Badder UV/IR-Cut cut filters (420–685nm bandpass) or stack of Roscolux filters that would be needed with photodiodes that respond to a wider range of incoming radiation. The cross-calibration still requires the relative ratio of frequencies within the targeted region to remain stable, so a PAR conversion derived under full sunlight may not be valid under a canopy of tree leaves or for the discontinuous spectra of ‘blurple’ grow-lights.
Light Sensor Issue #3: Dynamic Range
I tested two inexpensive Bh1750 sensor modules, and the diffuser dome that comes with the red ‘Light Ball’ version turned out to be the deciding factor. When powered from a 3v coin cell, these sensors add 8µA to the loggers sleep current if you leave the 622 reg in place and <1µA if you remove it.
Full summer sunlight can exceed 120,000 Lux and there aren’t many sensors in the Arduino ecosystem that handle that entire range. The BH1750 can with registers set to it’s least sensitive configuration. Our logger code already does this because QUALITY_LOW & MTREG_LOW(31) integration take only 16-24 milliseconds, rather than the 120-180ms of power needed for high resolution readings. The data sheet implies that the sensor will flatline before 100,000 lux, but at its lowest sensitivity it delivers reasonable data above 120k, though linearity may be suspect as flux approaches sensor saturation. The sensor also has a maximum operating temperature of 85°C which can be exceeded if your housing suffers too much heat gain. Alternative sensors like the MAX44009, TSL2591 and SI1145 have a similar thermal limits. Like most light sensors, the Bh1750 increases its output readings by a few percent as the sensor warms.
Commercial vs DIY diffusers. Bullseye level indicators are epoxied to the top shield with white JB Marine Weld. The larger 43mm diameter bubble (right) was far more effective than the smaller 15mm (left).
DIY builders often add diffusers made from translucent #7328 Acrylite or PTFEsheets to reduce sunlight intensity into a given sensors range. I tried printing domes with clear PETG and hand sanding them with fine grit to increase the diffusive power. While these did reduce light levels by more than 50%, my DIY diffuser didn’t quite match the smooth overall response seen with the diffusers that came with the round PCB modules. This may have been due to a slight misalignment between the sensor and the focal point of the low-poly dome I could make in Tinkercad. The white dome that comes with the red Bh1750 module reduced peak light levels in full sunlight from the 110k Lux reported by a ‘naked’ sensor to about 40k Lux. Each sensor varied somewhat in its response but I didn’t do any batch testing to quantify this as I was calibrating each sensor directly to the reference model. I initially tried clear JB weld as a sealant but this caused problems: sometimes contracting enough peel parts away from the PCB and yellowing significantly after a couple of weeks of full sun exposure. In later builds I used only a thin coating of silicone conformal, relying on an epoxy seal around the base of the diffuser to provide most of the waterproofing.
Light Sensor Issue #4: Angular Response
Bh1750 Directional Characteristics [Figs 4&5] from the datasheet. Sensor response is different on the two axes so orientation must be labeled on the outside during assembly. The left graph is closer to Lambertian so thesensor gets deployed with its connection pads oriented North – South relative to the suns east-west motion. Based on these curves alone we would expect a ‘naked’ BH sensor to under-report relative to the Lambertian ideal. That is indeed what I observed in our early sensor comparison tests, leading to our selection of round red PCB modules for the calibration because the included diffuser dome compensated nicely.
Lambert’s cosine law describes the relationship between the angle of incidence and the level of illuminance on a flat matte surface as being proportional to the cosine of the zenith angle (as the suns changes position throughout the day). At an incident angle of 60°, the number of photons hitting a sensor surface is half what it would be if the same light source was positioned directly above the sensor. This effect is mathematically predictable, but imperfections, diffraction, and surface reflection means that sensor response tends to diverge from ideal as the angle increases. So manufacturers surround their sensors with raised diffuser edges and recesses on the top surface which change light collection at low sun angles to restore a perfect cosign response. In general, diffusers make the compass orientation of the sensor less likely to interfere with calibration but leveling the sensor is still absolutely required.
Light Sensor Issue #5: Temporal Resolution
Unlike most environmental parameters, light levels can change instantaneously. Most commercial sensors aggregate 1 or 2 second readings into 5 to 15 minute averages. This makes it much easier to estimate energy output from solar panels, or calculate the Daily Light Integral for a crop because both of those use cases are more concerned with area under the curve rather than individual sensor readings. However, in our case of calibrating a sensor against an irradiance model, we must use instantaneous readings so we can exclude data from periods where the variability is high. Averaging would smooth over short term interference from clouds, birds, or overhead wires, potentially leading to bad data in the calibration. We read the BH1750 once per minute at its fastest/lowest resolution.
A Radiation Shield
My original concept was to epoxy the light sensor directly onto the cap and slide separate radiation shields over the housing tube with a friction fit – but that approach suffered excessive heat gain. It took several design iterations to discover that plastics are often transparent to IR – so most of the 3D printed weather station shields you find in maker space won’t work very well. While PLA does block/reflect the visible spectrum, it then re-emits a portion of any absorbed energy as IR which passes right through – turning the central housing tube into a tiny greenhouse. You need to add layers of metal foil to reflect that IR and there must be an air gapbetween the materials or the heat still crosses by conduction. The process of moving those surfaces away from the logger also meant placing the sensor onto a small raised ‘stage’ that could pass through the upper shield. This allows easier replacement after the sensors expire, or the use of an entirely different sensor without changing the rest of the design. I still don’t know the operating life of these sensors at full sunlight exposure levels.
2″ Aluminum HVAC tape is applied to the IR shield layer. (click to enlarge these photos)
The IR shield slides to about 8mm below the top shield which has holes along the rim to vent heated air.
The sensor stage slides on the vertical rails and passes through the upper shield.
The loggers green cap then pushes the sensor stage into place with a snug click-fit. Foil is wrapped around the logger housing tube.
Three smaller gill shields slide onto the rails, with plenty of aligned holes for vertical airflow through to the top shield.
Here are temperature records of two side-by-side loggers with identical 3D-printed shields except that one has the three metal foil layers added and one does not:
Temp (°C) vs Time: Comparison of heat gain with, and without metal foil layers. Measured with the NTC sensor inside the logger housing at the center of the stack. The night time data shows a 0.25°C offset between the two sensors, indicating that they were not normalized before this run.
Interestingly, the 3°C delta seen in my foil vs no foil tests matched the discrepancies identified by Terando et.al in their 2017 paper examining ad hoc Stevensonshields in ecological studies. Air gaps are required for IR reflecting layers to do their job, so most of the foil backed roofing shingles on the market are ineffective because of direct surface contact. Both aluminum and stainless steel foils are common, but aluminum has a lower emissivity than stainless steel, meaning it should reflect more and emit less IR. There are also radiant barrier coating sprays used in industrial settings. High-end weather stations use fan ventilation or helical shields, but those designs may be a bit too complicated for DIY. And even 3D prints from tough materials like PETG or ASA would benefit from coating with something like Krylon UV protectant to extend their lifespan. I’ve also been thinking about adding someinfrared cooling paint on the top surface of our weather stations. The challenge with anything that emits in the atmospheres transparency window between wave lengths of 8 and 13 microns is that you get significant accumulation of debris on surfaces in as little as one month of actual deployment: especially in the spring/fall when the surfaces get covered with morning dew which then captures any windborne dust.
I’m still tweaking the shield design as more test data comes in, and hope to compare it to a fan aspirated model soon. Radiation shields are only needed if you want to capture accurate temperatures with the light readings on the same logger. The Bh1750 calibration alone could be done without shields, but mounting the sensor on some kind of flat surface makes it easier to add the required leveling bubble beside the sensor. The tradeoff for preventing solar heat gain is that shields introduce lag in the temperature response.
Pole Mount & Leveling Mechanism
As this is the first of our ‘garden series’ that will be built around the 2-part logger, I created a complete mounting system from a combination of 3D printed parts and PVC pipes. This adjustable leveling mechanism was modified from the Open Source Universal Ball Joint posted on Thingiverse byArthur ZOPFE.
This socket slides over the end of a 1/2″ PVC pipe. A zip tie through the drilled cross-hole secures the pieces together.
A self standing 30mL centrifuge tube slides snugly into this fitting, again with holes for zip ties.
A large diameter twist ring makes it easy to adjust the sensor assembly while watching the bulls-eye level on the top shield.
This ball & socket approach works well for leveling, but to make the adjustments easier (ie. with less compressive force) I will add an O-ring to the bottom cup for some friction and give.
This ground spike has a foot plate to assist insertion and is asymmetric to provide more contact with the bed. It just barely fits on my Ender3 when printed diagonally. I created this model from scratch in Tinkercad, but the offset idea is not mine. Unfortunately, I saw the original so long ago I don’t know who to credit for it. The pole insert and holes are six-sided because internal 45° slopes can be printed without any supports, and you can simply bridge the internal 1cm top span.
A length of standard 1/2 inch PVC pipe is used for the riser between the spike and the leveling mechanism. Ideal height for temperature sensors is approximately five feet above the ground, usually in a shaded location facing away from the sun.
The Apogee Clear Sky Calculator
With this model we could even attempt a calibration against the shortwave spectrum for a DIY pyranometer, but it’s a much bigger stretch to say the 550nm peak of BH sensitivity is a good proxy for the whole 300 -1300nm band of frequencies.
The Apogee Clear Sky Calculator helps operators of their many light sensor products check if those need to be sent in for re-calibration. When used near solar noon on clear unpolluted days the accuracy is estimated to be ±4 %. We can cross-calibrate the readings from our humble Bh1750 to that model provided we use data from a cloudless day. I’m not sure what the temporal resolution of the ClearSky model is (?) The U.S. Climate Reference Network generally uses two-second readings averaged into five minute values so it is likely that the ClearkSky model has a similar resolution. This model has the best accuracy within one hour of solar noon but we will push that out a few hours so we have enough data for the regression.
We could have used the Bird Clear Sky Model from NREL, with validation against real world data from one of the localSURFRAD stations at NOAA. That data is for full-spectrum pyranometers measuring in W/m2, but you can estimate the PAR as photosynthetic photon flux density (PPFD) from total shortwave radiation using a conversion factor into µmol s-1 m-2. Many solar PV companies provide online calculators for power density that could also be used for this kind of DIY sensor calibration.
Our Deployment Location
Most who live in urban areas are familiar with noise pollution, however it is also hard to find undisturbed light environments. My best option for those critical hours around solar noon was my neighbours backyard garden:
The two sensors here are aligned on the east-west axis so they can be compared.
This location was relatively free of power lines and tree tops, but reflections from that white door caused a slight positive offset in the afternoon. Fences prevented the capture of morning and evening data which would have been interesting. But sunrise to sunset data is not required for our calibration.
The Calibration
After several weeks of logger operation we finally managed to capture data from a beautiful cloud-free day:
2024-07-27:Lux from a diffused ‘Light Ball’ Bh1750 sensor (Orange, left axis @1min) VS ClearSky Model PPFD (Purple/right Axis @ 5min). You can see some stair-stepping in the model data, indicating that it’s temporal resolution might be only 10-15 minutes.
We logged raw single-shot Lux readings at one minute intervals and because there is no averaging applied you can clearly see where overhead lines or birds created occasional short-duration shading. These outliers were excluded before generating the trendline shown below. The PAR values from the model were calculated using the ‘Auto fill’ option for humidity and temperature. On this day solar noon was at 12:57
Linear y=mx+b fit between ClearSkyCalculator PPFD (yAxis) vs Diffused BH1750 Lux (xAxis) using 5 minute data points on 2024-07-27 between 10:00 and 16:00 [bracketing solar noon by three hours]. Two shadow outliers at 10:05 and10:15am were excluded from the dataset.
Aerosols and variations in local temp/humidity produced some scatter but this is a good result for calibration with natural light. The result might be improved by co-deploying a humidity sensor, but it’s not clear to me if humidity at ground level is what the model actually uses for its calculation. Some scatter is also being created by the temporal resolution of the model. Using one type of sensor as a proxy for another limits the scope of the device and we probably approached an accuracy of ±15% at best with this conversion. It’s worth remembering that most commercial light sensors are only calibrated to ±5%.
Discussion
The biggest challenge at our mid-west location was that we had to run the loggers for several weeks before capturing the blue-sky day shown above. Typical time series from that Bh1750 sensor (under a light-reducing diffuser dome) looks like this:
Lux vs Time: 1 minute data captured with our 2-Part logger reading a red ‘light-ball’ Bh1750 module. This unit had an extra 64k EEprom added to store the large amount of data that was generated.
Clouds often cause light levels to exceed that seen on clear days. This makes sense if you imagine a situation where there are no clouds directly over-head, but radiation reflected from the sides of clouds is reaching the sensor from multiple directions. The fact that clouds at different atmospheric levels have different effects is one of the things that makes climate models so complicated.
The Clear-Sky Calculator lets you generate data for any date/time, so it would be possible to do this calibration by aggregating cloudless periods from multiple days:
Detail of data from 7/15 and 7/12: what you are looking for is the smooth curve that indicates there were no high level clouds causing subtle variations in light level.
Inexpensive (~$60USD) PAR meters have started appearing on Amazon recently. I’m more than a little dubious about the term ‘quantum’ in the marketing (?) as they are probably just a photodiode and some filters
Someone in Nevada would have no trouble gathering this kind of calibration data, but it might not be possible for people living in Washington. Alow-cost alternative to using a clear-sky model for the calibration could be to compare the Bh1750 to one of the many smartphone grow light meter apps, with a clip-on diffuser & cosine corrector. Every phone has a different sensor so programs like Photone or PPFDapp usually have their own calibration procedures. While developing this exercise I also found a ‘for parts’ Seaward Solar Survey 100 on eBay for $20, and all it needed to bring it back to life was a good cleaning inside. I also found an old Li-1400 loggerwith a 190 pyranometer for only $120 and was pleasantly surprised when Apogee’s calculator showed it was still within 5%. As mentioned, you’d need to convert total radiation from those last two into PAR or you could do the calibration to total shortwave. Hardware references that lack logging capability require more effort to gather calibration points, but they save you from having to wait for agreeable weather.
Other projects have built similar sensors and with calibration Lux sensors are comparable to commercial PAR sensors if the spectral environment is consistent. Multi-channel sensors with overlapping frequencies do a better job in situations with discontinuous light sources like those used for indoor growing or for measuring the extinction of PAR frequencies under water. In those cases a TCS3471 (3-channel), AS7341(10-channel), or AS7265 (18-channel) sensor could be used, and finer frequency division can enable calculation of interesting ratios like NDVI or SPAD. Beyond that point you’re entering the realm of diffraction grating spectrometers which allow a more nuanced approach to the spectral function which differs from standard PAR.
And if building your own datalogger is too challenging, you could reproduce the exercise described in this post with a bluetooth UNI-T or a UT381 Digital Luminometer which has some logging capability. But you will need to add extra diffusers to bring full sunlight down below its 20,000 Lux limit.
Pressure testing has been on the to-do list for ages, but the rating on the PVC parts in our older housings meant we weren’t likely to have any issues. However, the new two-part mini-loggers fit inside a thin walled falcon tube, which raised the question of how to test them. There are a few hyperbaric test chambertutorials floating around the web, and we made use of one built from a scuba tank back at the start of the project, but I wanted something a less beefy, and easier to cobble together from hardware store parts. Fortunately Brian Davis, a fellow maker & educator, sent a photo of an old water filter housing he’d salvaged for use with projects that needed pressure tests. Residential water supply ranges from 45 to 80 psi so could replicate conditions down to 55m. That’s good for most of our deployments and certainly farther than I was expecting those little centrifuge tubes to go.
This mini pressure chamber was made from a Geekpure4.5″x10″ water filter housing, 2x male-male couplers, a garden tap, & a pressure gauge with a bicycle pump inlet. (~$70 for this combination) The relief valve & o-ring required silicone grease to maintain pressure.
I first tested 50mL ‘Nunc’ tubes from Thermo. These are spec’d to 14psi/1atm, but that’s a rating under tension from the inside. I put indicator desiccant into each tube so small/slow leaks would be easy to see and used a small bicycle pump to increase the pressure by 5psi per day. These tubes started failing at 25psi, with 100% failure just over 30psi. Multiple small stress fractures occurred before the final longitudinal crack which produced an audible ‘pop’ – often four or more hours after the last pressure increase. If 20psi is the max ‘safe’ depth for these tubes then the 50mL tubes can deployed to about 10m with some safety margin for tides, etc. This result matches our experience with these tubes as we often use them to gab water samples while diving.
[Click photos to enlarge]
As expected, the self-standing 30mL tubes proved significantly more resistant. All of them made it to 45psi and then progressed through various amounts of bending/cracking up to 100% failure at 55psi. Where the caps were reinforced (by JB weld potting a sensor module) the rim threads of the cap sometimes split before the tube itself collapsed:
Silicone grease was added to some of the caps although none of the dry ones leaked before the bodies cracked.
So the 30mL tubes have a deployment range to 25m with a good safety margin. The plastic of these tubes was somewhat more flexible with some crushing almost flat without leaks. This implies we might be able take these a little deeper with an internal reinforcement ring (?)
The next experiment was to try filling the tubes with mineral oil to see how much range extension that provides:
A third logger was submerged using only a sample bag:
The bag was included to test the ‘naked’ DS3231 & 328p chips. We’ve had IC sensors fail under pressure before (even when potted in epoxy ) Although it’s possible the encapsulation itself was converting the pressure into other torsional forces that wouldn’t have occurred if the pressure was equally distributed.
Again we moved in 5 psi increments up to 80 psi – which is the limit of what I can generate with my little bicycle pump. At 50psi some mineral oil seeped from the bag and at 70psi the ~1cm of air I’d left in the 50mL tube caused similar leakage. On future tests I will spend more time to get rid of all the bubbles before sealing the housings.
At 70psi the 50mL tube dented & sank and the lid started seeping oil (but did not crack)
The loggers continued blinking away for several days at 70, 75 & 80psi, but eventually curiosity got the best of me so I terminated the run. We were also getting uncomfortably close to the 90psi maximum test pressure on that polycarbonate filter housing. I was hoping to have some weird artifacts to spice up this post but no matter how hard I squint there really were no noticeable effects in the data at any of the pressure transitions – basically nothing interesting happened. I thought the resistive sensors would be affected but the RTC & NTC temperature logs have no divergence. The LDR looks exactly like a normal LDR record with no changes to the max/mins outside of normal variation. The battery curves are smooth and essentially indistinguishable from ‘dry’ bookshelf tests on the same cells. But I guess in this kind of experiment success is supposed to be boring… right? With mineral oil these little guys can go anywhere I can dive them to – even if the ‘housing’ is little more than a plastic bag.
One thing of note did happen after I removed the loggers from the chamber: I accidentally dropped the 30ml logger on the counter while retrieving it from the chamber and a thin white wisp of ‘something’ started swirling around the clear fluid inside the logger. This developed slowly and my first guess was that the capacitor had cracked and was leaking (?)
By the time I managed to capture this photo, the fine ‘smoke’ seen earlier had coalesced into a larger foam of decompression bubbles.
After emptying that oil, the logger itself went into a red D13 flashing BOD loop for a while but by the time I’d cleaned it up enough to check the rail, the battery had returned to it’s nominal 3v. My theory is a similar off-gassing event was happening inside the battery – briefly causing a droop below the 2.7v BOD threshold. So it’s possible that while the loggers are not depth limited per se using mineral oil, components like the separator in a battery may still be vulnerable to ‘rate-of-change’ damage. After more than two weeks at depth, I had vented the chamber in less than a minute. Of course when retrieving loggers in the real world I’d have to do my own safety stops, so this hazard may only affect loggers that get deployed/retrieved on a drop line.
I’ll run these loggers on the bookshelf for a while to see if any other odd behaviors develop. After that it will be interesting to see how well I can clean them in a bath of isopropyl (?) as I suspect that the mineral oil penetrated deep into those circuit board layers.
Addendum: 2023-05-30
Although the units sleep current was the same as before the pressure testing, the battery in the 30mL tube barely made another twelve hours on the bookshelf before the voltage dropped again – well before the expected remaining run time. So it’s a safe bet that any deployment which exposes coin cells to pressure at depth is a one-shot run. Given how cheap these batteries are, that’s pretty much a given when deploying these little loggers even if they remain dry.
Addendum: 2023-12-01
Short 30ml tubes work well for single-sensor applications, but classroom labs needed to switch between different sensor modules easily. So we added 3D printed rails holding mini breadboards to provide this flexibility, and the 50mL centrifuge tubes provide the space for these additions. They may not have the same depth range, but they are robust enough for most student experiments.
It’s also worth noting that these tests were done with the standard ‘plug-style’ caps that come with the NUNC 50ml centrifuge tubes. A few companies make tubes with an O-ring integrated into the cap(made of silicone or ethylene propylene) which gets compressed when the threads are tightened. Those would provide another layer of moisture resistance at that seal, although they wouldn’t do much to prevent the crush-failures. Unfortunately the Nalgene Oak Ridge high-speed polycarbonate centrifuge tubes that could resist those forces have necks pinched-in to a diameter too small for the modules in our logger.
This ‘two-part’ logger fits nicely inside a falcon tube which can be deployed to 10m water depth. With a bit of practice, complete logger assembly can be done in about 30-60 minutes depending on additions. The 4K EEprom on the RTC board will hold 4096 1-byte RTC temperature readings (~ 40 days worth @ 15 min. intervals) and that’s easily extended with I2C memory chips or modules.
The ‘solderless’ EDU build we released in 2020 provides remarkable flexibility for courses in environmental monitoring. However an instructor still needs to invest about five days ordering parts, testing components, and preparing kits for course being run remotely. (Although only 1/2 that is needed for in-person courses where the students pin & test the parts themselves.) While that’s not unusual for university lab subjects it’s a stretch for other instructors. And thanks to COVID shortages, modules that were only a buck at the beginning of the project might now set you back $5 each. So with all that in mind, we’ve continued development of a ‘lite’ version of our logger with the lowest possible prep. That new baby is now ready for release with data download & control done through the serial monitor window.
Instead of connecting the red channel of the 5mm LEDI use the onboard D13 LED for red. Other libraries and programs often require that LED.
With just three core components our only option was to remove the SD card. Groundwork for this change has been in place for a long time in our research loggers, with sensor readings first getting buffered to the 4k to reduce the number of high-drain SD saves. Getting rid of those power hungry cards opened up the possibility of running the entire unit from the coin cell on the RTC module. But a power budget that small adds some complexity to the base code which must minimize CPU run-time and limit peak current.
Internal Resistance with 6.8mA Pulse Discharge, from the Energiser Cr2032 datasheet. (Note: The 8mhz ProMini only draws about 3.3mA when its running)
Most garden-variety chips have a lower operating limit of 2.7v – so a 3v Cr2032 can only fall about 300mv under load before triggering the brown out detection (BOD) circuit. Voltage droop changes over time because the internal resistance of a coin cell is only 10 ohms when new, but increases to 100 ohms by end of life. According to Maxell’s 1Meg-ohm (3.3µA continuous) discharge test, coin cells should stay at their voltage plateau until they deliver about 140mAh. In our testing, 200uF battery buffering capacitors can extend runtime up to 30% but this varied with the quality of the battery. Of course, if you can reach a year without the rail buffer, then you’ve probably filled the memory. So rail caps may only be necessary with high-drain sensors or in low temperature deployments where the battery chemistry slows. It’s not unusual to see a 50mv delta at the battery terminals for every 15°C change in ambient so a standard coin cell will not power the logger very long at temperatures very far below freezing.
However, theres only so much you can predict about system behavior in the real world – especially with stuff constructed from cheap modules carrying half a dozen unspecified components. So let’s just build one and see how it goes.
Clipping the main VCC leg (the 2nd leg in from that corner) forces the DS3231 to run from the backup power input on the other side of the chip.
Disconnect the modules indicator LED by removing its limit resistor with a hot soldering iron tip.
Remove the 200ohm charging resistor & bridge VCC to the coin cell backup power at the black ring end of diode.
Running from Vbat depowers most of the logic inside the DS3231 and disables the 32kHz output (I usually cut away that header). According to the -M and -SN datasheets, but both RTC chips draw the same averageof 3.0µA timekeeping battery current to keep only the oscillator, temperature compensation & comparator working. The default 4k EEprom draws between 20-40nA when not being accessed. Bridging VCC directly to Vbat also means a 3.3v UART will push some sub-milliamp reverse currents through an older coin cell. Despite dire manufacturer warnings that reverse currents beyond 1µA will heat manganese-dioxide/lithium cells until they explode, I’ve yet to have a single problem (or even any detectable warming) with loggers connected for many days during code development. Drift on these RTCs is usually a loss of ~3-5 seconds per month, but you can reduce this considerably by calibrating the DS3231 Aging Offset Register with a GPS module. The only annoying issue with these RTC’s is that, once enabled, the alarms continue to be generated forever unless you set an ‘unreachable’ next alarm time, or shut down the main oscillator completely.
3 mods to the RTC module It’s a good idea to test of those RTC modules (with the logger base-code) before assembling your logger. After successful testing, I add conformal to the RTC & let dry before joining the two modules.
OPTIONAL: Add another EEprom to the RTC module
With a practiced hand you can add more EEprom memory right onto the RTC module. 64k is the sweet spot for single sensors generating 2-byte integers because they can store ~340 days of data at a 15min. interval. Each additional EEprom adds 0.2 to 0.4µA to the loggers overall sleep current. 64K’s are about $1 up to 256K chips selling for about $3.50 at Digikey. AT-series EEproms larger than 64k, show up on the I2C bus as multiple 64k chips.
For an AT24c512 you only need connect the four pins shown because the chip internally grounds any pin left floating. The rtc module pulls all connected address pins high (setting the lower 4k to 0x57) but an upper 64k EEprom with the connections above would go to 0x50.
Stacked EEproms in a 0x57 & 0x51 configuration. If this soldering is a bit too advanced see the ‘adding sensors’ section for a way to increase storage space with modules. Of course you can stack on those boards as well!
PREPARE the Pro Mini:
Carefully clip away the regulator from the 2-leg side to prevent 80µA of back-leakage thru the regulator under battery power.
Clip away the reset switch. This logger can only be started with serial commands via a UART connection.
Remove the limit resistor for the power indicator LED with a hot soldering iron tip. This is near the regulator area.
An Arduino Pro Mini continues at the heart of our loggers because it is still the easiest low-power option for projects that aren’t computationally demanding. 328p’s normally sleep well below 1µA with the BOD turned off but 17µA with BOD left on. It’s worth noting that component level testing of the tiny sleep current on an isolated ProMini board requires stable battery power, as UART supplied voltages are too noisy for sensitive devices like a Current Ranger. You will occasionally get clones withfake Atmel chipsthat won’t go below ~100µA sleepno matter what you do.
At 8Mhz the ‘official’ lowest safe voltage for the 328p is 2.7v and the BOD cutoff circuit is always on while the processor is running. So you want to stop logging if the rail starts falling below ~2850mv. Keep in mind that there is wide range of actual brownout thresholds, from a minimum of 2.5v to a max. of 2.9v. So if you get a logger that consistently quits while the battery voltage is still high, you might want to check that units actual BOD trigger point with a bench power supply.
Attach UART header pins and trim three of the tails flush to avoid accidental contact later.Do not progress with the build until you have confirmed the ProMini has a working bootloader by loading the blink sketch from the IDE.
OPTIONAL: Add a Thermistor, LDR & Indicator LED
One of my favorite sensor combinations for this logger is an NTC thermistor & CDS cell which adds nothing to the sleep current. Range switching with two or more NTCs could also be done if the max / min resistance values of one thermistor can’t maintain your resolution requirements. We explained how to read resistive sensors using digital pins in 2019; so here I will simply show the connections. Add these passives to the Pro Mini BEFORE joining it to the RTC module, taking care not to hold the iron so long that you cook the components. Each [104] 0.1uF of capacitance you use in this circuit gives you about 3000 raw clock counts for the 10k reference resistor.
D6=10kΩ 1% metfilm reference resistor , D7=10k 3950 NTC, D8=300Ω (any type), D9=LDR (5528). Note that the LDR is optional, and could be replaced with any other type of resistive sensor up to ~65kΩ. A typical 10kNTC reaches that limit near -10°C and the LDR usually reaches that at night.
The code puts all lines that are not being read into input mode to isolate them from the circuit when reading each individual channel. With these sensors I usually jumper D2->SQW with a longer piece of flexible wire to avoid covering the D13 LED.
A 104 ceramic cap to GND completes the ICU timing circuit. With a 0.1uF as the charge reservoir, each resistor reading takes ~1-2msec in sleep mode IDLE. With this small capacitor, timing jitter produces a band of readings about 0.02°C wide on the output plots if temp. readings are repeated rapidly.

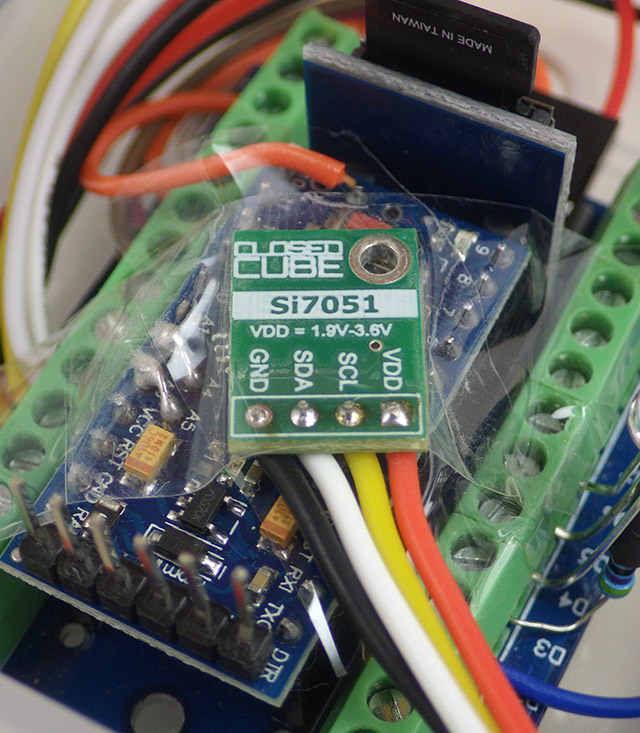

We created a how-to guide on calibrating thermistors which makes use of an online calculator to determine the equationcoefficients. You should never expect the NTC you have in your hands to match the values provided by its manufacturer, but even if it did our method leverages the behavior of the ProMini itself as part of the measuring system. So there is no point buying expensive interchangeable thermistors – the cheapest penny-parts will do just fine. I add a thermistor to all my loggers (even if they will eventually drive I2C sensors) because a good way to test new loggers is to read the NTC at a short one-second interval until the EEprom has been completely filled a few times. After that burn-in you can be sure the core of the logger is reliable before adding other sensors.
[OPTIONAL]Common cathode RGB w red leg cut on A0=GND, A1=Green, A2=Blue. The colors are lit via internal pullups to keep below 50µA. Leaving the RED LED on D13in place is useful to let you know when the bootloader has been triggered and that gets used by default if no other LED is enabled at the start of the logger code. The 1k D13 limit resistor must be left in place to use the onboard LED.
Join the Two Modules:
Resistor legs wrapped in heat shrink extend the A4/A5 I2C bus. These two wires must cross over each other to align with connections on the RTC.
Extend the VCC & GND headers with resistor legs.
Add a strip of double-sided foam tape across the chips on the RTC module and remove the protective backing.
Carefully thread the four I2C jumpers through the RTC modules pass-through port. Press the two boards together onto the double sided tape and solder the four connections.
OPTIONAL: use the VCC & GND wire tails to add an SMD tantalum rail buffering capacitor and trim away any excess wire. Anything from 220 to 1000µF will reduce battery voltage droop as the coin cell ages. 10V 470uF caps provide a good overall balance between buffering ability and leakage currents in the 50nA range. After checking polarity, flip the SMD solder pads to the upper surface for easier soldering. Rail buffering caps can extend runtime by 20-30%, depending on the quality of your coin cell, but they are not necessary for short-term logger operation.
Trim away the (non-functional) 32kHz pin and tin to the SQW header pin. Solder a resistor leg (or a short length of 26AWG wire) to interrupt input D2 on the Pro Mini.Add heat shrink to the D2 jumper & solder it to the SQW alarm header pin.
The minimum 2-module stack usually draws about 1µA constant sleep current, but with it’s TXCO corrections the RTC alone brings the average to at least 3µA. Cheap modules often have leftover flux which can cause current leaks. It’s worth the time scrub these boards with alcohol before assembly. I found no significant difference in sleep current between setting unused pins to INPUT_PULLUP or to OUTPUT_LOW.
The basic two-module combination usually sleeps around 1-2µA continuous. Most of that is the RTC’s timekeeping current as a 328p based ProMini only draws ~150nA in power-down (with regulator removed & BOD off) and the 4k eeprom should be less than 50nA in standby. If we assume four readings per hour at 5mA for 30msec, the battery life calculator at Oregon Embedded estimates a 220mAh battery will last more than 10 years…which is ridiculous. We know from the datasheet that the typical Ibat timekeeping current for the DS3231 is `700nA (dsheet pg7 with EN32KHZ=0 @3v) but TXCO temperature conversions bring the RTC average up to 3µA – which can’t be seen on this direct measurement. And there’s the battery self discharge of 1-3% per year. Perhaps most important there’s the complex relationship between pulsed loads and CR2032 internal resistance, which means we’ll be lucky to get half the rated capacity before hitting the typical 328p brown-out at 2.77v. A more realistic estimate would start with the assumption that the battery only delivers about 110mAh with our logger consuming whatever we measure + 3µA (RTC datasheet) + 0.3µA (coincell self-discharge). For conservative lifespan estimation we can round that all up to about 5µA continuous, with four 5mA*10millisecond sensor readings per hour, and we still getan estimated lifespan of about two years. So the most significant limitation on this logger is usually the EEprom memory. It’s worth noting that newer DS3232 variants of the RTC lets you push the TXCO corrections out to 512 seconds. This lowers the average RTC standby to about 1µA -if- you are willing to spend $10 for the RTC chip alone on DigiKey.
Build video: ( 3 minute rapid review)
Note: the order of operations in the video is slightly different from the photos.
In 2023 the logger base code was updated to match the newer the e360 model, being essentially identical except for the changes required for the alternate NTC and LED connections. The code requires the LowPower.h library for AVR to put the logger to sleep between readings and this can be installed via the library manager.
One important difference between a coin cell powered logger and our older AA powered models is that the battery has a high probability of being depleted to the point of a BOD restart loop. (which causes rapid flashing of the D13 LED) So we use a multi-step serial exchange in Setup() to prevent data already present in the EEprom from being overwritten by an accidental restart.
Setup()
Purple callouts on the following flow diagrams indicate the places that would need to be altered to add a new sensor to the base code. If all you do is enable sensors via defines at the start of the program you won’t have to deal with the code that stores the data. However to add a new sensor you will need to make changes to the I2C transaction that transfers those sensor readings into the EEprom ( with matching changes to the sendData2Serial function that reads them back out later).
Note: The options on the startup menu will change over time as new code updates are released.
A UART connection is required at start-up so those menu-driven responses can occur through the serial monitor in the IDE. These have 8minute timeouts to avoid running the CPU too long during unintentional restarts. The menu sequence can be re-entered at any time simply by closing & re-opening the serial monitor window: This restarts the Pro Mini via a pulse sent from the UARTs DTR (data terminal ready) pin.
If you see random characters in the serial window, you have the baud rate set incorrectly. Reset the baud to 500,000 and the menu should display properly HOWEVER you also need to close & re-open the window. If you copy data from the serial monitor when the window still has garbled characters, then only the bad starting characters will copy out. On a new logger the Hardware, Calibration & Deployment fields will display rows of question marks until you enter some text via each menu option. There are additional debugging options that are not displayed unless serial out is enabled, and this menu will CHANGE over time as I add new features.
The first menu option asks if you want to download the contents of the logger memory to the serial monitor window. This can take up to 2 minutes with 256k EEproms at 500000 baud, which is the fastest rate an 8MHz ProMini can reliably sustain. Then copy/paste everything from the IDE window into an Excel sheet. Then below the data tab, select Text to Columns to separate the data fields at the embedded commas. Or you can paste into a text editor and save as a .csv file for import to other programs. While that process is clunky because the IDE’s serial interface doesn’t export, everyone already has the required cable and data retrieval is driven by the logger itself. And yes, the exchange could also be done with other serial terminal apps like PuTTY with logging turned on, CoolTerm, or Termite with the ‘logfile’ filter. You can also redirect Windows COM port output to a file, although it seems limited to only 19k baud. These options may be required on builds with large memory expansions as the IDE serial monitor starts to forget the initial data in it’s buffer after displaying about 100,000 lines. I have successfully used Termite at 1,000K baud downloading an 8mhz logger, but when the amount of data gets large the ProMini starts limiting you to an effective 500K baud. Functions like itoa() before serial.print() or using Rob Tillaart’s splitDigits4 & splitDigits10 with serial.write() speeds things up considerably. In summary, 250k BAUD is stable, 500k is usually fine with occasional serial dropouts in a very long download, while 1,000k Baud exhibits frequent flaky behaviors with the IDE’s serial monitor. Those character dropouts don’t happen using Coolterm or PuTTY.
Vref compensates for variations in the reference voltage inside the 328p processor. Adjusting the 1126400 (default) value up or down by 400 raises/lowers the reported voltage by 1 millivolt. Adjust this by checking the voltage supplied by your UART with a multimeter while running the logger with #define logCurrentBattery enabled and serial output ON. Note the difference between the millivolts you actually measured and the current voltage reported on screen, and then multiply that difference by 400 to get the adjustment you need to make to vref for accurate battery readings. After you [7] Change Vref and enter the adjusted number it will be used from that point onward. Stop adjusting when you get within ±20mv.
After the start menu sequence the first sampling time is written to the internal EEprom so the timestamps for sensor readings can be reconstructed during data retrieval later by adding offsets added to the starting time. This technique saves a significant amount of our limited EEprom memory and all it takes is =(Unixtime/86400) + DATE(1970,1,1) to convert those Unix timestamps into human readable ones in Excel. It is important that you download the old data before changing the sampling interval via the startup menu option because the interval stored in EEprom is also used to reconstruct the timestamps. Valid sampling intervals must divide evenly into 60 and second-intervals can be set for rapid testing if you first enter 0 for the minutes.
No data is lost from the EEprom when you replace a dead coin cell and you can do the entire data retrieval process on UART with no battery in the logger. But the clock time should only be reset after installing a new battery or it will not be retained. If the time in the serial menu reads 2165/165/165 165:165:85 instead of 2000/01/01 after a power loss then there’s a good chance the RTC’s memory registers have been corrupted & the RTC module needs to be replaced. I’ve managed to do this to a few units by accidentally shorting the voltage to zero when the logger was running from a capacitor instead of a battery.
After setting the clock time and deployment parameters like the sampling interval, the logger will request the user to manually type a ‘start’ command before beginning a run. Only when that second ‘start’ confirmation is receivedare the EEproms erased by pre-loading every location with ‘Zeros’ which also serve as End-Of-File markers during download. The selected LED will then ‘flicker’ rapidly to indicate that the logger is ‘waiting’ until the current time aligns with the first sampling alarm before beginning the run.
Main LOOP()
EEprom writes usually draw about the same 3mA current the ProMini draws during CPU up time. ‘Lowest’ battery voltage is checked immediately after the data transfer because an unloaded Cr2032 will always read nominal – even when it’s nearly dead. Timing of events at that point is critical because EEproms freeze if the rail voltage fluctuates too much while they are actively writing – so don’t change those LowPower.idle sections of the code! Also don’t run OLED screens during sensor readings or EEsaves because they are noisy as heck. Logger shutdown gets triggered at the end of the main loop if the EEprom save brings the rail voltage below the 2850mv systemShutdownVoltage or if the memory is full.
Adding I2C Sensors to the logger:
The minimum configuration for this logger can log the 0.25°C temperature record from the DS3231, index-encoded to one byte per reading. Approximately 4000 of these readings can be stored in the 4k EEprom on the RTC module. This works out to a little more than 40 days at a 15 minute sampling interval.
We made extensive use of RTC temperature records in our cave drip loggers at the beginning of the project. The accuracy spec is only ±3°C, but most were within ±1 of actual @ 25°C and you can calibrate them against more accurate sensors. The RTC only updates its temperature registers every 64 seconds and any temperature sensors inside the body tube will have about 15 minutes of thermal lag relative to outside air.
The 4K AT24c32 on the RTC module fills rapidly with sensors that generate 2 or 4 byte integers. An easy solution is to combine your sensor module with 32k (AT24c256), or 64k (AT24c512) chips so the sensors bring the extra storage space they will need. These EEprom modules can usually be found on eBay for ~$1 each and after you update the EEpromI2Caddr & EEbytesOfStorage defines at the start of the program, all AT series chips will work with the same code as the default 4k.
The headers on this common BMP280 module align with the 32k headers in a ‘back-to-back’ configuration. The tails on the YL-90 breakout extend far enough to connect the two boards. Note this sensor module has no regulator which is preferred for low power operation.
Pin alignment between the YL-90 and this BH1750 module is slightly more complicated as you can’t cover the light sensor.
Clip away the plastic spacers around the header pins. Then wiggle the BH1750 over the headers on the 32k module. Solder the points where the pins pass through the 1750 board. Note: I2C pullups on the sensor boards can usually be left in place on this low voltage system.
I2C pin order on the RTC doesn’t align with the BH1750 module. So you need to make the required cross-overs with a 4 wire F-F Dupont. Soldering those connections is more robust but do that after calibrating the thermistor.
In addition to the NTC / LDR combination, support for both of the sensors shown above is included in the code on Github although you will need to install hp_BH1750 and BMP280_DEV with the library manager to use them. Sensors are enabled by uncommenting the relevant defines at the start of the program.No matter what combination of sensors you enable, thetotal bytes per recordmust be1,2,4,8 or 16. Otherwise you will get a repeating error at download because trying to save data beyond a hardware page-boundary inside the EEprom over-writes previously saved data at the start of that same page/block.
I2C devices are usually rated to sink about 1mA which on a 3v system would require 3300 ohm pullups. This means you can leave the 10k’s on those sensor modules to bring combined bus pullup ( incl. 4k7 on the RTC & 35k pullup on the ProMini pins) to 2930 ohms, which is close to the 3.3k ideal. The open-drain implementation of I2C means that adding more capacitance to the bus will round off the rising edges of your clock and data lines, which might require you to run the bus more slowly with multiple sensors or with longer wires to your sensors. In those cases you can drop the total bus pullup to 2k2 to offset the capacitance.
The 662k LDO regulator on most eBay sensor modules increase the loggers sleep current by 6-8µA due to back leakage. For long deployments this can be removed & then bridging the in->out pads should bring your sleep back to ~1-2µA. That regulator is below spec any time your supply falls below ~3.4v which is > than the initial over-voltage on a Cr2032.
You must use low power sensors with a supply range from 3.6v to our 2.7v BOD cutoff. A good sensor to pair with this logger should sleep around 1µA and take readings below 1mA. You are more likely to find these no-reg sensor modules with low power operation at Sparkfun or on Tindie, than you are on eBay/Amazon. A coin cell simply doesn’t have enough power to supply a high drain CO2 sensor or GPS unless you take heroic measures. Sometimes you can pin-power sensors that lack low current sleep modes although if you do that be sure to check if that creates current leaks in other places such as pullup resistors or the I2C bus may go into an illegal state (idle is supposed to leave SCL & SDA lines high) requiring a power reset of all the sensors on the bus. Choose sensor libraries which allow non-blocking reads so you can sleep the ProMini while the sensor is gathering data and replace any delay() statements in those libraries with 15msec powerdown mode sleeps.
30ml self-standing Caplugs from Evergreen Labware are a good housing option because they have a brace in the cap that just fits four 22gauge silicone jacket wires. The ‘non-sterile’ versions with separate caps are much cheaper to buy than the sterile ones. The outer groove in the lid provides more surface area for JB-weld epoxy, giving you an inexpensive way to encapsulate external sensors. 1oz / 25ml is enough to cover about five sensors. Then clear JB weld can be used as a top-coat to protect optical sensors.
Drill the central channel to pass the I2C wires through the cap. Roughen the upper surfaces with sandpaper to give it some tooth for the epoxy.
Conformal coat the board before the epoxy. Work the epoxy over the sensor board carefully with a toothpick and wipe away the excess with a cotton swab.
We’ve done pressure tests to 45psi and these tubes can be deployed to ~20m depth, although we don’t yet have any data yet on how long they will endure at that pressure. These housing tubes should be replaced every three months if they are exposed to sunlight because UV makes the plastic brittle. Adding a very small amount of silicone grease to only the upper edge of the tube before closing improves the seal with the lid but don’t add too much or the threads will slip. Holes drilled through the bottom stand enable zip-ties to secure the logger. In our cross calibration of a Bh1750 Lux sensor to measure PAR (Photosynthetically Active Radiation) , we wrapped the body tubes with 2″ aluminum foil tape to reduce heat gain inside the body tubes.
We have produced small printable rails for the 30ml tubes often used with this two module logger. So here is a link to that shared model on Tinkercad. That internal rail & an external mounting bracket is posted at Github. The easiest way to secure the logger to these rails is with a drop of hot glue from the underside but I usually twist and solder the legs of a scrap resistor as the tie as I have lots of these lying around:
Insert a scrap resistor into the mounting holes and twist the legs together.
Solder the twisted legs and trim. Angle the joint inwards to avoid scratching the tube.
Angle the I2C headers slightly toward the point of the tube to leave more room for Dupont connectors during the NTC calibration.
There’s room for two or three 0.5gram silica gel desiccant packs in the lid area. Because the ProMini remains exposed, I don’t usually add conformal to the ProMini until the logger has passed all of its pre-deployment run tests. After that I add a generous layer of conformal to everything but the battery contacts and the header pins. Clear nail polish also works for this.
For deeper aquatic deployments, you could use a stronger PET preform for the enclosure. These have very thick walls because they are the blanks that are thermally blow-molded to create soda bottles. You will need to find ones larger than the standard 2L bottle preforms which have an internal diameter of only 21mm. This is just a bit too tight for the RTC module. The 30ml centrifuge tubes shown above have an internal diameter of 26-27mm.
Testing Your New Logger
Make at least two machines at a time. I usually build in batches of six, and for every dozen at least one usually ends up with some kind of issue like an RTC temp. register outside the ±3°C spec, or a ProMini with one of those fake 328p processors that draws too much sleep current. Having more than one logger makes it easy to identify when you’ve got an a hardware problem rather than an error in your code. Even then, no unit is worth more than an hour of troubleshooting when you can build another one in less time. Seriously! The part cost on these things is well below $10, which is often less than you’d pay just to replace the battery on other loggers. This also applies to maintenance: just run till it fails and then replace it. In our experience, most inexpensive sensors have a reliable lifespan of less than two years in the field.
A good general approach to testing any DIY build is to check them with a doubling schedule: Start with rapid UART tethered tests via the serial monitor at second intervals, then initial stand-alone tests for 1,2,4 & 8 hours till you run overnight, followed by downloads after 1day, 2days, 4days, 8days, etc. For those initial burn-in tests, set the interval short enough that the entire memory gets filled. Valid sampling intervals must divide evenly into 60 and second-intervals can be set for rapid testing if you first enter 0 for the minutes.
Occasionally you get an RTC module with a really weak contact spring and this generally shows up as battery readings that jump all over the place, or even as unexpected quits from accidental bumps disconnecting power. A small bit of double sided foam mounting tape behind the spring will usually make the battery connection quite robust.

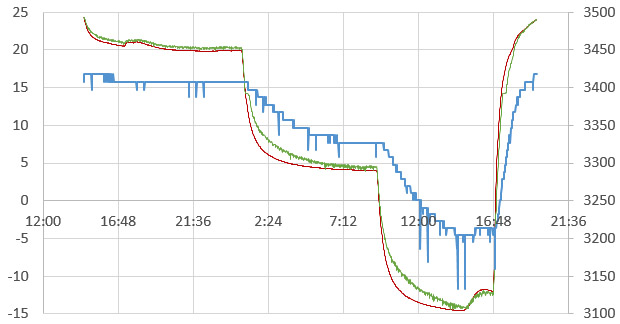

The shape of the battery burn-down curve during your pre-deployment testing is and excellent predictor of reliability! But to use that information you need to be running several identical machines at the same time, and start those runs with fresh batteries. I use the cheapest batteries I can get for these tests, knowing the better quality batteries I use on deployment will last much longer.
Remember that eBay/Ali/Amazon sensor modules are cheap for a reason and it’s not unusual to see 20% of them rejected for strange behavior or infant mortality. So huddle test each batch to normalize them. Relative accuracy spec for the BMP280 is supposed to be ±0.12 millibar, but when I run a batch of them side-by-side I usually see ±4 millibar between the records. Cheap BMEs sometimes refuse to operate with it’s individual RT/T/Pr sensors set at different oversampling levels, and at the highest resolution (16x oversampling) that sensor may draw more than your power budget can sustain over a long deployment. Real-world installation inevitably exposes the logger to condensing conditions. Sensors with a metal covers (like the BMP/E series) will experience internal condensation at the dew point. Moisture creep is the largest cause of data loss on the project after theft/vandalism. So cleaning leftover flux from all parts with cotton swabs + 90% isopropyl alcohol before & after assembly is always worth your time. So is conformal coating and you can use clear nail polish for that if silicone coatings are hard to find.
And all the other quid-pro-quos about vendors apply: Split your part orders over multiple suppliers with different quantities, ordered on different days, so you can isolate the source of a bad shipment and/or identify suppliers that are OK. Don’t be surprised if that batch of sensor boards you ordered transmogrifies into a random delivery of baby shoes. Amazon is often cheaper than eBay and AliExpress is 1/4 the price of both. Trusted suppliers increase part costs by an order of magnitude but that may still be worth it if you don’t have time for enough test runs to eliminate the duds.
Power Optimization on this Data Logger:
A (relatively high) average sleep current of ~5µA*86400 sec/day would use ~432 milliAmpseconds/day from a Cr2032 that can provide roughly 360,000 mAs of power [100mAh] on its main voltage plateau . Any power saving strategy must be weighed against this daily amount to determine if the complexity it adds to your code will deliver a proportional increase in operating time. I rarely see a sensor sample reading use more than 1 milliamp-second of power – even with relatively high drain sensors like the BME280. So most of the power used by this logger is due to the DS3231 RTC’s 3µA timekeeping current which can not be changed but battery voltage droop during peak current events is usually what triggers the low voltage shutdown and that is affected by code execution.
8MHz ProMini boards draw about 3.5mA when running at 3v. Slow functions like digitalWrite() and pinMode() are replaced with much faster port commands wherever power and/or timing are critical. Pin states, peripheral shutdowns (power_all_disable(); saves ~0.3mA) and short sleeps are used throughout for battery voltage recovery. Waking the 328p from those powerdown sleeps takes 16,000 clock cycles (~2milliseconds @8MHz +60µS if BOD_OFF) and but the ProMini only draws ~300µA while waiting for the oscillator to stabilize. These wakeups only use about 1mAs/day.

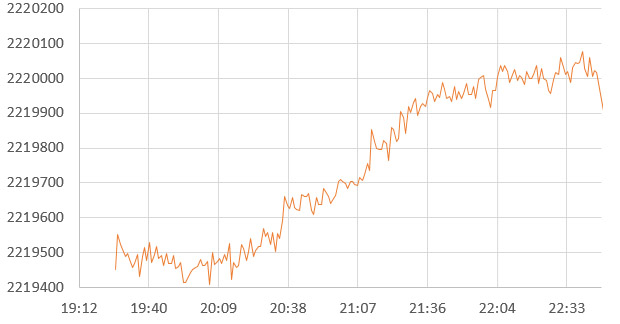

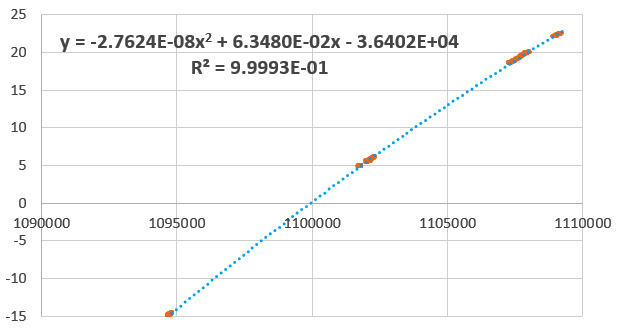

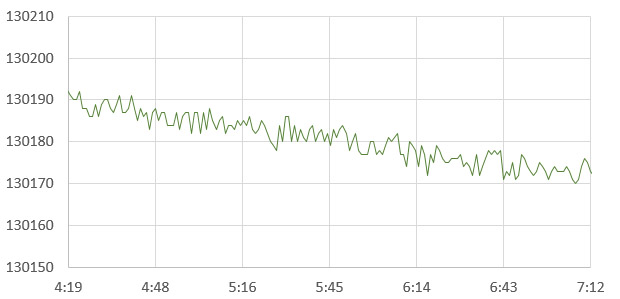

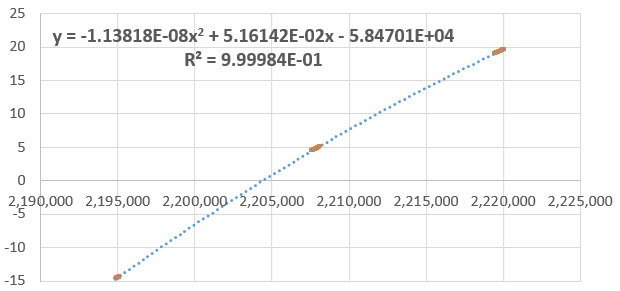

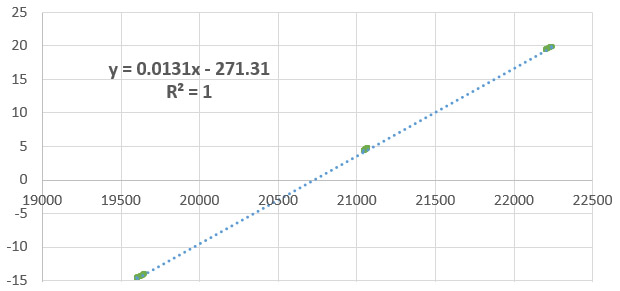

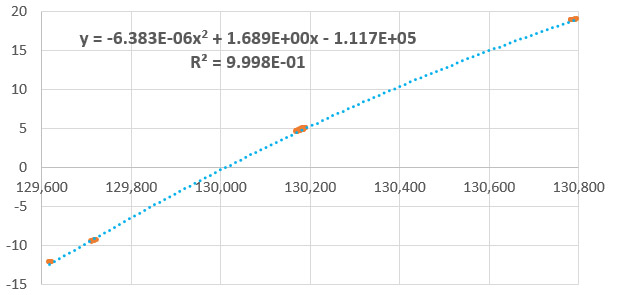

The original code released in 2022 used CLKPR to bring the ProMini down to 1MHz (lowering runtime current from 3.5mA to ~1.3 mA) however testing later revealed that the total energy cost per logging event actually increased slightly when the system clock was divided. In addition, I came across several EEproms that would freeze if I lowered the system clock to 1MHz during save. So I have removed the CLKPR calls to make the codebase more portable. I also found that the startup-time also gets multiplied by the CLKPR divider. This might be the only documentation of this on the web, so I’m leaving this information here – even though CLKPR is no longer relevant to the logger:
( Note: For the following images a Current Ranger was used to convert µA to mV during a reading of the RTC’s temperature register at 1MHz. So 1mV on these oscilloscope screen shots = 1µA is being drawn from the Cr2032 )
Here CLKPR restores the CPU to 8MHz just before entering powerdown sleep, and then slows the processor to 1MHz after waking. The extra height of that first spike is due to the pullup resistor on SQW. Cutting the trace to that resistor and using an internal pull-up reduces wake current by 750µA.
Here the 328p was left CLKPR’d down to 1MHz when it entered powerdown sleep(s). Waking the processor now takes 16 milliseconds – wasting a significant amount of power through the 4k7 pullup on SQW while the RTC alarm is still asserted.
Using the 328s internal oscillator to save power is a non-starter because it’s 10% error borks your UART to the point it can’t upload code. Our ICU based timing method also needs the stability of the external oscillator.
That bridge between the coin cell and VCC means UART connection time probably is shortening battery lifespan a bit. Panasonic specifies: “the total charging amount of the battery during it’s usage period must be kept within 3% of the nominal capacity of the battery”, so it’s a good idea to remove the coin cell if you are spending an extended time on serial. But given our tight operational margin we can’t afford to lose 200mv over a Schottky protection diode. A typical solution would address this by ORing the two supplies with an ideal diode circuit but that’s not a option here as ideals usually waste some 10-20 µA. On a practical level it’s easier to just topop in a fresh battery before every long deployment.
EEprom & sensor additions usually push directly measured continuous sleep currents to 2µA (so ~5 µA average when you add the RTC temp conversions)but that still gives a >1 year estimates on 110mAh. With all due respect to Ganssle et al, the debate about whether buffering caps should be used to extend operating time is something of a McGuffin because leakage is far less important when you only have enough memory space for one year of sensor readings. Even a whopper 6.3v 1000µF tantalum only increases sleep current by ~1µA. That’s 1µA*24h*365days or about 10 mAh/year in trade for keeping the system well above the 2.8v cutoff. That means we don’t need to lower the BOD with fuse settings & custom bootloaders. When you only service your loggers once a year, any tweaks that require you to remember ‘special procedures’ in the field are things you’ll probably regret.
Capacitor leakage scales linearly so usethe Falstad simulator to see what size of rail buffer you actually need. Capacitors rated 10x higher than the applied voltage reduce leakage currents by a factor of 50. So your buffering caps should be rated to 30v if you can find them. The 220µF/25v 227E caps I testedonly add ~15nAto the loggers sleep current and these can be obtained for <50¢ each. (& 440uF 10v caps leak around 25nA) High voltage ratings get you close to the leakage values you’d see with more expensive Polypropylene, Polystyrene or Teflon film caps and moves away from any de-rating issues. The one proviso is that as the buffering cap gets larger you will need to add more ‘recovery time’ in the code before the rail voltage is restored after each code execution block. Sleeping for 30msec after every I2C transaction is a safe starting point, but you’ll need a scope to really tune those sleeps for large sensor loads like you see with a BME280 at 16x oversampling. If moisture condenses inside the housing on deployment, and the logger mysteriously increases from 1-2 µA sleep current to something higher then replacing the tantalum rail buffering cap is one of my first diagnostic steps.
In the next three images, a Current Ranger converts every 1µA drawn by the logger to 1mV for display on the ‘scope. The last two spikes are transfers of 16-bytes into the 4K EEprom on the RTC module while the CPU takes ADC readings of the rail voltage. Note that our current code saves readings as a single event at the end of each pass through the main loop, but I forced multiplelargesaves for this test to show the effect of repeated pulse-loads:
A triple event with a temperature sensor reading followed the transfer of two array buffers to EEprom. Battery current with no rail buffering cap. [Vertical scale: 500µA /division, Horizontal: 25ms/div]
Here a 220µF tantalum capacitor was used to reduce the peak battery currents from 2.5mA to 1.5mA for that same event.
Here a 1000µF tantalum [108J] capacitor reduces the peak battery current to 1mA. The 30msec sleep recovery times used here are not quite long enough for the larger capacitor.
Voltage across a coin cell that’s been running for two months with NO buffering capacitor. The trace shows the 2.5mA loads causing a 60mv drop; implying the cell has ~24 ohms internal resistance. [Vertical Scale: 20mv/div, Horizontal: 25ms/div]
The minimal RTC-only sensor configuration reached a very brief battery current peak of ~2.7mA with no buffering cap, 1.5mA with 220µF and less than 1mA with 1000µF. The amount of voltage drop these currents create depend on the coin cells internal resistance but a typical unbuffered unit usually sees 15-30mV drops when the battery is new and this grows to ~200mV on old coin cells. The actual voltage dropalso depends on time, with subsequent current spikes having more effect than the first as the internal reserve gets depleted. The following images display the voltage droop on a very old coin cell pulled from a logger that’s been in service since 2016 (@3µA average RTC backup)
This very old coin cell experiences a large 250mv droop with no capacitor buffer. Note how the initial short spike at wakeup does not last long enough to cause the expected drop. [Vertical: 50mv/div, Horizontal: 25ms/div]
Adding a 220µF/25v tantalum capacitor cuts that in half but triples the recovery time. CR2032‘s plateau near 3.0v for most of their operating life, so the drop starts from there. [Vertical: 50mv/div, Horizontal: now 50ms/div]
A 1000µF/6.3v tantalum added to that same machine limits droop to only 60mv. Recharging the capacitor after the save now approaches 200 milliseconds. [Vertical : 50mv/div, Horizontal: 50ms/div]
According to Nordic Semi: “A short pulse of peak current, say 7mA for 2 milliseconds followed by an idle period of 25ms is well within the limit of a Cr2032 battery to get the best possible use of its capacity.” After many tests like those above, our optimal ‘peak shaving’ solution is to run the processor at 8MHz, breaking up the execution time with multiple 15-30 millisecond POWER_DOWN sleeps before the CR2032 voltage has time to fall very far. (especially necessary if you start doing a lot of long integer or float calculations) This has the benefit that successive sensor readings start from similar initial voltages but those extra sleeps can easily stretch the duration of a logging event out toward 300 milliseconds – putting limits on the loggers maximum sampling rate:
Current drawn in short bursts of 8MHz operation during sensor readings. The final EEprom save peaks at ~2.75mA draw (in this old example with CLKPR 1MHz CPU which we no longer do) [CH2: H.scale: 25msec/div, V.scale 500µA/div converted via Current Ranger]
Voltage droop on that same ‘old’ CR2032 used above reached a maximum of 175mv with NO buffering capacitor across the rail. This battery has about 64 ohms of internal resistance. [CH2: V.scale 25mv/div, H.scale 25ms]
Adding a 220µF tantalum capacitor to the rail holds that old battery to only 50mv droop. The 25v tantalum cap adds only 0.1µA leakage to the overall sleep current. [CH2: V.scale 25mv/div, H.scale 25ms]
EEprom save events are typically around 3.5 mA for 6ms. Without a rail buffer a new coincell will fall about 100mv. With a 200µF rail buffering cap supplying the initial demand the peak current drawn from the coin cell is less than 1.5mA – which limits the overall voltage droop to less than 50mv. Even with very old batteries a typical EEsave event doesn’t usually drop the rail more than 150mv with a rail buffer cap, however the recovery time growssignificantly with battery age –from less than 25 msec when new to more than 150 milliseconds for a full recovery. So old battery logging events look more like ‘blocks’ on the oscilloscope trace rather than the series of short spikes shown above.
This ‘solder-free’ AT24c256 DIP-8 carrier moduleis bulky but it lets you easily set multiple I2C address. Here I’ve removed the redundant power led & pullup resistors. Heliosoph posted a way to combine multiple EEproms into a single linear address range
Even with fierce memory limitations we only use the 328’s internal 1k EEprom for startup index values and text strings that get written while still tethered to the UART for power. EEprom.put starts blocking the CPU from the second 3.3msec / byte, and internal EEprom writing adds an additional 8mAto the ProMini’s normal 3mA draw. This exceeds the recommended 10mA max for a garden variety Cr2032. Multi-byte page writes aren’t possible so data saved into the 328p costs far more power than the same amount saved to an external EEprom. However it is worth noting that reading from the internal EEprom takes the same four clock ticks as an external with no power penalty, while PROGMEM takes three and RAM takes two clock cycles. So it doesn’t matter to your runtime power budget where you put constants or even large lookup tables.
A simple optimization we haven’t done with the code posted on GitHub is to buffer data into arrays first, and then send that accumulated data with larger wire library buffers. All AT-series EEproms can handle the 4k’s 32-byte page-write but the default wire library limits you to sending only 30 bytes per exchange because you lose two bytes for the register location. So to store sensor readings in 32-byte buffer arrays and transfer those you need to increase the wire library buffers to 34 bytes. This has to be done by manually editing the library files:
In wire.h (@ \Arduino\hardware\arduino\avr\libraries\Wire\src) #define BUFFER_LENGTH 34 AND in twi.h (@ \Arduino\hardware\arduino\avr\libraries\Wire\src\utility) #define TWI_BUFFER_LENGTH 34
That twi buffer gets replicated in three places so the wire library would then require proportionally more variable memory at compile time . With larger EEproms you could raise those buffers to 66 bytes for 64 data-byte transfers. It’s also worth mentioning that there are alternate I2C libraries out there (like the one from DSS) that don’t suffer from the default wire library limitations. AT series EEproms always erase & rewrite an entire page block no matter how many bytes are sent, so increasing the number of bytes sent per save event reduces wear and can save significant amounts of power. In my tests, newer larger EEproms tend to use about the same power as smaller older EEproms for identical save events because even though they are re-writing larger blocks, they do these internal operations much faster. So a ‘typical’ EEprom write event uses somewhere between 0.30 to 0.5 millamp-seconds of power no matter how many bytes you are saving. If your daily sleep-current burn is about 300milliampseconds, then it takes a few hundred of those EEprom save events to use the same amount of power. Increasing the transfer payload (with temporary accumulation arrays) from the I2C default of 16 bytes to 64 bytes cuts EEsave power use by 75%. That can extend the loggers operating life with short sampling intervals of 1-5 minutes, or where your sensors generate many bytes per record. Despite several technical references saying otherwise, I saw no significant difference in save duration or power (on the oscilloscope) with EEprom locations prewritten to all zeros or 0xFF before the data save events. One thing that does make an enormous difference is transferring blocks that exactly match the EEproms hardware page size – if you get the alignment perfect then EEproms can write the new information without all the preload & insertion operations you see when saving smaller amounts of data. This cuts both the time and the power for EEprom saving by 50% if you have enough memory for all the pre-buffering that requires.
Because of the code complexity we have not implemented array buffering in the current code-build so that the codebase is understandable for beginners. Every pass through the main loop saves data to the external EEprom and these loggers still have an excellent operating lifespan without it. For many EEprom types, when doing a partial write of fewer bytes than the hardware page size, the data in the rest of the page is refreshed along with the new data being written. This will force the entire page to endure a write cycle, so each memory location in the EEprom may actually get re-written [EEprom hardware page size / Bytes per Save ] times, which for the 4k would typically be 32/4 = 8 times per run. EEproms have a ‘soft’ wear limit of about 1,000,000 write cycles, so even in that worst-case scenario the logger could fill that chip 125,000 times before wearing the EEprom out. But buffering can make the eeprom last longer, or extend operating life in ways other than the battery power that’s saved.
FRAM takes about 1/50th as much power to write data compared to standard EEproms but those expensive chips often sleep around 30µA so they aren’t a great option for low-power systems like this logger unless you pin-power the chips so you can disconnect them during sleep. FRAM can endure more than 10 billion, 50 nano-second, write cycles, making it better suited for applications where rapid burst-sampling is required. The I2C bus is not really fast enough take advantage of FRAMs performance, but with the SD card removed from the logger the four SPI bus connections are now available. Once your code is optimized, the majority of the loggers runtime power is consumed by the 328p burning 3.5mA while it waits around for the relatively slow I2C bus transactions – even with the bus running at 400khz.
Here wires extend connections for the thermistor & LED to locations on the surface of the housing.
No matter what optimizations you make, battery life in the real world can also be shortened by thermal cycling, corrosion from moisture ingress, being chewed on by an angry dog, etc. And you still want the occasional high drain event to knock the passivation layer off the battery.
An important topic for a later post is data compression. Squashing low-rez readings into only one byte (like we do in the base code with the RTC temperature & battery voltage) is easy; especially if you subtract a fixed offset from the data first. But doing that trick with high range thermistor or lux readings is more of a challenge. Do you use ‘Frame of Reference’ deltas, or XOR’d mini-floats? We can’t afford much power for heavy calculations on a 328p so I’m still looking for an elegant solution.
Some Run Test Results
Since we covered adding BM & BH sensors, here’s a couple of burn-down curves for the two configurations described above. Both were saving 4 bytes of data per record every 30 minutes giving a runtime storage capacity of about 150 days. In this test, Battery was logged each time 16-byte buffer-arrays were written to a 32k EEprom. Both loggers have a measured sleep current of ~1.5µA and they were downloaded periodically. Although the curve spikes up after each download, these are runs used the same coin cell battery throughout:
Cr2032 voltage after 11 months @30min sampling interval: BMP280 sensor reading Temp. & Pr. stored in 32k eeprom with NO 220µF rail buffering capacitor. This test run is complete. At x16 oversampling the BMP uses considerably more power than the BH1750.
Coin cell after more than 12 months @30min sampling interval: BH1750 sensor & 32k ‘red board’ EEprom (Sony brand battery: again, with no rail buffer cap). Both of these records show only the lowest battery reading in a given day.
I ran these tests without a rail buffering cap, to see the ‘worst case’ lifespan. A pulse loaded Cr2032 has an internal resistance of ~20-30Ω for about 100 mAh of its operational life, so our 3.5mA EEprom writing event should only drop the rail 100mv with no rail buffer cap. But once the cell IR approaches 40Ω we will see drops reaching 200mv for those events. The CR2032’s shown above have plateaued near their nominal 3.0v, so we will see the rail droop to ~2800mv when the batteries age past the plateau. Again, our tests show that with a 220 µF rail capacitor those drops would be reduced to less than 50mv and with 1000µF the battery droop is virtually eliminated.
Note that the UART download process briefly restores the voltage because the 3.3v UART adapter drives a small reverse current through the cell. I think this removes some of the internal passivation layer, but that voltage restoration is short lived. On future tests I will enable both logCurrentBattery (after wake) and logLowestBattery (during EEwrite) to see if the delta between them matches the drops I see with a scope.
And here we compare our typical logging events to the current draw during a DS3231-SN RTC’s internal temperature conversion (with a 220µF/25v cap buffering the rail). The datasheet spec for the DS3231 temp conversion is 125-200ms at up to 600µA, but the units I tested draw half that at 3.3v. On all three of these images the horizontal division is 50 milliseconds, and vertical is 200µA via translation with a current ranger:
Typical sampling event peaks at 450µA with a 220µF rail buffer cap. This logger slept for 15msec battery recoveryafter every sensor reading or I2C exchange.
Every 64 seconds a DS3231 (-N or -SN) temperature conversion draws between 200 to 300µA for ~150ms. There is no way to change the timing of the RTC conversions.
Occasionally the RTC temp conversion starts in the middle of a logging event, adding that current the peaks.
The datasheet spec for the DS3232-SN temp conversion is 125-200ms at up to 600µA, but the units I tested draw half that at 3.3v. The rail cap can’t protect the coin cell from the SN’s long duration load so temp conversions overlapping the EEprom save may be the trigger for most low voltage shutdowns during deployment. The best we can do to avoid these collisions is to check the DS3231 Status Register (0Fh) BSY bit2 and delay the save till the register clears. But even with that check, sooner or later, a temperature conversion will start in the middle of an EEprom save event. These ‘collisions’ may be more frequent with the -M variants of the chip which do temperature conversions every 10 seconds when powered by Vbat, although they only take 10msec for the conversion instead of 150msec for the -SN. Seeing those conversions on an oscilloscope is one way to verify which kind of RTC you’ve got with so many -SN modules out there today being relabelled -M chips:
DS3231-M Temp. conversion: At 3v, this unit drew 230µA for 10milliseconds, but this occurs every 10 seconds. (1mV on scope = 1µA via Current Ranger)
DS3231-SN Temperature Conversion: At 3v, This chip drew 280µA for 130 milliseconds, every 64 seconds. (1mV=1µA via C.R.)
Given that the average timekeeping current is the same for both chips, we try to use ±2ppm SN’s for longer deployments instead of the ±5ppm M’s. In real world terms ±1ppm is equivalent to about 2.6 seconds of drift per month, and that’s what we see on most -SN RTCs. I’ve also seen occasional comments in the forums of some DS3231M oscillators stopping spontaneously during field deployment. Note that on several of the RTC modules the SQW alarms continue to be asserted even after you disable them in the control register (by setting the alarm interrupt enable A1IE and A2IE bits to zero) and this draws 6-700uA continuously through the pullup on the module.The only way to be absolutely sure the RTC alarm will not fire after a logger shut-down is to turn off the RTC’s main oscillator. We do this in the codes shutdown function, because you can just reset the time via the start menu before the next run. When you remove the coincell, DS3231 register contents are lost – usually becoming zeros when power is restored although the datasheet says they are ‘undefined’ at powerup. The RTC oscillator is initially off until the first I2C access.
If your code hangs during execution, the processor will draw 3.5mA continuously until the battery drains and the logger goes into a BOD restart loop with the D13 red led flashing quickly. The logger will stay in that BOD loop from 4-12 hours until the battery falls below 2.7v without recovering. This has happened many times in development with no damage to the logger or to any data in the EEprom.
Most of the units I’ve tested trigger their BOD just below 2.77 volts. And 10 to 20 millivolts before the BOD triggers the internal voltage ref goes a bit wonky, reporting higher voltages than actual if you are using the 1.1vref trick to read the rail. The spring contact in the RTC module can be weak. That can trigger random shutdowns from large voltage drops so I usually slide a piece of heat-shrink behind it to strengthen contact with the flat surface of the coin cell. The rail capacitor protects the unit from most impacts which might briefly disconnect the spring contact under the coin cell. However hard knocks are a such common problem during fieldwork that we use a drop of hot glue to lock the RTC coin-cell in place before deployment. Normal operation will see 40-50mv drops during EEprom saves up to with 200µF rail buffers. If those events look unusually large or rail voltage recovery starts stretching to 100’s of milliseconds on the scope you probably have poor battery contact. Even with good contact, long duration loads can deplete the rail buffering cap so a 200µF reaches the same v-drop as a ‘naked’ battery after ~8-10msec, and 1000µF after ~15-20msec. In all cases, your first suspect when you see weird behavior is that the coin cell needs to be replaced.
Another thing to watch out for is that with sleep currents in the 1-2µA range, it takes a minute to run down even the little 4.7µF cap on the ProMini boards. If you have a larger capacitor buffering the rail the logger can run for more than 10 minutes after the battery is removed.
More Cr2023 Battery Testing
16x accelerated battery tests averaged about 1250 hours run time before hitting the BOD.
Ran a series of Cr2032 battery tests with these little loggers and was pleasantly surprised to find that even with the default BOD limiting us to the upper plateau of those lithium cells; we can still expect about two years of run time from most name brand batteries with a 200-400uF rail cap. Also keep in mind that all the units in the battery test had BOD’s below 2.8v – about 1 in 50 of the ProMini’s will have a high BOD at the maximum 2.9v value in the datasheet. It’s worth doing a burn test with the crappy HuaDao batteries to spot these high cutoff units more quickly so you can exclude them from deployment. We increased the sleep current for the accelerated test by leaving the LEDs on during sleep, but with a series of different resistors on the digital pins, this logger might be the cheapest way to simulate complex duty cycles for other devices.
Addendum: Build video (w EEprom Upgrade)
We finally released a full build tutorial on YouTube – including how to upgrade the default 4k EEprom with two stacked 64k chips:
Released the classroom version of this 2-module logger, with substantial code simplifications that make it easier to add new sensors and 2Module code build has been updated to match. This new variant has two breadboards supported on 3D printed rails so that sensor connections can quickly be changed from one lab activity to the next. The default code reads temperature via the RTC, and NTC thermistor, Light via an LDR and the Bh1750, and Pressure via a Bmp280. It also has support for a PIR sensor, and a mini-OLED display screen.
6pin Cp2102 UARTS are cheap, with good driver support, but you have to make your own crossover cable.
Macintosh users have been running into a very specific problem with this logger: their USB-c to USB-a adapter cables are smart devices with chips inside that will auto shut-down if you unplug them from the computer while they are connected to a battery powered logger. The VCC & GND header pins on the logger feed enough power/voltage back through the wires to make the chip in the dongle go into some kind of error state – after which it does not re-establish connection to the Mac properly until the adapter is completely de-powered. So you must unplug your loggers at the UART module to logger connection FIRSTinstead of simply pulling the whole string of still-attached devices out of the USBc port.
Last Word:
“If you need one, then you need two. And if you need two, you better have three.” The benefit of loggers this easy to produce is that you can dedicate one to each sensor, since the sensors often cost more than the rest of the unit combined. Then you can deploy duplicates to capture long time-series. This gives you redundancy in case of failure and makes it easier to spot when sensors start to drift. Deploying at least two loggers to every site also lets you use a trick from the old days when even the expensive commercial loggers didn’t have enough memory to capture an annual cycle: Set each logger to sample at twice the interval you actually want, and then stagger the readings (or set one of the logger clocks late by 1/2 of that interval). This way both loggers operate long enough to capture the entire dataset, and you can weave the readings from the two machines back together to get the higher sampling interval you originally wanted but did not have enough memory for. If one of the loggers fails you still get the complete season, but at the longer interval.
RH% gain (Y axis) over time (X axis) in submerged 30mL housings: The upper purple lines were controls with no desiccant added to the logger, the orange curve had 0.5 gram packet and the lowest blue curve had two 0.5 gram packets of small desiccant beads. So 1 to 1.5 grams are adequate for a typical one-year deployments with about 1 to 1.5% rise in RH% per month due to the vapour permeability of the centrifuge tubes. This test was done at typical room temps, but the rate increase bump near the end of the test was due to an 8°C rise – so the diffusion rate is temp dependant. BME280 sensors were used.
Dedicated loggers also provide the non-obvious benefit of reducing the potential for interference between sensors. Cross-talk is particularly common with water quality sensors because the water itself can form a circuit between them. It is nearly impossible to predict this kind of problem if all you did was benchtop calibration of the isolated sensors before your deployment. And even if your base code is robust, and you don’t have any weird ground-loops, it’s not unusual for sensor libraries to conflict with each other in a multi-sensor build.
Hopefully this new member of the Cave Pearl logger family goes some way toward explaining why we haven’t moved to a custom PCB: Using off-the-shelf modules that have global availability is critical to helping other researchers build on our work. And when you can build a logger in about 30 minutes, from the cheapest parts on eBay that still runs for a year on a coin cell – why bother? Bespoke PCBs are just another barrier to local fabrication, with potential for lengthy delays at customs to increase what may already be unpredictable shipping and import costs.
We’ve been having fun embedding these ‘ProMini-llennium Falcons’ into rain gauges and other equipment that predate the digital era. There’s a ton of old field kit like that collecting dust in the corner these days that’s still functional, but lacks any logging capability. Much of that older equipment was retired simply because the manufacturer stopped updating the software/drivers. While IOT visualization apps are all the rage in hobbyist electronics, they may end up creating similar dependencies that open source projects aiming for longevity should avoid. Not to mention the fact that those wireless packet transfers require a power budget orders of magnitude larger than the rest of the logger, while relying on back-end infrastructure that doesn’t exist in the parts of the world where more environmental monitoring is desperately needed.
Two I2C 0.96″ OLED screens used simultaneously. Left is split Yellow: 128×16 pixels & Blue: 128×48 pixels while the right screen is mono-white. TheCODE ON GITHUBdrives each screen in different memory modes to simplify the functions and uses internal eeprom memory to store fonts/bitmaps.
Oceanographic instruments rarely have displays, because they don’t contribute much to profilers being lowered off the side of a boat on long cables. And most of our instruments spend months-to-years in underground darkness, far from any observer. But a few years ago we built a hand-held flow sensor that needed to provide operator feedback while the diver hunted for the peak discharge point of an underwater spring. That prototype was our first compelling use-case for a display screen, and we used cheap Nokia 5110 LCDs because they were large enough to see in murky water. While driver libraries were plentiful, I realized that Julian Ilett’s shift-out method could pull font maps from the Arduino’s internal eeprom rather than progmem. This let us add those SPI screens to a codebase that was already near the memory limits of a 328p.
Modifications done to the second display:The only thing you must do for dual screens is change the bus address. Here I’ve also removed the redundant I2C pullups (R6&R7, 4k7) and bridged out the 662k regulator which isn’t needed on a 3.3v system. These changes usually bring sleep-mode current on 0.96″ OLEDs to about 2μA per screen. (or ~5μA ea. with the 662k regulator left in place)
Now it’s time to work on the next gen, and the 0.96″ OLEDs that we initially ignored have dropped to ~$2.50 each. Popular graphic libraries for these displays (Adafruit, U8G2, etc) provide more options than a swiss army knife but require similarly prodigious system resources. Hackaday highlighted the work of David Johnson-Davies who’s been using these screens with ATtiny processors where such extravagant memory allocations aren’t possible. HisTiny Function Plotterleverages the ssd1306‘s vertical access mode to plot a graph with a remarkably simple function. These OLED screens support two bus addresses, and that set me to work combining that elegant grapher with my eeprom/fonts method for a two screen combo. Updating Iletts shiftout cascade to I2C would loose some of the memory benefit, but I was already embedding wire.h in the codebuild for other sensors. It’s worth noting that David also posted a full featured plotter for the 1106, but these tiny displays are already at the limits of legibility and I didn’t want to lose any of those precious pixels. Moving the axis labels to the other screen forced me to add some leading lines so the eye could ‘jump the gap’:
My eyes had trouble with single-pixel plots so I made the line 2-pixels thick.
Histogram seems the best underwater visibility mode. Dashed lead-lines toggle off
A little repetition produces a bar graph variant.
The battery indicator at upper left uses the same function as the buffer memory progress bar in the center. Axis label dashes along the right hand side correspond to the lead lines on the next screen. My goal with this layout was ‘at-a-glance” readability. Horizontal addressing makes it easy to update these elements without refreshing the rest of the screen; so there is no frame buffer.
To drive these screens without a library it helps to understand the controllers different memory addressing modes. There are plenty of good tutorialsout there, but the gist is that you first specify a target area on screen by sending (8-pixel high) row and (single pixel wide) column ranges. These define upper left & lower right corners of a modifiable region and the ssd1306 plugs any subsequent data that gets sent into the pixels between those corner points using a horizontal or vertical flow pattern. If you send more data than the square can hold, it jumps back to the upper left starting point and continues to fill over top the previous data. In ALL memory modes: each received byte represents a vertical 8-pixel stripe of pixels , which is perfect for displaying small fonts defined in 6×8-bit blocks. For the taller characters I use a two-pass process that prints the top of the large numbers first, changes eeprom memory offset, and then does a second pass in the next row to create the bottoms of the characters. This is different from typical scaling approaches, but gives the option of creating a three-row (24 pixel high) font with basically the same method, and since the fonts are stored in eeprom there’s no real penalty for those extra bits.
In addition to text & graphs, I need a battery status indicator and some way to tell the operator when they have waited long enough to fill sampling buffers. In the first gen units I used LED pips, but similar to the way vertical addressing made the Tiny Function Plotter so clean, horizontal mode makes it very easy to generate single-row progress bars:
// Set boundary area for the progress bar Wire.beginTransmission(ssd1306_address); Wire.write(ssd1306_commandStream); Wire.write(ssd1306_SET_ADDRESSING); Wire.write(ssd1306_ADDRESSING_HORIZONTAL); Wire.write(ssd1306_SET_PAGE_RANGE); Wire.write(row); Wire.write(row); // page start / end are the same in this case Wire.write(ssd1306_SET_COLUMN_RANGE); Wire.write(barColumnMin); Wire.write(barColumnMax); // column start / end Wire.endTransmission();
//determine column for the progress bar transition int changePoint = ((percentComplete*(barColumnMax-barColumnMin))/100) +barColumnMin;
//loop through the column range, sending a ‘full’ or ’empty’ byte pattern for (int col = barColumnMin ; col < barColumnMax+1; col++) { Wire.beginTransmission(ssd1306_address); Wire.write(ssd1306_oneData); // send 1 data byte at a time to avoid wire.h limits
// full indicator = all but top pixel on, also using the ‘filled’ byte as end caps if (col<changePoint || col<=barColumnMin || col>=barColumnMax) { Wire.write(0b11111110); } else{ Wire.write(0b10000010); }// empty indicator = edge pixels only
Wire.endTransmission(); } }
I mount screensunder epoxy & acrylicfor field units but hot glue holds alignment just fine at the prototyping stage, and it can be undone later.
And just for the fun of it, I added a splash screen bitmap that’s only displayed at startup. Since the processors internal eeprom is already being used to store the font definitions, this 1024 byte graphic gets shuttled from progmem into the 4k EEprom on the RTC modules we use on our loggers. It’s important to note that I’ve wrapped the font & bitmap arrays, and the eeprom transfer steps, within a define at the start of the program:
#define runONCE_addData2EEproms —progmem functions that only need to execute once — #endif
Since data stored in eeprom is persistent, you can eliminate those functions (and the memory they require) from the compile by commenting-out that define after it’s been run. One thing to note is that the older AT24c32 eeprom on our RTC module is only rated to 100kHz, while bus coms to the OLED work well at 400kHz.
You can update the memory in these screens even if the display is sleeping.So a typical logger could send single line updates to the graph display over the course of a day. There’s a scrolling feature buried in the 1306 that would make this perpetual without any buffer variables on the main system. Color might make it possible to do this with three separate sensor streams, and the 1106 lets you read back from the screens memory, providing an interesting possibility for ancillary storage. However with Arduino migrating to newer mcu’s I think creative code tricks like that are more likely to emerge from ATtiny users in future. As a logger jockey, the first questions that comes to mind are: can I use these screens as the light source in some interesting sensor arrangement that leverages the way I could vary the output? What’s the spectra of the output? Could they be calibrated? What’s the maximum switch rate?
Screens are quite readable through the clear 3440 Plano Stowaway boxes used for ourclassroom logger. (here I’ve hot glued them into place on the lid) Avoid taking new sensor readings while information is being displayed on the OLED screens because they ‘pulse’ power to the pixels (100ms default) when information is being displayed.Each screen shown here peaks at about 20 mA (this varies with the number of pixels lit) so you could be hitting the rail with a high frequency load of about 40mA with dual screens – which could cause noise in your readings unless you buffer with some beefy caps. Also note that the screens tiny solder connections are somewhat fragile, so avoid putting hot glue on the ribbon cable.
As a final comment, the code on github is just an exploration of concepts so it’s written with readability in mind rather than efficiency. It’s just a repository of functions that will be patched into other projects when needed, and as such it will change/grow over time as I exploreotherdualscreenideas. Kris Kasprzak has a slick looking oscilloscope example(+more here) , and Larry Banks BitBang library lets you drive as many I2C screens as you have the pins for – or you could try a multiplexer on the I2C bus. The TCA9548 I2C multiplexer lets you drive up to 8 OLED displays or connect several of those cheap Bme280 sensors to your build.
These OLEDs will only get larger and cheaper over time. (& it will be a while before we see that with e-paper) An important question for our project is: which screens hold up best when subjected to pressure at depth? This was a real problem with the Nokia LCDs.
Addendum 2021-04-05:
I finally took a closer look at the noise from those cheap SSD1306 OLED screens, and was surprised to find the usual [104] & [106] decoupling combo simply weren’t up to the task. So I had to go to a 1000uF Tantalum [108] to really make a dent in it. Contrast settings reduced the current spikes somewhat, but did not change the overall picture very much.
The following are before & after graph of a start sequence from one loggers that end with 8 seconds of the logger sleeping while the latest readings get displayed on screen:
Logger current with a SSD1306 0.96″ OLED display: before & after the addition of a 1000uF Tantalum [108]
This unit was running without a regulator on 2x Lithium AA’s , and I had noticed intermittently flakey coms when the screen pixels were on. A forum search reveal people complaining about ‘audible’ noise problems in music applications, and others finding that their screens charge pump was driving the pixels near the default I2C bus frequency of 100kHz. I’ve dozens of these things lying around, and will add more to this post if testing reveals anything else interesting. The cap. pulls about 1A at startup so I’m not even sure I could put one that large on a regulated ProMini without pushing the MIC5205 into over-current shutdown.
Addendum 2023-12-01: Mini OLED display only draws about half a milliamp!
Our 2-Module classroom data logger uses a 50mL falcon tube housing and is powered from a Cr2032. So we had to go hunting for much smaller displays. Mini 0.49″ OLEDs are an excellent low power option that sleeps below 10 µA and will run about two weeks on a coin cell at 15 minute intervals, depending on contrast, pixel coverage, and display time. A 220µF tantalum right next to them on the breadboard protects the rail from the OLEDs charge pump noise.
These micro OLEDs are driven by a 1306 so you can use standard libraries like SSD1306Ascii. HOWEVER they only display a weirdly located sub-sample of that controllers 1k memory – so you have to offset the origin on your print statements accordingly.
2020 update to the Cave Pearl Classroom logger. This is a combination of inexpensive pre-made modules from the open-source Arduino ecosystem, and can usually be assembled by beginners in 1-2 hours.
(Latest Update: Mar 9, 2022)
Covid has thrown a spanner into the works for hands-on learning because even if you have the space to run a ‘socially distanced’ course, your students could still be sent home at any time. With that in mind, we’ve divided the build tutorial from 2019 into separate stages that make it easier to restructure the labs:
1) Component prep: requires the equipment you normally have access to in the lab like soldering irons, heat guns, drills, etc.
2) Logger assembly: can be done remotely with scissors, wire strippers & a screwdriver. All connections are made by Dupont connectors or by clamping wires under screw terminals.
The complete tutorial can be run in person or if students are ‘distance learning’, the instructor can do the soldering (~15-20 minutes per set) and send out kits for the overall assembly. Even that will be challenging through a zoom window, so you might want to add USB isolators to protect tethered student laptops from accidental shorts. One big challenge of running a course remotely is the extra time to test all the parts before sending them out. A ‘breadboard logger’ like the one shown later in this post lets you do that testing quickly. Another challenge is that other USB devices can push the bus too fast for the slow serial UARTS, causing them to drop off the system due to timing conflicts. (this is more common on Apple computers).
During ‘normal’ runs if a student gets a bad component, or accidentally zaps something in one of the labs, then it simply triggers a brief process-of-elimination lesson while they swap in replacements from the storage cabinet until things are working. But remote students won’t have that option unless you send two of every part – which might be viable approach considering how cheap these components are:
This is a variation of the logger describedin our 2018 paperbut we’ve removed the regulator/ voltage divider and added screw terminals + breadboards for faster sensor connections during labs. Bridging the I2C bus over the A2 & A3 pins leaves only two analog inputs on the screw-terminals. However for ~$1 you canadd a 15-bit ADS1115 which provides differential analog readings using a fixed internal reference. So it’s unaffected by changes in battery voltage.
The main components:
(NOTE: complete parts list withsupplier links can be foundat the end of this post) You don’t need the cable glands if you are using sensors that will work inside the housing (light, temp, acceleration, magnetometers, GPS, etc.) Don’t put holes in your housing unless you are sure you need them.
Two FT232 adapters (in red) & a CP2102 UART module (blk) with a pin order that matches the ProMini headers:[DTR-RX-TX-3v3-CTS-GND]
You will need a UART adapter module to program your logger –This must support 3.3v output & is easier to use if the pin order matches the ProMini connections. UART modules available with the FT232, CP2102, & CH340 chips will all work if the chip maker supplies drivers for your operating system. The Arduino IDE will NOT be able to communicate with your logger unless the driver for your UART module is installed on your Windows or MAC operating system. We use FTDI basic UART modules & you can download the driverat the FTDI website. There’s a basic installation guide at Adafruit , a more detailed one at Sparkfun, and PDF guides from FTDI.UART chips can only supply ~50mA so if your sensors need more current you might run out of power causing a restart of the ProMini.(A somewhat common problem when testing high-drain GPS modules or wireless transmitters)
(NOTE: I have connected ProMini’s to UART modules the wrong way round many, many, times, and none have been harmed by the temporary reversal. Also note that FAKE FTDI chips are a common problem with cheap eBay vendors, so it might be safer to buy a SiLabs CP2102, or CH340 UART from those sources. If you are using the ‘cheap ones’ it’s a good idea to include UART modules from two different manufacturers in the student kits to deal with the inevitable driver compatibility issues.)
Component Prep. Part 1: Pro Mini ( 3.3v 8Mhz ) (click any image to enlarge)
Install the UART driver & IDE. Solder the UART pins & test ProMini board with the blink sketch: Set the IDE to (1)TOOLS> Board: Arduino Pro or Pro Mini (2)TOOLS> ATmega328(3.3v, 8mhz) in addition to the (3)TOOLS>COM portto matchthe # that appears when you plug in the serial adapter.
With a known good Promini: Remove the power LED [in red square]. SPI bus clock pulses will flash the pin 13 LED – so leaving the pin13 LED connected will show you when data is being saved to the SD card.
Carefully remove the voltage regulator from the two leg side with snips. System voltage will vary over time, but the logging code we’ve provided on gitHub records the rail without a voltage divider by comparing it to the 328p’s internal bandgap. Lithium AA’s also provide a very flat discharge curve.
Add header pins to the sides but DO NOT SOLDER THE RESET pin HEADERS – we will be using those screw terminals as power rails.
Bridge the two I2C bus connections with the wire leg of a resistor. Connect A4->A2 & A5->A3.
Adding: DIDR0 = 0x0F; in Setup disables digital I/O on pins A0-A3 so they can’t interfere with I2C bus.
Lithium AA batteries are preferred when running a 2-cell unregulated system because the slope of an alkaline discharge curve will reach the ProMini’s 2.7v brown-out with >50% of the battery capacity unused. (note that SD cards are safe down to ~1.8v) While the voltage of a newLithium AA is usually 1.8v/cell, that upper plateau usually settles at ~1.79 v/cell within an hour or two of starting the logger. That briefly dips to 1.6v/cell during >100mA SD card save events at room temp. At temps near 5°C (in my refrigerator) the SD write battery-droop reached about 1.5 v/cell while on the upper plateau. Lithium cells only deliver ~50% of their rated capacity at temps below freezing, but that’s still an improvement. And alkalinebatteries leak quite often – even when they are not fully discharged. To date, leaking batteries have been the most common reason for data loss on our project.
The MIC5205 regulator is not efficient at low currents, so removing it reduces your sleep current by ~50%. However that modification also forces you to deal with a rail voltage that changes over time. Thermal rise from 15 to 45°C will raise your rail voltage by about 100 millivolts on lithium cells that have been in service for a few months. (~ 5mv /°C) If your sensor circuit is a voltage divider that is being powered by the same voltage the ADC is using as a reference then the ADC readings are unaffected by this. However you will need to compensate for this in your calculations if your analog sensor circuits are not ratio-metric. Battery thermal mass will cause hysteresis unless you read your reference resistors under the same conditions. Regulated ProMini’s usually see the rail vary by ~10-20 millivolts over a similar range of temperatures however it’s worth noting the reg/cap combinations on cheap eBay modules can be subject to other problems such as noise; which can be even more problematic wrt the quality of your data. Most chip-based I2C sensor modules carry their own regulators (usually a 662k LDO) and use internal bandgap reference voltages so they are unaffected by the changing rail.
So making students deal with deal with power supply variation right from the start will save them from making more serious mistakes later because every componentin your logger is a temperature sensor.
Component Prep. Part 2: Screw-Terminal Board & SD adapter
At the UART end of the board: Use a tinned resistor leg to repurpose the RESET terminals: Join RST & GND pins on the digital side and link the pins labeled RST, 5v and Vin for the positive rail. (include Vin only if the reg. has been removed! )
Label the screw terminal blocks that were connected under the shield with red & black markers to indicate the power rail connections. We have no reverse voltage protection – so insert AA’s w the correct polarity or the polarized Tantalum caps will burst.
Gently rock the Pro Mini back to front (holding the two short sides) until the pins are fully inserted. Some ST shields have slightly misaligned headers so this insertion can be tricky.
Remove the last three ‘unused’ female headers to make room for the SD adapter which fits perfectly into that pocket
NOTE: The SDfat library uses SPI mode 0 which sets the SCLK line low when sleeping causing a 0.33mA drain through the 10k SCLK pullup on the module.
Remove the bottom 3 resistors from the SD adapter – leave the top resistor near the C1 label in place!
NOTE: The Screw Terminal board we use in this build was designed for the 5v Arduino NANO, so the shield labels don’t match the Pro Mini pinson the ‘analog’ side.(the digital side does match) To avoid confusion may want to tape over those incorrect labels and hand write new labels to match the pattern above. Wire connections in this tutorial will be specified by ProMini pins: D10-13 are used for the SD card, A4/A2 is the I2C Data line, and A5/A3 is the I2C clock line.
Technically speaking, bridging the I2C bus (A4=data & A5=clock) over top of A2 & A3 subjects those lines to more capacitance and pin leakage. (regardless of whether that channel is selected as input for the ADC p257). However in practice, the 4K7 pull-up resistors on the RTC module handle that OK at the 100 kHz default bus speed.
Adding DIDR0 = 0x0F;
in setup disables digital I/O on pins A0-A3 to prevent interference with A0/1 ADC readings and the I2C bus on A2/3. If you want to disable only the digital IO on only A2 & A3 add
bitSet (DIDR0, ADC2D); bitSet (DIDR0, ADC3D);
to setup{}.
Component Prep. Part 3: RTC Module, Indicator LED & Plano 3440 Housing
Remove two SMD resistors from the RTC board with the tip of your soldering iron. Note that this module includes 4k7 pullup resistors on SQW, SCL & SDA – leave those in place!
Optional! Cutting the Vcc leg lowers sleep current by 0.1mA but no I2C bus coms until coincell is installed.
Add 90 degree header pins to the I2C cascade port. Note: Cutting the VCC leg also requires you to ‘enable alarms from the backup battery’ with a registry setting.
Clean flux residue from both the main & cascade header pins with 90% isopropyl alcohol
Use a coin cell to determine the GND leg of a diffused common cathode RGB LED
Solder a 1-2k ohm limit resistor on the common GND. The precise value is not critical.
Add heat shrink, bend & trim the pins for connection to the screw terminal board. Pre-made 5050 modules also work but are not as good in light sensing mode.
Stepped drill bits make clean holes in plastic housings for different thread diameters. We use glands with waterproof DS18b20 sensors on 1m cables.
Centered holes are ‘slightly’ closer the bottom of the box to allow the gland to rotate without hitting the rim. Inner nuts must also be able to rotate for tightening.
Rubber washers are added to both the inside AND the outside surfaces. PG7 sized washers also fit the M12 cable glands we use.
A 3440 Plano Box configured for two external sensors with nylon M12 cable glands for 3-6mm cables. After threading sensor cables I often seal the outside of the glands with a layer of silicone goop or nail polish.
As with the ProMini, it’s worth testing the RTC modules & SD adapters before logger assembly. I keep a breadboard version of the logger handy so I can test several at a time. If the RTC temp register reads too high I throw them out because the clock time is corrected based on those internal readings. You could also set the clock at this point if the coin-cell is already in place. Note the 5050 LED module on the breadboard shown above could replace the 5mm LED in this tutorial.
Forcing the RTC to run from the backup coin cell reduces sleep current by ~0.1mA, bringing a typical “no-reg & noRTCvcc” build to ~0.15 mA between readings. (with most of that for the sleeping SD card) As a rough estimate, Lithium AA’s provide ~7 million milliamp-seconds of power, and your logger will burn ~12,960 mAs/day at 0.15mA. So ‘in theory’ you could approach a year before you fall off the ‘upper plateau’. The clock will reset to Jan 1st, 2000 if you disconnect the RTC’s coin cell with a hard bump, but a couple of drops of hot glue should prevent this. If a reset does occur the time stamps will be wrong, but the logger will continue running the next day once the clock rolls around to the previous hour/minute alarm that was set. A CR2032 can power the RTC for about four years but if you cut the vcc legyou mustset bit six of the DS3231_CONTROL_REG to 1 to enable alarmsor the logger will not be able to wake up.(NOTE: our logger code does this by at startup with the enableRTCAlarmsonBackupBatteryfunction, which only has to run once – the RTC remembers the setting after that)
The soldered components ready for assembly.
Cutting the Vcc leg on the RTC is optional: if you leave the RTC power leg attached you’ll see typical logger sleep sleep currents in the 0.25 mA range, which should still give at least 4 months of operation before you trigger a low voltage shutdown. I’m being conservative here because runtime also depends on sensors and other additions you make to the base configuration.
See our RTC page for more detailed information on this DS3231 module.
Assembly Part 1: The Screw-Terminal Stack
Part 1: This stack is the ‘core’ of your data logger.
It is very easy to get a couple of wires switched around at this stage so work through these instructions slowly & carefully. Connect the Dupont jumpers to the SD module so that the metal retainer clips are facing upwardsafterthe logger is assembled. That way you can diagnose connection issues with the tip of a meter probe on the exposed metal and, if necessary, pull out & replace a single bad wire without taking everything apart. The extra wires you trim from the SD module are re-used.
Add 2-3 layers of double sided foam tape to the sides & center of the screw terminal shield. The tape needs to extend farther the height of the solder points.
Add single wires from the 20cm M-F Dupont cable to the SD adapter.
The ‘metal tabs’ of the Dupont ends are facing the large metal shield over the SD card.
A layer of double sided foam tape secures the connectors & extends over the solder points.
Red=3v3
Grey=CableSelect [d10]
Orange=MOSI [d11]
Brown=CLocK [d13]
Purple=MISO [d12]
Black =GND
Tape the SD adapter into place on the area that’s been cleared at the back of the screw terminal board.
Bend the jumper wires into place, mark the length & trim the original 20cm wires so that the final insulation length is 9cm or less.
Score the wire insulation about 1.5cm back from the wire end but do not remove the insulation.
Gently ‘pull & twist’ the scored insulation away from the wire to wind the thin strandstogether.
‘Fold-back’ about half of the stripped wire to provide more copper surface for the screw terminals to bite on to.
SD Connection pattern:Grey(CS) to ProMiniD10, Orange (MOSI) -> pm D11, Purple (MISO) ->pm D12, Brown (CLK) -> pm D13(NOTE the shield labels say A0-A3 which do not match the D10-13 pattern of the Pro Mini pins)
Bring the red SD wire over to the re-purposed RST power connection
and the black wire to GND on the digital side. At this point you could test the connections by inserting an SD card & running the CardInfo utility.
Connect the legs of the indicator LED at: D3=red, D4=GND, D5=green, D6=blue
Use the male ends of the wires you trimmed from the SD module to break out pin connections: Grey to A0, Brown to A1, Orange to D7, Purple to D8.
Add a layer of heavy duty (30Lb) double sided mounting tape to the back of the 2xAA battery holder. The battery holder wires need to be approx. 6inches/15cm long.
Attach the battery holder wires to RED>Vin & black>GND. The breakout wires from A0/1 & D7/8 should be about 12cm long to comfortably reach the breadboard area.
Checking continuity to the top of the ProMini confirms the header pins & solder connections under the terminal board are good.
Take a moment to check the continuity of the SD module wires. With one probe on the Dupont metal & the other on top of the corresponding ProMini pin – you should read ~1 ohm or less for each connection path. Occasionally you get a bad crimp-end on those multi-wire Dupont ribbons, and it’s easier to replace a bad wire at this stage than it is after the parts are in the housing.
Note: We’ve used the hardware interrupt port at D3 for the red LED channel, but if you have sensors that need that simply shift the LED over by one. Any digital I/O pins can be used for the LED, but 3,5 & 6 have PWM outputs which lets you do multi-color fades with analogWrite()
Assembly Part 2: Add RTC Module Jumper Wires
Attach Dupont jumper wires to the RTC module using White=I2C Data, Yellow = I2C Clock. Blue is the SQW alarm output line. Nothing is attached to the 32k output pin (cutting the Vcc leg disables 32k output)
Use 20cm M-F jumpers on the 6-pin side of the RTC module and shorter 10cm M-F wires on the smaller 4-pin cascade port.
Add a layer of double sided tape to secure the jumper shrouds, and provide housing attachment points for the module.
Add as small piece of 1/16″ heat shrink tubing to reinforce the contact spring. This reduces the chance that the connection will be bumped loose if the logger is dropped.
Write the installation date on the coin cell with a marker. A new coin cell should power the RTC for about 4 years. To avoid accidentally disconnecting the coin cell battery after the logger is assembled ->
Always check the backup voltage by placing the positive probe tipbetween the spring plates rather than on the surface of the cell.
Assembly Part 3: Connect modules inside the housing:
Part 3: This is what you are aiming for. (click any images in the table below to enlarge them)
The final assembly stage can be a bit tricky – sometimes the metal contact flaps under the green screw terminals are ‘sticky’ so take some time to loosen the screws and poke with the sharp end of your tweezers to make sure you can insert the bus wires from the RTC. It’s helpful to mark the wire lengths with a pen before cutting or stripping the RTC connections. When in doubt leave them a bit long. With screw terminals you always have the option of shortening those wire later on.
Attach the screw terminal stack onto the upper left corner of the housing, and the 2xAA battery holder in the lower right corner. These parts sb as far from each other as possible.
Add the first mini breadboard against the back so that it’s rear right edge aligns with the second rear support strut on the housing. Connect the long stack jumpers to that bboard to keep them out of the way.
Tape the RTC module into the lower left side of the housing, The blue board should be up against the front edge of the housing so that you can easily access the nearby screw terminals.
Measure, mark and trim: Red=3.3v, Yellow=>A3/A5 I2C clock, & White=>A2/A4 I2C data with enough wire to twist & fold the stripped ends under the terminals (~10cm of insulation length)
RTC module power & I2C bus connections: All ports on the analog side of the Pro Mini / Shield combination are occupied with a wire connection.
Connect the black wire to the re-purposed RST=GND, and the blue alarm wire to D2, leaving some extra wire length in a loop for strain relief. (5-6cm of insulation length)
Use the other side of the trimmed blue jumper wire to extend the D9 connection over to the breadboard. You want enough wire length that the pins reach back-most row on the breadboard.
Attach a cable mount to the back of the housing, as close to the bottom of the box as possible so that it does not interfere with closing the housing lid. You can trim those plastic mounts with scissors to make them thinner.
‘Loosely’ tie the long wires to the rear mount. Add another cable mount near the center and attach the 2nd b-board leaving equal side of the 2nd board.
Every year at least one student gets confused about the orientation of the connections inside the breadboard and connects all the jumper wires together in the same row – including the red and black power wires. The resulting short circuit usually kills either the Pro Mini, the UART module, and/or possibly even the USB port on the computer it’s connected to:
Each 5-hole row on the top of the breadboard is connected by a metal rail of spring contacts.
Also note that the internal connectors do not cross the ‘gutter’ depression in the middle, so each side of the breadboard board has its own separate set of connections.
Your Logger is now ready for testing!
A typical I2C sensor configuration with: BMP280 pressure, BH1750 lux & 0.96″ I2C OLED display – connected by short jumper wires made with a crimping tool. The combination shown above averages ~10mA with screen & cpu running, and a sleep current of 0.147 mA with a 1Gb Sandisk SD card. Without the SD, the sleep current on this unit was 37µA; with the sensor modules needing 2-3µA each & the sleeping 0.96″ OLED drawing ~7µA. A 25µA sleep current from the ProMini clone hints that the MCU might be fake but with a AA power supply it doesn’t really matter. Anything up to 250uA sleep current for a student build with an SD card connected should be considered good. Watch out for SD cards that don’t go to sleep properly as they can draw up to 30-50mA all the time.
(Note:Most of the time the tests listed below go well, however if you run into trouble at any point read through the steps suggested for Diagnosing Connection Problems at the end of this page.)
1. If you have not already done so, Install the UART driver. The IDE will NOT be able to communicate with your logger unless the driver for your UART module is installed on your operating system.
2. Installthe Arduino IDE into whatever default directory it wants – we’ve had several issues where students tried to install the IDE into some other custom sub-directory, and then code wouldn’t verify without errors because the IDE could not find the libraries. The programming environment is written in Java, and the IDE installer comes with its own bundled Java runtime so there should be no need for an extra Java installation. However we have seen machines in the past which would not compile known-good code until Java was updated on those machines; but this problem is rare.
If you have not already done so, there are three things you need to set under the IDE>TOOLS menu to enable communication with the logger:
Note: that the “COM’ setting will be different for each computer, so you will have to look for the one that appears on your system AFTER youplug in the UART module.
Using 22AWG solid core jumpers to bridge a set of ‘power rails’ along each side keeps the wiring tidy. If you are using several I2C sensors you could also do this with those bus lines. After testing your prototypes, you can make them permanent by transferring your circuit to solder-able mini breadboards.
The one that’s easy to forget is choosing the 328P 3.3v 8Mhz clock speed. If you leave the 328p 5v 16mhz (default), the programs will upload OK, but any text displayed on the serial monitor will be random garbled characters because of the clock speed mismatch. Also be sure to disconnect battery power(by removing one of the AA batteries)whenever you connect your logger to a computer. There is no power switch on the loggers, which are turned on or off via the battery insertion. Use a screwdriver when removing the batteries so that you don’t accidentally cause a series of disconnect-reconnect voltage spikes which might hurt the SD card.
3. Test the LED – the default blink sketch uses the pin13 LED, but because that pin is shared with the SD card’s clock line it’s recommended that you test the RGB indicator instead by adding commands in setup which set the digital pin 4 act as the ground line for the LED: pinMode(4, OUTPUT); digitalWrite(4, LOW); Then change LED_BUILTIN in the blink code example to the number of a pin connected to your led module. (ie: for Red set it to 3, for Green use 5, or Blue use 6)
4. Scan the I2C bus with the scanner from the Arduino playgound. The RTC module has a 4K eeprom at address 0x56 (or 57) and the DS3231 RTC chip should show up at address 0x68.
The address of the eeprom can be changed via solder pads on the board, so it may have a different address. If you don’t see at least these two devices listed in the serial monitor when you run the scan, there is something wrong with your RTC module or the way it’s connected: It’s very common for a beginner to get some of the wire connections switched around during assembly but with the screw terminals this takes only a few moments to fix.
5. Set the RTC time, and check that the time was set – The easiest method would be to use the SetTime / Gettime scripts from our Github repository, but you first you need to download & install this RTC control library The SetTime script automatically updates the RTC to the moment the code was compiled (just before uploading) so only run SetTime once, and then upload the GetTime sketch to remove SetTime from memory. Otherwise SetTime will keep setting the RTC to the old ‘code compile time’ every time it runs – and one of the quirks of the Arduino environment is that it restarts the processor EVERY TIME you open a serial window. The SetTime script also has a function which enables the alarm(s) while running the RTC from the backup coin cell battery.
Note: the RTClib by Mr. Alvin that we use has the same name as the Adafruit library for this RTC and this can give you compiler errors if you let the IDE ‘auto-update’ all of your libraries because it will over-write the Alvin RTClib with Adafruit’s library of the same name. You then have to uninstall the Adafruit library ‘manually’ before re-installing Alvin’s RTClib again. This problem of ‘two different libraries with the same name’ was common back when this project started many years ago, but back then the IDE didn’t try to update them automatically.
Typical Cardinfo output on a windows computer when the connections are correct. If you format your SD card on an Apple computer there will also be a long list of ‘invisible’ .trash and .Spotlight files/folders at the root of the SDcard that show up with a CardInfo scan.
6. Check the SD card with Cardinfo Note that the SDfat library we use to communicate with SD cards works well with smaller cards formatted as fat16, but ‘some’ Apple users find they can not write to cards in that format, requiring the SD cards to be reformatted as fat32 (note that most Apple systems have no problem with the fat16 SDcards). With either OS you should format the micoSD cards with this SDFormatter utility. With a 15 minute sampling interval, most loggers generate ~ 5Mb of CSV format text files per year. Older, smaller SD cards in the 256-512Mb range often use less power. Note that we apply internal pullup resistors on some of the SD card lines in setup to help the SD cards go into low power sleep modes more reliably.
This logger uses an advanced code trick to read the positive rail voltage to ~11mv resolution by comparing it to an internal 1.1v bandgap reference inside the processor. That internal ref. can vary by ±10% from one chip to another, and CalVref gives you a numerical constant which usually brings the starter script’s rail=battery readings within ±20mv of actual. An accurate rail reading is more important when you are using ANALOG sensors where the positive raildirectly affects the ADC output, but you can skip this procedure if you are only using digital sensors because they use their own internal reference voltages.
Typical CalVref output (click to enlarge)
Load CalVrefwhile the logger is running from USB power and then measure the voltage between GND and the positive rail with a voltmeter. (this voltage will vary depending on your computer’s USB output, and the UART adapter you are using) Then type that voltage into the entry line at the top of the serial monitor window & press the enter key. Write down the reference voltage & constant which is then output to the serial monitor window. I write these ‘chip-specific’ numbers inside the logger with a black marker as they are related only to the 328p processor on the ProMini board used to make that particular logger. You then need to change the line #define InternalReferenceConstant 1126400L in our starter code to match the long number returned by CalVref. Alternatively you could just tweak the value of the reference constant ‘by hand’, increasing or decreasing the value till the reported rail readings match what you measure with a voltmeter. Add or subtract ~400 to/from the constant to raise/lower calculated output by ~1 millivolt. After you’ve done this once or twice you can usually reach the correct value with a few successive guesses.
8. Find a script to run your on logger. For test runs on a USB tether, the simplest bare-bones logger code is probably Tom Igoe’s 1-pager at the Arduino playground. It’s not really deploy-able because it never sleeps the processor, but it is still a useful ‘1-pager’ for teaching exercises and testing sensor libraries. In 2016 we posted an extended version of Tom’s code for UNO based loggers that included sleeping the logger with RTC wakeup alarms. Our current logging “Starter Script” has grown since then to ~750 lines, but it should still be understandable once you have a few basic Arduino programming concepts under your belt.
Using the logger for experiments:
It’s important to understand that this logger was designed a teaching tool rather than a off the shelf, plug-&-play solution. Learning how to solder and getting some experience physically ‘putting things together’ are key outcomes. Wrangling code into shape driving some new sensor combination is another vital part of that process. So perhaps the best piece of advice I can give to new builders is:
Test, Test,and when you think your logger working: Test it Again
It’s nearly impossible to write code without little bugs and the only way to root them out is with multiple test runs. And even if the script you wrote is ‘perfect’ the processors on the sensor modules are also running code that you don’t have access to. For example, the mcu inside your SD card memory is more powerful, and may have more code on it than the ProMini at the heart of this logger. The only way to catch timing errors that might not get triggered until the 10th or 200th(?) pass is to run your code with a short 1 minute sampling interval until it’s crossed those roll-over thresholds many times. Use “Starting sensor X read” & “Finished sensor X read” print statements liberally during early USB tethered tests so you can observe the timing of events.
If you see water condensing like this on the lid of your logger then it’s time to examine the o-ring and add some extra sealant (nail polish or silicone) around the exterior of the cable glands. This logger quit after one week and it only lasted that long because of the desiccant pack.
Same thing applies to the sensor hardware in terms of durability, only now you have moisture to deal with. Everything that can be sealed in adhesive lined heat shrink, or potted in epoxy should be, once that hardware has passed your ‘dry’ tests. As a general rule no $10 sensor is going to be rated past IP68 which at best gives you 2-3 weeks of operation in the real world before water works it’s way in because of pressure imbalances caused by daily thermal cycling. You’d be surprised how easily moisture can wick along the air space ‘between the copper strands’ inside wires.
A doubling schedule works well for testing: Check the logfile at 1 hour, 2 hours, 4 hours, overnight, 1 day, 2 days, 4 days, 8, 16, 32… etc. Move to the next longer test only when the data from the previous run is confirmed. Keep a close eye on that battery burn down rate: Until you get the hang of putting your sensors into low current ‘sleep’ states – getting your first logger builds to run for a couple of months on new batteries should be considered a spectacular success. At every startup watch and wait for the pattern of LED flashes to confirm that the launch went smoothly – it is very easy to insert a battery or SD card crooked by ‘just enough’ that the unit does not start, and it’s very frustrating to discover you have no data a week later.
You never really know how long a sensor is going to last until you’ve deployed it – no matter what the manufacturer says in the data sheet. Even then we usually deploy three of every ‘new’ combination, and if we are lucky we get one complete data set for the year. Batteries leak, critters love to chew on things, and whenever humans come across something they’ve not seen before they will pick it up – especially if you had to invest a good deal of time securing your logger in exactly the correct position in the stream, on the tree, etc. We never deploy anything for real research until it has passed a several week-long rapid sample ‘burn-in’ test.
One positive aspect of the relatively loose fit of the Plano box lid is that it lets you run sensor tests quickly if you jumper your sensor module with thin 28-30 gauge wires:
A BMP280 pressure sensing module on long wires with crimped male dupont ends in the breadboard.
~1″ square of foam mounting tape with wires spaced evenly
Leave the red backing facing up as you fold the tape & wires over the corner edge.
The front corners of the box exert less pressure than the back corner shown here.
The sharp inner edge of the lid would cut the wire insulation if the tape was not there to protect, and even then you can only use this trick a few times.
The tape over the wires has to be replaced every time.
This gives you a chance to do some test runs before you commit to modifying the housing with holes or cable glands. For some indoor experiments this might be all you actually need, though I would still coat the ‘non-sensing’ parts of that dangling breakout with either conformal coating or clear nail polish. My general advice is: Do not put holes in the housing unless you are sure you need them. The most common failure mode for student loggers used in outdoor environments is from moisture seeping into the through the cable gland. Natural heating and cooling cycles creates pressure differences between the inside and outside of the logger that drive this vapor exchange. Moisture then condenses when temperatures fall at night, collecting on leftover flux residue to corrode contacts. An outer layer of self-fusing rubber mastic tape is often used on cable glands by electricians on out-door installations – even when using the expensive ones with soft rubber ‘cages‘.
After 1-2 minutes of kneading to mix the epoxy you have ~ 1 minute to work the putty into place. (it will become rock-hard within ~10 minutes). Be sure to leave yourself enough extra wire/space inside the housing so that you can open and close the lid easily without disconnecting anything after the putty hardens. This seal is not strong enough for underwater deployments, but it should easily withstand exposure to rain-storm events. HOT GLUE also works to seal pass-through ports with smaller wires & cables. Both pass-through methods can be helped by a layer of silicon caulking, nail polish, or conformal coating applied to the outside edges.
For a classroom project you could simply drill small a hole through the lid and stick the sensor/module on top of the housing, sealing the hole with double-sided tape. Thicker pass-throughs can be also be sealed reasonably well with plumbers epoxy putty which is non-conductive, and adheres quite well to metal, glass & plastic surfaces-> This putty is also a quick way to make custom mounting brackets, or even threaded fittings if you wrap it around a bolt (which you carefully remove before the putty hardens completely)
No matter which pass-through method you are using: Silica gel desiccant packs are important for any outdoor deployments and 5-10 gram packets are a good size for this logger.
Don’t subject these loggers to a lot of bashing around by deploying them in a rough surf-wash zone, or swaying freely in the wind off the end of a tree branch. Solid core wires are pretty good if you cut them to exactly the right length , but longer beadboard jumpers are very easy to bump loose, so once you have your prototype working, it’s usually best to re-connect the sensors directly to the screw terminals before deploying a logger where it could get knocked around. In a pinch you can secure breadboard pins with a small drop of hot glue to keep them from wiggling. Also remember that there are six ‘unused’ screw terminals on the base shieldand these can be use to join wires together without soldering.
2019 Logger mounted on a south-facing window. The top surface was covered with white label-maker tape to act as a diffuser.
[Click HERE] to read about the many types of sensors can be added to this loggerThe transparent enclosure makes it easy to do light-based experiments. Grounding the indicator LED through a digital pin allows it to be used as both a status indicator, and as a light sensor. The code we use is apolarity reversal technique that relies on the tiny capacitance inside the LED. (~5 to 20pF & the processor port adds 10pF) This technique requires the LED to connected directly to ProMini inputs because breadboards can add random amounts of changing capacitance. At these sub pF ranges, any humidity that condenses between the pins will also upset the readings, so desiccants are required. And finally the reverse bias decay is affected by the starting voltage, so if you want to use the technique in a rigorous ‘analytical’ setting you should leave the regulator on your logger.
We have integrated this LED sensor technique into the starter script on GitHub. I’ve tweaked the playground version with port commands so the loop execution takes about 100 clock cycles instead of the default of about 400 clock cycles. The faster version was used to generate the following light exposure graph with a generic 5mm RGB LED, with a 4k7Ω limiter on the common ground.
Red, Green & Blue channel readings from the indicator LED (from a regulated logger) over the course of one day (logger photo above) The yellow line is from an LDR sensor the same unit, that was over-sampled to 16-bit resolution. The LED sensor has a logarithmic response and the left axis on the graph is a time- based measurement where more light hitting the LED sensor results in a lower number. Note how the RED signal changes before/after Blue & Green at sunrise & sunset. LED’s work well with natural full-spectrum light, but their limited frequency bands can give you trouble with the odd spectral distribution of indoor light sources. The peak response of LED’s is usually 30–50nm lower than their peak emission wavelength If we assume the Red was Aluminum gallium arsenide (AlGaAs) then that channel probably had an absorption band @ ~680 nm (~15 nm FWHM?) while the blue Indium gallium nitride (InGaN) channel is responding in the UV-A range, the Green channel (probably also InGaN ?) is most likely peaking around 420nm which is blue to our eyes. But without a spectrometer to test, these are just guesses. No temp. or cosine corrections were determined/applied, although blue/green channels tend to have low temperature coefficients because their bandgap is so far from the thermal spectrum. LED absorption bands have very little drift over time.
You can read more about LED based sensing techniques in the post about our leaf testing experimentswhich used two LEDs for a transmission-based variant of the NDVI ratio.
While the LED sensor idea is fun to work with, it’s a relatively slow method that can keep the logger running for many seconds when light levels are low. Figuring out how to take those light readings only during the day is a good coding exercise for students.
Note: VERY FEW light sensors can withstand exposure to direct sunlight. PTFE is an excellent light diffusing material which available in different sheet thickness. The ‘divot’ on the lid of the Plano box is just a bit larger than 55mm x 130mm x 3mm (depth). The “teflon” tape that plumbers use to seal threaded joints can also be used. PTFE introduces fewer absorbance artifacts than other DIY diffusers like ping-pong balls, thermoplastic, or hot melt glue. Most light sensors like the TSL2561 need 3-5mm of that PTFE sheeting to prevent the sensors from saturating in full sun. LED’s have logarithmic response so you lose quite a bit of detail above 40,000 lux unless you add a diffusion layer to attenuate the signal.
Full sun exposure can also cook your logger. Internal temps above 80°C may cause batteries to leak or damage the SD card. So if you are leaving the logger in full sun, add a bit of reflective film or some aluminum foil around the outside to protect the electronics. Of course if you have a light sensor you’ll need to leave some ‘window area’ for it to take a reading.
The RTC has a built-in temperature register which automatically gets saved with our starter scripthowever that record only resolves 0.25°C, so we’ve also added support for the DS18b20 temperature sensor to the base code. A genuine DS18b20 (yes, fake sensors are a thing) draws very little power between readings and you can add many DS18b’s to the same logger.
Addendum: Diagnosing Connection Problems
If you successfully loaded the blink sketch to test the ProMini during your initial assembly, then issues during the testing stage are often due to incomplete connections to the I/O pins.
If you see only “Scanning I2C….. ” but nothing else appears when running the bus scanner, then it means that the ProMini can not establish communication with the RTC module. One common cause of this problem is that the white & yellow wires have been switched around at one end or the other. It’s also easy to not quite remove enough insulation from the wires to provide a good electrical connection under the screw terminals, so undo those connection and check that the wires were stripped, cleaned & wrapped together before being put under the terminals.
Scanner lockup can also happen if one of the I2C devices on the bus is simply not working: usually about 1 in 6 logger builds ends up with some bad component that you have to identify by process of elimination. (These are 99¢ parts from eBay…right?) It only takes a moment to swap in a new RTC board via the black Dupont connector and re-run the scan. If the replacement RTC also does not show up with the I2C scanner then it’s likely that one of the four bus lines does not provide a complete connection between the ProMini & the RTC module.
On this unit I measured 1 ohm of resistance on the I2C clock line between the ProMini A5 pin (on top of the board) and the SCL header pin on the RTC module. So this electrical connection path is good. It’s not unusual for each ‘dry’ connection to add 0.5-1 ohm of resistance to a signal path.
To diagnose: Unplug any power sources to the logger. Set a multi-meter to measure resistance and put one probe lead on the topmost point of the promini header pins, and the other probe on the corresponding header pin of the RTC module. If there is a continuous electrical connection between the two points then the meter should read one ohm or less. Higher resistances mean that you don’t have a good electrical path between those points even if they look connected:
1)the ground (black) wire should provide a continuous path from the ground pin on the digital side of the Promini board to the GND pin on the RTC module 2) the positive power (red) wire should provide a continuous path from the Promini positive rail pin (the one with the bundle of 4 red wires) to the VCC pin on the RTC 3)A4 (I2C data) near the 328P chip on the Promini must connect all the way through the screw terminal board and through the white Dupont wires to the SDA post on the RTC 4)A5 (I2C clock) nearest the UART end on the Promini must connect through through the yellow Dupont wire to the SCL header on the RTC .
You occasionally get a bad Dupont wire where the silver metal end is not in contact with the copper wire inside because the crimp ‘wings’ did not fold properly. With a pair of tweezers, you can ‘gently’ lift the little plastic tab on the black shrouds holding the female Dupont ends in place, and then replace any single bad wire. Be careful not to break the little black tab or you will have to replace the entire shroud.
Everyone uses short male-to-male Dupont jumper wires when they are creating test circuits because they are so convenient. But pre-made jumper wires are usually too long and so they get knocked around when you close the lid of the logger: so before you deploy take the time to convert your flexible-wire test circuit into one with solid core jumpers:
Flexible wires get used during the initial testing stages (when the lid of the logger is open).
Then the circuit gets re-done with solid core wires
Running wires ‘under’ the modules makes it easier to close the lid without disturbing the connections.
Also look at the little jumpers used to bridge the A4>A2 and A5>A3. If you have a ‘cold’ solder join, or an accidental bridge connection to something else, it could stop the bus from working. Re-melt each connection point one at a time, holding the iron long enough to make sure the solder melts into a nice ‘liquid flow’ shape for each solder point.
The connection diagnosis procedures described above also apply to the connections for the SD adapter board. Sometimes you end up with an adapter that has a defective spring contact inside the SD module, but the only way to figure that out is to swap it with another one.
Here a jumper wire from the ProMini pin is by-passing a bad connection on the screw terminal board. This is also how you would break out A6 & A7 if you need them.
Sometimes those screw terminal boards have a poor connection inside the black female headers below the ProMini. It’s also possible to accidentally over-tighten a terminal and ‘crack’ the solder connection below the board – or there may simply be a cold solder joint on one of the terminal posts. If you have only one bad connection, you can jumper from the ProMini header pins on top, down to the other wires under the corresponding screw terminal. If you accidentally strip the threads on a screw terminal, you can use this same approach but move that set of wires over to one of the three ‘unused’ screw terminals at the far end of the board. (beside the SD card adapter) If you’ve gotten through all of the above steps and still have not fixed the problem, then it might be time to simply rebuild the logger with a different screw terminal adapter board.
If you do accidentally kill the ProMini by shorting a pin, etc, you can carefully lever it up away from the screw terminal shield and replace it without having to rebuild the whole logger.
Build two loggers at a time, because that lets you determine whether problems are code related (which will affect both machines the same way) or hardware related. (which will only affect one of your two units) At any given time I usually have 2-3 units running overnight tests so that I can compare the effect of two different code/hardware changes the next morning. As a general rule you want to run a new build for at least a week before deploying to get beyond any ‘infant mortality’, and reach the good part of the bathtub curve.
An I2C OLED is quite readable through the lid of the housing.I often use Griemans text-onlySSD1306Ascii library because it has a low memory footprint and sleeps well. While few loggers need live output when they are deployed, it’s often helpful to view diagnostic messages on battery power during testing. Adding two OLED displays let’s you view text & graphic output at the same time. Adding a capacitive touch switch lets you check your logger’s status at any time.
Addendum: A note about I2C sensors The I²C bus is slow, so topology (star, daisy-chain, etc.) doesn’t matter much, but capacitance does. Both length & number of sensors increase capacitance. If you find that the devices work when you switch to a slower speed(e.g. 50 kHz), then this is probably your issue, and you need to minimize bus length and/or maybe decrease the combined resistance of the pull-ups to 2 kΩ or less. The DS3231 RTC module has 4k7 ohm pull-up resistors on the SDA & SCL lines & the Pro Mini adds internal 50k pull ups when the wire library is enabled. Typical I2C sensor modules usually add another set of 10k pullups so your ‘net pullup resistance’ on the I2C bus wires is usually: 50k // 4k7 // 10k = ~3k. With a 3.3v rail that means the devices draw 3.3v / 3k = 1 mA during communication which is fairly normal( 3mA is max allowed) for total wire lengths below 1m. It’s common for pre-packaged sensors to arrive with housings at the end of about 1m of wire. If each sensor also adds another set of 10k pullups, the resistance generally compensates for the extra wire length, so the combination still works OK. But that depends on the cable too. A very bad cable might not even get to 0.5 meters and a very good cable (little capacitance to ground, no crosstalk between the wires) can go up to 6 meters.
For most sensor types there will be some options that draw much less power than others, and it’s always worth a look at the data sheet to make sure you are using one that will run longer. The best chip based sensors automatically go into low current modes whenever the bus has been inactive, but more often you need to ‘manually’ put the sensors to sleep via specific commands. So it’s also important to check if your sensor library supports those ‘go to sleep’ & ‘wake up’ commands – many common Arduino libraries do not.
Addendum: The importance of moisture protection
I was noodling around in the garden recently and installed a few loggers without desiccants because it was only a short experiment. It rained immediately afterward and I noticed a small amount of moisture condensed inside the plano-box housing. While this didn’t prevent the logger from functioning, it completely disrupted the LED light sensors because the increased humidity provided an alternate discharge path for the reverse bias charge on the LED’s:
Green channel data from a 5mm diffused RGB LED used as light level sensor. This logger was under some leaf cover, so there was considerable variability from the dappled light crossing over the sensor. An arbitrary cutoff of 200,000 was set in the code at low light levels.
After examining the O-ring I decided to add a little silicone to the channel holding the o-ring to improve the seal:
Gently pry the O-ring loose and apply sealant in the groove before replacing.
Bead only needs to be 3-4mm in diameter.
Close the housing & let the sealant set for a few days. The improved seal is especially visible at the corners
If you already have your logger assembled, try to find a silicone sealant that does not off-gas acetic acid (smells like vinegar) which could harm your circuits. If you are simply preparing empty boxes before assembly, then any regular bathroom sealant will do provided you give it about a week to finish curing.
Attach a mounting base to the lid so that a dessicant pack can be secured above the battery holder without interfering with any breadboard jumpers. Use a desiccant pack with color indicator beads, so you can check whether they are still working simply by looking through the transparent lid.
Addendum: If you want to leave the original regulator in place
It’s worth mentioning that an unregulated build will run for many months – even on 2x regular alkaline batteries which reach the system cutoff (at 2750mv) more quickly. The key deciding factor is whether your sensors require tight voltage regulation. The DS18b20 has a nominal low voltage limit of 3v. So if your project is making heavy use of those then there are only a few of modifications to the tutorial shown above to leave the ProMini’s default MIC5205 regulator in place:
Use straight header pins on the RTC modules cascade port to leave more space for the battery holder.
Only bridge the unused RST terminals to the rail connections – Leave the Vin terminal separate for the raw battery input.
Add a 10/3.3 Meg voltage divider to read the raw battery voltage on A0
You will need more space for the extra batteries. You could go with a 3xAA holder but that leaves about 50% or your alkaline battery capacity unused. Or you could keep the standard layout and use 4xAAA batteries.
An alternative would be to add a better regulator to some kind of intermediate battery connector. The the photo on the right shows two ceramic 105’s stabilizing an MCP1702-3302E/TO, while the 10/3.3M ohm divider provides a third output line so the ADC channel can monitor the raw battery voltage. This is the simplest way to retro-fit a unit that was built without a reg, with the added benefit that the new regulator is far more efficient than the original MIC5205 on the ProMini. It’s worth noting that even on a regulated logger you can monitor the rail voltage to determine when the main batteries are depleted because the regulators output will fall if the batteries reach a point below the minimum dropout voltage. If the rail falls under load by more than ~40mv, then it’s probably time to shut down the logger. With the regulator in place you probably don’t need the USB isolator, as the reg. itself cant pass more current than a USB port.
Addendum: Things to keep in mind when ordering parts
When a finished module arrives at your doorstep for less than you’d pay for any of its sub-components – it’s because you are doing the quality control.
My advice is to order at least 5-6 of each of the core components (Promini, RTC, SD module, screw terminal board, etc) with the expectation that about 10% of any cheap eBay modules will be DOA or have some other problem. I build in batches of six, and one logger typically ends up with a bad part somewhere. Having replacement bits on hand is your #1 way to diagnose and fix these issues. Bad parts tend to come “in bunches”, so if you scale up to ordering in quantities of 10’s & 20’s then spread those orders to a few different suppliers so you don’t end up with all your parts from the same flakey grey market production run. Order from different vendors in different odd-number quantities (11, 21, 9, etc.) because that will be the only way you can distinguish which supplier, sent which parts, because nothing on the package will be written in English.
The other thing I can’t stress enough is CLEAN ALL THE PARTS as soon as they arrive. Leftover flux is very hygroscopic, and solder points will start to corrode the moment your logger gets exposed to atmospheric moisture. I usually give everything about 10 minutes in a cheap sonic bath with 90% isopropyl alcohol, rinse with water, and then dry the parts out in front of a strong fan for an hour. Clean parts that can’t take the sonic vibration (RTC modules, humidity sensors, accelerometers, etc) by hand with a cotton swab. Then store parts in a sealed container with desiccant packs till you need them. I also coat the non-sensing/non-contact surfaces with a layer of MG Chemicals 422B Silicone Conformal Coating and let that dry for a day before assembling the loggers. One hint that you may have moisture issues is that the sensors seem to run fine during indoor tests but start to act strangely when you deploy the unit outside.
Used nut containers make excellent “dry storage” once the parts have been cleaned – but any air-tight container will do.
Another insight I can offer is that the quality of a sensor component is often related to the current it draws – if your ‘cheap module’ is pulling significantly more power than the data sheet indicates, then theres a good chance it’s a junk part. Usually if the sleep current is near spec, then the sensor is probably going to work. It is much easier to check low currents with a µCurrent or a Current Ranger.(I prefer the CR for it’s auto-ranging features) Sensors which automatically go into low current sleep modes take time – so you might need to watch the current for several seconds before they enter their quiescent states. A common reason for a short operating lifespan on a logger is an SD card that refuses to go into sleep mode. If there is an SD card connected to your logger you must initialize it (with sd.begin in setup) or it may ‘stay awake’ causing a constant 30-40mA drain and/or may even cause the logger to freeze up. Also with SD cards, if the freshly formatted throughput drops below its rated write speeds when tested with H2testw, then find another card to use. I avoid cards bigger than 2Gb because they usually draw too much current, and it’s rare to need that much space for a logger.
With cheap part variation & beginner soldering skills, student builds range from 0.15mA to .5mA sleep current. But even at that high end you should still get a couple of months of operation of from the logger on fresh batteries.
Pro Mini Style clone 3.3v 8mHz Get the ones with A6 & A7 broken out at the back edge of the board. Just make sure its the 8 MHz 3.3v version because you can’t direct-connect the SD cards to a 5v board. Watch out for non Atmel 328p chips.
$2.20
‘Pre-assembled’ Nano V1.O Screw Terminal Expansion Board by Deek Robot, Keyes, & Gravitech (CHECK: some of them have the GND terminals interconnected) You will also need to have a few 2.0-2.5mm flat head screw drivers to tighten those terminals down. Since this shield is was originally designed for an Arduino Nano many of the labels on ST board will not agree with the pins on the ‘analog side’ of the ProMini.
SD card 256mb -to-1Gb Test used cardsfrom eBay before putting them in service. Older Nokia 256 & 512mb cards have lower write currents in the 50-75mA range. This is less than half the current draw on most cards 1gb or larger. I tend to avoid older cards labeled as ‘TransFlash’ because they seem to have more controller artifacts during saves. Small 128mb & 256mb cards under the name Cloudisk have appeared on eBay, and so far they seem to be working ok.
30cm Dupont 2.54mm M2F 40wire ribbon cable Dupont connector hook-up wires might be expected to add an ohm or two of resistance and carry at most 100mA reliably with their thin 28-30 gauge wires. Each 40-wire cable will let you make at least 2 loggers.
$1.55
10cm Dupont 2.54mm M2F ribbon cable Sometimes these 10cm cables are harder to find, so you can just use the longer 20cm wires in a pinch. It’s usually also helpful to have a few Male-to-Male 10cm cables for interconnections on the breadboard.
$1.00
2×1.5V AA Battery Batteries Holder w Wire Leads If you are running an unregulated system on 2 lithium batteries, then you can use a 2x AA battery holder. If you need to keep the regulator in place to stabilize the rail voltage for particularly picky sensors, use alkaline batteries and a 4xAA battery holder. Watch out for ‘cheap’ battery holders with weak plastic at the connection ends which will slowly bend away from the batteries until they pop out in warmer climates. If that happens you can add a zip tie belt around the holder to keep the cells in place when the plastic softens.
$0.50
5mm Common cathode RGB LED Although you might want to use 10mm LEDs to increase surface area when using the LED as a light sensor. They also look better.
3.3V FT232 UART Module (get at least 2-3 modules – they are easy kill with a brief short) *jumper the pads on your UART module to 3.3v output before using it!* You will also need a few USB 2.0 A Male to Mini B cables. You may need to install drivers from the FTDI website depending on your OS. These boards can only supply ~50mA which can be tricky if your sensors need more for sustained periods. If you are running the class via distance learning it’s probably a good idea to also get some CP2102 (c231932) UART boards and send your students one of each type. If they are unable to get the drivers working for the FT232, they have a second option. You may have to hunt around for non-FTDI chip boards with the same pin order as the ProMini[ DTR-RX-TX-3v3-CTS/gnd-GND ] The DTR pin is critical for uploading code, while the CTS (clear to send) is an input pin for the FTDI chip only and CTS is not used by the ProMini (so it’s usually just tied to ground). So many UART adapters only have 5 connections and you have to cross the wires over each other to get the connections sorted out. Watch out for 6-pin UART modules that put a (+)ive power connection in the same physical alignment as the GND connection on the ProMini – those boards can create a short circuit unless you re-route the wires. It’s also worth knowing that UARTs can communicate directly to serial sensors like GPS modules for testing. Premade 30cm 6-pin Dupont jumper cables are also available..
SYB-46 270 breadboards (used ONLY for soldering header pins ) Soldering the header pins on the pro-mini is MUCH easier if you use a scrapbreadboard to hold everything in place while you work. I use white plastic breadboards that only have one power rail on the side since I won’t mistake them for my regular breadboards. I also write ‘for soldering only’ on them with a black marker.
Syba SY-ACC65018 Precision Screwdriver Set A good precision screwdriver set makes it so much easier to work with the screw terminal boards. But there are many cheaper options. The screw terminal boards need 2mm (or less) flat slot tips.
$12.00
Donation to Arduino.cc If you don’t use a ‘real’ Pro Mini from Sparkfun to build your logger, you should at least consider sending a buck or two back to the mother-ship to keep the open source hardware movement going…
$1.00
.. and the required lithium AA batteries are also somewhat expensive, so a realistic estimate is about $25-30 for each logger when you add a couple of sensors. Expect parts from low-end suppliers to take 4-6 weeks to arrive and always order at least 50% more than you actually need so you have spares. If you’re pressed for time everything on this list is also available from trusted first-tier suppliers like Sparkfun, Adafruit, Pololu, etc – but you will pay 5-10x as much, with an additional $10-15 shipping charge unless you pass the minimum order level. Amazon is now in a kind of weird grey zone between the two as many vendors that sell on eBay, are also selling on Amazon for 2-3x the price.
Addendum: Using a more advanced processor
Moteino MEGA based Cave Pearl Logger
After you’ve built a few ProMini based loggers, you might want to try a processor upgrade. The 1284p CPU has twice the speed & 4x the memory, but delivers comparable sleep current & operating life.
Addendum: Low Temp. effects on 2x Lithium powered logger
2x LithiumAA millivolts (blue-left) vs RTC Temp °C(orange-right) on cells that have been in service for 5 months. We will leave this unit running over winter to see how DS18b20 on that logger handles it if/when the cells fall below the DS18’s 3V minimum, and then rise back up again. (click image to enlarge)
A crop of these loggers have been running in our back-yard garden since mid-summer with various sensor combinations. Winter is finally reaching us so we can now observe how the cold affects an unregulated 2x Lithium AA supply. This ‘student build’ sleeps at ~170uA and has been running for five months. The battery curve was virtually flat above 15°C but it is now being quite strongly affected. Peak loads from the SD card are in the range of about 150mA and the unit is running with a 5 minute sampling interval.
Note: 2022-10-01: We’ve had several unregulated 2xLithium cell loggers running over winter now, with temperatures varying from -20°C to +40°C throughout the year. On units where the sleep current is in the low 20uA range, we typically see the voltage supplied by two cells in series vary due to that that 60 degree range from a low of 3350 to about 3550 mv on hot summer days. So about 200mV thermal delta in normal environmental conditions.
According to Energizer: In ultra-low drain applications like these dataloggers, the discharge curve has a distinct two stage profile. The first ‘very flat’ plateau occurs at slightly higher voltage (nominally 1.79V (or ~3.58v for two cells) @ 21°C) is nearly independent of depth of discharge. This unchanging stage lasts for about 2/3 of the batteries lifetime. The second stage occurs at a slightly lower voltage (nominally 1.7V (or ~3.4v for two cells) @ 21° C) where the cell voltage then decreases slowly as a function of depth of discharge. In my longer run tests, when the two lithium AA cells in series have fallen below ~3.1v, it’s time to shut down the logger.
Addendum: Adding a TTP233 Capacitive Switch lets you check your logger ‘any time’
With a capacitive touch switch that works through the housing, you can check the status of your logger at any time.
Our next tutorial post in the student logger series: Enhance your Logger with an OLED & T233 Capacitive Touch Switch is an excellent ‘next step’ for people using this logger in a classroom setting. The method is easily adapted to trigger ‘opportunistic’ readings in environments that require manual control, but it’s also handy when you need to check the battery level on a complex installation that you don’t want to disturb before the end of the experiment.
Addendum: Another fine crop of student loggers this year!
A soil sensing lab where students characterize daily water use by various potted plants.
A 2-Part ‘mini’ logger released in 2023
Dr. Beddows instrumentation students have been building this Plano-boxed logger for years, and the ability to swap sensors or add an OLED screen has allowed continuous course development. But for those wanting a simpler ‘bare-bones’ version we’ve developed a 2 module classroom logger using 3D printed rails. Without the SD card this unit is memory constrained, and data download is handled via through the serial monitor window in the IDE. This model requires fairly detailed soldering so students get a complete practice lab soldering header pins onto perf-board before attempting the assembly. Running from a coin cell required the addition of several more advanced code techniques than the 2020 student logger at the beginning of this post. But for instructors, this is the least expensive option that still provides your students with an opportunity to change the sensors to develop their own projects.
Basic concept: two table leg caps held together with 3″ 1/4-20 bolts & 332 EPDM o-ring. Internal length is 2x3cm for the caps + about 5mm for each o-ring. SS bolts work fine dry, but we use nylon in salt water due to corrosion; tightening the bolts enough that the o-rings will expand to compensate for nylons 2-3% length expansion when hydrated. PVC is another good bolt material option if you deploy in harsh environments.
We’ve been building our underwater housings from 2″ Formufit Table Screw Caps since 2015. Those housings have proven robust on multi year deployments to 50m. While that’s a respectable record for DIY kit, we probably over-shot the mark for the kind of surface & shallow water environments that typical logger builders are aiming for.
The additional RTC & SD power control steps that we’ve added to the basic ‘logger stack’ since 2017 are now bringing typical sleep currents below 25μA. So the extra batteries our original ‘long-tube’ design can accommodate are rarely needed. (described in Fig. A1 ‘Exploded view’ at the end of the Sensors paper) In fact, pressure sensors often expire before power runs out on even a single set of 2xAA lithium cells.
This raises the possibility of reducing the overall size of the housing, while addressing the problem that some were having drilling out the slip ring in that design. Any time I can reduce the amount of solvent welding is an improvement, as those chemicals are nasty: (click to enlarge)
Basic components of the smaller 2020 housing cost about $10. O-rings shown are 332 3/16″width 2 3/8″ID x 2 3/4″OD EPDM (or other compound )
Double sided tape attaches a 2xAA battery pack to the logger stack from 2017 ( w MIC5205 reg. removed, unit runs on 2x Lithium AA batteries)
The o-ring backer tube does not need to be solvent welded. Cut ~5cm for 1-ring build, & 5.5cm for a 2-ring. Leaving ~1.5cm head-space for wires in the top cap.
The logger stack fits snugly into the 5.5cm backer tube with room for a 2 gram desiccant pack down the side.
The screw-terminal board is only 5.5cm long, but the 2x AA battery stack is just under 6cm long. With shorter AAA cells you can use only one o-ring.
With several 4-pin Deans micro-plug breakouts & AA batteries things get a bit tight with one o-ring. So I add a second o-ring for more interior space.
Sand away any logos or casting sprues on the plugs & clamp the pass-through fitting to the upper cap for at least 4 hours to make sure the solvent weld is really solid. (I usually leave them overnight) Then wet-sand the large O-ring seat to about 800 grit. Sensor connections are threaded 1/2″ NPT, but I use a slip fit for the indicator LED, which gets potted in clear Loctite E30-CL epoxy w silica desiccant beads as filler. Most clear epoxies will yellow over time with salt water exposure, so for optical sensors or display screens I usually add an acrylic disk at the upper surface.
The only real challenge in this build is solvent welding the pass through ports. In the 2017 build video we describe connectors with pigtails epoxied to the housing. But you don’t necessarily need that level of hardening for shallow / surface deployments. The potted sensor connections shown in the video (& our connectors tutorial) can be threaded directly to the logger body via 1/2 threaded NTP male plugs.
Note: Position the NPT risers on the caps directly opposite the bolt struts, and as near to the edges of the cap as you can so that there is enough separation distance to spin the lock down nuts on your sensor dongles. In the photos below I had the pass-through in line with the struts, but with long bolts this may limit your finger room when tightening the sensor cable swivel nuts. These direct-to-housing connections do make the unit somewhat more vulnerable to failures at the cone washer, or cuts in the PUR insulating jacket of the sensor dongle.
Threaded bulkhead pass-throughs get drilled out with a 1/2″ bit. Alignment with bolt struts shown here is suboptimal.
This closeup shows a slight gap near the center – I could have done a better job sanding the base of the NPT to make it completely flat before gluing & clamping!
the pass through style sensor cap mates to the the lower half of the housing. We’ve always used our o-rings “dry” on these pvc housings.
I describe the creation of the sensor dongles with pex swivel connectors in the 2017 build video series.
Dongle wires need to be at least 6cm long to pass completely through the cap.
“2-Cap” housing: Aim for 5 to 15% o-ring compression but stop if there is too much bending in the PVC struts.
It’s also worth noting that there are situations where it’s a good idea to have another connector to break the line between the sensor and the logger. (shown in 2017) We often mount rain gauges on top of buildings with 10-20m of cable – so we aren’t going to haul the whole thing in just to service the logger. But on-hull connections like the ones shown with this new housing necessarily open the body cavity to moisture when you disconnect a sensor, and nothing makes a tropical rainstorm more likely to occur during fieldwork than disconnecting the loggers that were supposed to be measuring rainfall.
With a double o-ring and additional seal(s) in the cap, we probably won’t be deploying this new design past ~10m. Given how quickly they can be made, this short body will be a standard for the next few years; perhaps by then those fancy resin printers will be cheap enough for regular DIY builders to start using them – at least for shallow water work. For now we’ll continue with the long body style for deeper deployments or remote locations that we might not get to again for a long time. The second o-ring is not really necessary if you make a nice tight stack when you assemble the logger.
In general I’d say these ‘plumbing part’ housings reach their long term deployment limit at about ~60m because the the flat end caps starts blowing noticeably at that depth. That overlaps nicely with the limit of standard sport diving, but if your research needs more depth it’s worth looking into the aluminum body tubes/endcaps becoming available in the ROV market. As an example: Blue robotics makes some interesting enclosures if you need clear acrylic endcaps for camera based work.
(UPDATE: the double o-ring shown in the photo above was required when using 3.5″ bolts. That was a mistake as they tended to extrude easily. Using shorter 3″ bolts lets you go with only a single o-ring which is gives you a solid seal with no accidental extrusions.)
Addendum 2023-05-25
We needed a way to see how far we could take the new falcon tube loggers and water filter housings are a good solution as the domestic water pressure range of 40-80psi overlaps nicely with sport diving depths. The internal clearance of the filter housing we used is slightly larger than 4.5″ x 9.5″ so could accommodate these older PVC style housings as well: https://thecavepearlproject.org/2023/05/24/a-diy-pressure-chamber-to-test-housings/
A household water filters make a good low-range pressure chamber.
328p processor System Clocks & their Distribution pg26
Most micro-controllers use a quartz crystal oscillator to drive the system clock, and their resonant frequency is reasonably stable with temperature variations. In high accuracy applications like real time clocks even that temperature variation can be compensated, and last year I devised a way to measure temperature by comparing a 1-second pulse from a DS3231 to the uncompensated 8Mhz oscillator on a Pro Mini. This good clock / bad clockmethod worked to about 0.01°C, but the coding was complicated, and it relied on the ‘quality’ of the cheap RTC modules I was getting from fleaBay – which is never a good idea.
But what if you could read temperature better than 0.01°C using the Pro Mini by itself?

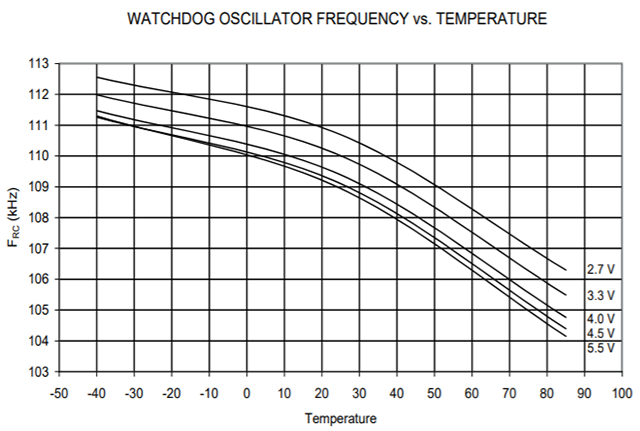

Figure 27-34: Watchdog Oscillator Frequency vs. Temperature.Pg 346(Odd that the frequency is listed as 128kHz on pg55?) Variation is ~100 Hz/°C
The 328P watchdog timer is driven by a separate internal oscillator circuit running at about 110 kHz. This RC oscillator is notoriously bad at keeping time, because that on-chip circuit is affected by external factors like temperature. But in this particular case, that’s exactly what I’m looking for. The temperature coefficient of crystal resonators is usually quoted at 10–6/°C and for RC oscillation circuits the coefficient is usually somewhere between 10–3/°C to 10–4/°C. There’s plenty of standard sensors don’t give you a delta that large to play with!
To compare the crystal-driven system clock to the Watchdogs unstable RC oscillator I needed a way to prevent the WDT from re-starting the system. Fortunately you can pat the dog and/or disable it completely inside its interrupt vector:
volatile boolean WDTalarm=false;
ISR(WDT_vect) {
wdt_disable(); // disable watchdog so the system does not restart
WDTalarm=true; // flag the event }
SLEEP_MODE_IDLE leaves the timers running, and they link back to the system clock. So you can use micros() to track how long the WDT actuallytakes for a given interval. Arduinos Micros() resolution cannot be better than 4 microseconds (not 1 µs as you’d expect) because of the way the timer is configured, but that boosts our detectable delta/° by a factor of four, and the crystal is far more thermally stable than the watch-dog. It’s worth noting that timer0 (upon which micros() depends) generates interrupts all the time during the WDT interval, in fact at the playground they suggest that you have to disable timer0 during IDLE mode sleeps. But for each time interval, the extra loops caused by those non-WDT interrupts create a consistant positive offset, and this does not affect the temperature related delta.
WDTalarm=false;
// Set the Watchdog timer from: https://www.gammon.com.au/power byte interval =0b000110; // 1s=0b000110, 2s=0b000111, 4s=0b100000, 8s=0b10000 //64ms= 0b000010, 128ms = 0b000011, 256ms= 0b000100, 512ms= 0b000101
noInterrupts ();
MCUSR = 0;
WDTCSR |= 0b00011000; // set WDCE, WDE
WDTCSR = 0b01000000 | interval; // set WDIE & delay interval
wdt_reset(); // pat the dog interrupts ();
unsigned long startTime = micros(); while (!WDTalarm){ //sleep while waiting for the WDT set_sleep_mode (SLEEP_MODE_IDLE); noInterrupts (); sleep_enable(); interrupts (); sleep_cpu ();
sleep_disable(); //processor starts here when anyinterrupt occurs } unsigned long WDTmicrosTime = micros()-startTime; // this is your measurement!
The while-loop check is required to deal with the system interrupts that result from leaving the micros timer running, otherwise you never make it all the way through the WDT interval. I haven’t yet figured out how many interrupts you’d have to disable to get the method working without that loop.
To calibrate, I use my standard refrigerator->freezer->room sequence for a repeatable range >30°. Since the mcu has some serious thermal lag, the key is doing everything VERY SLOWLY with the logger inside a home made “calibration box” made from two heavy ceramic pots, with a bag of rice between them to add thermal mass:

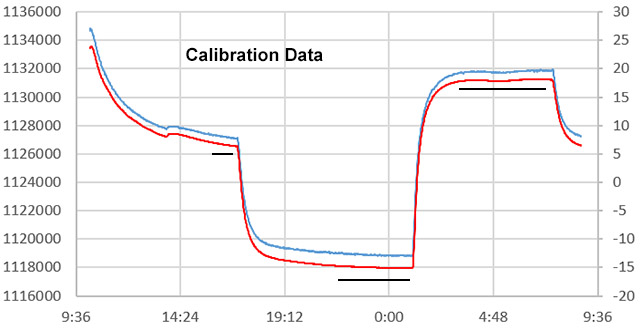

1secWDT micros() (left axis)vs si7051 °C Temp (right axis) : Calibration data selected from areas with the smallest change/time so that the reference and the 328p have equilibrated.
If you use reference data from those quiescent periods, the fit is remarkably good:

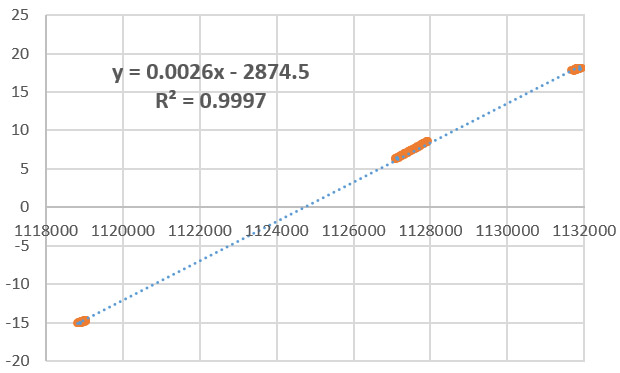

si7051 reference temperature vs 1 sec WDT micros() : A fit this good makes me wonder if the capacitor on the xtal oscillator is affected the same way as the capacitor in the watchdogs RC oscillator, with the net result being improved linearity. In this example, there was a constant over-count of 100,000 microseconds / 1-second WDT interval.
I’m still experimenting with this method, but my cheap clone boards are delivering a micros() delta > 400 counts /°C with a one second interval – for a nominal resolution of ~0.0025°C. Of course that’s just the raw delta. When you take that beautiful calibration equation and apply it to the raw readings you discover an inter-reading jitter of about 0.1°C – and that lack of precision becomes the ‘effective’ limit of the resolution. It’s going to take some serious smoothing to get that under control, and I’ll be attacking the problem with my favorite medianfilters over the next few days. I will also see if I can reduce it at the source by shutting down more peripherals and keeping an eye on stray pin currents.

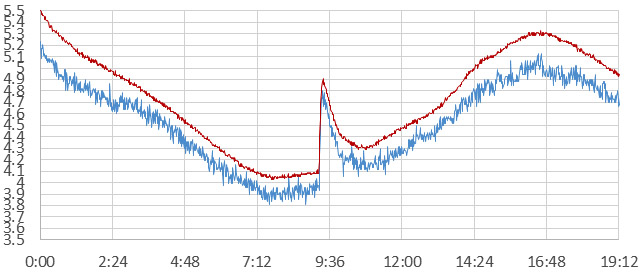

Noise from si7051 reference (red) vs Cal. equation applied to raw WDT micros readings (blue).
Doubling the interval cuts the the noise and the apparent resolution in half, and if you are willing to wait around for the watchdogs 8-second maximum you can add an order of magnitude. Of course you could also go in the other direction: a quarter second WDT interval would deliver ~100 counts/°C, which still gets you a nominal 0.01°C though the jitter gets worse. Note that you can’t use the ‘b’ coefficients from one interval to the next, because of the overhead caused by the non-WDT interrupts. That “awake time” must also be contributing some internal chip heating.
The si7051 reference sensor needs to be held in direct physical contact with the surface of the mcu during the room->fridge->freezer calibration; which takes 24 hours. Since my ref is only ± 0.1ºC accuracy, calibrations based on it are probably only good to about ± 0.2ºC.
There are a few limitations to keep in mind, the biggest being that messing with WDT_vect means that you can’t use the watchdog timer for it’s intended purpose any more. (interferes with RocketScream’s lowpower library) The other big limitation is that you can only do this trick on a voltage regulated system, because RC oscillators are affected by the applied voltage, though in this case both oscillators are exposed to whatever is on the rail, so a bit more calibration effort might let you get away with a battery driven system. (and now that I think about that… if you did the temp calibration while the system was regulated, you might then also be able to derive the system voltage from the two oscillators while running unregulated.)
Self-heating during normal operation means that this method will not be accurate unless you take your temperature readings after waking the processor from about 5-10 minutes of power-down sleep. The mass of the circuit board means that the mcu will always have significant thermal lag. So there is no way to make this method work quickly and any non-periodic system interrupts will throw off your micros() reading.
Every board has a different crystal/capacitor/oscillator combination, so you have to re-calibrate for each one. Although the slopes are similar, I’ve also found that the raw readings vary by more than ±10k between different Pro Minis for the same 1sec WDT interval, at the same temperature. The silver lining there is that the boards I’m using probably have the cheapest parts available, so better quality components could boost the accuracy , though I should insert the usual blurb here that resolution and accuracy are not the same thing at all. I haven’t had enough time yet to assess things like drift, or hysteresis beyond the thermal lag issue, but those are usually less of a problem with quality kit. If your board is using Y5V caps it probably won’t go much below -15°C before capacitor failure disrupts the method.
It’s also worth noting that many sleep libraries, like Rocketscreem’s Lowpower lib, do their own modifications to the watchdog timer, so this method won’t work with them unless you add the flag variable to their modified version of the WDT_vect. To add this technique to the base code for our 1-hour classroom logger, I’ll will have to get rid of that library dependency.
Where to go from here:
Turning off peripherals with PRR can save power and reduce heating during the interval.
Switching from micros(), to timer based overflows could increase the time resolution to less than 100 ns; raising nominal thermal resolution.
Clocking the system from the DS3231’s temperature compensated 32khz output could give another 100 counts/°C and improve the thermal accuracy. My gut feeling is the noise would also be reduced, but that depends on where it’s originating.
Despite the limitations, this might be the best “no-extra-parts” method for measuring temperature that’s possible with a Pro Mini, and the method generalizes to every other micro-controller board on the market provided they have an independent internal oscillator for the watchdog timer.
Addendum:
As I run more units through the full calibration, I’m seeing about 1 in 3 where a polynomial fits the data better for the -15 to +25°C range:
si7051 reference temperature vs 1 sec WDT micros() : a different unit, but both clone boards from the same supplier
This is actually what I was expecting in the first place and I suspect all the fits would be 2nd order with a wider range of calibration temperatures. Also, this is the raw micros output – so you could make those coefficients more manageable by subtracting the lowest temperature reading from all those above. This would leave you with a numerical range of about 16000 ticks over 40°C, which takes less memory and is easier for calculations.
And just for fun I ran a trial on an unregulated system powered by 2xAA lithium batteries. Two things happened: 1) the jitter/noise in the final Temperature readings more than doubled – to about 0.25°C and 2) calibration was lost whenever the thermal mass of the batteries meant that the supply was actively changing – regardless of whether the mcu & reference had settled or not:
Red is the Si reference [left axis], Green is the calibration fit equation applied to the WDT micros() [left], and blue is the rail voltage supplied by 2xAA lithium batteries [right axis] (Note: low voltage spikes are caused by internal housekeeping events in the Nokia 256mb SD cards)
Addendum 2019-02-26
This morning I did a trial run which switched from micros() to timer1 overflows, using code from Nick Gammon’s Improved sketch using Timer 1. This increased the raw delta to almost 5000/°C, but unfortunately the width of the jitter also increased to about 500 counts. So I’m seeing somewhere near ±0.05°C equivalent of precision error – although my impression is that it’s been reduced somewhat because Timer1 only overflows 122 times per second, while the Timer0/micros had to overflow 100k times. So changing timers means less variability from the while-loop code execution. Next step will be to try driving the timer with the 32khz from the RTC…
Addendum 2019-02-27
So I re-jigged another one of Nicks counting routines which increments timer1 based on input from pin D5, using the WDT interrupt to set the interval. Then I enabled the 32.768 kHz output from a DS3231N and connected it to that pin. This pulse is dead-dog slow compared to the WDT oscillator, so I extended the interval out to 4 seconds. This long-ish sample time only produced a delta of about 40 counts/°C.
Si7051 reference temp vs Timer1 counts of 32kHz output from DS3231N (based on data selected from quiescent periods)
There wasn’t enough data to produce high resolution, but my thought was that since the DS3231N has temperature compensated frequency output, it eliminates the xtal as a variable in the question of where the jitter was coming from. This approach also causes only 2-3 overflows on timer1, so the impact of code execution is further reduced. Unfortunately, this experiment did not improve the noise situation:
DS3231 32khz clock tics vs 4sec WDT interval Raw reading jitter during a relatively quiescent period.
That’s about 8 counts of jitter in the raw, which produces readings about ±0.1C away from the central line. That’s actually worse than what I saw with the Xtal vs WDT trials, but the increase might be an artifact of the pokey time-base. The smoking gun now points squarely at variations in the WDT oscilator output as the source of the noise.
That’s kind of annoying, suggesting it will take filtering/overhead to deliver better than about 0.1°C from this technique, even though higher resolution is obviously there in the deltas. The real trick will matching the right filter with all the other time lag / constraints in this system. Still, extra data that you can get from a code trick is handy, even if it sometimes it only serves to verify that one of your other sensors hasn’t gone squirrely.
—> just had a thought: oversampling & decimation eats noise like that for breakfast!
Just fired up a run taking 256 x 16ms samples (the shortest WDT interval allowed) with Timer1 back on the xtal clock. Now I just have to wait another 24 hours to see if it works…
Addendum 2019-02-28
OK: Data’s in from oversampling the WDT vs timer1 method. I sum the the timer1 counts from 256 readings (on a 16msec WDT interval) and then >>4 to decimate. These repeated intervals took about 4 seconds of sampling time.
si7051 reference temperature vs 256x Oversampled Timer 1 reading on 16 msec WDT interval: Fit Equation
This produced 750 counts/°C for a potential resolution of 0.0013°, but as with the previous trials, the method falls down because the jitter is so much larger:
Variability on 256 Timer1 readings of 16msec WDT interval : During quiescent period
100 points of raw precision error brings the method back down to a modest ‘real’ resolution of only ±0.066°C at best. The fact that this variability is so similar to the previous trials, and that oversampling did not improve it, tells me that the the problem is not noise – but rather the WDT oscillator is wandering around like a drunken sailor because of factors other than just temperature. If that’s the case, there’s probably nothing I can throw at the problem to make it go away.
Several people pointed out that there is another wayto measure temperature with some of the Atmel chips, so I decided to fire that up for a head-to-head trial against the WDT method. Most people never use it because the default spec is ±10°C and it only generates 1 LSB/°C correlation to temperature for a default resolution of only 1°C. Some previous efforts with this internal sensor produced output so bad it was used as a random seed generator.
But heck, if I’m going through the effort of calibration anyway, I might be able to level the playing field somewhat by oversampling those readings too:
si7051 reference temperature °C vs 4096 reading oversample of the internal diode:Fit equation
Even with 4096 samples from the ADC, this method only delivered ~75 counts /°C. But the internal diode is super linear, and the data is less variable than the WDT:
Variability from 4096 ADC readings of the internal reference diode :During quiescent period
Five counts of raw variability means the precision error is only ±0.033°C (again, this becomes our real resolution, regardless of the raw count delta) . So even after bringing out the big guns to prop up the WDT, the internal reference diode blew the two-oscillator method out of the water on the very first try.
volatile uint16_t adc_irq_count;
ISR (ADC_vect) {
adc_irq_count++; //flag to track how many samples have been taken }
internalDiodeReading=0;
adc_irq_count = 0; unsigned long sum = 0; unsigned int wADC;
ADMUX = (_BV(REFS1) | _BV(REFS0) | _BV(MUX3)); // Set the 1.1v aref and mux for diode ADCSRA |= _BV(ADSC); // 1st conversion to engage settings
delay(10); // wait for ADC reference cap. to stabilize
do{ noInterrupts ();
set_sleep_mode( SLEEP_MODE_ADC ); // Sleep Mode just to save power here
sleep_enable();
ADCSRA |= _BV(ADSC);// Start the ADC
do{ interrupts();
sleep_cpu(); // Sleep (MUST be called immediately after interrupts() noInterrupts(); // Disable interrupts so while(bit_is_set) check isn’t interrupted } while (bit_is_set(ADCSRA,ADSC)); // back to sleep if conversion not done
sleep_disable(); interrupts(); // Enable interrupts again
wADC = ADCW; // Reading “ADCW” combines both ADCL & ADCH
sum += wADC; // Add new reading to the total } while (adc_irq_count<4096);//sets how many times the ADC is read
ADCSRA &= ~ _BV( ADIE ); // No more ADC interrupts after this
internalDiodeReading=(sum >> 6); //decimation turns sum into an over-sampled reading
For now, I think I’ve kind of run out of ideas on how to make the WDT method more precise..? Oh well – It’s not the first time I’ve tried to re-invent the wheel and failed (and it probably won’t be my last….) At least it was a fun experiment, and who knows, perhaps I will find a better use for the technique in some other context.
I’ll spend some more time noodling around with the internal diode sensor and see if I can wrestle better performance out of it since it’s probably less vulnerable to aging drift than the WDT oscillator. I’m still a bit cautious about oversampling the internal diode readings because the math depends on there being at least 1-2LSB’s of noise to work, and I already know the internal 1.1v ref is quite stable..? I threw the sleep mode in there just to save power & reduce internal heating, but now that I think about it the oversampling might work better I let the chip heat a little over the sampling interval – substituting that as synthetic replacement for noise if there is not enough. The other benefit of the diode is that it will be resilient to a varying supply voltage, and we are currently experimenting with more loggers running directly from batteries to see if it’s a viable way to extend the operating lifespan.
Addendum 2019-04-05
So I’ve kept a few units perking along with experiments oversampling the internal diode. And on most of those runs I’ve seen an error that’s quite different from the smoothly wandering WDT method. The internal diode readings have random & temporary jump-offsets of about 0.25°C:

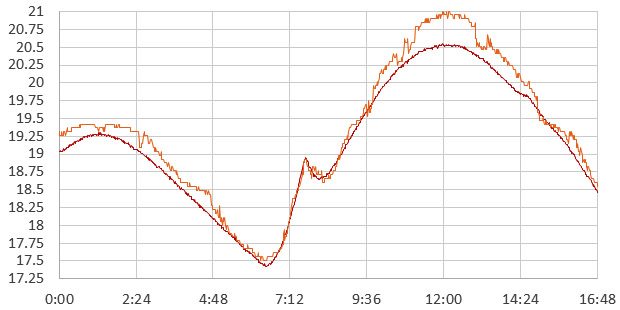

si7051 (red) reference vs internal Diode (orange) over sampled 16384 reads then >>10 for heavy decimation.
These occur all all temperatures from +20 to -15C, and I have yet to identify any pattern. The calculation usually returns to a very close fitting line after some period with the offset with about 50% of the overall time with a closely fit calibration. This is persistent through all the different oversampling intervals and stronger decimation does not remove the artifact – it’s in the raw data. No idea why…though I am wondering if perhaps the clocks entropy drift is somehow quantized?
Dupont jumper variant of the “fully soldered’ Classroom Data Logger from the Cave Pearl project: This version uses dupont jumpers to reduce assembly time to about 1 hour
Note:An updated version of the classroom logger was released in 2020:CLICK THIS LINK to view the newest build tutorial.
It’s only been a couple of weeks since the release of the 2019 EDU logger, and we’re already getting feedback saying all the soldering that we added to that tutorial creates a resource bottleneck which could prevent some instructors from using it:
“Our classroom has just two soldering stations, and the only reason there are two is I donated my old one from home. So we simply don’t have the equipment to build the logger you described. And even if we did, some of my students have physical / visual challenges that prevent them from working with a soldering iron safely…”
Or goal with that design was to give students their first opportunity to practice soldering skills that are needed when repairing kit in the field. However helping people do science on a budget is also important – so that feedback sent us back to the drawing board. After a little head scratching we came up with a new version that combines the Dupont jumper approach we used in 2016, with this flat-box layout. In the following video, I assemble one of these ‘minimum builds’ in about one hour. To put that in perspective, the fully soldered version takes 2 – 2.5 hours for someone with experience.
Note: After you’ve seen the video to get a sense of where you are headed, it’s usually much better to work from the photos (below) when assembling your logger. Youtube videos make it look easierthan it actually is when you are just starting out. So the first one you build could take several hours as you figure out what you are doing, the second will take half as long, and the third one you make usually takes less than two hours. With some practice you can easily make 4-5 of these things a day.
This variation of the basic 3-component logger is optimized for quick assembly, so the soldering has been reduced to adding header pins and bridging the A4/A5 I2C bus to the outer terminals. An instructor could easily do that ahead of time with about 15 minutes of prep per unit, leaving only the solder-less steps for their students. After the header pins are in place, connections to the central Pro Mini are made by simply twisting stripped wire ends together and clamping them under screw terminals.
You should useLithiumAA batteries with a 2-cell unregulated supplybecause the slope of an alkaline batteries discharge would bring the system down to ProMini’s brown-out of ~2.7v when only 40% of the battery capacity has been used. (note the SD card safe down to 1.8v) While the voltage of a ‘brand new’ Lithium AA is usually 1.8v/cell, that upper plateau provides a sleeping logger voltage of ~1.76 v/cell once the batteries settle, and that briefly dips to about 1.625v/cell under load during data saves. At low temps of about 5°C (in my refrigerator) those SD card voltage dips go down to about 1.525 v/cell. Unloaded readings of 1.5v on a Li AA = battery is dead.
This time reduction involves a few trade-offs, and bringing the I2C bus over to A2 & A3 leaves only two analog ports readily accessible ( although A6 & A7 are still available if you add some jumpers). Removing the regulator & battery voltage divider adds ~30% more operating life, but it also forces you to deal with a changing rail voltage as the Lithium AA batteries wear down. The daily variation is usually quite small, but for quantitative comparisons on monthly scales you will need to correct for the change in rail voltage over time if your sensor circuits are not ratio-metric. To do this voltage compensation multiply your raw sensor readings by the the ratio of (3300mv) / (current rail voltage). Here 3300mv is just an arbitrary comparison point, which you could replace with any rail voltage reading from the data saved by your logger. Batteries have a lot of mass, so thermal lag in battery voltage can also cause hysteresis for analog temperature sensors unless you read the reference under the same conditions.
Solder the UART pins & test ProMini board with the blink sketch: Set the IDE to (1)TOOLS> Board: Arduino Pro or Pro Mini (2)TOOLS> ATmega328(3.3v, 8mhz) in addition to the (3)TOOLS>COM portto matchthe # that appears when you plug in the serial adapter board.
Once you know you have a working Promini board: Remove the power LED [in red]. Removing the pin13 LED [yellow square above]is optional. Leaving the pin13 LED in place lets you know when data is being saved to the SD card because the SPI bus SClocK signal flashes the LED.
Remove the voltage regulator with snips. Your system voltage will vary over time, but our starter script records that rail voltage without a voltage divider.
Add pin headers to the sides & Serial input end of the Pro Mini.
Bridge the two I2C bus connections for side access with the leg of a resistor. Connect A4->A2 & A5->A3.
Adding DIDR0 = 0x0F; in Setup disables digital I/O on pins A0-A3 so they don’t interfere with I2C bus coms.
NOTE: The Screw Terminal board we use in this build was designed for the 5v Arduino NANO, so the shield labels don’t match the actual 3.3v Pro Mini pinson the ‘analog’ side.(the digital side does match) To avoid confusion may want to tape over those incorrect labels and hand write new labels to match the pattern above. Wire connections in this tutorial will be specified by ProMini pin labels: D10-13 are used for the SD card, A4=A2 is the I2C Data line, and A5=A3 is the I2C clock line, A0 & A1 are not used.
Technically speaking, bridging the I2C bus (A4=data & A5=clock) over to A2 & A3 subjects those lines to the pin capacitance and input leakage of those analog pins (regardless of whether that channel is selected as input for the ADC p257). But in practice, the 4K7 pull-up resistors on the RTC module can easily handle that at the 100 kHz default bus speed. Adding DIDR0 = 0x0F; in setup disables digital I/O on pins A0-A3 to prevent interference with the I2C bus. If you want to disable the IO on A2 & A3 ‘only’ add bitSet (DIDR0, ADC2D); bitSet (DIDR0, ADC3D); to your code.
Also note: On the UART adapter in the picture above, the USB to TTL adapter pins are in the reverse order to the Pro Mini board. This is a fairly common issue with clones and if the blink sketch never uploads flip the adapter around and try again. I have connected 3.3v ProMinis to UART modules the wrong way round many, many times, and not one of them has been harmed by the temporary reversal.
Screw-Terminal Component Stack:
Add 3 layers of double sided tape so the tape is thicker than the solder pins.
Align RX&TX corner pins before inserting. The GND points on the screw terminal board may be interconnected (via the back-plane) & must match the ProMini’s GND pins.
Gently rock the Pro Mini back to front (holding the two short sides) until the pins are fully inserted. Some ST shields have mis-aligned headers so this insertion can be tricky.
Remove the last three ‘unused’ pin headers to make room for the SD adapter
Note: Screw-terminal board labels do not match the ProMini pins on the ‘analog’ side
Remove bottom 3 resistors from the adapter – leave the top one in place!
Separate Dupont Cable wires & click them into a 6-pin shroud.
Cable Color Pattern: Black =GND, Purple=MISO, Brown=CLocK, Orange=MOSI, Grey=CSelect, and Red=3v3
Use foam tape to attach SD module to the Screw Terminal board. Metal tabs should be visible on top surface.
Measure, cut & strip the 4 SPI bus wires (NOTE the ‘Nano’ ST board labels say A0-A3 which does not matchthe D10-13 Pro Mini pins on this side of the board)
Grey (CS) to ProMiniD10, Orange (MOSI) -> pm D11, Purple (MISO) ->pm D12, Brown (CLK) -> pm D13
Add three jumper wires to the red power line from the SD module, one with a male end pin. I often add Dupont ends with a crimping tool, rather than using a pre-made jumper.
Strip & twist the 4 red power wires together & add heat-shrink for strain relief. Bundling wires like this is easier if you make the stripped area a bit longer.
A short red jumper goes to RAW(pm)=VIN(st) to recruit the orphan capacitor.
Long red jumper bridges power to ‘unused’ screws on other side of the Terminal board, and the wire with the Dupont male end will go to the breadboard.
Add 2 extra wires to the black GND wire from the SD module (1 with a male Dupont end ). Jumper one black wire across the Promini to an unused terminal beside the red power wire.
The GND bundle completes Pro Mini / ST board / SD module stack. The ‘pinned’ Red & Black ‘pinned’ jumpers shown here areabout 1 inch too short to reach the breadboard easily… make yours longer.
Note:You could connect the battery holder lead wires directly into the multi-wire Vcc & GND bundles: skipping the 2 jumpers crossing over to the other side of the ST shield. But adding those jumpers provide extra Vcc/GND connection points & the ability to easily replace the battery holder later if you have a battery leak.
I always try to make my Dupont connectors so that the metal & plastic retainer clips are accessible (in this case facing upwards) after the logger is assembled. That way you can diagnose bad wire connection with the tip of a meter probe, and if necessary, pull out & replace a single bad wire in the Dupont connector without taking everything apart.
RTC module:
Remove two SMD resistors from the RTC board with the tip of your soldering iron.
The DS3231 modules often have flux residue – clean this off with 90% isopropyl.
Cable: Blk(gnd), Red(vcc), White(sda), Yellow(scl), Blue(sqw). Shroud retainer clips face up & there is no wire on 32K output.
First tape layer
Next two tape layers
OPTIONAL: adding header pins to the cascade port provides a convenient attachment point for I2C sensors later.
Optional: After removing the two SMD resistors on the module, you can clip the Vcc leg on the RTC chip which forces the clock to run entirely from the backup coin-cell battery. This reduces the loggers overall power use by 0.09mA bringing a “no-reg & noRTCvcc” build below 0.1mA when the logger sleeps between sensor readings (this should run for more than 2 years on fresh lithium AA cells) . But the risk is that if you bump the RTC backup battery loose, that disconnection resets the clock time to Jan 1st, 2000. (note: while the time stamps will be wrong after that kind of reset, the logger will continue running after the next hour/min alignment occurs with the ‘old’ alarm time) A couple of pieces of soft 1.6mm heat shrink tubing under the spring makes the negative coin-cell connection stronger, an a touch of hot melt glue will secure the battery on the top edges. A CR2032 can power the RTC about four years but you have to set bit six of the DS3231_CONTROL_REG to 1 to enable alarms when running from the coin-cell. (our starter code does this by default) This modification also disables the 32.768 kHz output pin on the RTC. Visit our RTC page for more detailed information on this clock module.
Final Assembly: (Note: references here are to pin numbers/labels on the ProMini which do not match ST board labels on the analog side)
Attach the Pro Mini stack & RTC to housing with the double-sided tape.
Trim white & yellow I2C wires from the RTC & add 1 extra wire with dupont ends for each I2C line to bring the bus over to the breadboard
Attach yellow SCL line from the RTC beside the red 3v rail (ie to A3=A5 on the ProMini) then the white SDA line from the RTC to A2=A4.
The four extra jumper wires with male Dupont ends on Vcc, GND, & both I2C lines. These get patched over to the breadboard so you can add I2C sensors.
Each wire must be plugged into its own separate vertical column on the breadboard. Add a 2nd layer of foam tape to the bottom of the bread-board before attaching.
The RTC power line joins that short red jumper on RAW(pm)=VIN(st) at the end of the screw-terminal board.
Some of the box bottoms have slight bowing. If any component doesn’t stick well enough: add another layer of foam tape.
Attach the RTC’s black ground wire to GND & the blue SQW alarm line to ProMini pin D2
Attach 2xAA battery holder with 2 layers of foam tape. Trim wires to length. Use black 30lb Mounting Tape for extra strength.
Battery wires join the black & red jumpers from other side of the terminal board. All six of the ‘unused’ screw terminals we clipped earlier can be used to make secure ‘dry wire’ connections in this way.
Connections complete except the indicator. 5050 LED modules often come with pre-installed limit resistors which make them safer for the classroom. But you can use a raw 5mm LED if you only light the LED with the INPUT_PULLUP command.
A ‘common cathode’ RGB LED module on pins Red=D6, Green=D5, Blue=D4, & GND=D3.
Your Logger is ready for testing!
(Note:Most of the time the tests listed below go well, however if you run into trouble at any point read through the steps suggested for Diagnosing Connection Problems at the end of this page.)
Install the Arduino IDE into whatever default directory it wants to be in – we’ve had several issues where students tried to install the IDE into some other custom sub-directory, and then code will not verify without errors because it doesn’t know where to look for libraries. If you have not already done so, there are three things you need to set under the IDE>TOOLS menu to enable communication with the logger:
Note: that the “COM’ setting will be different for each computer, so you will have to look for the one that appears on your system AFTER you plug in the UART module.
The one that’s easy to forget is choosing the 328P 3.3v 8Mhz clock speed. If you leave the 328p 5v 16mhz (default), the programs will upload OK, but any text displayed on the serial monitor will just be a random bunch of garbled characters because of the clock speed mismatch. Also be sure to disconnect battery power (by removing one of the AA batteries) whenever you connect your logger to a computer.
1. Test the LED – Edit the default blink sketch, adding commands in setup which set the digital pin 3 connected to the ground line of the LED to “OUTPUT” and “LOW” pinMode(3, OUTPUT); digitalWrite(3, LOW);
Since we removed the ‘default’ indicator led on the Pro Mini board, you will also need to change LED_BUILTIN variable in the blink code example to one of the pins connected to one of the color channels on your led module. (in this example change LED_BUILTIN to either 4, 5, or 6)
2. Scan the I2C bus with the scanner from the Arduino playgound. The RTC module has a 4K eeprom at address 0x56 (or 57) and the DS3231 RTC should show up at address 0x68.
The address of the eeprom can be changed via solder pads on the board, so sometimes it moves around. If you don’t see at least these two devices listed in the serial monitor when you run the scan, there is something wrong with your RTC module or the way it’s connected: It’s very common for a beginner to get at least one set of wire connections switched around during the assembly. With the screw terminals this takes only a few moments to fix. Also have a spare RTC module on hand in case you get a defective module…which is fairly common.
NOTE: Some sensors really need the stability provided by the on-board voltage regulator. Here is an alternative arrangement of parts for the classroom logger that leaves the 3.3v regulator in place on the ProMini and powers the logger from 4xAAA alkaline batteries (NOTE:regulated builds also leave out the short red jumper that was used to recruit the orphan capacitor after the reg was clipped. The RTC & added sensors now get connected ONLY to the Pro-Mini’s regulated 3.3v rail ) We’ve designed the Cave Pearl Logger for maximum flexibility, so you can easily change components and positions like this to suit the needs of your design / experiment.
3. Set the RTC time, and check that the time was set – The easiest method would be to use the SetTime / Gettime scripts from our Github repository, but first you need to download & install this RTC control library The SetTime script, automatically updates the RTC to the time the code was compiled (just before uploading) so you only run SetTime once, and then immediately upload the GetTime sketch to get the SetTime code out of memory after it’s done it’s job. Otherwise SetTime will reset the RTC to the ‘code compile time’ every time the Arduino restarts (and the Arduino restarts EVERY TIME you open the serial window…)
There are dozens of other good Arduino libraries you could use to control the DS3231, and there is also a script over at TronixLabs.com that lets you set the clock without installing a library. [ in 24-hour time, & year with two digits eg: setDS3231time(30,42,21,4,26,11,14); ] The trick with Tronix’s “manual” method is to change the parameters in the line: setDS3231time(second, minute, hour, dayOfWeek, dayOfMonth, month, year); to about 2-3 minutes in the future, and thenupload that code until about 20 seconds before your computers clock reaches that time(this compensates for delay caused by the compilers processing & upload time). Open the serial window immediately after the upload finishes, and when you see the time being displayed (and it’s not too far off actual…) upload the examples>blink sketch to remove the clock setting program from memory.
4. Check the SD card is working with Cardinfo – Changing chipSelect = 4; in that code to chipSelect = 10;Note that this logger requires the SD card to be formatted as fat16, so most 4GB or larger High Density cards will not work because they get formatted as fat32. Most loggers only generate 5 Kb of CSV format data per year when they are running, so you don’t need a big SD card. In fact older, smaller SD cards in the 256-512mb range often use less power if it’s a good name brand like Sandisk or Nokia.
Zip-Tie Mounting Bases are an easy way to add attachment points inside your logger to secure sensor cables, or desiccant packs. These adhesive cable tie mounts come in many varieties, and cost about 10¢ each at most hardware stores.
5. Optional: If you are running with no regulator & using analog sensors: Calibrate your internal voltage reference with CalVref from OpenEnergyMonitor.
This logger uses an advanced code trick to read the positive rail voltage to ~11mv resolution by comparing it to an internal 1.1v reference inside the processor. That internal ref. can vary by ±10% from one chip to another, and CalVref gives you a constant which will make the rail=battery voltage reading more accurate. Load CalVrefwhile the logger is running from USB power and then measure the voltage between GND and the positive rail with a good quality voltmeter. (this voltage will vary depending on your computer’s USB output, and the UART adapter you are using) Then type that voltage into the serial monitor window entry line & hit enter. Write down the reference voltage & constant which is output to the serial monitor window. I usually write these ‘chip-specific’ numbers inside the logger with a black sharpie. You will need to add that info to the core data logger code later by changing the line #define InternalReferenceConstant 1126400L to match the long number returned from CalVref. Alternatively you could just tweak the value of the constant ‘by hand’, increasing or decreasing the value till the reported rail readings match what you see with a voltmeter. After you’ve done this once or twice you can usually get within 15mv of actual with about 10 trials.
This calibration brings the starter script’s battery readings within ±15mv of actual but you can skip the CalVref procedure if you are only using digital sensors, as the script will still produce reasonably good battery readings with the default 1126400L value. Increasing the rail reading accuracy is more important when you are using ANALOG sensors which use that rail voltage to drive your sensors – so the +ive raildirectly affects their output if you are not reading a ratiometric circuit.
6. Find a script to run your on logger. For test runs on a USB tether, the simplest bare-bones logger code is probably Tom Igoe’s 1-pager at the Arduino playground. It’s not really deploy-able because it never sleeps the processor, but it is still useful for teaching exercises and testing sensors after you set chipSelect = 10; In 2016 we posted an extended version of Tom’s code for UNO based loggers that included sleeping the logger with RTC wakeup alarms. Our latest logging “Starter Script” has grown in complexity to ~750 lines, but it should still be understandable once you have a few basic Arduino programming concepts under your belt.
After 1-2 minutes of kneading to mix the epoxy you have ~ 60 seconds to work the putty into place. (it will become rock-hard within ~5-10 minutes). Be sure to leave yourself enough extra wire/space inside the housing so that you can open and close the lid easily without disconnecting anything after the putty hardens. This seal is not strong enough for underwater deployments, but it should easily withstand exposure to rain-storm events. This putty is also a quick way to make custom mounting brackets, or even threaded fittings if you wrap it around a bolt (which you carefully remove before the putty hardens completely)
In the previous tutorial we attached external sensors with a cable gland passing through the housing and epoxying them into a pvc cap. Cheap cable glands are notoriously unreliable and I always add a second rubber oring on the inside – and often over-seal the outside with conformal coating. But for a simpler classroom project you could simply drill small a hole through the lid and stick the sensor/module on top of the housing, seal the hole with double-sided tape. Thicker pass-through wires can be sealed reasonably well with plumbers epoxy putty from the hardware store. This putty is non-conductive, and adheres quite well to both metal & plastic surfaces.
Remember that breadboard connections are very easy to bump loose, so once you have your prototype circuits working, its usually best to re-connect the sensors directly to the screw terminals before deploying a logger where it could get knocked about. In a pinch you can secure breadboard pins with a ‘tiny’ drop of hot glue to keep them from wiggling around.
There is no power switch on the loggers, which are turned on or off via the battery insertion. Use a screwdriver, or some other tool, when removing the batteries so that you don’t accidentally cause a series of disconnect-reconnect voltage spikes which might hurt the SD card.
Using the logger for experiments:
Logger mounted on a south-facing window and held in place with double sided tape. Here the top surface of the housing was covered with two layers of white label-maker tape to act as a light diffuser. PTFE is another excellent light diffusing material available in different sheet thicknesses. The ‘divot’ on the lid of the Plano box is just a bit larger than 55mm x 130mm x 3mm (depth). The “teflon” tape that plumbers use to seal threaded joints can also be used in a pinch. PTFE introduces fewer absorbance artifacts than other diy diffusers like ping-pong balls, or hot melt glue. Most light sensors like the TSL2561 need 3-5mm of that PTFE sheeting to prevent the sensors from saturating in full daylight. LED’s don’t saturate that badly, but you still lose all the useful detail in your data at peak brightnesses > 80,000 lux unless you add a diffusion layer to attenuate the light.
Many types of sensors can be added to this loggerand the RTC has a built-in temperature register which automatically gets saved with our starter script. The transparent enclosure makes it easy to do light-based experiments. Diodes, LED’s & solar panels are basically the same device. So grounding the indicator LED through a digital pin allows it to be used as both a status light, and as a light sensor. The human eye is maximally sensitive to green light so readings made with that LED channel approximate a persons impression of overall light levels. Photosynthesisdepends on blue and red light, so measurements using LED’s that detect those two colors can be combined for readings that compare well to the photosynthetically active radiation measurements made with “professional grade” sensors. In fact Forest Mimms(the man who discovered the light sensing capability of LEDs in the first place) has shown the readings from red LED’s can be used as a reasonable proxy for total PAR. Photoperiod measurements have important implications for plant productivity, as do measurements of transmittance through the plant canopy.Chlorophyll fluorescence is another potential application, and the response of plants to UV is fascinating.
The original code for using LEDs as sensors is from the Arduino playground.This polarity reversal technique does not require the op-amps that people typically use to amplify the light sensing response but it does rely on the very tiny parasitic capacitance inside the LED. (~50-300pF) This means that the technique works better when the LED is connected directly to the logger input pins rather that through the protoboard (because breadboards add random capacitance) . Another thing to watch out for is moisture condensation inside your logger housing: this provides an alternate discharge path for the reverse-charge on the LED, which effectively shorts out the light level reading.
We have integrated this into the starter scriptwhich you can download from GITHUB. I’ve tweaked the playground version with port commands so the loop execution takes about 100 clock cycles instead of the default of about 400 clock cycles. The faster version was used to generate this light exposure graph with a generic 5mm RGB LED, with a 4k7Ω limiter on the common ground which was connected to pin D3:
Red, Green & Blue channel readings over the course of one day from the indicator LED in the logger photo above. The yellow line is from an LDR sensor the same unit, that was over-sampled to 16-bit resolution. The LED sensor has a logarithmic response and the left axis on the graph is a time- based measurement where more light hitting the LED sensor results in a lower number. Note how the RED signal changes more quickly than Blue & Green at sunrise & sunset. LED’s work well with natural full-spectrum light, but their limited frequency sensing bands can give you trouble with the spectral distribution of indoor light sources. The peak spectral response of LED’s is usually around 30–50nm lower than their peak emission wavelength So the blue channel is actually recording in the near-UV range, the Green channel is responding at ~ 420nm (blue) and the red channel is actually responding to a wide band of yellow-green light.
Characterizing light absorption and re-emission is also a primary technique in climate science . For example, measuring light intensity just after sunset with LEDs inside a heat-shrink tube pointed straight up can provide a measure of suspended particles in the stratosphere. An “ultra bright” LED has more than enough sensitivity to make these columnated readings, in fact on bright sunny days you usually have to place the LED/sensor beneath a fair thickness of white diffusing material (like PTFE tape) to prevent it from being completely saturated. Older LEDs that emit less light can sometimes be easier to work with because they are less sensitive, so the discharge time does not go to zero in high-light situations. Other sensor experiments are possible with LED’s in the IR spectrum which can be used to detect total atmospheric water vapor. A light transmission-based variant of the NDVI ratio can be used todetermine plant health after adding an IR LED to the logger.
Of course, full sun exposure can also cook your little logger: temps above 80°C may cause batteries to leak or damage the SD card. If you have to leave the logger in full sun, add a bit of reflective film or a layer of aluminum foil around the outside to protect the electronics. Though if use a light sensor you’ll need to leave a little un-covered window for it to take a reading.
You might also find it handy to add a few holes to the Plano box as tie-down points:
and it’s always a good idea to add desiccant packs inside the box to prevent condensation. If you use a desiccant with color indicator beads, you can check whether they are still good simply by looking through the transparent housing.
If you clipped the RTC leg, your logger should pull less than 0.1mA while sleeping. Back of the envelope for Lithium AA’s is about 7 million milliamp-seconds of power, with your logger burning about 8600 mAs/day at 0.1mA. So clipping the voltage regulator and cutting the vcc leg on the RTC should easily get you out to about a year before you fall off the “upper plateau” of the lithium burn-down curve, and more likely to ~two years if your sensors don’t use much power (…and you have a well behaved SD card). With the RTC power leg still attached you’ll see sleep currents in the 0.18-0.22 mA range, so at least 6 months of operation before you come close to triggering the low voltage shutdown (which is embedded in the logger code). I’m being conservative here because it all depends on your sensors and other additions you make to the base configuration. For every type of sensor the market, there will be some brands that draw much less power than others, and it’s always worth a look at the data sheet to make sure you are buying one that will run longer on a given set of batteries. Good sensors automatically go into a low current sleep mode whenever the bus has been inactive for a period of time.
While the LED sensor idea is fun to work with, it’s a very slow method that keeps the logger running for many seconds per reading when light levels are low -> so reading all three color channels will probably cut your operating life in half again. Figuring out how to only take those light readings during the day is a good coding exercise for students that saves quite a bit of power. The RTC’s temperature record is pretty crude, so we’ve also added support for the DS18b20 temperature sensor in the base code. If you have a genuine DS18b20 (yes, crummy fake knock-off sensors are a thing) , these venerable old temperature sensors draw virtually no power between readings.
Pro Mini Style clone 3.3v 8mHz Get the ones with A6 & A7 broken out at the back edge of the board. Just make sure its the 3.3v version because you can’t direct-connect the SD cards to a 5v board.
$2.20
‘Pre-assembled’ Nano V1.O Screw Terminal Expansion Board by Deek Robot, Keyes, & Gravitech (CHECK: some of them have the GND terminals interconnected) You will also need to have a few small flat head screw drivers to tighten those terminals down. Since this shield is was originally designed for an Arduino Nano many of the labels on ST board will not agree with the pins on the ‘analog side’ of the ProMini.
Dupont 2.54mm F2F 40wire ribbon cable Without Housing Cheaper if you get the ones with the black plastic shrouds on the ends. Dupont connector hook-up wires might be expected to add an ohm or two of resistance and carry at most 100mA reliably with their thin 28-30 gauge wires. Poorer quality crimped ends can add significant contact resistance. Each 40-wire cable will let you make at least 2 loggers, and you”l need a couple of 6-pin connector shrouds.
$1.55
2×1.5V AA Battery Batteries Holder w Wire Leads
If you are running an unregulated system on 2 lithium batteries, then you can use a 2x AA battery holder. If you need to keep the regulator in place to stabilize the rail voltage for particularly picky sensors, use alkaline batteries and a 4xAA battery holder.
$0.50
5050 LED module (with built-in limit resistors) (Alternatively, you can also use cheaper 5mm diffused LEDs with a 4K7 limit resistor on the GND line – that you solder into place on the LED yourself)
$0.75
3.3V 5V FT232 Module *set the UART module to 3.3v before using it!* and you will also need a few USB 2.0 A Male to Mini B cables. You may need to install drivers from the FTDI website depending on your OS. Get at least 2-3 of these as they do wear out and you can kill them with a short circuit. These boards can only supply about 50mA which can be tricky with sensors that draw more than that.
You might need some extra tools to get started:(not included in the total above)
2in1 862D+ Soldering Iron & Hot Air station Combination
a combination unit which you can sometimes find as low as $40 on eBay. Oryou can get the Yihua 936soldering iron alone for about $25. While the Yihua is a so-so iron, replacement handles and soldering tips cost very little, and that’s very important in a classroom situation where you can count on replacing at least 1-2 tips per student, per course, because they let them run dry till they oxidize and won’t hold solder any more. Smaller hand-held heat-shrink gunsare also available for ~$15.
$50.00
SYB-46 270 breadboards (used ONLY for soldering header pins ) Soldering the header pins on the pro-mini is MUCH easier if you use a scrapbreadboard to hold everything in place while you work. I use white plastic breadboards that they only have one power rail on the side since they do not look like regular breadboards & I write ‘for soldering only’ on them with a black sharpie to make sure I don’t get the heat-damaged boards mixed up with the good ones.
Donation to Arduino.cc If you don’t use a ‘real’ Pro Mini from Sparkfun to build your logger, you should at least consider sending a buck or two back to the mother-ship to keep the open source hardware movement going…so more cool stuff like this can happen!
$1.00
When a finished module with 20 sub-components arrives at your doorstep for less than you’d pay for any one of those components individually, then the tradeoff is that you are the quality control.
.. and the required lithium AA batteries are also somewhat expensive, so a realistic estimate is about $25 for each logger before you add sensors & tools.
My advice is to order at least 5-6 of each of the core components (Promini, RTC, SD module, screw terminal board, etc) with the expectation that about 10-20% of any cheap eBay modules will be DOA due to some quality control problem. I build loggers in batches of six, and one unit typically ends up with a bad part somewhere. Having replacement parts on hand is your #1 way to diagnose and fix these issues. I’ve noted over the years that bad parts tend to come “in bunches”, so if you scale up to ordering in quantities of 10’s & 20’s then spread those orders to a few different suppliers so you don’t end up with all your parts coming from the same flakey production run.
The other thin I can’t stress enough is CLEAN ALL THE PARTS as soon as they arrive. Leftover flux is very hygroscopic, and pretty much guarantees that solder joints will start to corrode the moment your logger gets exposed to any atmospheric moisture. So I usually give everything about 10 minutes in a cheap sonic bath with 90% isopropyl alcohol, rinse with water, and then dry the parts out in front of a strong fan for an hour. Store parts in a sealed container with a dessicant pack till you need them. I clean parts that can’t take the sonic vibration (like RTC modules, humidity sensors, accelerometers, etc) by hand with cotton swabs. Then I coat everything I can with a layer of MG Chemicals 422B Silicone Conformal Coating and let that dry for a day before assembling the loggers. One hint that you have moisture issues is that the sensors seem to run fine in the house but start to act weird when you deploy the unit outside.
Used nut containers make excellent “dry storage” once the parts have been cleaned – but any air-tight container will do.
Another insight I can offer is that the quality of a sensor component is often related to the current it draws – if your ‘cheap module’ is pulling much more power than the data sheet for that sensor indicates, then it’s probably a junk part. If the sleep current is on spec, then your part is probably going to work OK. It is much easier to check low current devices with at Ucurrent or a Current Ranger. Keep in mind that sensors which automatically go into low current sleep modes usually take some time to do so after the bus has gone quiet – so you might need to watch the sleep current for 30 seconds or more before they fall down into their quiescent state. With SD cards, if the throughput drops below the typical write speed for that model with H2testw, then you should just find another card to use with your logger.
I strongly recommend that you build at least two loggers at a time, because that lets you isolate whether problems you run into during testing are code related (which will always affect both machines the same way) or hardware related. (which will usually only affect one of your two units) At any given time I usually have 2-3 units running overnight tests so that I can compare the effect of two different code/hardware changes the next morning. As a general rule you want to run a new build for at least a week before deploying it to make sure you’ve made it past any ‘infant mortality’, and moved onto the good part of the bathtub curve.
Addendum: Diagnosing Connection Problems
If you loaded the blink sketch to test the Prominin during your initial assembly, you know that part of the logger is working, so issues during the testing stage are due to incomplete connections from the outside to the Promini I/O ports. Before you start your troubleshooting it’s worth remembering that after you’ve built a few of these units you can simply rebuild the whole logger in about a hour. So it really doesn’t make sense to spend much more time than that – especially when a few five-minute part swaps are likely to fix the problem. The components are only worth a couple of bucks each, and your time is more valuable than that!
This is the connection pattern inside the white breadboard. Take care that you don’t connect the breadboard jumper wires together by accidentally plugging them in to the same row or – the I2C bus will stop working. NEVER CONNECT the GND & 3.3v wires or the short circuit will likely kill your logger, and possibly even the computer they are connected to . . .
If you see only “Scanning I2C….. ” but nothing else appears when running the bus scanner, then it means that the ProMini can not establish communication with the RTC module. The most common cause of this problem is that the white & yellow wires were switched around at one end or the other. It’s also easy to not quite remove enough insulation from the wires to provide a good electrical connection under the screw terminals, so undo those connection and check that the wires were stripped, cleaned & wrapped together ‘clean’ before being put under the terminals. Those screws need to be clamped down relatively tight on the thin Dupont wires and if you are not careful, you might have accidentally cut away some of the thin copper wires inside the Dupont cable when you stripped the insulation.
Scanner lockup can also happen if one of the I2C devices on the bus is simply not working: usually about 1 in 6 logger builds ends up with some bad component that you have to identify by process of elimination. (These are 99¢ parts from eBay…right?) It only takes a moment to swap in a new RTC board via the black Dupont connector and re-run the scan. If the replacement RTC also does not show up with the I2C scanner then it’s likely that one of the four bus lines does not have a complete connection between the ProMini & the RTC module.
On this unit I measured 1 ohm of resistance on the I2C clock line between the ProMini A5 pin (on top of the board) and the SCL header pin on the RTC module. So this electrical connection path is good. It’s not unusual for each ‘dry’ connection to add 0.5-1 ohm of resistance to a signal path.
To diagnose this: set a multi-meter to measure resistance and put one probe lead on the topmost point of the promini header pins, and the other probe on the corresponding header pin of the RTC module. If there is a continuous electrical connection between the two points then the meter should read one ohm or less. Higher resistances mean that you don’t have a good electrical path between those points even if they look connected:
1)the ground (black) wire should provide a continuous path from the ground pin on the digital side of the Promini board to the GND pin on the RTC module 2) the positive power (red) wire should provide a continuous path from the Promini positive rail pin (the one with the bundle of 4 red wires) to the VCC pin on the RTC 3)A4 (I2C data) near the 328P chip on the Promini must connect all the way through the screw terminal board and through the white Dupont wires to the SDA post on the RTC 4)A5 (I2C clock) beside A4 on the Promini must connect through through the yellow Dupont wire to the SCL header pin on the RTC .
For ‘single-wire’ connections under the screw terminal with those thin dupont wires, strip enough insulation that you can ‘fold-back’ some extra wire to give the terminal more wire to bite onto.
You occasionally get a bad Dupont wire where the silver metal end is not in contact with the copper wire inside because the crimp ‘wings’ folded over plastic insulation. With a pair of tweezers, you can ‘gently’ lift the little plastic tab on the black shroud holding the female Dupont ends in place, and then replace any single bad wire. Be careful not to break the little black tab or you will have to replace the entire shroud.
Also look at the little jumpers used to bridge the A4>A2 and A5>A3. If you have a ‘cold’ solder join, or an accidental bridge connection to something else, it could stop the bus from working. Remelt each connection point one at a time, holding the iron long enough to make sure the solder melts into a nice ‘liquid flow’ shape for each solder point.
A note about I2C sensors: The I²C bus is slow, so topology (star, daisy-chain, etc.) doesn’t matter much, but capacitance does. Length and number of devices increase capacitance. If you find that the devices work when you switch to a slower speed (e.g. 50 kHz), then this is probably your issue, and you need to minimise bus length and/or maybe decrease the combined resistance of the pull-ups to 2 kΩ or less. The DS3231 RTC module has 4k7 ohm pull-up resistors on the SDA & SCL lines & the Pro Mini adds internal 50k pull ups when the wire library is enabled. Typical I2C sensor modules usually add another 10k so your ‘net pullup resistance’ on the I2C bus wires is usually: 50k // 4k7 // 10k = ~3k. With a 3.3v rail that means the devices draw 3.3v / 3k = 1 mA during communication which is fairly normal( 3mA is max) for total wire lengths below 1m. It’s common for pre-packaged sensors to arrive with housings at the end of about 1m of wire. If each sensor also adds another set of 10k pullups, the resistance generally compensates for the extra wire length, so the combination still works OK. But that depends on the cable too. A very bad cable might not even get to 0.5 meters and a very good cable (little capacitance to ground, no crosstalk between the wires) can go up to 6 meters.
The connection diagnosis procedures described above also apply to the connections for the SD adapter board. Sometimes you end up with an adapter that has a defective spring contact inside the SD module, but the only way to figure that out is to swap it with another one.
Here a jumper wire from the Promini pins is by-passing a bad connection. This is also how you would break out A6 & A7 connections if you need them.
Sometimes those screw terminal boards have a a poor connection inside the black female headers below the Promini. It’s also possible to accidentally over-tighten a terminal and ‘crack’ the solder connection below the board – or there may simply be a cold solder joint on one of the terminal posts. If you have only one bad connection, you can jumper from the Promini header pins on top, down to the other wires under the corresponding screw terminal. If you accidentally strip the threads on a screw terminal, you can use this same approach but move that set of wires over to one of the three ‘unused’ screw terminals at the far end of the board. (beside the SD card adapter) If you’ve gotten through all of the above steps and still have not fixed the problem, then it might be time to simply rebuild the logger with a different screw terminal adapter board.
Also note: The environment is written in Java, and the IDE installer comes with its own bundled Java runtime, so there should be no need for an extra Java installation. However we have seen machines in the past which would not compile working code due until Java was updated on those machines; but this problem is rare. More likely some permission limitation meant that you’ve ended up installing the IDE in a directory other than the default, and now it can’t find its libraries.
Addendum 2020-02-02: Refining the build
The ‘solderless’ classroom build includes a breadboard for flexibility, but if you are building a logger for a single sensor application you can leave out the breadboard, and add some under board jumpers to avoid those finicky multi-wire bundles:
Using the tined leg of a resistor to add some under-board connections to give you more 3.3v & GND attachment points. Clean any residual solder flux thoroughly!
To repurpose those screw terminals, leave the corresponding pins un-soldered so they can be removed.
Here, we are repurposing the TX, RX, & RST terminals as GND connections. DO not repurpose TX & RX if you need serial comms with NEMA sensors like GPS.
Use a Black marker to label the repurposed GND points. NOTE: The GND-labeled terminals can not be repurposedbecause they are bridged via the back plane of the screw terminal board itself.
Label the connections with red. NOTE: ONLY join the Vraw & Vcc like this if you have removed the regulator. If you are keeping the reg. in your build then Vraw must remain separate, & you can only repurpose the reset pin for one extra 3.3v rail.
In a no-regulator build, you now have three (+)ive rail connections. This is handy if you accidentally strip one of the terminals by over-tightening.
Adding header pins to the RTC module’s cascade port provides a more convenient attachment point for I2C sensors, and removing the breadboard leaves room for a desiccant pack:
Example of a typical “dedicated sensor” build without the breadboard, and with the under-board jumpers to provide extra (+)ive & GND terminals. This photo also shows a mosfet controlling the SD ground line, and a thermistor is tucked under the Promini board – but it’s probably better to tackle those additions when you have a few successful logger builds under your belt.
‘Single shroud’ 40-wire 20cm FF Dupont cables are ~$1 each – 1/3 the cost of the ones without housings.
We deliberately put students through the creation of custom sized Dupont connectors because it’s a useful thing to know about, however single shroud wires also work on the RTC and SD module because you are using the double sided tape to hold everything in place. I also tend to use RAW diffused LEDs as indicators, and simply light the individual channels with INPUT_PULLUP mode which uses the internal pullup resistor to limit current. However a single mistaken OUTPUT-HIGH can kill your Arduino if your not careful with that approach. I also leave one of my battery leads long enough that I can tap in to that line & measure sleep currents later on with a Current Ranger.
MCP1702-3302E/TO dead-bug hanging off a Deans style T-plug connector.
The unit pictured above has had its regulator removed so it can run more efficiently on 2x AA lithium batteries. But if you later find out that your sensors need strict voltage regulation, you can always replace the battery holder with a 4xAA, and add a regulator in-line on a battery connector. In the photo (right) two ceramic 105’s stabilize the MCP1700, while a 10/3.3M ohm divider provides a third output line so the ADC can monitor the raw battery status. This is the simplest way to retro-fit a regulator onto a unit that was built without one.
You occasionally get a plano box where the plastic ridges of the housing don’t mate well with the red rubber o-ring. In those cases it’s relatively easy to pull the o-ring out of its groove in the lid, and add some gasket compound to the recessed trough before carefully putting the o-ring back in. The additional height then compensates for casting error in the housings, though don’t add to much or you won’t be able to close the lid. One positive aspect of the relatively loose fit on that lid is that it lets you run prototype tests quickly if you jumper to your sensor module with thin 28-30 gauge wires:
This is a BMP280 pressure sensing module. Wires must extend beyond the edge
~1″ square of foam mounting tape with wires spaced evenly
Leave the red backing facing up as you fold the tape & wires over the corner edge.
The front corners of the box exert less pressure than the back
The sharp inner edge of the lid would cut the wires insulation if the tape was not there to protect
The tape has to be replaced every time.
This gives you a chance to do overnight run tests before you commit to modifying the housing with holes, putty, or pass-throughs with cable glands. And for indoor sensor deployments this might be all you actually need to do, though I would still coat the exposed solder joints on that dangling breakout module with either conformal coating or clear nail polish to prevent oxidation.
Addendum 2020-07-29: Better moisture protection
I was noodling around in the garden recently and installed a few loggers without desiccants because it was only a short experiment. It rained immediately afterward and I noticed a small amount of moisture condensed inside the plano-box housing. While this didn’t prevent the logger from functioning, it completely disrupted the LED light sensors because it provided an alternate discharge path for the reverse bias charge:
Green channel data from a 5mm diffused RGB LED used as light level sensor. This logger was under some leaf cover, so there was considerable variability from the dappled light crossing over the sensor. An arbitrary cutoff of 200,000 was set in the code at low light levels.
After examining the O-ring I decided to add a little silicone to the channel holding the red o-ring to improve the seal:
Gently pry the O-ring loose and apply sealant in the groove before replacing.
Bead only needs to be 3-4mm in diameter.
Close the housing & let the sealant set for a few days. The improved seal is especially visible at the corners
If you already have your logger assembled, try to find a silicone sealant that does not off-gas acetic acid (smells like vinegar) which could harm your circuits. If you are simply preparing empty boxes before assembly, then any regular bathroom sealant will do provided you give it about a week to finish curing.
Addendum 2020-05-11: Using a more advanced processor
After you’ve built a few ProMini based loggers, you might want to try a processor upgrade. The 1284p CPU has twice the speed & 4x the memory, but still delivers comparable sleep current / longevity.
Note:An updated tutorial was released in 2020:CLICK THIS LINK to view that version
“Instrumentation is a central facet of student, amateur and professional participation in science. STEM education, recruitment of scientists and experimental research are thus all hampered by lack of access to appropriate scientific hardware. Access restrictions occur because of: 1) lack of capital to purchase or maintain high-cost equipment, and/or 2) the nature of proprietary ‘black box’ instrumentation, which cannot be fully inspected, understood or customised…
…In addition to reducing opportunities for people to engage with science, this lack of access to appropriate hardware restricts scientist’s creativity in experimental designs.”
Last year’s intense deployment schedule focused on getting more sensors into the field, which left little time for development of new approaches to the logger itself. Now that everything is settling into the school term routine, it’s time to update the “classroom edition” of the Cave Pearl Logger with feedback from three years in the trenches:
The 2016 build achieved it’s goal reducing construction time, but it was low on important skills like soldering. Limited lab time meant that something had to give if we want students to “pay the iron price” for their data, so we’ve added a pre-made enclosure box. Though it’s not as robust as the PVC housings, it provides more room inside the housing. Past student projects have required things like 555’s, ADS1115 modules, display screens, etc. and the proto-board will make it easier to integrate those additional components.
3×1.5V AAA Battery Batteries Holder w Wire Leads The Pro Mini regulator will handle battery packs holding from 3 to 8 AA or AAA batteries. If you are using alkaline AAA batteries, changing this to a 4xAA battery holder doubles the run time.
Donation to Arduino.cc If you don’t use a ‘real’ Pro Mini from Sparkfun to build your logger, you should at least consider sending a buck or two back to the mothership to keep the open source hardware movement going…so more cool stuff like this can happen!
$1.00
Comment: You might need some extra parts to get started: (not included in the total above)
This logger uses the same three components described in the paper from 2018, but we now connect those core modules via a screw-terminal expansion shield, rather than soldering them directly to the pins: COMPONENT PREPARATION
Watch through the videos as a complete set first so you know where you are going, and then use the images below the videos to remind you of the key steps while you do the assembly; It usually goes much faster working from a photo where you can see all the connections at once. The times listed are estimates for people with soldering experience. If you’ve never built a circuit before, then taking 3-4x that long is completely normal. Don’t worry about it – you will be surprised how much faster you get with a little practice!
Screw Terminal board: (~40min) or ( 5min with pre-assembled board)
Don’t forget to measure the values of the resistors before soldering that voltage divider. You will need those values to calculate the battery voltage based on the ADC readings from pin A6.
These screw terminal boards are designed for an Arduino Nano, but if you orient the board to the Tx/Rx pins, the labels on digital side of the shield will be correctly aligned with the Pro Mini:
The most common beginner errors at this stage are crooked headers & not heating the pad/pins long enough for solder to flow properly. This is often because students are trying to use an iron tip that has “gone dry” so the heat is not transferring properly to the pins. You must protect soldering iron tips with fresh solder every time you put it in the stand to prevent oxidation. Tip Tinner can sometimes restore those burnt tips. {Click images for larger versions}
Common soldering errors – which are easily fixed by re-heating with more solder & flux.
Divider runs between GND & RAW Vin, with output to A6 pin.
Always apply conformal coating in a well ventilated space, such as a fume hood.
It is better to err on the side of using a little too much heat, because partial connections to the screw terminals will cause you no end of debugging grief later: Cold solder joins can “sort of” work “sometimes”, but cause mysterious voltage drops over those points because they can act like randomly variable resistors in your circuit. Note: This voltage divider uses meg-Ω size resistors and takes >1 second to charge the capacitor when the unit is first powered on – so you can’t take the first battery reading until that much time has passed.
The Pro Mini Board: (~40 min)
~5-10% of the cheap Pro Mini clones from eBay are flaky, and it is quite annoying to discover one of those that after you have assembled a logger. So test your board with the blink sketch before you remove pin13 LED resistor. These limit resistors move around from one manufacturer to the next, so you might have to go hunting for them on your particular board. You also need to remove the RESET switch from the board, or that button will be compressed when you put the SD card adapter in place:
Test w blink sketch!
You can skip the reset pins at this stage, or you can pull those pins out of the plastic rails later with pliers, or simply cut them off.
SCL & SDA jumpers to the 2 extra pins on the digital side.
Connect A6-7 & GND to analog side pins with the leg of a scrap resistor.
(Note: Credit goes to Brian Davis for the idea of using “extra header pins” when patching to the unused to screw terminals.)
The SD Card Adapter: (~15 min)
This SD card adapter comes with small surface mount pull-up resistors on the MOSI, MISO & SCK (clock) lines(removed from the dashed red line area photo 2 below). The Arduino SDfat library uses SPI mode 0 communication, which sets the SCK line low when the logger is sleeping. This would cause a constant drain (~0.33mA)through the 10k SCK pullup on the module if we did not remove it. I prefer to pull MOSI & MISO high using the internal pull-ups on the Atmel328P processor, so those physical resistors on the breakout board can also be removed. Leave the top-most resistor of the four in place to pull up the unused DAT1 & DAT2 lines. This keeps those unused pins on the SD card from floating, which can draw excess current.
Attach SD adapter & Pro mini to the Screw Terminal Board: (~20 min)
Label the Vcc & GND connections with a colored marker, then insert the Pro Mini into the headers on the screw-terminal shield. Be careful not to bend the pins – especially the “extension” pins at the back of the board. It’s easy to connect the board in the wrong orientation at this step. The voltage divider on the bottom of the screw terminal shield aligns with the ANALOG side of the Promini board.
Label the Vcc & GND connections.
Then affix the SD adapter board to the top of the Pro Mini with a slight overhang, so that the jumper wires align with the screw terminals below. Trim the wires about 1cm past the edge of the board to provide enough stripped wire for the terminal connection.
The limit resistor for the common cathode RGB can range from 4k7 to > 30kΩ
LED on pins D4-D6, & GND. NOTE:Grounding the LED through D3lets you use the LED as a sensorand support for this is included in the base code. Also see: multiplexing wD9 GND
Add layers until the tape extends beyond the pins. This might require 3 layers of tape.
The RTC Module: (~15min)
The simplest modification to these DS3231 RTC boards is to remove the charging circuit resistor and power LED limit resistor from the circuit board (the red squares in the first picture). A non-rechargeable CR2032 coin cell battery will supply the RTC with power for many years of operation.Note: The 32K pin is not connected, and does not get a jumper wire. The four screw terminals go on the same side as the battery holder.
An alternative to the 4-pin 0.1” screw-terminal block is to solder the I2C pass-through wires directly to the module.
Cutting the RTCs Vcc pin reduces sleep current by ~40% – this step is completely OPTIONAL!
Add an extra layer of foam tape over the smaller 4K eeprom chip, so that the thickness matches the top surface of the DS3231 chip. The RTC board already has 4.7kΩ pull-ups on the SDA (data) and SCL (clock) lines so you will not need to add them to the bus. This module also has a 4.7k pull-up on the SQW alarm line. Adding the screw terminals to the small cascade port on the RTC module is another creative idea from Brian D, but you could just add straight pin headers: If you don’t want to make your own crimp ends, 4-pin JST XH series connectors have a pitch of 2.5 mm which is effectively identical to the 0.1″ pitch of those Dupont pins.
The Plano Stowaway housing: (~10 min)
In these photos, I’ve melted threads into the housing for a pass-through with a cable gland, but that is entirely optional. This trick works with many different housing materials, but it takes a bit of practice to figure out what the right temperature is for any given one. The plastic in the plano boxes melts quite easily, so be gentle with the heat gun. Glands much larger than PG7 (12mm) will not fit in the available space in that corner.
These two cable glands have matching thread specifications
Heat only the threads from the metal cable gland with your heat-shrink gun & a pair of pliers
Gently twist the threads into the plastic of the Plano-box & as soon as it’s through blow on the metal until it completely cools
After cooling, unscrew the metal threads
Cut away excess plastic burs with a sharp knife and thread the plastic cable gland into place.
You may need two washers due to the curvature of the box. The cable gland shown above is an M12 x 1.5 IP68 for 3-6mm dia. cables (also desc. as PG7 12mm)
Strategically placed holes in the clips provide zip-tie locations to secure your logger.
Holes for Zip-tie securing
ASSEMBLING THE LOGGER PLATFORM: (~30 min)
Using double sided tape to hold the parts inside the housing (rather than traditional stand-offs) makes this stage of the build remarkably quick. Adding male Dupont pins allows you to join internal and external wires via the breadboard. Be sure to use wires that are long enough to reach the mini breadboard.
Bowing on some boxes can reduce the contact patch on the battery holder, if so try adding another layer of tape, or upgrade to 30LB.
You can “reactivate” spent desiccant packs with a few zaps in the microwave – if they have indicator beads.
Connecting external sensors to the housing:
It’s worth mentioning the breadboard contacts are notoriously sensitive to vibration, etc. Once your testing stage is complete, and your prototype is working as it should, bring those sensor wires directly over to the screw terminal connections for a more secure connection. Also remember to put protective tape over any sensor ports that need to remain open before potting those sensor boards in epoxy. Otherwise you might clog the sensor by accidentally letting a drop fall into it.
Your Logger is ready! (~2 to 2.5 hours)
Now you can test your new logger to confirm all the connections are working:
1. Test the LED – Edit & upload the default blink sketch, changing the pin numbers each time to match your RGB LED connections.
2. Scan the I2C bus – with the scanner from the Arduino playgound. The eeprom on the RTC module is at address 0x56 or 57 and the DS3231 should show up at address 0x68. If you don’t see those two devices when you run the scan, there is something wrong with your RTC or the way it’s connected.
3. Test the EEprom on the RTC module – We’ve updated BroHogan’s original code from the playground to this tester script. You may have to change the I2C address at the start of the code based on the numbers shown during your I2C bus scan. The AT24C32 will store 4Kbytes, and has a 32-byte Page Write mode which accommodates the maximum of 30 bytes you can transport the wire libraries I2C coms buffer. Make sure you don’t do eeprom page-writes that pass over the physical page boundaries set by that eeproms 32 byte block size. If you are ready for the added code complexity, buffering data to the eeprom can dramatically cut down on the number of SD card saves, however the eeprom communications are so slow that sometimes it ends up using the same amount of power as simply writing your data directly to the SD card directly.
An alternative parts arrangement for the classroom logger that makes room for a larger 4xAAA battery holder and DUPONT style connectors. It’s easy to move things around to suit your own projects, and rotating the breadboard gives you room for larger battery holders & longer operating times. Note: For most 1.5V alkaline batteries, (voltage-1)*200 will give you the approximate percentage of total capacity remaining.
4. Set the RTC time, and check that the time was set – There are dozens of good Arduino libraries you could use to control the DS3231, and there is a script over at TronixLabs.com that lets you set the clock without a library. The trick with Tronix’s “manual” method is to change the parameters in setDS3231time(second, minute, hour, dayOfWeek, dayOfMonth, month, year); to about 1-2 minutes before the actual time, and then wait to upload that code till about 10-15 seconds before your computers clock reaches that time (to compensate for the compiler delay). Open the serial window immediately after the upload finishes, and when you see the time being displayed, upload the examples>blink sketch to remove the clock setting program from memory – otherwise it will keep resetting the RTC every time the Arduino re-starts. [ Note: hour in 24-hour time, & year with two digits eg: setDS3231time(30,42,21,4,26,11,14); ]
5. Check the SD card is working with Cardinfo – Changing chipSelect = 4; to chipSelect = 10;
Note that this logger requires the SD card to be formatted as fat16, so most 4GB or larger High Density cards will not work. Most loggers only generate 5 Kb of data per year anyway.
These breadboard connections are really vulnerable to vibration, so for quick back-yard tests of a rough prototype I sometimes add a tiny spot of hot-melt glue to stabilize the components. Breadboards add about 2-4pF of capacitance for side by side rows so the rule of thumb is you shouldn’t run protoboard circuits much faster than 1 MHz.
6. Check the sleep current – With an SD card inserted in the logger, upload this Pro Mini datalogger starter scriptwith no changes (note: that code requires you to install three libraries as well). Then connect an ammeter between the positive battery connection and the Vin screw terminal (you will need an extra wire to do this) and run the logger from the AAA or AA battery pack. After the initialization sequence has finished, the reading on the screen (in milliamps) is your loggers sleep current.
AAA cells usually provide about 1000 milliamp-hours of power to their rated 0.8v, but we are only using half of that from alkaline batteries with a regulator input cutoff up at 3.6v. So dividing 500 by your loggers sleep current gives you a rough estimate of your loggers operating life (in hours). For a more accurate estimate, you can use one of the Battery Life Calculators on the web with 250ms @5mA for your sample time. Changing the power supply to 4xAAA cells lets you bring alkalines down to 0.9v/cell, extracting almost the entire 1000 mAh. Lithium AAAs deliver almost their entire capacity above 1.2v/cell so 3xAAA lithiums yield almost 1000 mAh capacity even with the 3.6v input cut-off.
Thermal response of 3x AAA’s(mV left axis) vs Temp (°C right axis) in the standard voltage-regulated classroom build running the starter code from Github. The 90mv drops caused by SD card “controller housekeeping events” at 20°C increase to ~220mV as temps near -15°C. These periodic high drain (100-200mA) events would likely trigger the low-voltage shutdown before anything else in the loggers normal duty cycle. (Note: Battery readings taken AFTER SD save, Sample interval: 1 min, sleep current for this test unit: 0.22mA )
Its worth noting that the starter program we’ve provided captures an ambient temperature record from the RTC in 0.25°C increments (example right). New sensor readings can be added to the log file by inserting: file.print(YourSensorVariableName); followed by a separator file.print(“,”); in the main loop before you close the datafile on the SD card. Then change the text in the dataCollumnLabels[] declaration to add headers to match your new data. This starter script automatically generates required data files on the SD card at startup, and tracks the rail voltage for those adventurous enough to run without a regulator. SD memory is electrically more complex than the Pro Mini processor, with some using a 32 bit arm core.
Once you have your logger running, you might want to review our tutorial on adding sensors to your data logger. And after that you’ll find a few more advanced I2C sensor guides on this site as well (…and the list is constantlygrowing) We’ve also developed methods to add 5110 LCD & OLED screens to the Cave Pearl Loggers using the fewest system resources. These screens are easily accommodated on the proto-board in this build.
For people wanting to take their skills farther, you can explore the gritty details of how we optimize these loggers for multi-year deployments in the 2018 Sensors article(free to download). The research loggers are a more challenging build, that fits inside an underwater housing made from PVC pipe.
Addendum: Power Management (Optional)
On the standard build described above, the Pro-Mini’s MIC5205 power regulator should deliver sleep currents below 0.25 mA (Pro Mini ~0.05 mA + sleeping SDcard ~0.05-0.09 mA + RTC ~0.09 mA). That should reach several months operation on 3 AAA cells before the batteries reach the regulators 3.4v input cut-off. I usually have regulated loggers go into shutdown mode at ~3.6v to reduce the chance of leaks, because alkaline batteries often spill their guts when they reach 1v/cell.
There are a couple of relatively simple modifications to the basic logger that more than double the operational time – but they both come with important implications you should understand fully before adding them to your project. The RTC mod is relatively safe, but running a datalogger from a raw battery supply is not for the faint of heart.
1) Cutting the VCC leg on the DS3231 chip forces the RTC to run from the coin-cell. >Set Bit 6 of CONTROL_REG 0x0E to enable wake alarms from the backup battery!
2) Remove the regulator: few LDO’s have reverse current protection & most regs leach 30-90 uA if the voltage on output line is higher than on their input
2) Then connect the positive wire from a 2X LITHIUM AA battery pack directly to the Vcc rail on the Pro Mini
The DS3231 RTC was designed to handle power supply failures by switching over to the backup coin-cell battery, and it enters a special 3uA “timekeeping mode” to use less power in that situation. However the chip is still fully capable of generating alarms (provided you set the Battery-Backed Square-Wave Enable bit of CONTROL_REG 0x0E to 1) , and of responding to the I2C bus at 400 mHz. So if you cut the main power leg on the RTC you reduce the loggers sleep current by almost 0.1mA (~40%). The trade-off is that your loggers operation is now entirely dependent on the 200mAh CR2032 coincell to keep the clock delivering wake-up alarms when you are also asking it to deal withpulsed loads in the 80 uA range every time you communicate over the I2C bus. The RTC also can not generate temp-corrected frequency outputs on the 32kHz pin when operating from the coin cell.
Here drops of hot glue secure the RTC coin cell battery against accidental resets. It’s worth noting that even with this precaution, we still see 1-2 units out of 10 loose their time when they have to be transported in airline luggage.
Another quid pro quo here is that coin-cell holders occasionally lose contact very briefly under vibration, so if you cut the Vcc input leg – add a 0.1 μF capacitor(ceramic 104) across the coin-cell holder pins. That will give you about 80 ms coverage, which should be longer than the holder will lose contact. Otherwisea hard bumpcanreset the RTC back to its Jan 01 2000 default. The wake-up alarms usually continue after that kind of reset, however fixing an entire years worth of time series data based on your field notes is a pain in the backside. Real world installations often involve this kind of rough handling, so I prefer a more advanced RTC modification that keeps two power lines feeding the RTC. But for more “gentle” deployments, simply cutting the chip’s vcc leg & adding a couple of drops of hot glue OK. Write the installation date on the coin cell with a black marker. I do this to all of my batteries now…
For loads in the 0.1mA range, the MIC5205 is less than 60% efficient. So the other modification is to remove the voltage regulator and run the entire system from 2x LITHIUM AA batteries. Lithium batteries (like the Energizer L91) have two characteristics that make them well suited to this approach: 1) they have an extremely flat discharge curve, yielding >75% of their power before the voltage falls below 1.5v/cell on the lower plateau and 2) a pair of brand new lithium cells gives a combined voltage right at 3.6 volts. If you look at any of the SD card manufacturers’ specifications, they all specify a voltage range of 2.7v to 3.6v. At 8 MHz the ATmega328P processor on the ProMini supports voltage levels between 2.7 V and 5.5 V. Both of these ranges overlap beautifully with the lithium cell’s discharge curve. If you are using ratio-metric analog circuits then the voltage fluctuation over time will not affect your readings, but if you need absolute measurements then use the internal voltage reference as Aref. Digital sensor levels are based on a percentage of Vcc, so they are relatively insensitive to voltage variations.
Here I’ve done both modifications to the basic build, and brought the sleep current (with no sensors) from an unmodified starting point of 228μA, down to 80μA. Most of that remaining power is due to the sleeping SD card, since the Pro Mini only draws about 5μA in deep sleep mode. Using only 1/2 of the 3000 mAh capacity of a typical AA Lithium pack would keep a logger that sleeps at 0.1mA alive for more than a year, and my rough estimate is that the RTC mod will get you at least twice that much time from a new Cr2032 cell – with a typical 5-15 minute sampling interval.[NOTE: I’m using an EEVblog uCurrent here to display the μA sleep current on a DVM as milivolts. It’s an exceedingly useful tool that lets you read sleep currents into the nano-amp range without adding the burden voltage you’d see from putting your meter directly into the circuit ]
Even with one less cell powering the system, getting rid of the MIC5205 yields a 25-30% reduction in sleep current for a typical build. While this is very close to the reduction you get from changing to a more efficient regulator like the MCP1702, the other cool thing about this mod is that the processor on the Pro Mini can take a reading of it’s rail voltage by comparing it to the 1.1v internal band-gap reference. So all you need is a little bit of code, and you can keep track of your rail=battery level without a voltage divider, although for accuracy you should take a reading of the actual band-gap voltage using a utility like the CalVref sketch from openenergymonitor.
(NOTE: that Atmel provides no specs on the long term stability of the bandgap ref. and even OpenEnergy no longer uses the internal 1.1vref because v.regulators offer more long-term stability. ALSO NOTE that genuine Sparkfun ProMini’s have an SJ1 jumper that lets you disconnect the reg simply by de-soldering a pad on top of the board , but clones rarely have that feature.)
Unlike alkaline batteries, lithium cells have very little voltage droop with brief loads below 100mA, but it’s still a good idea to protect your SD card from potentially data corrupting brief low voltage spikes with a capacitor. The formula for figuring out how much the voltage across a capacitor will drop is ΔV = current(A)*time(sec)/C(farads) – but you need to decide how much your supply can drop to know how big to make the capacitor.
Adding a 47uF(or larger) on the microSD rails should keep the shortest transients under control, and once the system reg. has been removed running a jumper between Vcc & Raw recruits the orphan (10uF tantalum) capacitor from the input side of the (now removed) regulator. Always check the supply voltage before the data saving begins and perform a low voltage shutdown when the lithium pack reaches 2875mv. (ie: at least 150mv above the SD’s 2.7v safe writing minimum). Generate a new data file every couple of weeks so only the last one is vulnerable during the write process.
2x LITHIUM AA’s(mV left axis) vs Temp (°C right axis)supplying power to an unregulated build running the same code from Github. The key observation is that the initial 50mv supply voltage variation recorded at 22°C increases ~100mV at temps near -15°C. For Lithium chemistry batteries with flat discharge curves, the voltage-drop under load is often a better indicator of the remaining battery capacity than the cell voltage. (Readings taken AFTER SD CARD SAVE, Sampling every 1 min, overall sleep current 0.17mA Note: the 200mv baseline drop on the cells is slightly exaggerated here because low temps increase the bandgap slightly)
Of course everything has a price, and removing the regulator means you’ve not only lost your reverse voltage protection – you also need to think about how all the components in your system will respond to a decreasing supply voltage over time. Ratiometric analog circuits using the rail as Aref handle this well, but even if you want to use the 1.1v bandgap ref – you already know what the rail voltage is, so you can easily throw a compensation factor into the calculation. The real problem is that when 2.7 – 3.6v is listed on the spec sheet for a digital sensor – that’s no guarantee the readings will be consistent when the supply voltage changes. You could have very different error percentages at the high & low end and ambient temperature fluctuations could push your batteries through significant voltage changes every single day (lithium cells are more resistant to this than alkaline). According to Murata the 8Mhz system clock will remain stable: “Unlike RC or LC circuits, ceramic resonators use mechanical resonance. This means it is not basically affected by external circuits or by the fluctuation of the supply voltage.”
Testing is the only way to find out if your sensors can handle the variation, and if you don’t have time for that it might be worth keeping that voltage regulator on board despite the reduced lifespan. For field units, I usually replace the MIC5205 with a more efficient MCP1700 regulator because I want all the data consistency I can get. Another thing to keep in mind when you are hoping for a really low-power build is leakage currents through leftover flux – it’s always worth the time to get your parts squeaky-clean during construction.
Addendum 2019-02-21:
A teacher friend asked us for a version that was less dependent on soldering because they didn’t have the budget for a classroom set of soldering stations. So we’ve worked out a 1 hour “simplified build” of this logger that uses crimped Dupont jumpers to reduce assembly time:
We’ve also added support to the starter code for using the indicator LED as a light sensor, but this requires that you ground the indicator LED’s common cathode through a digital pin (usually D3) , rather than directly to GND as shown in the tutorial above. Also note that the technique relies on the very tiny internal capacitance inside the LED (typically 10 to 15 pF) so you need to connect the LED right to the screw terminals (ie not the breadboard). Then you can gather three-channel light level data like this:
Readings from an RGB LED deployed outside in our back yard on an overcast day with two light snow fall events. The yellow line is from an LDR sensor in the same logger that was over-sampled to 16-bit. In this case the clouds & snow acted as a near perfect light diffuser, but in normal weather I’d have placed a thin white teflon sheet over the LED sensor to smooth out the readings. Adding an IR led to the logger lets you create a transmission-based NDVI variant that discriminates the amount of chlorophyll in plant leaves.
These readings are arbitrary time-based units that are completely dependent on your particular hardware combination and system voltage. If you go down the DIY sensor rabbit-hole, you might want to calibrate against the NOAA observations for your area, which includes hourly data for thousands of stations. The data includes temperature, dew point (from which you can compute relative humidity), wind speed & direction, and you can calculate solar position.
Addendum 2020-08-18:
We’ve found that the seal on some of the Plano boxes needs a little help, or current leakage via surface moisture shorts out the LED light sensor readings. In the worst cases leakage lets in enough water vapour to chew through your desiccant pack in less than a week. A little bead of silicone under the o-ring corrects that problem:
Gently pry the O-ring loose so we can add some sealant.
Bead only needs to be 3-4mm in diameter.
Close the housing & let the sealant set for a few days. The improved seal is especially visible at the corners
If you already have your logger assembled, try to find a better quality silicone sealant that does not off-gas acetic acid (smells like vinegar) which could harm the circuits. If you are preparing empty boxes before the logger assembly, then any regular bathroom sealant will do provided you give it about a week to finish curing. I usually choose silicone rated for outdoor applications as they have better resistance to breakdown from UV exposure.
Underwater Arduino Data Loggers
