Field Report 2016-03-27: Progress on the 1-Wire DS18B20 Temperature Strings

Happy to report the successful deployment of three more temperature strings:



and I think it’s fair to say the first two protoypes have almost run their course:

Logger/Sensors Time/Max.Depth Comment
#45  (19 x 25cm)
[1st build]		 201503-08
(14m)		 Full data from Temp chain, Qsil problem on pressure sensor
         (19 x 25cm) 201508-12
(6m)		 Wire break on 1st segment before deployment: total read failure on temps, pressure data OK
         (11 x 25cm) 201512-1603
(7m)		 Full record including pressure. Segment wire broke during retrieval. Brought home for refurb.
#46  (20 x 50cm)
[2nd build]		 201503-08
(16m)		 Full temp record. Pressure record problem.
         (20 x 50cm) 201508-12
(24m)		 Full temp record. Pressure OK after Qsil removed.
        (9 x 50cm) 201512-1603
(24m)		 3rd segment wire break during deployment dive. Nine sensors report OK for duration. Pressure OK. Failed segment removed & unit re-deployed.
#78  (24 x 100cm)
[3rd]		 201512-1603
(16m)		 Complete data record. Unit redeployed.
#79  (24 x 25cm,  & 10m extension)
[4th]
 201512-1603
(16m)		 Wire break during deployment dive. Full logs saved but no data. Failed segment removed & unit re-deployed w 18 nodes
These internal wire failures did not compromise the integrity of the outer jacket.

Fortunately none of these internal wire failures compromised the integrity of the outer jacket. These are only 7-strand wires, and I will be hunting for more flexible 19 strand replacements.

While it’s hard to see all that work deliver only a few successful deployments, I’m happy to note the failures were all at physical pinch points in the cable, with no other apparent problems on the housings or electronics.  And even when the wires break, the logger itself keeps chugging along: saving logs full of 1360 & -1 read errors.  Sensor problems like this often take a whole logger down, but the MS5803’s delivered data through every deployment, so failures on the one wire bus seem to be isolated from the rest of the sensors on the logger.

RIMG8849

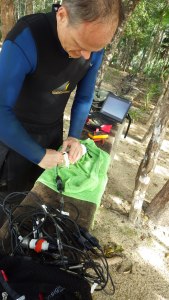

Though it was always part of the plan, actually pulling off segment swaps in real time was pretty cool…

For existing builds, I reenforced the weak points with mastic tape

For the units in the field, I’ve re-enforced the weak points with mastic tape & cable ties to limit bending.

This is good news for me because physical problems are generally the easiest ones to fix…

Up to this point I’ve been using soft silicone jacket cable which is lovely to work with, but I will have to build the next set from sterner stuff.

Of course that means we might have to develop a new set of deployment procedures,  because handling 24m of stiff cable could be a challenge.  These deployments have already been some of the toughest dives on the project, especially when you get into the low-visibility hydrogen sulfide soup that Trish is so fond of…



The second generation builds also used less power than the first:

Much better power performance on the second generation of temp strings.

The battery curve is still a bit crunchy, but it looks like it might settle to about 100 mV drop per month at a 15 minute interval on 2x3AA’s.  That’s nearly the same as the first two loggers which had twice as many cells.  One of the things you notice about cheap DS18b20’s from ebay, is that they can draw dramatically different sleep currents.  This may be compounded by the fairly aggressive 2k2 pullup I use on the bus.



Spotted in Tulum:

Neighbours

Just finding a problem doesn’t always tell you how to fix it…
